General
sales conditions : used machines are offered and sold on as is where
is basis, unless otherwise specified. All warranty claims are excluded. The
Buyer is welcome to inspect the machine before confirming purchase. We give our
clients our full availability to help them find spare parts, ancillary
equipment related to the machines we sell and technical support on separate agreement. We are in contact with
major constructors to offer our
co-operation as post sale assistance. For disconnected machines, which
cannot be seen running, we are prepared
to offer a post-sale service by sending qualified technicians on site who will
connect and start them up, upon
separate agreement. Prepayment by bank
transfer is always requested,
unless different conditions have been previously agreed upon. Machines are usually sold
dismantled and loaded on truck, on FOT
basis, unless otherwise
specified.
RECYCLING
Nr.GE200 Please click
following photo links: ͺ ͺ
ͺ
TECNOVA PLASTIC
RECYCLING PLANT ES 160, 54 L/D double degassing.
Reycling line
for plastic scraps with double
degassing, composed by : forced feeding funnel, Tecnova extruder 160 mm. screw
diam. L/D 54, double degassing system, two vacuum pumps kw. 7,5 each, bi-metallic cylinder, 315 Kw. engine with inverter, screen changer 250 mm. diam. with 4 breaks, FILTEC die face pelletizer ,
control board with ABB inverter, cooling
system, for PE PP PS ABS, construction year end 2005,
capacity : 900/1100 kg/hr depending on material.
Nr.LE107 Please click
following photo links: ͺ
PRT PLASTIC RECYCLING
LINE made with mm.65 extruder, 6 heating
areas, forced feeding unit, die face cutting, complete with degassing and
control board. Excellent conditions, it has been used by plastic manufacturer to recycle own production
scraps only.
Nr.BA156
OMP PREALPINA recycling line with mm.105, 35 L/D, Hp100, nitrided screw and barrel,
with degassing unit, screen changer mm.170 diam., hot die face pelletizer with
centrifuge and unloading cyclon, stainless steel tub with water re-using pump,
electrical cabinet for engine control,
thermoregulation and syncronized operation of extruder, screen changer,
pelletizer. This line has been completely refurbished and a sworn appraisal is provided for it.
Nr.BA157
FBM recycling line with 100 mm. extruder, nitrided screw and
barrel, degassing unit , grooved infeed, 140 Hp engine , screen changer for
mm.140 filters, hot die face pelletizer with centrifuge, unloading cyclon and
stainless steel water tub with water re-using pump. Electrical cabinet for
operating extruder, heating areas, pelletizer, screen changer. This line has been
completely refurbished and a sworn appraisal is provided for it.
Nr.BA158
TECNOVA recycling line with 105 mm.
extruder, nitrided steel screw and barrel, degassing, grooved infeed, Hp145
engine, screen changer for mm.160 filters, hot die face pelletizer with
centrifuge, unloading cyclon, stainless steel water tub with water re-using
pump. Electrical cabinet to control
extruder, heating areas, screen changer, pelletizer. This line has been completely
refurbished and a sworn appraisal is provided for it.
Nr.CI103 Please click
following photo links: ͺ ͺ
ͺ
ISVE plastic granulating/agglomerating plant, made of MB conveyor 1000x5000,
single shaft granulator mod. M40-100, 45, kw, 60 Hp, hopper, Agglomerator with
infeed width mm.1200, type 120, 200 Kw.,
unloading cyclon, collection funnel.
Nr.CI104 Please click
following photo links: ͺ ͺ ͺ
PROMECO shredder type
KR70, 2x30 Kw, 120 Amp total, output 600/800 kg/hr depending on materials, grid
holes 15 mm.diam. Construction year 2005, very good conditions.
Nr.ET100 Please click
following photo links: ͺ ͺ ͺ
PRT PLASTIC RECYCLING
LINE made of : 125 mm. extruder 36
L/D, 202 kw dc drive, forced feeding unit, vacuum pump for degassing, mm.160
hydraulic screen changer, die face
pelletizer, drying centrifuge, blower,
construction year 1996, output : around 600 kg/hr, depending on materials, can be seen running.
Nr.ET101 Please click
following photo links: ͺ ͺ ͺ
PRT PLASTIC RECYCLING
LINE made of : 125 mm. extruder 36
L/D, forced feeding unit, vacuum pump for degassing, hydraulic screen changer, die face pelletizer, drying
centrifuge, blower, construction year
1995, output : around 600 kg/hr, depending on materials, can be seen running.
Nr.ET102
PRT PLASTIC RECYCLING
LINE made of : 160 mm. extruder 37
L/D, forced feeding unit, vacuum pump for degassing, hydraulic screen changer, die face pelletizer, drying centrifuge, blower,
construction year 2003 output :
around 1200 kg/hr, depending on materials, can be seen running.
Nr.KS121 Please click following photo links: ͺ ͺ ͺ ͺ
ͺ ͺ
HDPE- PP WASHING PLANT, brand : PRT made of SATRIND shredder mm.1250x660, 22 kW, conveyor belt
mm.6000, MECCANOPLASTICA grinder mod.PLUS 1000, mm.1000x700, Hss Steel screw
conveyorp 150, 3 rotating + 2 still blades, conveyor belt mm.6000. COSTARELLI Stainless
steel dewatering screw conveyor, length mm.3000. Washing/separating tank with
drums driven by 3 inverters. Size mm.5500x2300. stainless steel horizontal drying centrifuge,
octagonal shape, 7Hp. BECCARIA 8 cubic meter storage mixing silo, conveyor feeding cerew mm.5000. Yhis line is complete with an extrusion
pelletizing line with mm.105 40 L/D
extruder (screw and barrel in very good conditions), vent, automatic screen
changer for mm.130 filters, hot die face pelletizer, water cooled, d.c.engine
117 kW, vibrating unit, vertical centrifuge, vibro-sifter. Total
installed power 205 kW, working 120 kW.
Output 380 kg/h depending on material. Granule pneumatic transport, bag filling
unit.
Nr.KS120 Please click following photo links: ͺ ͺ ͺ ͺ ͺ
ͺ
PLASTIC WASHING PLANT. Can be adapted for PET or PE,PP. Brand : PRT, Construction
year 2008, used very little. Made of :
loading belt mm.4000x700,
with 2,2 kw engine. Water mill mod.G100
L, 90 Kw, 3-phase, 1000x520 mm. with 3
rotating + 2 still knives. Rotor diam.
mm.750. Unloading funnel 998x700 mm. Height of
loading funnel mm.2400, control cabinet, n.2 stainless steel vertical
tanks mm.1000x400x500. with heavy stuff separators.
6 cubic meter
washing and separating bath with
extractor, complete with ladder and safety units. Horizontal centrifuge,
complete with unloading cochlea, vents,pipes, turbo-separating tub mod.TD130,
vertical centrifuge with unloading
cochlea, moving and connecting pump, conic separator with cochlea, horizontal
centrifuge, turning pre-cleaning unit
with transport cyclon, vent, complete with control panels for feeding, setting
and checking. This line is in excellent conditions because used for a limited
period of time.
Average output 700 kg/h with PET bottles. Material comes out very clean.
Cannnot be seen running because of lack of electrical supply in the
premises. Post-sale assistance available
for remounting and starting up.
Nr.KS100 Please click following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
PET COMPLETE WASHING PLANT - brand : GTC Ecoplants - construction year
2002 ( it has been working for 3 years only) Nominal power absorbtion : 270 kw.( when working :
30/40% less), composed of : loading belt with metal detector, mm.7000 x 650 mm.
x 40 mm h, 2,2 kw, MECCANOPLASTICA type 1000
grinder with 5 rotating blades + 4 still blades, 125 kw, friction washer
mod.400 TSFW, 22 kw, automatic basket cleaning system, extraction cochlea, kw.2,2, one first AISI 304 AMUT steel washing tub with bottom cochlea
and draining cochlea, 4 engines for moving material, one second AISI 304 AMUT
steel hot water washing tub, thermal insulation, 2 cochleas, horizontal spinning wheel mod.TSCO 500,
automatic basket cleaning system, kw 22, AISI 304 steel rotor, diam. 1200 vibro
sifter, kw 5,5, pneumatic transport
system, Kia separator, 8 cubic m. AISI304 steel
storage silo. Complete with waste water treatment system, control board,
air and water pipings (as used by previous owner) EEC certification. Output :
600 kg/hr. The plant is in very good conditions.
Nr.AK108 Please click following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
WEIMA WLK 1000 Shredder, for hard plastics, plastic film, floor carpets,
etc. Construction year 2009. Infeed
1000x1200 mm. Volume 1,3 m3, rotor diameter mm.368, n. 85 rpm, 75 kW engine, nr. 52 rotating blades, removable grid, can be started with full
chamber, alarm for non-shreddable parts,
adjustable opposite blades. Worked hours : 5139 . Weight
: kg.3500.Excellent conditions. It has been working with PS and PP non-woven rolls only. Loading conveyor belt,
in very good conditions, included.
Nr.BA150 Please click following photo links: ͺ
COSTARELLI AGGLOMERATOR D1300, 300 kw for PE-PS- PP scraps: steel
cylinder case with inspecting door, side opening panel for inspection
and blades substitution, switchboard,
oleo-dynamic power station 0,75 kw with electro-valve opening, hub
temperature control system, grease lubricated bearings, 0,4 kw ventilator for belt cooling with air
conveyor, belt cooling water system. Size : mm.1300 diam.3950
lengthx2280widthx4652 height. + Steel
unloading funnel complete with 180 mm diam. diagonal cochlea for
agglomerated material. Material unloading at 830 mm from ground. Lower opening
for cleaning operations, upper lid, two
inspection windows (one can be opened), internal protection grid, 1,1 kw
engine, electrical cabinet. Output
: 800 to 1200 kg./hr, depending on
material dampness. Dimensions : 1000 x 1500 mm. Machine
completely refurbished in 2010 with sworn appraisal.
If needed, the following new accessories are also available :
- HORIZONTAL
STORAGE CASED conveyor belt, for regrind
material, with loading endless screw, on steel structure, the case is
completely covered by steel top, 2,2 1
Kw motor, size 900x8000 mm.. New
machine up to CE security standards.

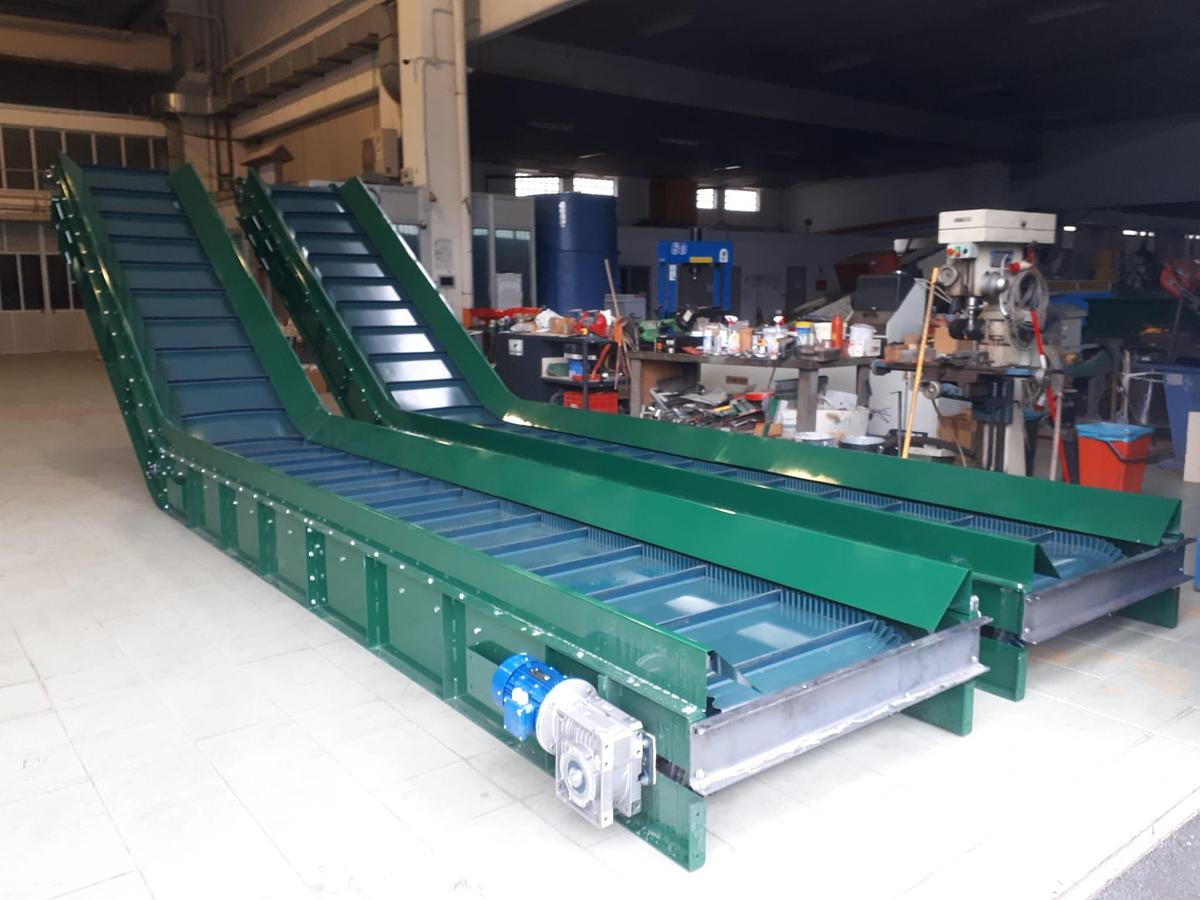

- LOADING
CONVEYOR BELT, with steel structure, diagonally set, steel sides and floor support. PVC belt,, 1,4
kw engine, size 900 x 7000 mm. New
machine up to CE security standards. .
- LOADING
ENDLESS SCREW for roto-screen, diam. mm.220, 1,5 Kw.engine. New machine up to CE security
standards.
- ROTO-SCREEN,
to sift agglomerated material and separate larger pieces. Machine constructed
completely in steel, Diam.600 mm.
perforated rotating basket, with 0,75 Kw. motor, inspection side doors for cleaning. Size 1500 length by 600
mm diameter. Holes diam. 4/5
mm.minimum. New machine
Nr.BA151 Please click following photo links: ͺ
FBM AGGLOMERATOR 800 , Hp 100, composed of :main electrical engine, upper steel cylinder, side door
for inspections and blades replacement,
grease lubricating system on bearings and hub, power electrical panel.
Hp100 main engine,Hp 2,0 steam sucker engine, barrel diameter mm.800, control switchboard. Motorized steel
unloading funnel with electrical
reductor, diagonal cochlea, upper cover, inner protection grill, 1,5 Hp engine.
This machine has been completely
refurbished in 2010 with sworn appraisal.
Nr.BA152 Please click following photo links: ͺ
COSTARELLI AGGLOMERATOR D-1000 Hp 150, composed of main engine, upper
steel cylinder, side door for inspection and blades replacement, grease
lubricating system on bearings and hub, bearing cooling system through
circulating water, power electrical panel. Hp150 main engine, Hp 3,0 steam
sucker engine, barrel diameter mm.1000,
control switchboard. Motorized steel unloading funnel with electrical reductor, diagonal cochlea,
upper cover, inner protection grill, 1,5 Hp engine. This machine has been completely refurbished in 2010 with
sworn appraisal.
Nr.BA153 Please click following photo links: ͺ
COSTARELLI GUILLOTINE Mod.P-75 1300 x 1100,
37 Kw electrical engine ,
opening 1300 x 1100 mm. 75 tons
shot. Hydraulic piston vertical movement,
one piece stainless steel structure , blade and blade holder. Can be
used manually or automatically (when loaded by conveyor belt, not included).
Complete with control board. The blade balance
is regulated by rack and pinion movement. Complete with oil tank and filter,
level indicator, working pressure and temperature indicators.
NEW MACHINE
Nr.BA154 Please click following photo links: ͺ
REG MAC GUILLOTINE type P80 1300 - 36 Kw. engine, opening 1300x1100 mm., maximum
shot 80 ton., working height mm 950 from floor.
Hydraulic pistons vertical movement,
Steel structure , blade and blade holder. Movement is done by two
pistons. The blade balance is regulated by rack and pinion movement. Complete
with oil tank and filter, level indicator, working pressure and
temperature indicators. Complete with control board. Used machine,
refurbished, with sworn appraisal.
Nr.BA155 Please click following photo links: ͺ
MOLINARI GUILLOTINE TYPE P-70 1400X700,
15 Hp engine, opening 1400x700 mm.,
maximum shot 70 ton. Hydraulic
piston vertical movement,
one piece stainless steel structure , blade and blade holder. Can be
used manually or automatically (when loaded by conveyor belt, not included).
Complete with control board. The blade
balance is regulated by rack and pinion movement. Complete with oil tank and
filter, level indicator, working pressure and temperature indicators.
Used machine, refurbished , with sworn appraisal.
Nr.AK106 Please click following photo links: ͺ ͺ ͺ ͺ
TECNOFER MELTEC 180/C
Agglomerating/plastifying unit for plastic scraps. This plant agglomerates and plastifies flexible
plastics with humidity 18/20%
and dries material to 2% maximum
residual humidity. Made with nitrurated barrel
with feeding funnel, degassing unit. Ceramic belt resistances with
thermostats. The extruder is pre-heated
at first, while temperature is lowered during working process. Material
is compressed and then plastification
begins with de-watering. In a second phase, material is agglomerated and melted
according to chosen temperature. Material is then ready to be treated in further process.
An efficient cooling system keeps
bearings and barrel temperature
at optimal level. 250 kW engine, 150 Kw. working power. Output about
kg.800/hr depending on material
humidity. Complete with : electrical control
cabinet, AERMEC AN20 refrigerator, conveyor belt, feeding auger, 300 lt. tank, Grunfor pump, piping system. 100 Hp engine
Screw turns at about 45 tpm. The line is
up to CE security standards.
Nr.CF100 Please click following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
FIMIC AUTOMATIC PRE-SCREEN
for recycling extruders, filters diam.mm.400,
for maximum diam.160 extruders, filter self-cleaning can be done continuously
or when selected pressure is reached. Construction year 2008. Very good
conditions.
Nr.BP100 Please click following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
AMUT recycling line made of single
screw extruder diam.mm.90 33 L/D. Construction year 1996. 144 Kw. Siemens d.c.engine, control panel, 6 heating areas, 1500
lt.hopper, degassing pump, lantern type screen changer for 90 mm.diam. screens,
die face cutter, water recirculating system, 2 ton storage silo, discharging cochlea.
This line is equipped with one 2 ton mixer.
The line stopped running in 2010 in good working conditions.
Nr.BE100 Please click following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
COMPLETE WASHING PLANT OMP PREALPINA , construction year 2000, made of : MB conveyor belt with CEIA metal
detector, MECCANOPLASTICA water mill 1000 mm. Mod.1000 BLC, with
opening and extracting hydraulic grid, 80 Kw.Power., OMP 50 Kw shaking centrifuge, tub feeding
2500 kg. silo with extraction cochlea, washing tub with upper extracting
cochlea and bottom extracting cochlea
for slurries decanted on bottom. Second
OMP 50 Kw. shaking centrifuge, OMP 160 Kw Comprex type G400 squeezing unit, second MB coveyor belt, second 800 mm. MECCANOPLASTICA 800 mm. 75 Kw. dry mill, drying unit with 3 pipes with double temperature
regulation and security thermostate. The plant has two deviating units to skip
some of the passages, should the case arise. Average output with dirty material : 450 kg/hr.
Nr.NB100 Please click
following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
COMPLETE WASHING-RECYCLING PLANT for
LDPE LLDPE HDPE PD PP ABS scraps, Construction year :2005, output : 500/600 kg/hr, Maximum residual moisture 4/5% before
extruding. Output material: flakes with inorganic maximum contamination of
1% The line is composed by:
GTC 1000 Single shaft shredder with funnel, back and
forth rotational movement electronically controlled. Carbon steel structure. Extracting belt
800x6000 mm 2 Hp, 1,5 Kw, V380 3phase, 50 Hz. Mec Washer 50 Hp engine, 36 Kw, V380,
Hz.50. Stainless steel structure, loading funnel, inspection doors, self
washing basket, manual and electro-pneumatic valve for incoming water mixed
with scraps. Conveyor belt 800x6000mm. 2
Hp, 1,5 Kw, V380 3phase, 50 Hz. Mill 100-65 Hp 110 Kw.80, V.380 3phase, 50
Hz. With 3 rotating + 3 still scissor tipe blades, anti-vibrating
structure. Friction washer mod.GTC 400,
made in stainless steel AISI 304, with 20 brakewaters, outer piping, engine Hp
30, kw 22 V.380 3phase, 50 Hz, mm.2500 x 400 diam. Extracting cochlea mod 250, made in stainless
steel AISI 304 2Hp.engine, kw.1,5 V.380 3 phase 50 Hz. With
inner water drainage through mm.3 diam.holes, with micro interruptor for
safe opening. Horizontal washer mod.GTCO
500 (first turn) Inner rotor with stainless steel brakewaters, exagonal
grid with 3 mm.holes, Hp30 kw.20 V.380 3phase 50 hz engine, stainless steel bottom
funnel. Complete with vent hopper for extraction and transport of centrifuged
material. Hp.7,5, kw.5,5 V380 3 phase, 50 Hz. Engine Rinsing tub mod.45-15. Made in AISI304
stainless steel with 4 rolls to push material forward underwater. Cochlea, feeding
funnel, extraction cochlea for waste material. Drainage cochlea to next horizontal washer
GTO500 (second turn). Drainage cyclone
mod.800 drying-pressing unit to squeeze out water tube cochlea horizontal
washer (third turn) storage silo 10 cubic m. made in stainless steel tube
cochlea. Complete with control
boards. All components are in accordance
with CE regulations. This line is
complete with GAMMAMECCANICA 125 mm.extruder , 600 kg/hr, complete
with granule silo, vibro sifter, pneumatic transportation, bag
filling unit. Installed power 239 kW,
power consumption 191 kw/h. Water consumption : 6 to 10
cubic m/hr. Needs 2 operators.
Dry test possible.
Nr.GE170 Please click following photo links: ͺ ͺ ͺ ͺ
TECNOVA
ES 160R Recycling plant for PE PP
PC PS EPS, etc. New in 2005, 13 mt3 storage silo for shredded scraps, forced
feeding funnel, diam 160 mm. extruder , L/D 37, with d.c. 350 Kw. Siemens
engine, Degassing pump, hydraulic screen changer mm.300 diam., die cut face,
stainless steel centrifuge, vibro-sifter for granules, granule hopper, thermoregulation control board, main engine control board, cutting head,
centrifuge, pressure control
switchboards.
Nr.TL100 Please click following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
GAMMAMECCANICA GM 160. For PE PP PS
EPS PC etc. Construction year : 2006. Extruder 160 mm. 37 L/D, hydraulic screen
changer with mm.300 diam filters. Forced feeding unit, Masterbatch dosing unit
DPM 15/50. Single pump, double degassing
system. Pelletizer with automatic blades regulation, centrifugal. Output 800 to
1000 kg/hr, depending on material. Very
good conditions.
Nr.LD1617
Please click following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
OMP PREALPINA TR 130 complete recycling plant for plastic
material as PE PP PS PC EPS etc,
construction year 2003, extruder diam. mm.130 35 L/D, ABB kw.250 d.c. engine with inverter, control panels for
temperature regulation and switchboard.
Screw and barrel, degassing unit with vacuum pump Kw.5,5 with water recycle,
hydraulic screen changer with screen diam.230 mm., hydraulic power station with storage battery, water
vertical pelletizer type TBS 20 M,
drying centrifuge type 400, vibro sifting unit, granule hopper kw.2,2. Granule collecting cyclone and mixing silo. Output 400/600 kg/hr depending
on material. Complete with one 10 cubic meter scraps storage mixing silo with
cochlea extraction to feed extruder funnel. Forced feeding unit.
Spare parts included : n.1 screw (to be
reconditioned), screen changer brass
units, resistances, vacuum pump, silo
engine, pelletizer engine, centrifuge stainless steel basket, screw cutting
die, centrifuge pump, forced feeding engine.
The plant can
be inspected while running.
Nr.LD1621 Please click following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
OMP PREALPINA 130 complete plastic recycling plant, composed of
: n.2
pre-storing silos of 10 cubic meter each for scraps, n.1 conveyor belt
with metal detector, nr. 1 TRIA granulator 1000 mm., nr.1, 10 cubic meter storage silo with screw extraction to
feed funnel for forced feeding. mm.130 diam. extruder, L/D 35, Kw.250
ABB a.c.engine with inverter, control cabinets for thermoregulation and line commands, screw and barrel with 5,5 Kw
degassing pump with water recycling
system, hydraulic screen changer with 230 mm.diam. filters, hydraulic station with storage, water die
face pelletizer type TBS 20M, 400 mm.drying centrifuge, vibro sifter, Kw.2,2 hopping vent, mixing silo and cyclone
for collecting granulate, nr. 1 bag filling unit. Output : 400 to 600 kg./hr.
depending on material. Construction year : 1998. The line has been working for
two years only for recycling own production scraps. Now the line is dismantled.
Re-mounting and start up is possible, when requested.
Nr.TE100 Please click
following photo links: ͺ ͺ ͺ ͺ ͺ
OMP PREALPINA RECYCLING PLANT for PE- PP- PS scraps output
450/500 kg/hr composed by extruder, Mod. E130 construction year : March 2003. - screw diam. mm. 130 L/D
ratio 35
with a.c. kw 250 ABB engine masterbatch dosing unit - 10 cubic m
stainless steel silo - dual-metal
barrel 230 mm. screen changer -
vertical die face pelletizer -
stainless steel spinning wheel -
stainless steel vacuum pump stainless steel vibrating screen
complete with the following spare parts : spare screw, resistance, vacuum pump,
screen changer bearing brasses -
silo engine, forced feeding engine
Nr.CI
102 Please click following photo links: ͺ ͺ
TECNOVA PLASTIC RECYCLING PLANT: extruder
with screw 50 mm. 35 L/D with
degassing, excellent working conditions,
construction year 2006, complete with OMP PREALPINA under water pelletizer
mod.SOFSPA400 and cooling bath.
Nr.LE105 Please click following photo links: ͺ ͺ
TECNOVA recycling line with extruder diam. mm.60, 32 L/D, vented with vacuum pump, 41 Kw.d.c.engine, hydraulic screen
changer. Water ring die face cutting, centrifugal dryer. The line has been
refurbished in 2011.
Nr.FC101 Please click
following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
OMP PREALPINA complete recycling plant for plastics
construction year 2001 the plant has been running for only a short period of
time altogether and it is in excellent conditions output 100/110 kg/hr
complete with conveyor belt Meccanoplastica type 45/35 grinder piping for
scraps movement forced feeding silo
dosing unit for masterbatch - diam. mm.60 extruder with degassing unit
screw L/D 35 control panel case vacuum pump hydraulic screen changer
with control station - Dynisco pressure indicator water cooled
pelletizer - granule drying spinning
wheel vibrating sieve piping for granule movement storage silo.
Nr.FQ100 Please click following photo link: ͺ ͺ
ͺ
MEWA all purpose single shaft GRANULATOR type UNI CUT UG 1008 MS,
shaft diameter mm.800, length mm.1000, 160 Kw engine, nr.25 knives
on the rotor, nr. 5 still blades, construction year 1999, worked hours 8500.
Infeed 250/300 mm width, unloading grid 16 mm. Production : 4/5 tons per
hour(depending on material). The machine has been completely refurbished. On
constructor website it is possible to see the various employments.
Nr.LE100 Please click
following photo links: ͺ ͺ ͺ
BIELLONI trim recycler for extrusion
plants, screw diameter mm.30, output :
about35 kg/hr, 10 kw engine. Completely refurbished.
FILM
CO-EXTRUSION - multilayer
Nr.LD1625 Please click
following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
GHIOLDI 3 layers co-extrusion plant made of nr.2 extruders diam. mm.55, 78 kw with OEMER
inverter, 30 L/D + nr.1 extruder diam.mm.75, 142 kw, with OEMER inverter, 30
L/D, nr. 3 lever type screen
changers, MELT control system, 3-layers still die mm.300
with mm.1,4 lgap, electrical control boards with MITZUBISHI inverters. AM500/2
double flux cooling ring. Oscillating pull-off system width mm.1700,
working width mm.1600. FIFE web guider, mm.1700 width. Bubble driver with ceramic rolls, vertical
adjustment and sensor for bubble
automatic inflating. Back to back winding station mm.1700, working width
mm.1600 with 4 expandible mandrins. Automatic
film cutting and reel unloading system.
Complete with bolted 12 m.tall tower, with 3 storeys,
ladders. CASON corona treatment width
mm.1700, DOTECO gravimetrical feeding
units (one for each extruder). EUROCHILLER cooling unit, type
ABS 30 (30.000 calories). Output : 200/300 kg/hr, depending on material,
width and thickness, can be seen while running. This line has been working
for 18 months only, with 1st
quality materials, never with
regranulated : LDPE LLDPE MDPE METALLOCENE.
Construction : December 2007,
started up in 2008.
Nr.FC113 Please click following photo links: ͺ ͺ ͺ ͺ
BIELLONI 3 layers blown
film co-extrusion plant. Construction year 1995, still die mm.300, 1,8 mm. gap, IBC , Saturn cooling ring, composed of
two 60 mm. extruders + one mm.80, Martignoni corona treatment, 11,6 m. tall
tower, Fife web guider, calibration basket with maximum width
mm.2400, two ways haul off system mm.1900, back to back automatic winding
station mm.1700. The line is complete with a 4 color in-line printing unit
mm.1600 width and Eurochiller ABF TPW cooler + OFC kit.
Nr.LD1610 Please click
following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
BANDERA 3 layers co-extrusion plant, excellent conditions, composed of 2 mm.65
extruders 30 L/D + 1 x 75 mm. extruder 30 L/D construction year 2006, + one
DOLCI small extruder for trimmings, DOLCI rotating die mm.350 with 0,9 mm.gap
(on video) with IBC bubble cooling
system, vents, new calibrating basket,
one more calibrating basket, bubble driving system, pull off system mm.
2000 wide, completely refurbished in
2008, engine moved, with gusseting panels and triangles, back to back winding unit, width mm.2400,complete
with 4 mandrels, stretching rolls, automatic slitting, automatic hydraulic
unloading, central and side blades,
tensioning control system by load cells. FIFE web guider, Ferrarini and
Benelli Corona treatment mm.2000 wide, tower not included, touch-screen type
control board with 2 inverters for Bandera extruders + 1 starter for Dolci die,
output 300/350 kg/hr depending on material. The plant is in excellent
conditions and can be seen running in Italy.
Spare parts included : 450 mm. die, gap mm. 1,6 + 350 mm. die with 1,3 mm.gap. Prompt delivery. A video clip of the line
running is available at the following link: http://youtu.be/T2wmyse_w8A
FILM
EXTRUSION monolayer
Nr.LD1626 Please click following photo links: ͺ ͺ ͺ ͺ ͺ ͺ now reduced price
GHIOLDI extrusion plant made of mm.90 extruder, lever type screen changer still die 350 mm., gap 1,4 mm, 30 L/D
, IBC system, cooling ring, oscillating
pull off system mm.1700 width (working 1600 mm.), FIFE web guider mm-1700, bubble driver with
ceramic rolls with vertical adjustment. Back to back winding station mm.1700
(working 1600 mm), with 4 expansible mandrels, automatic reel cutting and
hydraulic reel unloading. M.12 tall three storey, completely bolted tower (m.10 at pull off) with ladders. CASON corona
treatment mm.1700, DOTECO gravimetrical unit. This line has been working with
1st choice materials only (LDPE LLDPE MDPE). Output 200/250 kg./h depending on
material and size. Excellent conditions, can be seen running.
Nr.LD1624 Please click following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
UNITEC EXTRUSION PLANT for blown film, construction year 1995, mm.90
extruder, 107 Kw.d.c.engine, complete with thermoregulation and starting
control board.Lever type screen changer,
rotating die mm.300, IBC + spare
mm.250 sdie. Two ways cooling ring and cooling vent. Automatic bubble driving
system. Adjustable pull off system mm.1800, motorized gusseting units,
Martignoni corona treatment,
gravimetrical dosing unit. Single winding station mm.1800. Output :
170/200 kg/hr average output (depending on thickness and material). Tower. Presently
dismantled. Very good conditions.
Nr.FC115 Please click following photo links: ͺ ͺ ͺ ͺ
BANDERA TR100
extrusion plant for LDPE. Construction year 2001.Output : about 400 kg/hr,
depending on material and thickness, main engine : 213 Kw., manual screen
changer, die mm.450, cooling ring,
vents, volumetric feeding unit, pull off system mm.2000 gusseting units,
calibrating basket, m.11 high tower, cooling ring,perforator, back to back mm.2000 winding station,
Nr.FC116 Please click following photo links: ͺ ͺ ͺ ͺ
BANDERA TR120 extrusion plant for LDPE. Construction year
1997, extruder mm.120 diam. die mm.1000,
with cooling ring and vents, volumetric
feeding unit, 3000 mm. pull off system,
m.17 tall tower, gusseting units,
electrical panel, output appx. 500 kg. depending on material and
thickness, main engine 259 Kw., hydraulic screen changer, single winding
station mm.3000.
Nr.CM102 Please click following photo links: ͺ ͺ
ͺ
TECOM 40 extrusion plant for LDPE HDPE, construction year 1998, die
mm.200, pull off system, gusseting
units, back to back rewinding station mm.900, complete with 1+1
in-line printing unit and corona treatment. Printing rolls 2x50-55-60. The
plant has been completely refurbished.
Nr.ST 431 Please click following photo links: ͺ ͺ ͺ
ZOCCHI
EXTRUSION LINE , construction year 1996, extruder diam.
mm.100 30 L/D complete with pull off system mm.2000, tower, back to back 4 stations winder mm.2000,
rotating die mm.600 + 1 spare male part
with gap mm.1,3. Piovan automatic
loading unit, n.3 Giemme dosing units,
n.1 cold micro perforator mm.2000, Mero
double treatment unit mm.2000, n.1
Meccanoplastica trim shredder, n.1 Eurochiller chilling unit.
Nr.ST 432 Please click following photo links: ͺ ͺ ͺ
ZOCCHI
EXTRUSION LINE, construction year
1998, extruder diam, 100 mm. 30 L/D complete with tower, pull off system mm.2200, 4 units winding
station, rotating die mm.600 + spare
male part gap mm.1,3, , Piovan loading units, n.3 Giemme
screw dosing unit, Mero double treatment unit mm.2200 ,
Meccanoplastica trim shredder, n.1 Eurochiller chilling unit.
Nr.ST 438 Please click following photo links: ͺ ͺ ͺ
ZOCCHI
EXTRUSION LINE , construction year 1994, extruder diam. mm.100 30 L/D
complete with pull off system mm.2000, tower, back to back 4 stations winder mm.2400,
rotating die mm.600 + 1 spare male part gap mm.1,3 . Piovan automatic loading
units, n.3 Giemme dosing units, n.1
cold micro perforator mm.2400, Mero
double treatment unit mm.2400, n.1 Meccanoplastica trim shredder, n.1 Eurochiller chilling unit. This unit is missing of pull off and
tower.
Nr.BE101 Please click following photo links: ͺ ͺ ͺ ͺ
UNITECH extrusion line for LDPE. Construction year 1995, screw diam. mm.100 (new engine and
inverters), CONTREX gravimetrical
thickness control, with automatic
granule sucking system, manual screen changer with hydraulic movement,
IBC rotating die diam. 450 mm., 2 levels
tower height 11,5 m., manual gusseting units,
web-guiding cage mm. 2200 max
width (the unit can be slid aside to make wider
web, up to 6000 mm.(160+70+70).Back to back double winding station
mm.2200. Edge trim collectors. Maximum output kg. 300/hr, (depending on thickness and
material). Minimum film web mm.1200, with suitable material.
Nr.TR101 Please click following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
TECOM Type MB 50 B 900
for HDPE LDPE, BIO,
construction year 2005, d.c. 57
Kw engine, extruder type EXK50 B 30L/D, rotating die diam.150 mm. + spare die diam. 130 mm. with
insertions, nr.1 spare new screw, bubble driving system for up/down/open/close movements, mm.900 pull off system, mm.900 one side, double winding system, nr.4 expansion
mandrels, Martignoni corona treatment, hot blade slit
and seal unit, mt. 6 tall tower,
complete with chilling unit. Excellent conditions. Can be seen running.
Nr.SA100 Please click
following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
TECOM 120
Complete extrusion plant for agricultural or construction PE film
rotating die mm.1000 dated 2002 for
film up to 8000 mm.
construction year of plant : 1999 diam.extruder mm.120 complete with
mm.4000 Martignoni corona treatment and
mm.4000 micro-perforator - 4000 mm. back
to back winding unit output appx. 500 kg./hour d.c. kw.255, 347 Hp Cear engine -
chiller for air ring manual
screen changer granule sucker - nr.4
expansion shafts mm.4000 - gusseting
units, pull off system and mt.12 (+3)
tall tower included. This plant is visible running in production. A video of the plant running is also available on
request. Excellent conditions. A video of the plant running is visible by
clicking the following link : http://www.youtube.com/watch?v=uMEjSE8ddqA
Nr.LD1609 Please click following
photo links: ͺ ͺ ͺ ͺ ͺ ͺ
CMG HTM 75 - PE EXTRUSION PLANT for LDPE - MDPE - LLDPE - BIOPLASTICS - construction year 2004, installed 2005,
extruder diam. 75, 30 L/D, 120 kw,
thermo- regulating and
control switchboard, cartridge type screen changer, still die mm.220 with IBC, cooling ring, Gammatec bubble driver, oscillating pull off system mm.1800
width, Martignoni mm.1800 corona
treatment, single winding station with automatic unloading system, Piovan granule
sucker and Doteco gravimetrical dosing unit, 7,5/8,0 m tall tower,
Eurochiller Chilling unit. The plant can be seen running.
Nr.GE150 Please click following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
MACCHI - extrusion plant for LDPE screw
diam mm. 55 , screw length mm.1600- L/D 30 - still head die mm. 160 +
spare mm. 250 die mm. 650 haul off unit gusseting units - single
winding station mm. 650 - Martignoni corona treatment - good
running conditions. It can make the 300 cm wide with the smaller screw cutting die and over 1000 mm
with the wider one (to be gusseted in collection) . Tower is not
included. Output : about 65 kg/hour . A video of this plant running,
before refurbishing, is available
on our
web space germanplast on youtube. http://www.youtube.com/watch?feature=player_detailpage&v=xGbN-LXDxh0
Nr.NS1101 Please click following photo links: ͺ ͺ ͺ ͺ ͺ
TECNOVA mm. 90 - extrusion plant for LDPE-LLDPE , construction year 1996 , d.c. 100 hp engine screw diam. mm.90, ratio 30 D, Tecom rotating die mm.220 ,,
Tecom haul-off unit with gusseting units , Tecom back to back winding station
mm. 1200, edge trimming collection nr. 2
engines, nr. 2 knives,
nr. 4 air expansion mandrels,
micro-perforating roll, automatic reel unloading unit, visible
in running conditions.
Nr.LE106 Please click following photo links: ͺ ͺ
EUROTECH LAB EXTRUSION PLANT
screw diam.mm.20, good working conditions
Nr.EL100 Please click following photo links: ͺ
TECOM LAB
EXTRUSION PLANT screw diam.mm.25, mm.50 winder, good working conditions
IN-LINE
FLEXOGRAPHIC PRINTING UNITS
Nr.LD1627 Please click following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
CMF in-line
printing unit mm.2100, 4 colors, with electrical drying system, hydraulic blending, 8 to 10 printing roll
sets.
Nr.LD1623 Please click
following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
OMAT 2 colors in line printing unit. Can print 1+1 and 2+0, hydraulic
blending unit, electrical drying system,
printing width mm.1500, web width mm.1650. Nr. 8 printing rolls (2x 40-50-53-60).
OFF-LINE
FLEXOGRAPHIC PRINTING UNITS
Nr. CM105-106 Please click
following photo links: ͺ
CARRARO steck type flexo printing unit,
6 colors, width mm.800,for paper and
plastic materials, suppied with a good
variety of printing rolls. Two identical units available.
Nr.TB109 Please click
following photo links: ͺ ͺ
OMAT DERTHONA stack type flexo print,
3 colors, web width mm.500, printing width mm.480, printing rolls available: 1x38-
2x33-3x36-42-44-51-54-56-60
Nr.TB110 Please click
following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
OMAT DERTHONA stack type flexo print,
4 colors, web width mm.900, printing width mm.880, lifting hoists, electrical drying
system, electrical blending, printing
rolls available:1x42-2x70-80-90-100, 3x38,
4x32-36-40-44-48-50-56-60-65.
Nr.TR100 Please click
following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
MANZONI NESAFLEX 500A 6 colors, mm.800 printing unit . Construction year 2006, visible running, used very little. Maximum mechanical
speed 130 mt/min. thickness min/max 30/100 my, min/max print length 30/100 cm. Horizontal
register mm.20,Longitudinal register mm.20. Ink blending by hydraulic engine, Inking
by 130 mm. diam. rubber roll and 108 mm. diam. halftone roll. Teflon lined
steel ink trays with drain tap and mechanical movement. Hydraulic engines
slowly move ink when machine is stopped. Independent adjustment of printing
pressure. Inking units are manually moved simultaneously in
parallel movement. 36 kw total power electrical drying system by hot forced air
through 4 step power. min/max material width 400/850 mm., maximum printing width 800 mm. Motor :
adjustable electronic speed. Main transmission : timing belts, Derived
transmission: gears. Material : flexible
plastics. Colors combination : 6+0,5+1,4+2,3+3. Pad thickness : mm.3,0 . Central
adjustment of loaded reel, mechanical with manual movement with 50 mm.
total correction. Maximum reel diameter mm.800, maximum reel weight : 100
kg. Steam sucking system. Engine moved
pull off system with speed adjustment controlled by tensioning rolls. Pull
off calendar mm.190 diam. Two ways single winding station. Electrical
reel unloading system when machine stops, printing rolls are lifted from
contact by pneumatic movement. Nr. 26
printing rolls : 2x30-2x35-2x40-2x45-6x50-2x55-6x60-2x70-2x85.
Nr.GE121 Please click
following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
OMAT DERTHONA stack type
flexographic print 4 colours - web width mm. 770 printing width
mm.750 year 1985 nr. 55 printing rolls for pattern repeat size : 4 each x 25-28-30-33-37-40-42-46-48-50
-56-60 + 2 x 80-91-100 + 1 x 54.
automatic colour blending - new control
board and electrical plant - engine in a.c. with inverter.
Nr.MC160 Please click following photo links: ͺ ͺ ͺ ͺ ͺ
OMAT stack type flexographic print 4
colours - web width mm. 770 printing
width mm.750 nr. 60 printing rolls automatic colour blending - control board - construction year 1987 - engine in a.c. with
inverter.
Nr.MC140 Please click
following photo links: ͺ ͺ ͺ ͺ
UTECO 4 colors steck type printing
unit maximum printing width mm. 1600
- 1 rolls series construction year :
1985 web width mm.1.680.
Nr.MC142 Please click
following photo links: ͺ ͺ ͺ
CARINT GEMINI 6 colors steck type
printing unit maximum printing width
mm. 1400 - 1 rolls series electrical
drying system visible running.
Nr.LF1112 Please click
following photo links: ͺ ͺ ͺ
UTECO - stack type mod.GOLD 6 colours - construction year 1990
printing width mm.1200 web width mm.1250 gas dying system ink pumps
- web guider reel lifting units - OFEM winder year 1998 with
automatic change possible paper reels outer diam.mm.1000 nr.129 printing rolls : 10 x 310 mm.
6 x 320 3 x 330 6 x 350 6 x 370 6 x 400 6 x 410 2 x 430 4 x 450
6 x 470 6 x 490 8 x 500 6 x 530 6 x 540 6 x 560 6 x 580 6 x 600
6 x 610 6 x 650 6 x 680 6 x 700 6 x 1000. Can be seen
running. A video is also available by clicking the following link : http://www.youtube.com/watch?v=hkt4QUWUtto
Nr.MC138
Please click following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
MANZONI CENTRAL
IMPRESSION FLEXOGRAPHIC PRINTING UNIT
Mod.NESAFLEX 706-A/1000 for HDPE
LDPE PAPER PPL CELLOPHANE. 6
colors printing width mm.1000, web width max. 1050 mm., complete with doctor
blades, ceramic rolls, gas burner,
automatic winding unit, single unwinding unit for mm.1.000 rolls,
pneumatic pumps, lifting unit, minimum repeat size 300 mm.
max 800 mm., gears module 3,183, maximum speed 200 mt/min, 5 series of printing rolls, videocamera, construction year 1993, high
speed hot air drying system for each single color, with
sucking units and vents, unwinding unit for max diam.mm.1000 with tensioning
roll and electromagnetic brakes. tower type winding unit for max diam.600 mm.reels moved by two d.c.
engines, slitter, automatic reel changer. The machine responds to European
security standards. Size : 10000x4500x2000
Nr.MC580 Please click following photo links: ͺ ͺ ͺ ͺ ͺ
FILIPPINI & PAGANINI stack type
flexographic printing unit printing width mm. 1.000 6 colors construction
year : 1997 120 lines Anilox nr. 6 air pumps and trays - printing rolls repeat size : nr.6 x 50 - nr.6 x 60 nr. 4 x 70 nr.4 x 80 - nr. 2 x 90 nr. 2 x 110. Trial possible.
BAG MAKING MACHINES
Nr.LL100 Please click following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
MOBERT ROLLER 110 E 3M, for bags in a roll, construction year 2005,
mm.1200mother reel holder, min/max speed : 30/220 strokes/minute, bag min/max length : 250/1500 mm. min/max
sealable thickness 20/70 my. Excellent conditions. Can be seen running.
Nr.TB101 Please click following photo links: ͺ ͺ ͺ
DEBERNARDI for bottom sealed and side sealed bags, min/max bag length mm.110/1000,
sealing width mm.880, 8 Kw., 60/70 strokes/min. belt type collection. Very good
conditions.
Nr.TB102 Please click following photo links: ͺ ͺ
COMAT bag making
machine with sealing width mm.550 or
1100 (1 or 2 lanes), belt type collection, for
bottom sealed open top bags min/max length 150/900 mm.8 kw., 30/40
strokes/min. complete with in-line punching unit for banana handles
onlyand with punch sucking unit. Very
good conditions.
Nr.TB103 Please click following photo links: ͺ ͺ
SCAE mod.DILOGIC HS88, 8 Kw, sealing width mm.880 for side sealed and t-shirt
bags min/max bag length 120/800 mm.40/50 strokes/min. Very good conditions.
Nr.TB104 Please click following photo links: ͺ ͺ ͺ
BEMA , construction year 2007, type
TD600 for bottom sealed, side sealed and t-shirt bags, 10 Kw. web width mm.600,
sealing width mm.580, 70/80 strokes per minute, min/max bag length mm.70/2000.
Up to CE security standards.
Nr.ST503 Please click following photo links: ͺ ͺ ͺ
ARVOR 2000 - sealing width mm.2000, maximum
bag length mm.5000, maximum thickness 280 my, speed 30 strokes/min.
Macroperforator bar support. Maximum reel diam.mm.1500, photocell sealing, single and double bar sealing
Nr.CM103 Please click following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
DEBERNARDI Mod.DB602 for open top and t-shirt bags. Sealing width
mm.600, single lane, in-line gusseting unit, 120 strokes per minute.Construction year 2000.
In-line automatic punching unit. Pinch type collection. Photocell for printed
material. Can be seen running. The machine has been totally refurbished.
Nr.ST170 Please click following photo links: ͺ ͺ
DEBERNARDI MOD.DB 80 SH sealing width 800 mm. for Loop Handle
and open top bags with side gussets. Construction year 2000.
Nr.TR103 Please click following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
ITALWORK - Mod.Galaxy 800 construction year 2002, CE approved, sealing
width mm.1000,engine moved mm.1400 unwinder with double calender, engine
moved double calender mm.1400 gusseting unit, electronic braking system with
RE, engine moved double piston dandy
roll, side knife for reel opening, it can make
bottom gusseted bags, open top
bags, side sealed bags, t-shirt bags and
bottom gusset loop handle bags. In-line
punching unit for banana handle, belt collection. 180 strokes per minute,
22 Kw.engine. Can be seen running.
Nr.AM30 Please click
following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
FOR PLAST - year 1991 Type FPS 1000 M - for LDPE MDPE HDPE
open top bags - max. sealing width mm.1000 - maximum bag length
mm.1800 70 strokes per minute - maximum
sealable thickness 250 my - up to 3 lanes Taboga desk to
collect doffing Mother Reel width mm.1000 Volts 380 50 Hz. can be
completed with single color printing
unit width mm.300, max printing length mm.380.
Nr.GE13
Please click following photo links: ͺ ͺ ͺ ͺ ͺ
E.R.S. year 1998 EEC marking - for LDPE LLDPE - MDPE HDPE
- PP open top bags, pallets covers and heavy duty
bags - hydraulic reel lifting unit pneumatic expansion shafts max. web
sealing width 1700 mm. maximum speed 100
mt./min.(for 1000 mm bag length) - max
bag length 4000 mm.min.450 mm. -
hot sealing bar with heat
regulation - completely automatic - PLC operated with Brushless engine and control board Remote
assistance possible via modem connection -
quick parameters change (bag length, strokes, bag count etc. ) 13 kw - Taboga desk to collect doffing with PVC
motorized conveyor belt . A video of this machine running is available on the
following link: http://www.youtube.com/watch?v=q92PXcIEzhw Dimensions : 7150 x 2530 mm.
Nr.GE134
Please click following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
MOBERT VICTORY 80 maximum sealing width mm. 800 2 lanes - for open top bags and shoppers (without changing sealing bar, just setting from control panel). It has
double mother reel holder, width is mm.1200 minimum 300 mm. max mm.1400 bag
length - slit and seal unit - 2
gusseting units, to work in double lane needle stacking system - motorized conveyor
belt . + Nr.GE141 CGM mechanical punching unit for t-shirt and banana handle
with a variety of punches in different
shapes and sizes. A video of the machine
running is visible on the following link : http://www.youtube.com/watch?feature=player_detailpage&v=eMyrroVh4yU
MISCELLANEA
Nr.CI132 Please click
following photo links: ͺ ͺ ͺ
NO.EL AUTOMATIC REWINDER, construction year 2007, for reels with core diam.50
and 76 mm. 5 kw 380 V 50/60 hz.
Nr.LD1610A Please click
following photo links: ͺ ͺ
GHIOLDI back to back
winding station, width mm.1600, construction year 1996, very good conditions.
Nr.CI110 Please click
following photo links: ͺ ͺ ͺ
IVECO, year 2008, 19800 km. run , Mod.150 E22P,
provided with the following removable accessories: MEC CRANE type C40 56.S2,
MEC SC12 , removable container.Good conditions.
Nr.CI111 Please click
following photo links: ͺ ͺ
IVECO WHEELED
COMPACTOR , year 2009, Mod.EUROCARGO
ML120E18K, STEP 3150 mm. provided
with 11 cubic meters compactor and
drum-tilting device.
Nr.AK121
PERIN DIESEL POWER GENERATOR, construction year 2007,125 kVA, 50 Hz.400 V type 7000S 3phase, 181 A kg.3500 55 decibel
at 7m. John Deere engine.
Nr.AK122
PERIN DIESEL POWER GENERATOR, construction year 2005,250 kVA, 50 Hz.400 v., type 7000S 3phase, 360 A
kg.4000 John Deere engine.
Nr.AK123
VISA DIESEL POWER GENERATOR, construction year 2001, 252 kVA, DEUTZ motor, 14.000 worked hours.
Nr.CI101 Please click
following photo links: ͺ ͺ ͺ
IVECO DIESEL POWER GENERATOR, type GS CURSOR 400E, 400 KvA, , complete with n.2 fuel tanks,capacity
9000 lt., up to CE security standard.
Excellent conditions.
Nr.GE11 Please click
following photo links: ͺ ͺ ͺ
ͺ ͺ ͺ
ITALIAN CONSTRUCTOR MANUAL
PACKING MACHINE with L-shaped sealing.
It works with maximum mm. 450(900/2)
folded film roll. Sealing width : max mm.370 Sealing length 500 mm. Open side for infeed
500 mm. Collection table. Kw.1,5 engine.
Nr.RT100 Please click following photo links: ͺ ͺ ͺ
ͺ
POLYTECHNIK Double shaft shredder. Construction year 1991, power : 37 Kw. Nr. 2
engines by 18,5 Kw each, 380 V, 50 Hz.
Infeed 1200x1000 mm., complete with extraction belt mm.700 width x mm.3500
length.
Nr.ZA103 Please click
following photo links: ͺ ͺ ͺ
AMUT VERTICAL CENTRIFUGE
with 55 kw engine with stainless steel
rotor and basket (grid with mm.3
holes). Automatic cleaning system by 2
pipes with sprays, timer operated. Rolling type bearings. Output 1000 kg./hr. Construction
year 1998.
Nr.GE1035 Please click
following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
CEIA TUNNEL METAL
DETECTOR, size width 1200
x 450 mm. height, tension 220 V.Construction year 1995. Sensor adjusting
through potentiometer Instruction manuals available for both pieces. Up to CE security standards. This device
detects any kind of metal (iron, non-iron, copper, brass, aluminum, tin, steel,
etc.) Sensibility can be adjusted to feel metal pieces starting from very small
and very light pieces of metal (like aluminum foil, nails, drawing pins, hair
pins, bolts, etc.). The metal detector is to be positioned on top of belt, half
way its length. It is offered with COSTARELLI CONVEYOR TAPE construction year 2001, length 5500 mm, width mm. 950, with 1,5 Kw engine,
Bonfiglioli reductor.
Nr.GE110 Please click following photo links: ͺ ͺ ͺ ͺ
MANUAL SCREEN CHANGER for blown film extrusion plant screen diameter
mm. 90 Nr.4 heating areas.
Nr.GE111 Please click following photo links: ͺ ͺ
SLIT and SEAL unit for extrusion plants web width mm.1.650 stretching
film unit, after mother reel hot blade cutting system 220 V control panel -
Very good conditions.
Nr.GE51 Please click following photo links: ͺ ͺ ͺ ͺ
SLIT and SEAL units for extrusion plants web width mm.1.600( 2 units
available) and 1800 (one unit available) - single vertical action on tubular
web, the position of sealing can be moved sidelong hot air sealing - Very
good conditions.
Nr.GE1023
Please click following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
L - FOLDING UNIT suitable to fold film web in L shape from reel to reel dandy
roll with potentiometer - incoming roll
width mm.2600 outgoing roll width mm.
1350 - complete with separate reel
holder mm. 2600 - dimensions of folder :
1750x2850x height 2400 mm. dimensions of reel holder : 1000x3300xheigth 1300
mm.
Nr.GE1025 Please click following photo links: ͺ ͺ ͺ ͺ
VIRGINIO inclined conveyer belt
adjusting height and inclination
- size : mm. 400(w)x 2400 (l) x 800/1200
(h)
Nr.GE1027 Please click following photo links: ͺ ͺ
VIRGINIO inclined conveyer belt size :
mm. 300(w)x 1500
Nr.GE1026 Please click following photo links: ͺ ͺ ͺ ͺ ͺ
REEL HOLDER - with air moved brakes and expansion
shaft. Width mm. 2600
Nr.GE144
Please click following photo links: ͺ ͺ ͺ
BANDERA single layer spare fixed head
for mm.65 to 90 LDPE- MDPE blown film extruders 250 mm. diam. screw
cutting die
Nr.GE99 Please click
following photo links: ͺ
MICROPERFORATOR FMB useful width mm.2.340 very good conditions.
Nr.GE102
Please click following photo links: ͺ ͺ ͺ ͺ ͺ ͺ
CORONA TREATMENT
UNITS various brands various width
for blown film extrusion plants:
a-MARTIGNONI film width mm. 1.500 - structured
with micros in the doors ions sucking unit generator
c-FERRARINI E BENELLI film
width mm. 1.600 - micro units in the
doors ions sucking unit
d-couple of Corona treatment units for film width mm. 1.000 and film
width mm. 1.200 with one generator.
General
sales conditions : used machines are offered and sold on as is where
is basis, unless otherwise specified. All warranty claims are excluded. The
Buyer is welcome to inspect the machine before confirming purchase. We give our
clients our full availability to help them find spare parts, ancillary
equipment related to the machines we sell and technical support on separate agreement. We are in contact with
major constructors to offer our
co-operation as post sale assistance. For disconnected machines, which
cannot be seen running, we are prepared
to offer a post-sale service by sending qualified technicians on site who will
connect and run them, upon separate agreement. Prepayment by bank transfer is always requested, unless different conditions have been previously agreed upon. Machines are usually sold
dismantled and loaded on truck, on FOT
basis, unless otherwise
specified.
For any enquiries please contact us at :
machines@germanplast.com info@germanplast.com
Mobile
+ 39 328 8436156 - + 39 335 8305529
Ph. + 39
015 590446 Fax + 39 015 590446
Skype :
germanplast
P.Iva
01846980025 R.E.A.166961
