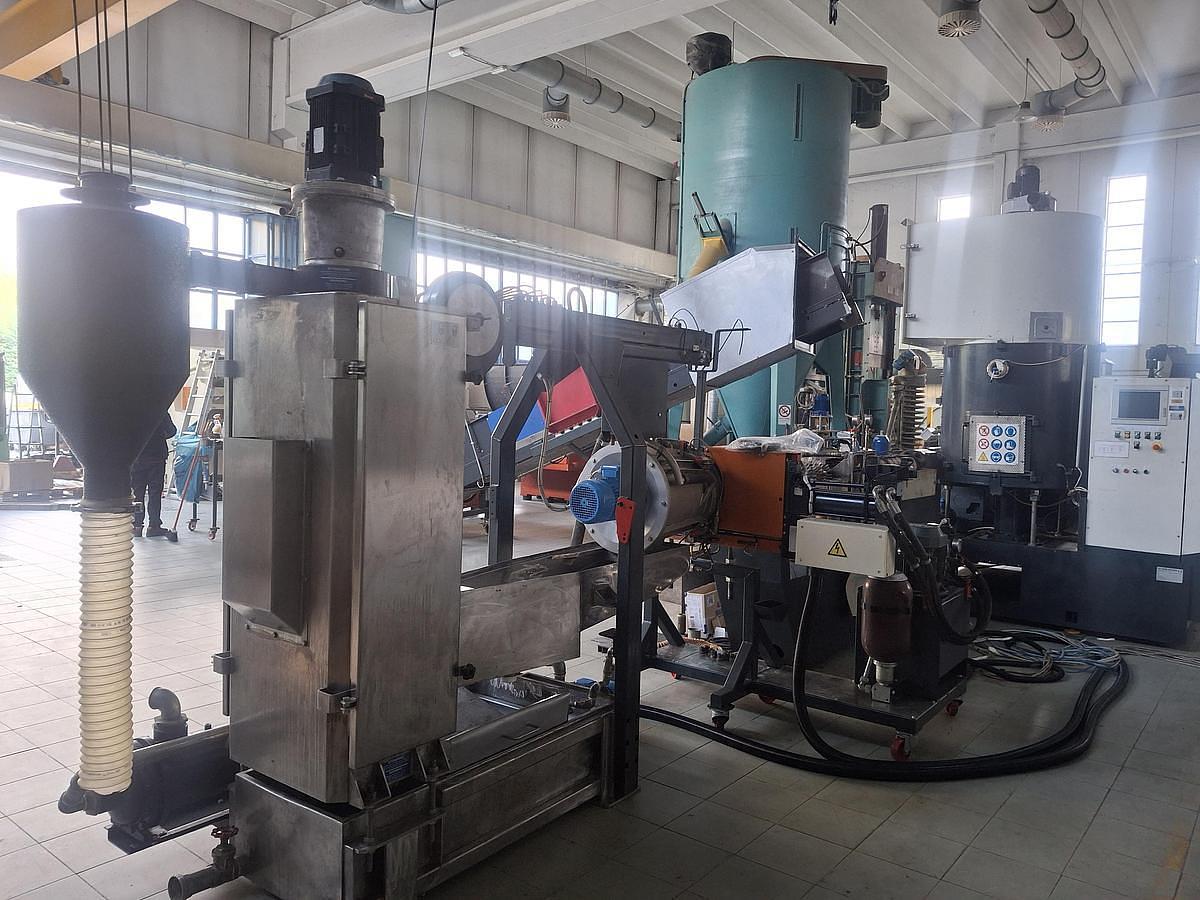

GAMMA MECCANICA GM 90 COMPAC 2016

GAMMA MECCANICA GM 90-35D COMPAC HP

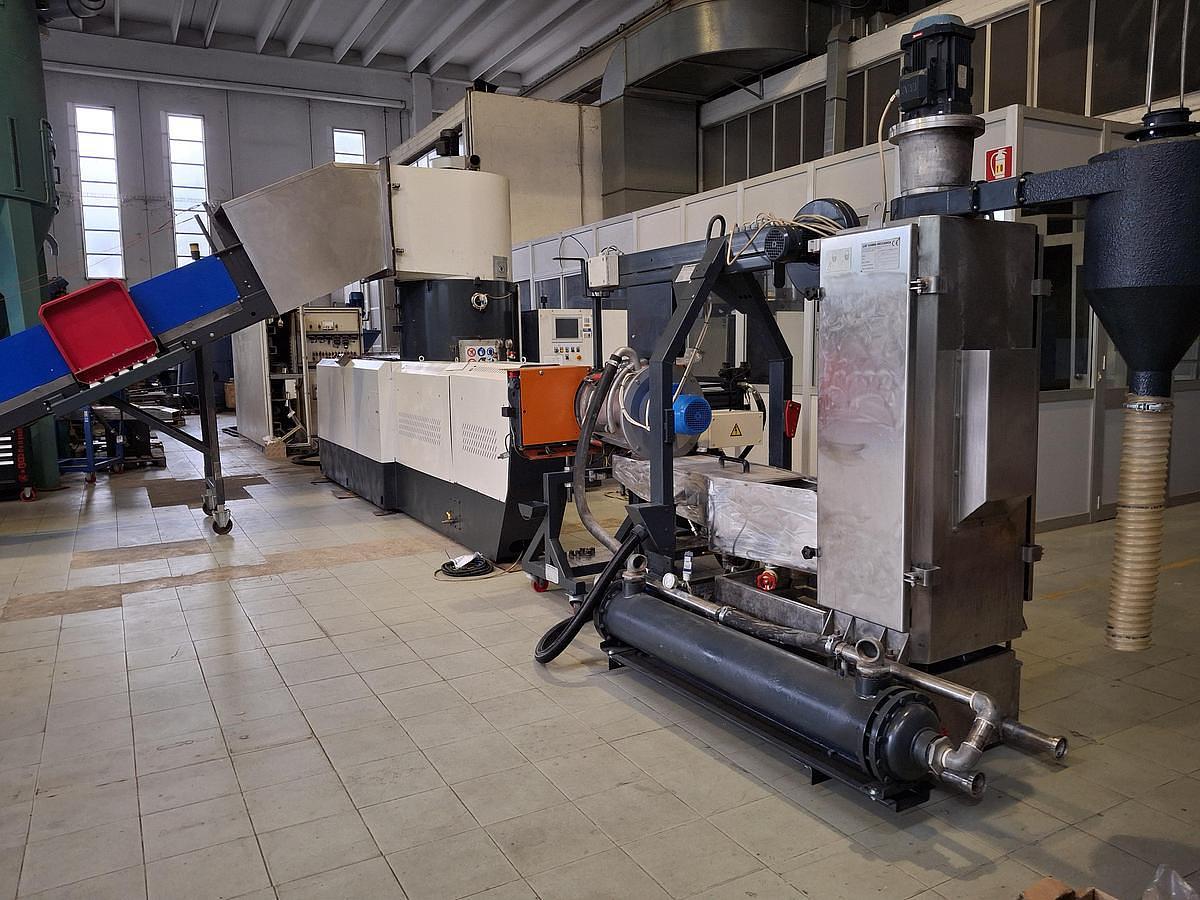

automatic cycle from waste to granule

Material: hard and soft plastics PP, PE, PP/PE, PS, ABS

Optimal scrap size 40 mm. (ask for size reduction equipment if you need)

Nominal throughput rate 250-500 kg/h depending on the type of material and feeding rate

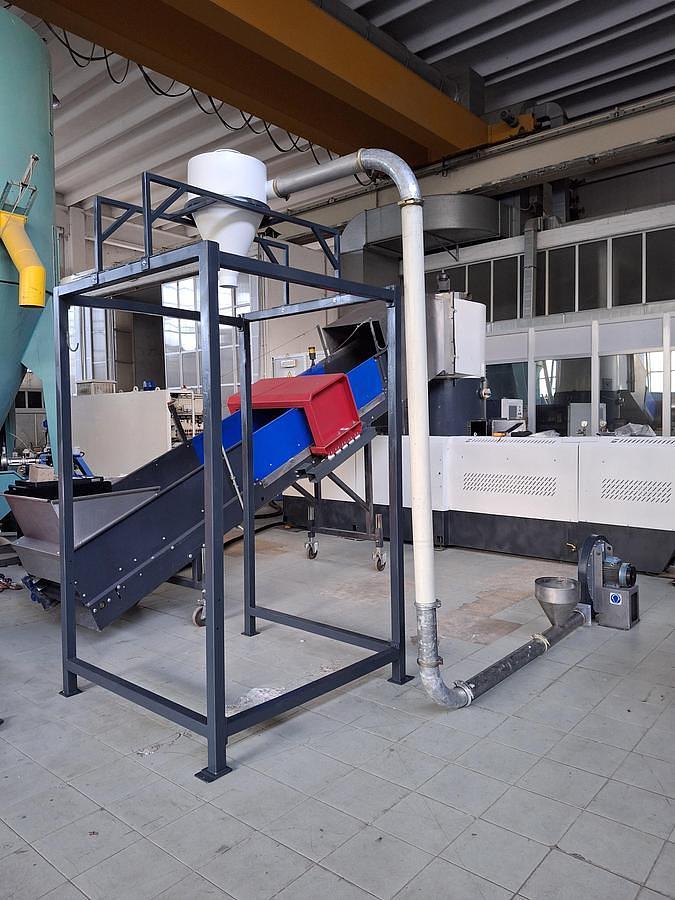

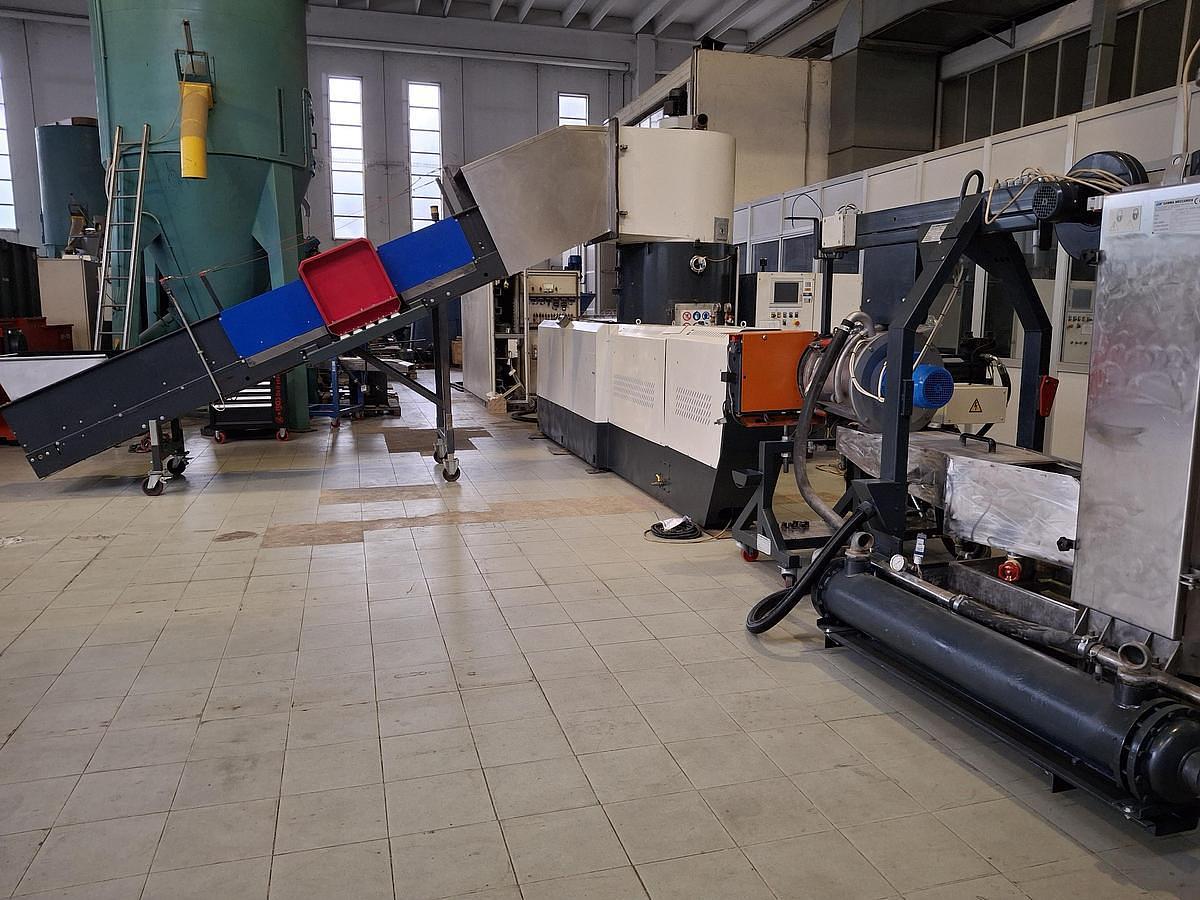

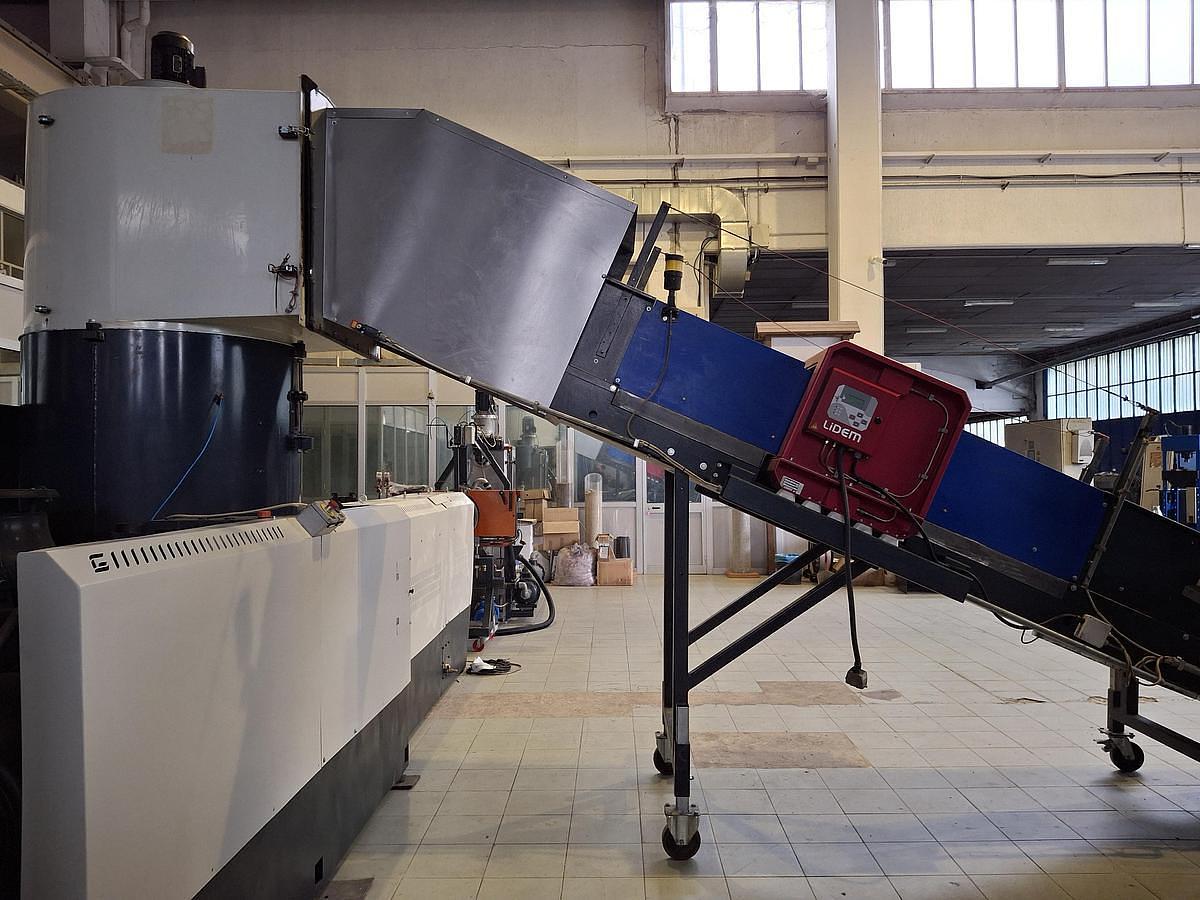

Loading belt with metal detector

Feeding system complete with Ecotronic system to connect with master system

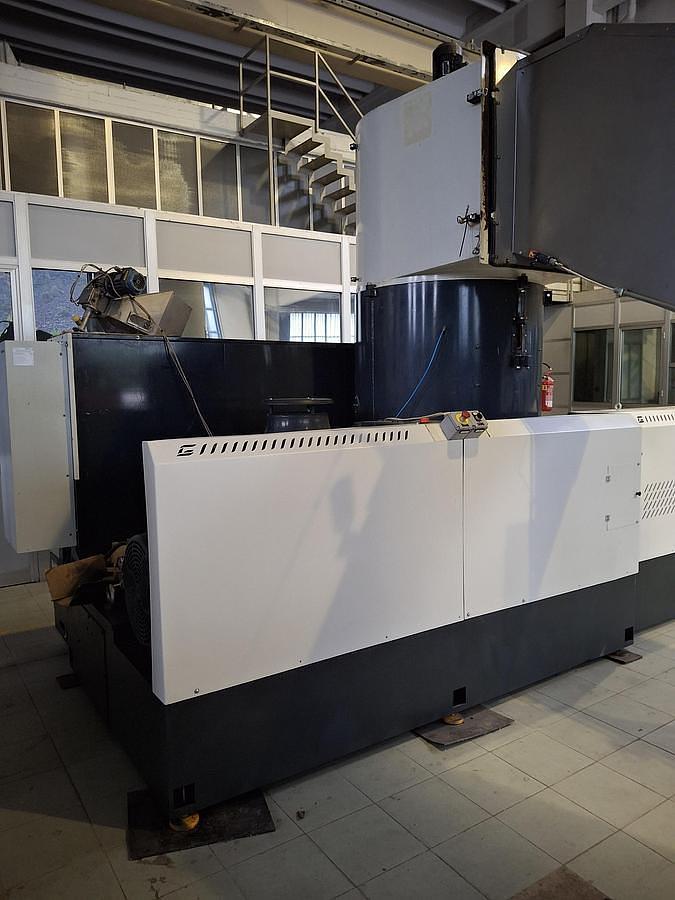

Compactor

n.1 dosing unit

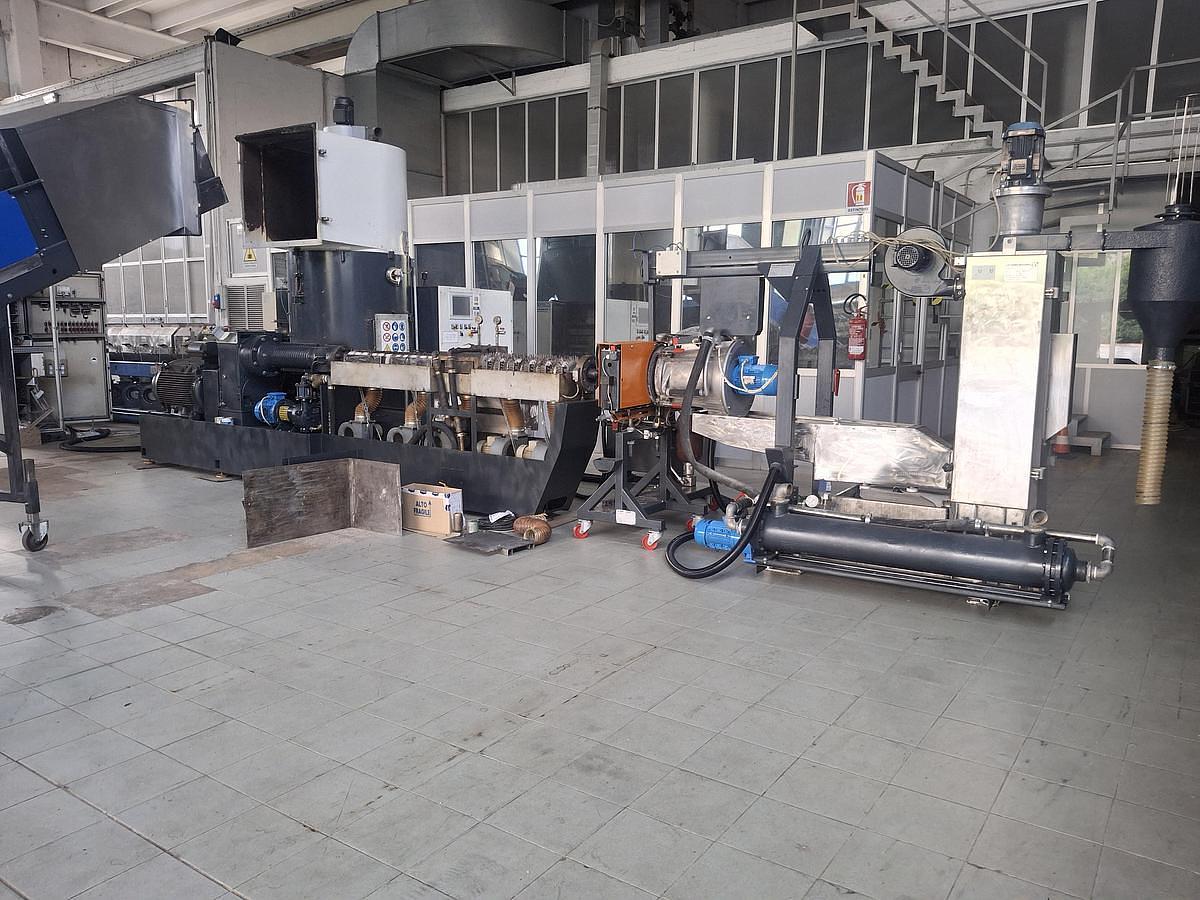

Extruder 90 mm.

with 2 degassing points and 1 vacuum pump

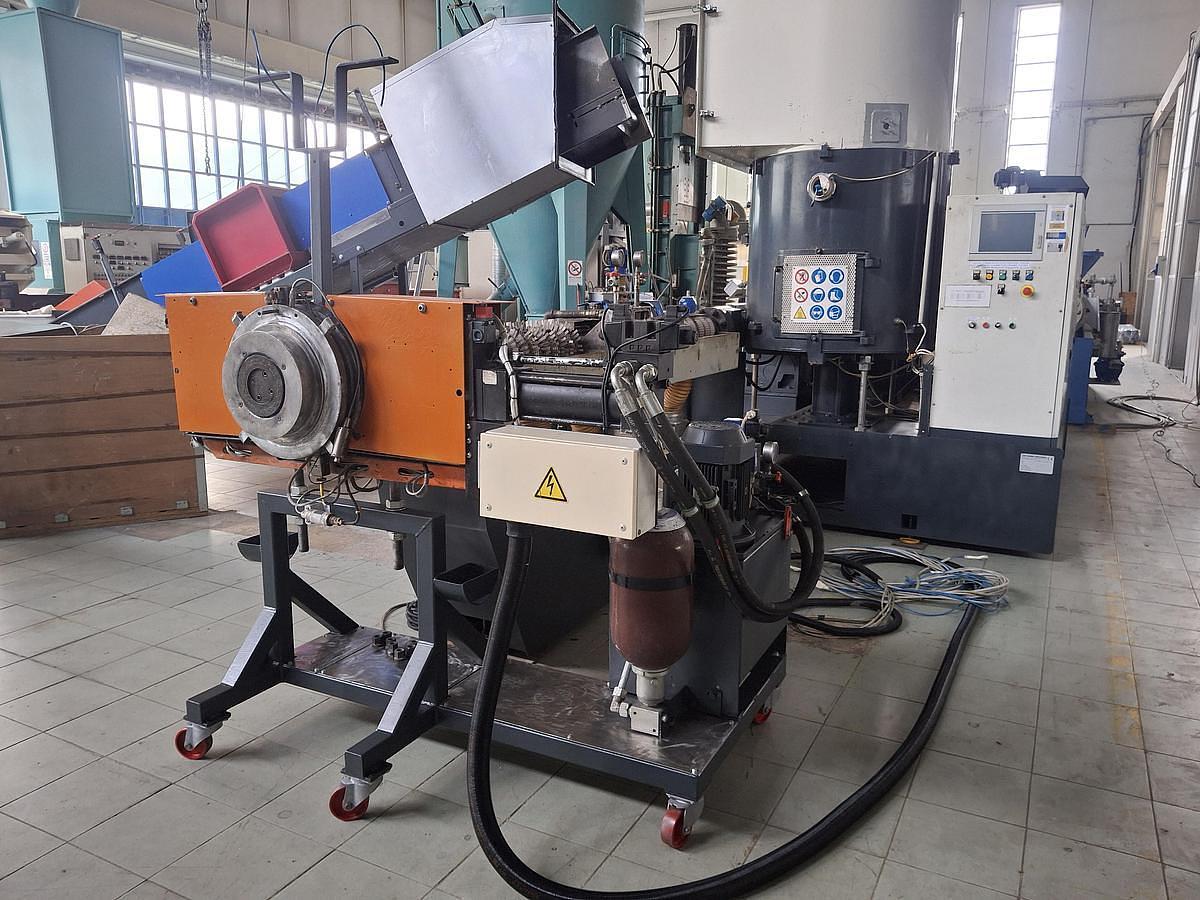

Oleo-dynamic screen-changer 144 mm. Ø screen ** fully automatic screenchanger available on separate request

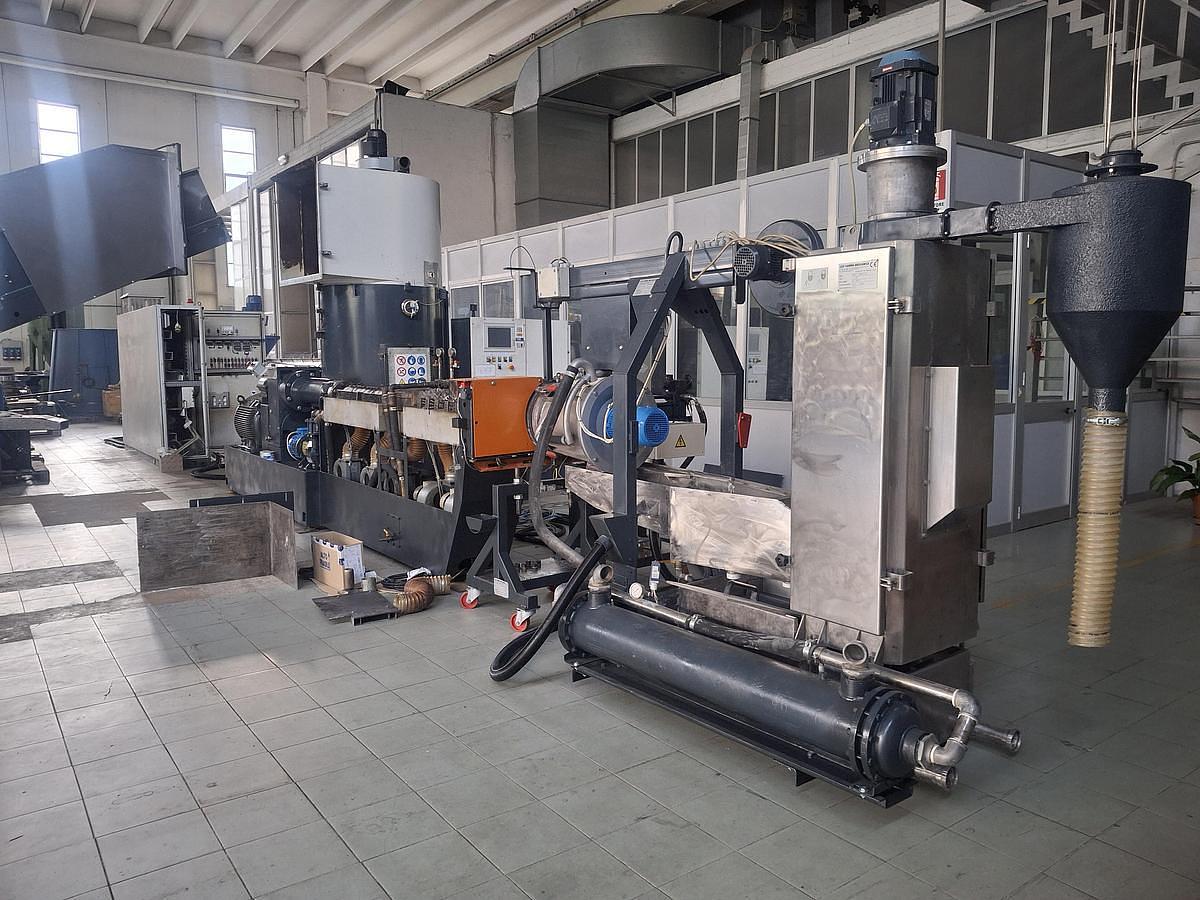

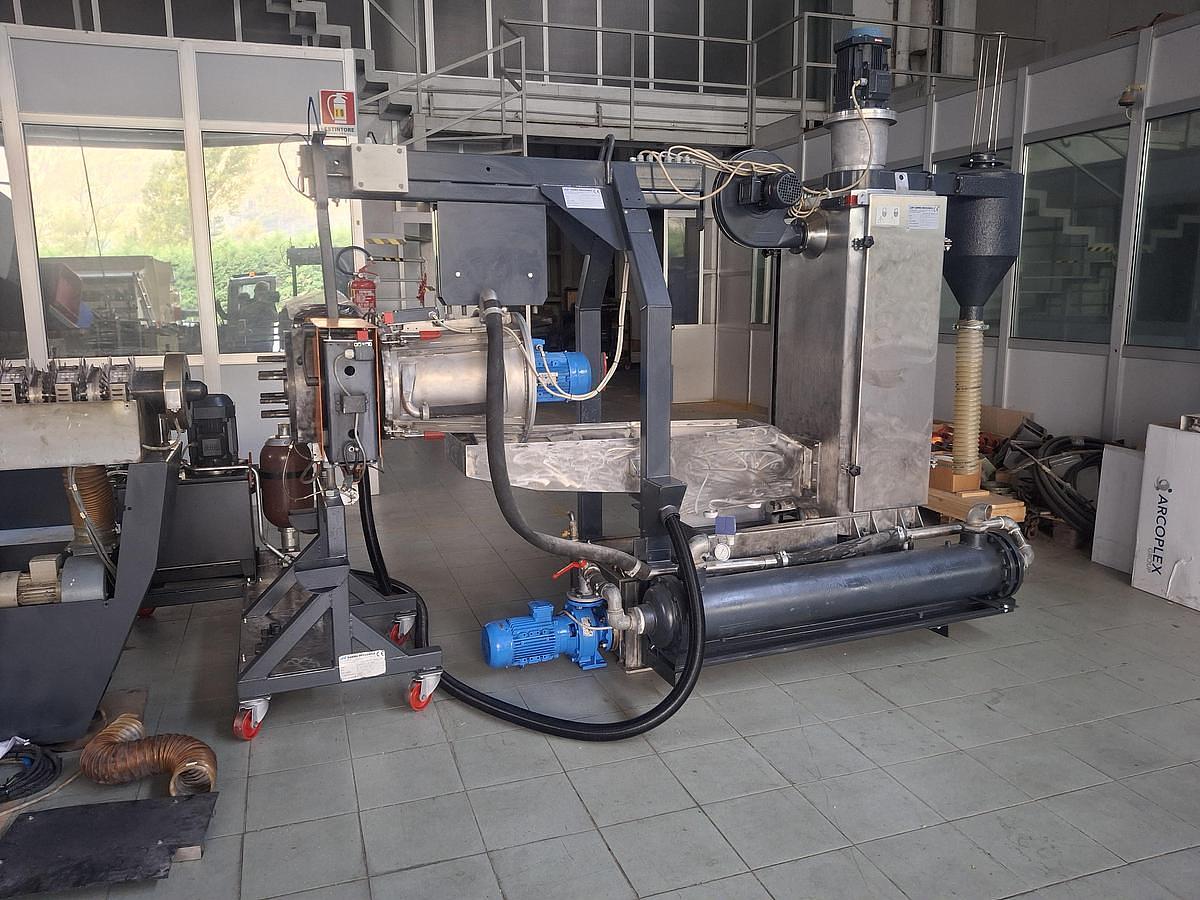

Hot granulation on die

water recirculation system

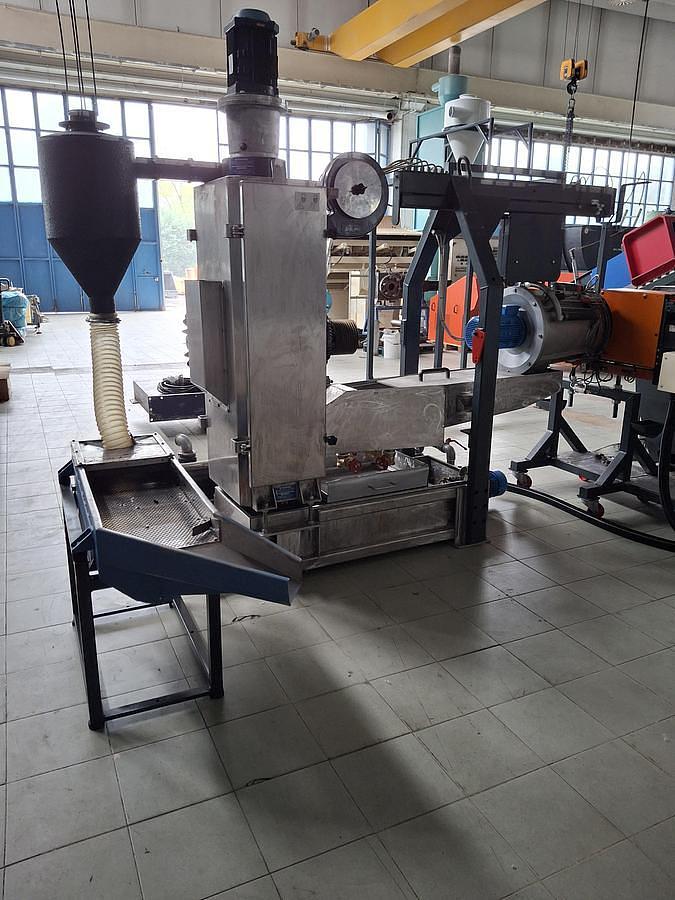

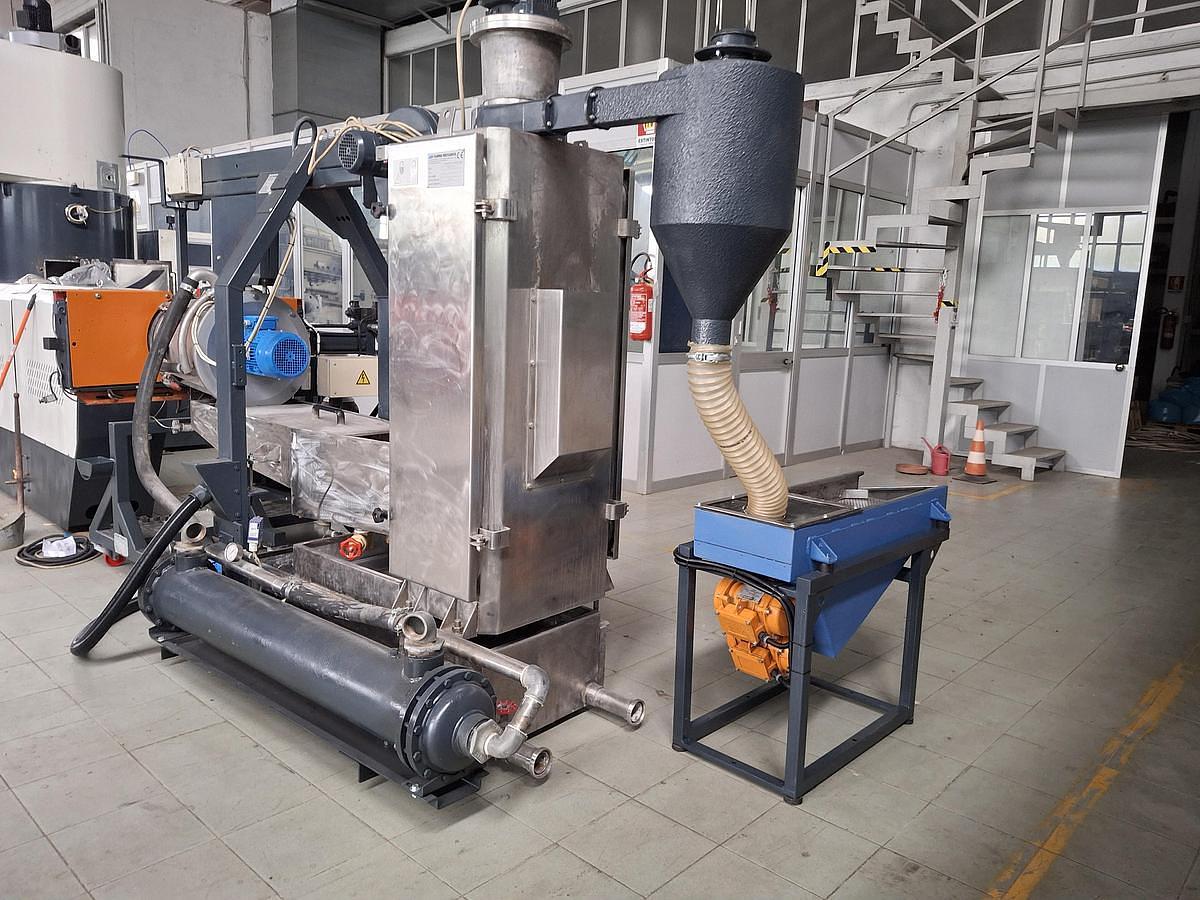

stainless steel drying centrifuge

vibrating screen

Working only with post-industrial waste

Extruder motor 90 Kw - compactor motor 55 kw

Installed power 200 kw, 3x400V + N + PE

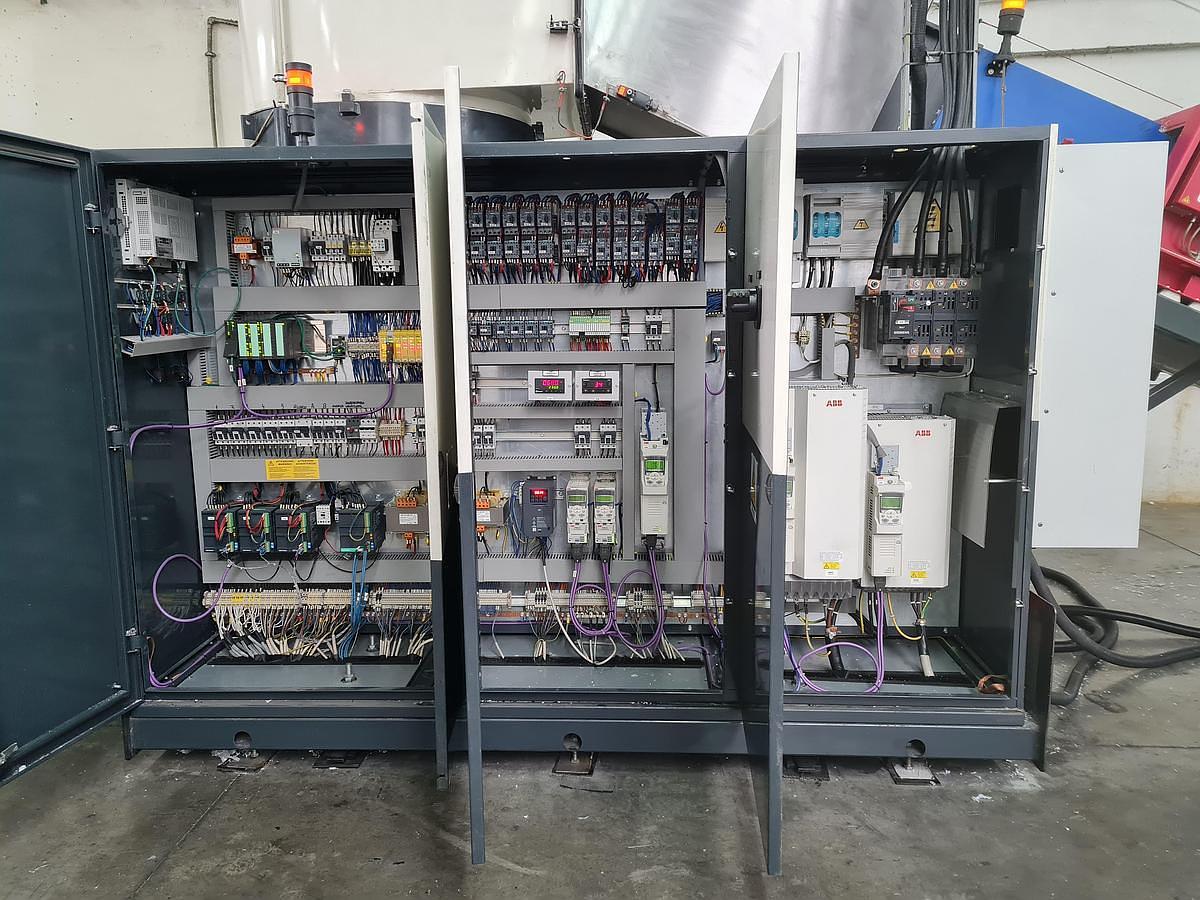

including electric cabinet with touch screen panel

The line is offered totally reconditioned

Spare s available

Ask for chilling unit, if needed.
