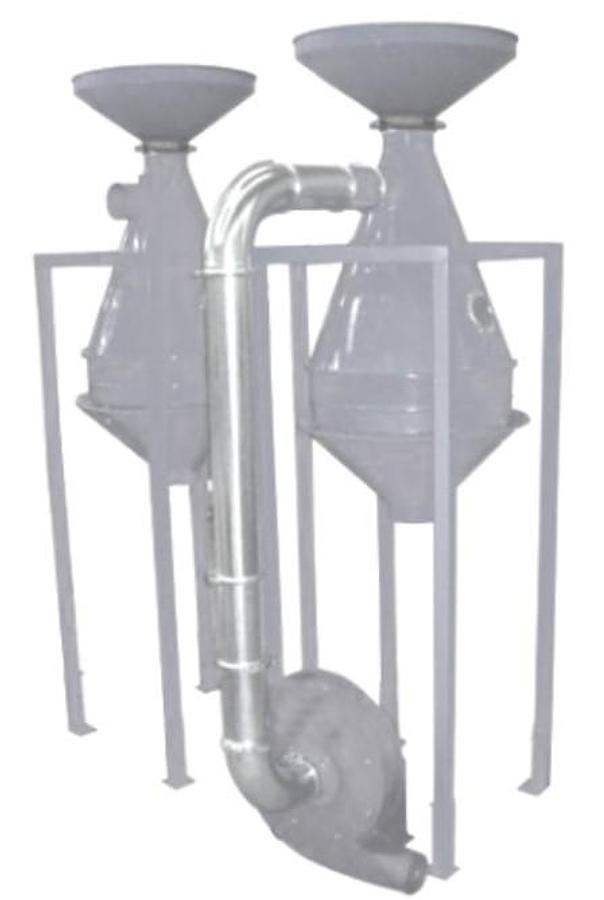

AIR SEPARATOR for labels, dust,.. up to 1.800 kg./h

AIR SEPARATION SYSTEM

for labels, dust, light weight contamination on flakes, granules and regrinds

An effective way to remove dust and light contaminants from chips is to pass material through an aspirator-type cleaner. In the aspirator, the reground plastics fall through an upward airflow that is set to suck up the light particles, while the cleaned regrind falls through the outlet at the bottom of the aspirator.

max 1.800 kg/h

constructed in painted steel + galvanized steel elements

Complete system with 4 kw vent, Ø160 pipes, bends, clamps, Cyclone, hoppers, filter sleeve

Possible addition of big bag supporting structure and weighing system

For lower production plants see our ref GE460

You are welcome to send a product sample to test the machine
