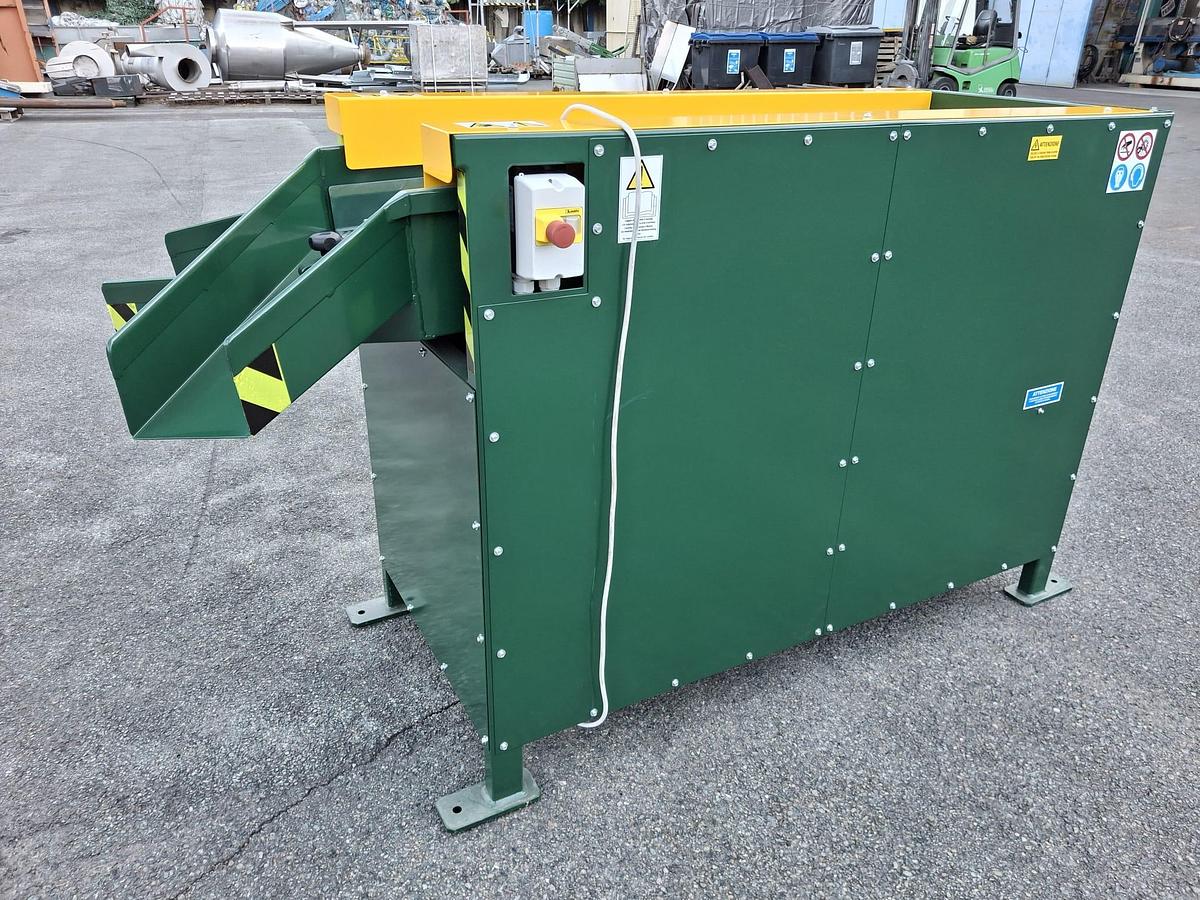

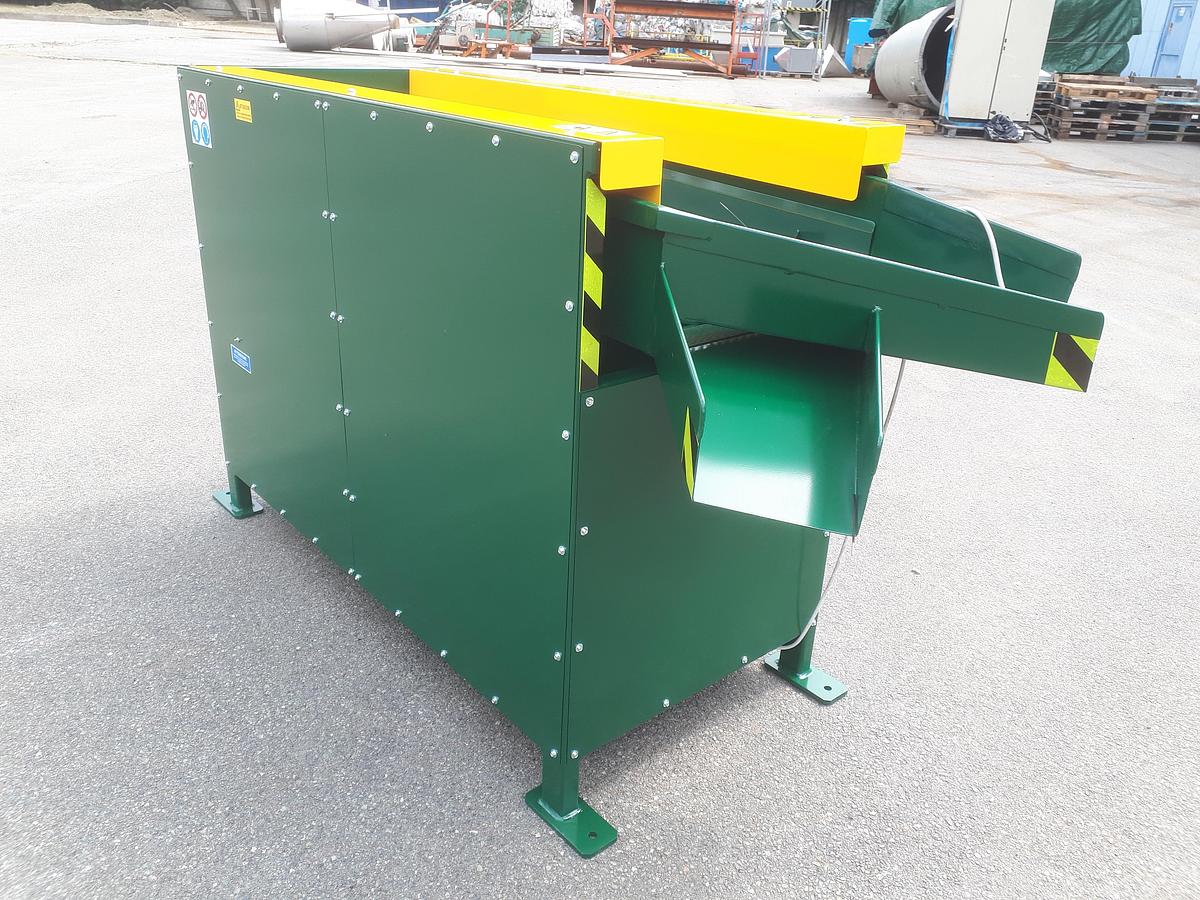

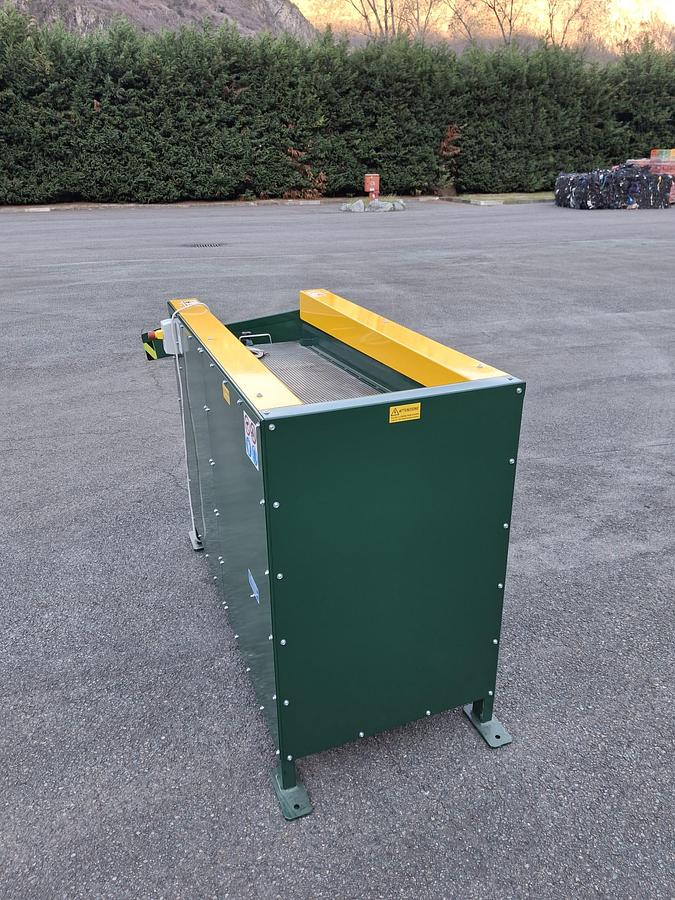

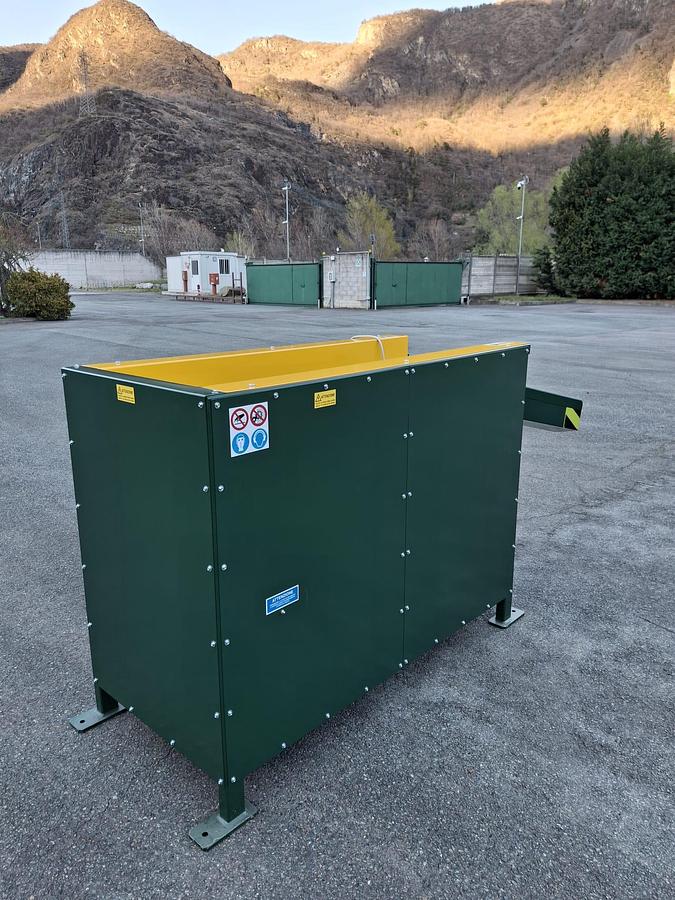

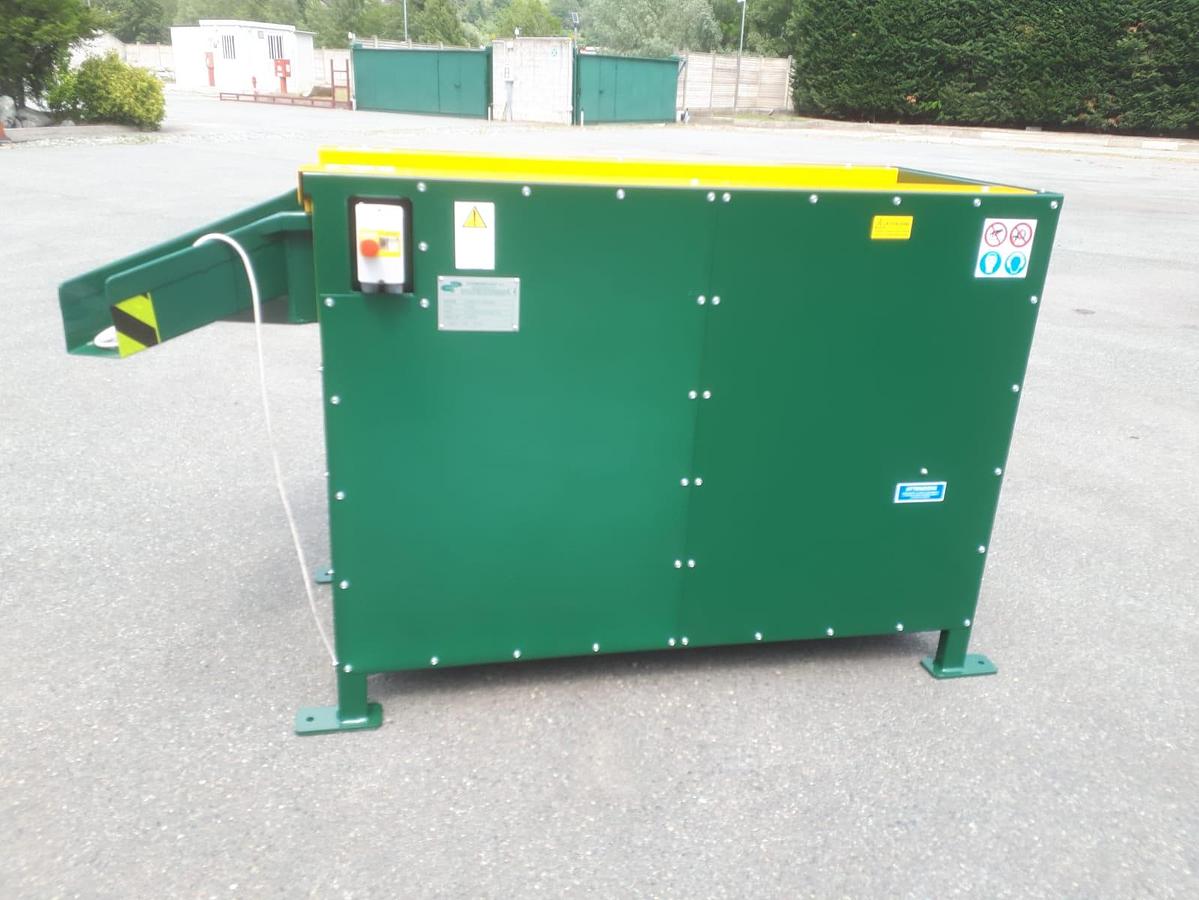

vibrating screen, ready in stock.

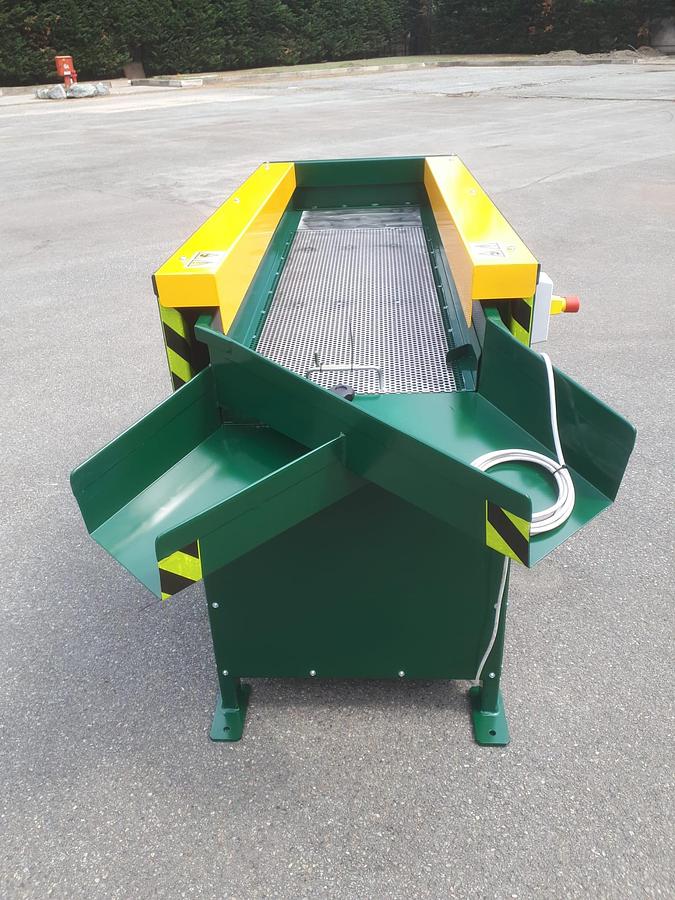

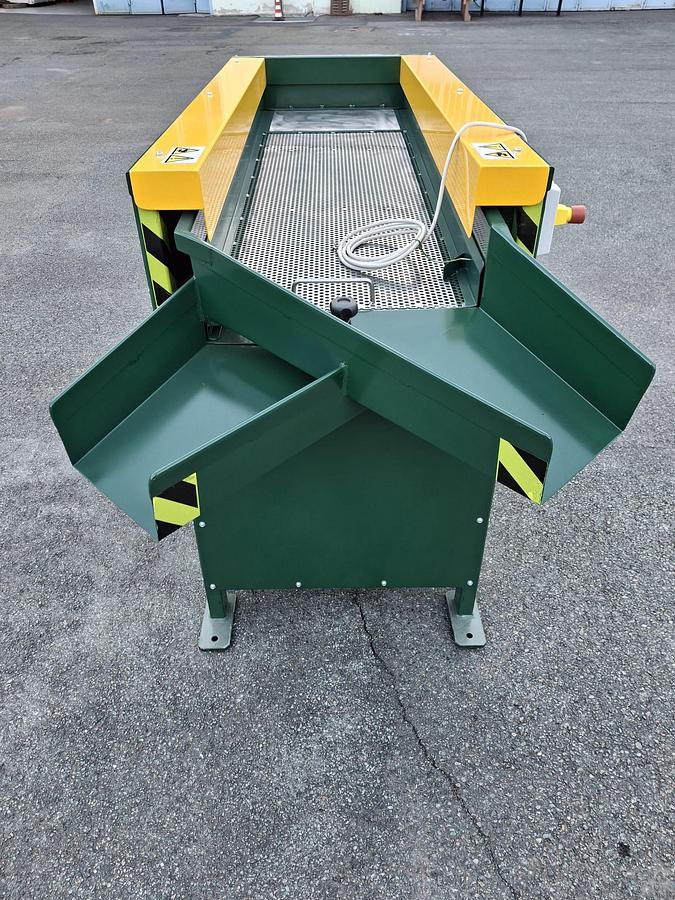

VIBRATING SCREEN 2 OUTLETS

Support structure made of painted carbon steel

Screen dimensions 1500x500 mm

n.2 material discharge outlets

upper screening frame 8 mm.

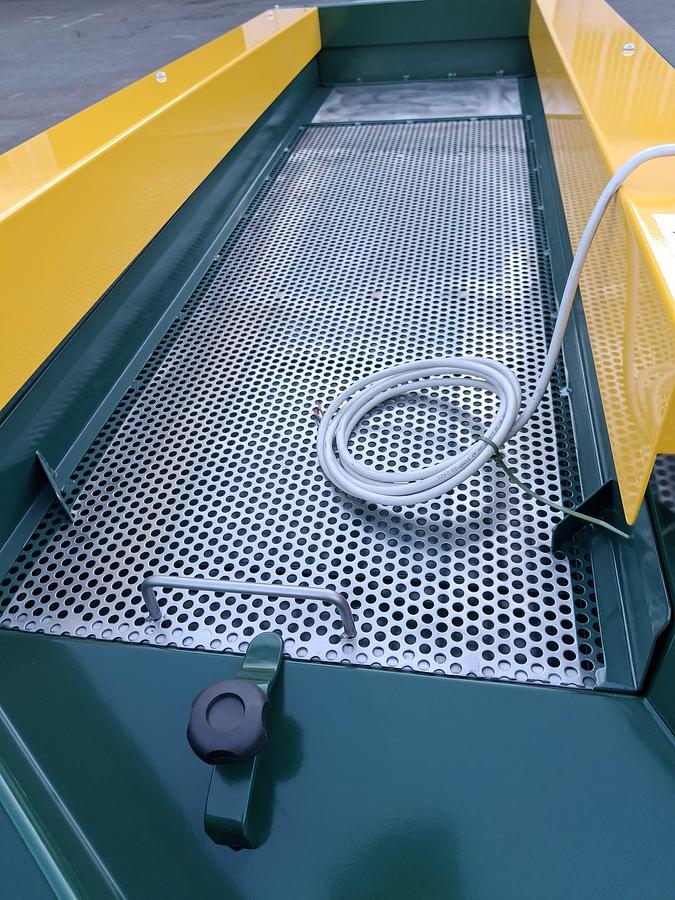

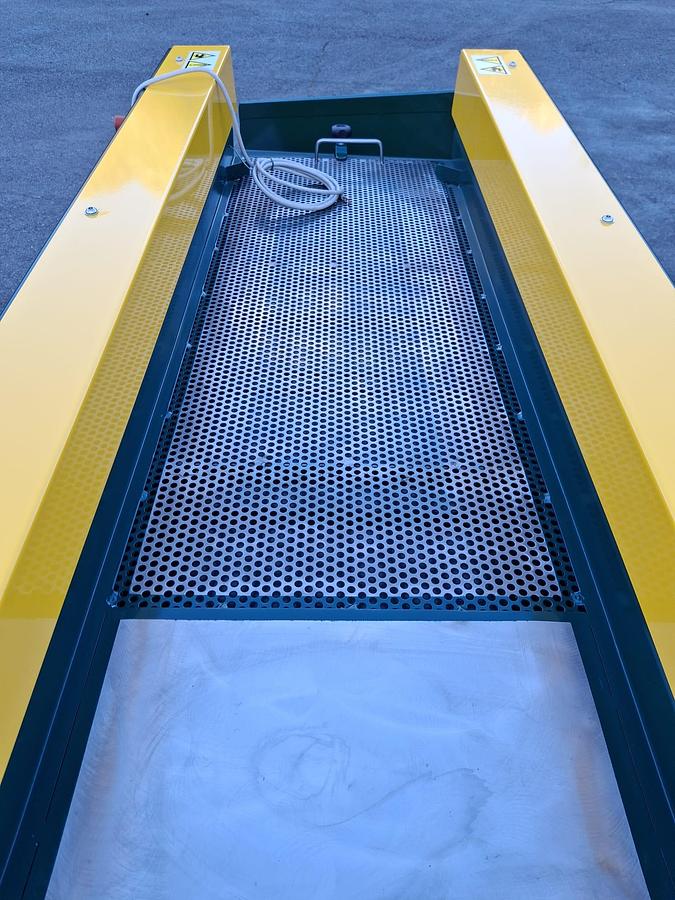

closed at the start for 200 mm, with flow deflector flaps, AISI 304 stainless steel mesh

Drive system comprising 0.75 kW

1 HP B3 P4 400 V 50 Hz electric motor,

eccentric drive unit.

Fixed side and top safety guards,

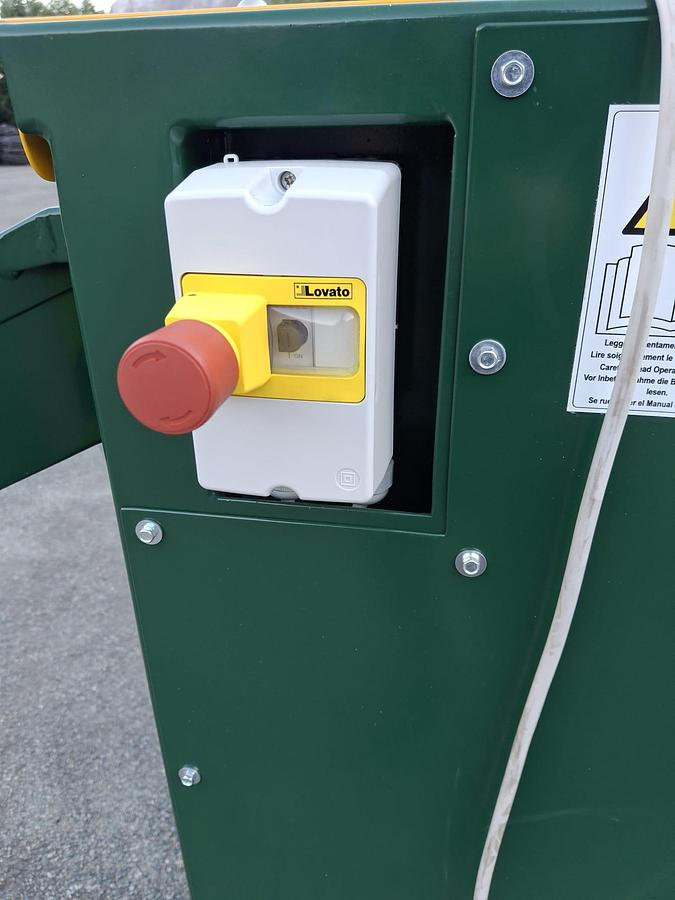

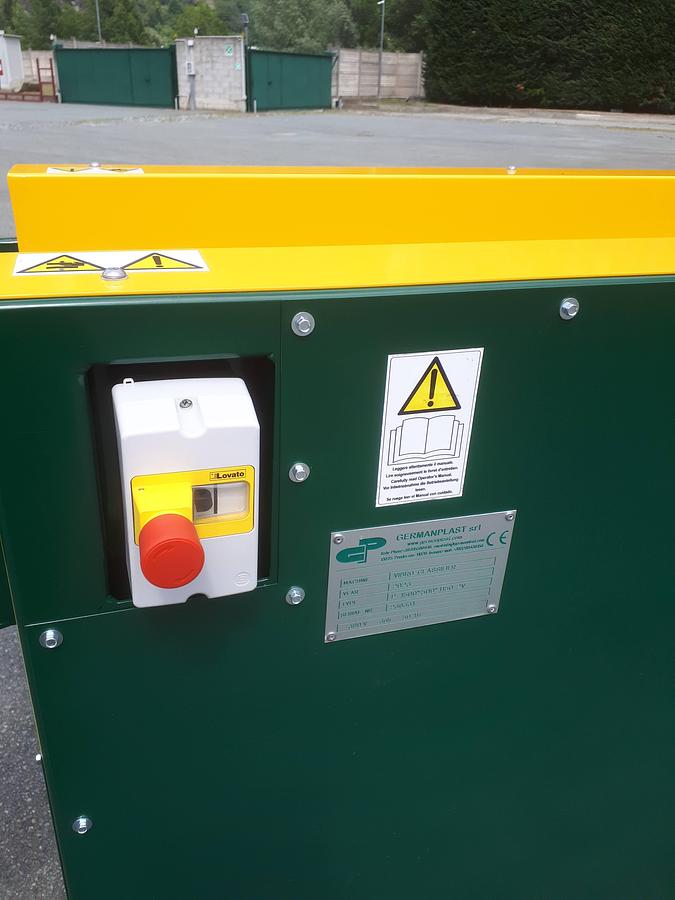

Electrical system with start/stop switch and emergency stop button.

Safety side protection carters

Instructions manual, CE, electrical drawings.

If you need anything different please give us the following details.

HEIGHT - LENGTH - SCREEN HOLES - NUMBER OF SCREENS - CAPACITY in kg/h

Standard classifying surface is 1500×500 mm. (x 1.000 mm H) which covers most extruders up to 1300 kg./h, but you can have longer surfaces when a cooling action is needed, particularly for PVC, or for higher capacity extruders..

A very simple machine with its electric panel, safety switches, emergency button and fully compliant with CE regulations

If you need a vibrating screen for liquids, please check HERE
