extruder 160 mm. 50 LD 2x degassing with energy saving IR heaters

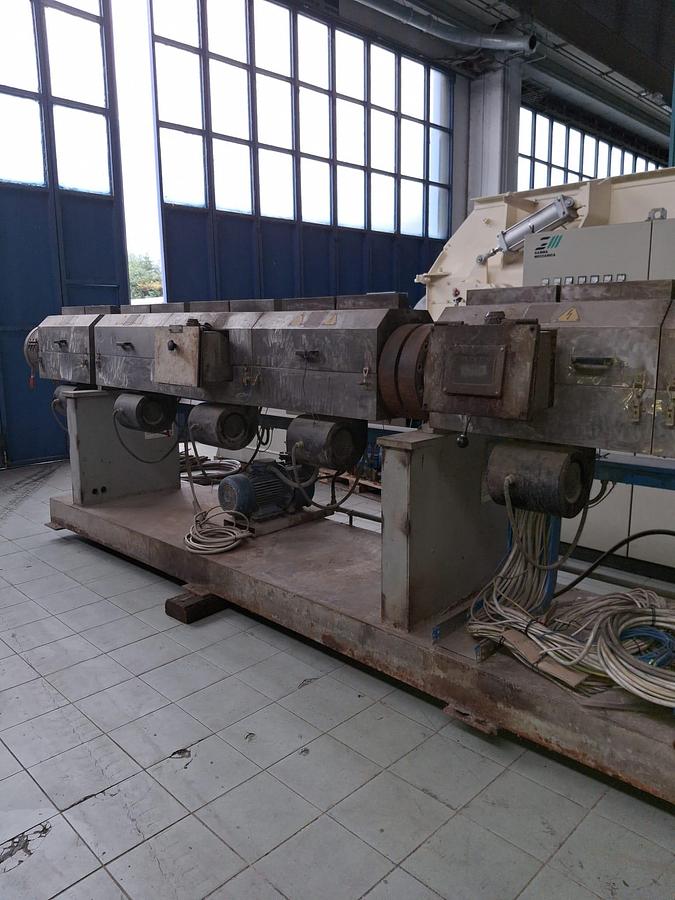

Leda Mattiello Extrusion line 160 mm 50 LD 2 degassing pumps, under refurbishing

ENERGY SAVING IR heaters

for PP PS PE ABS PC, etc.

Very good quality extruder

3 m3 ca. storage silo

crammed vertical screw for light materials with adjustable speed,

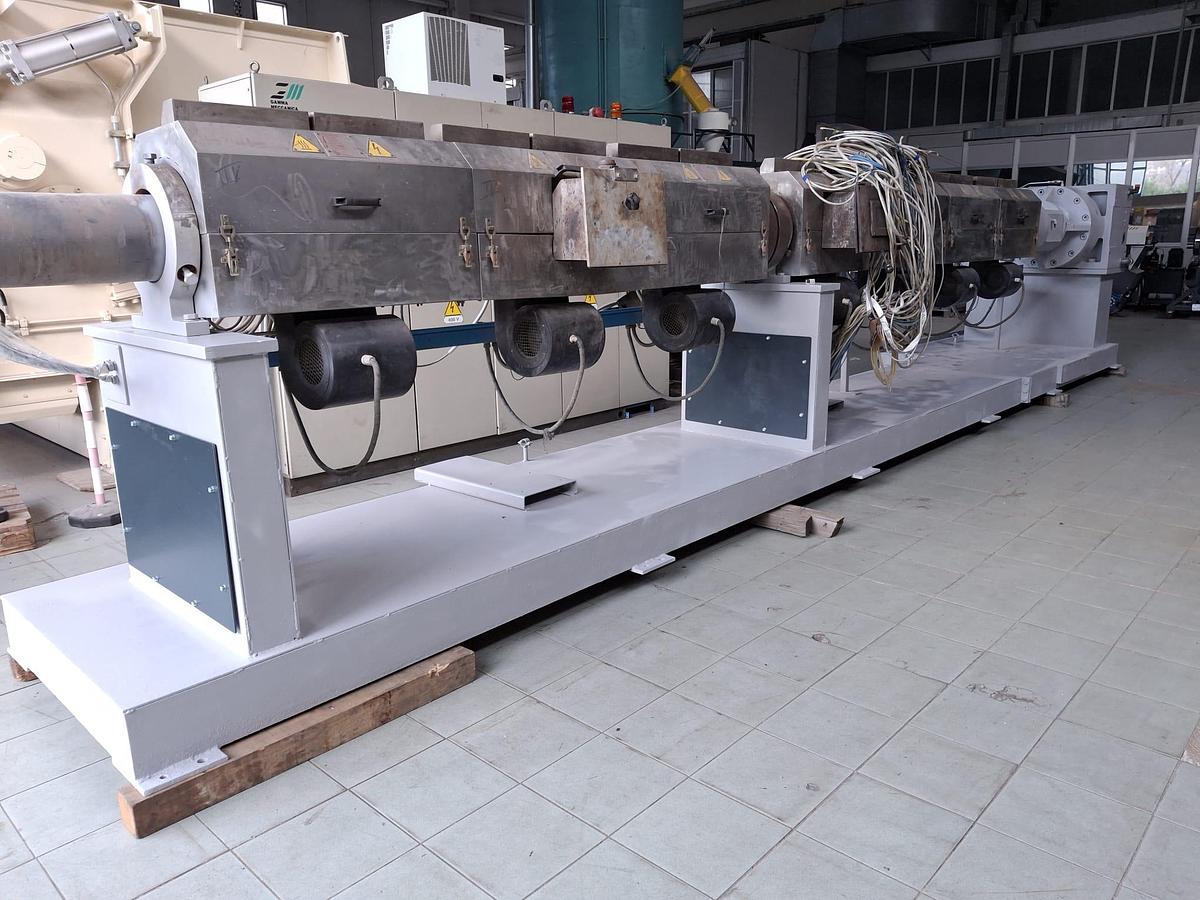

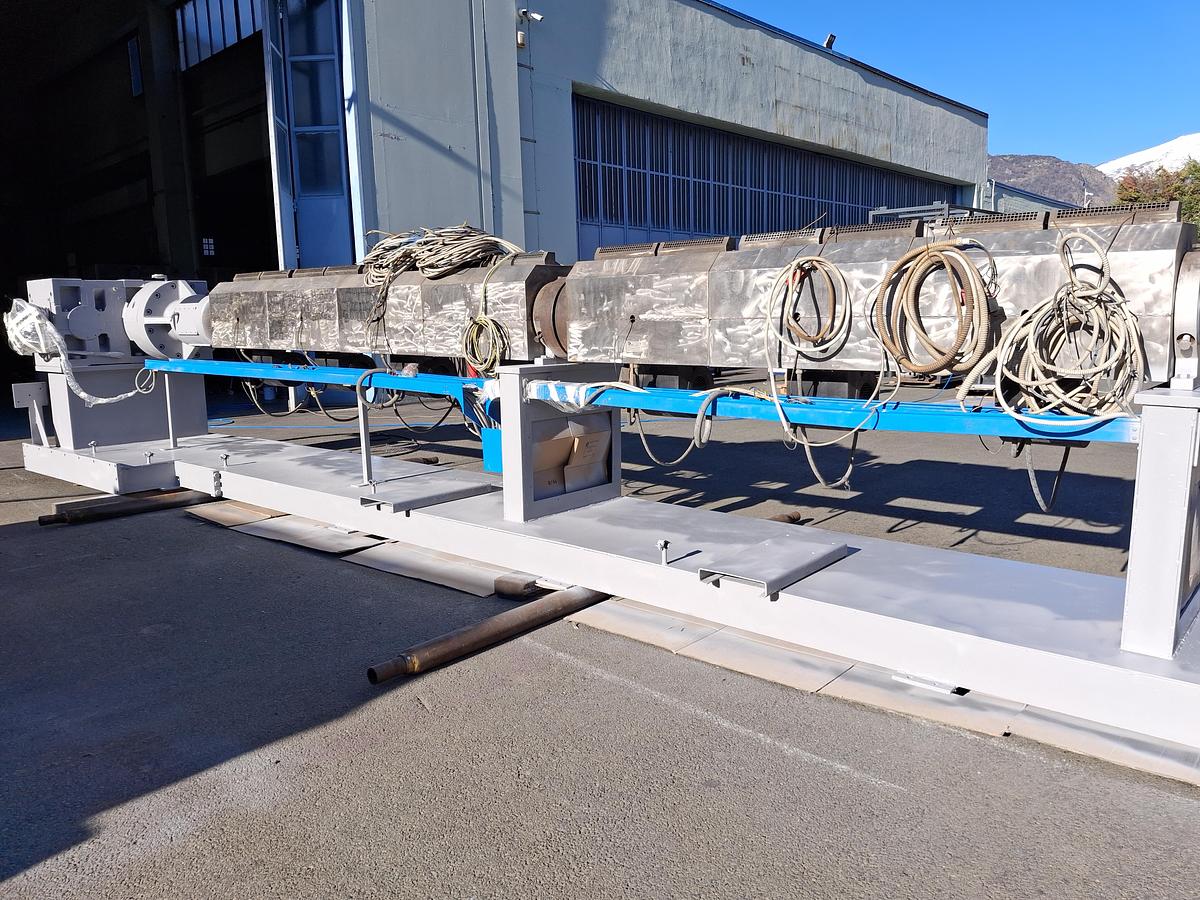

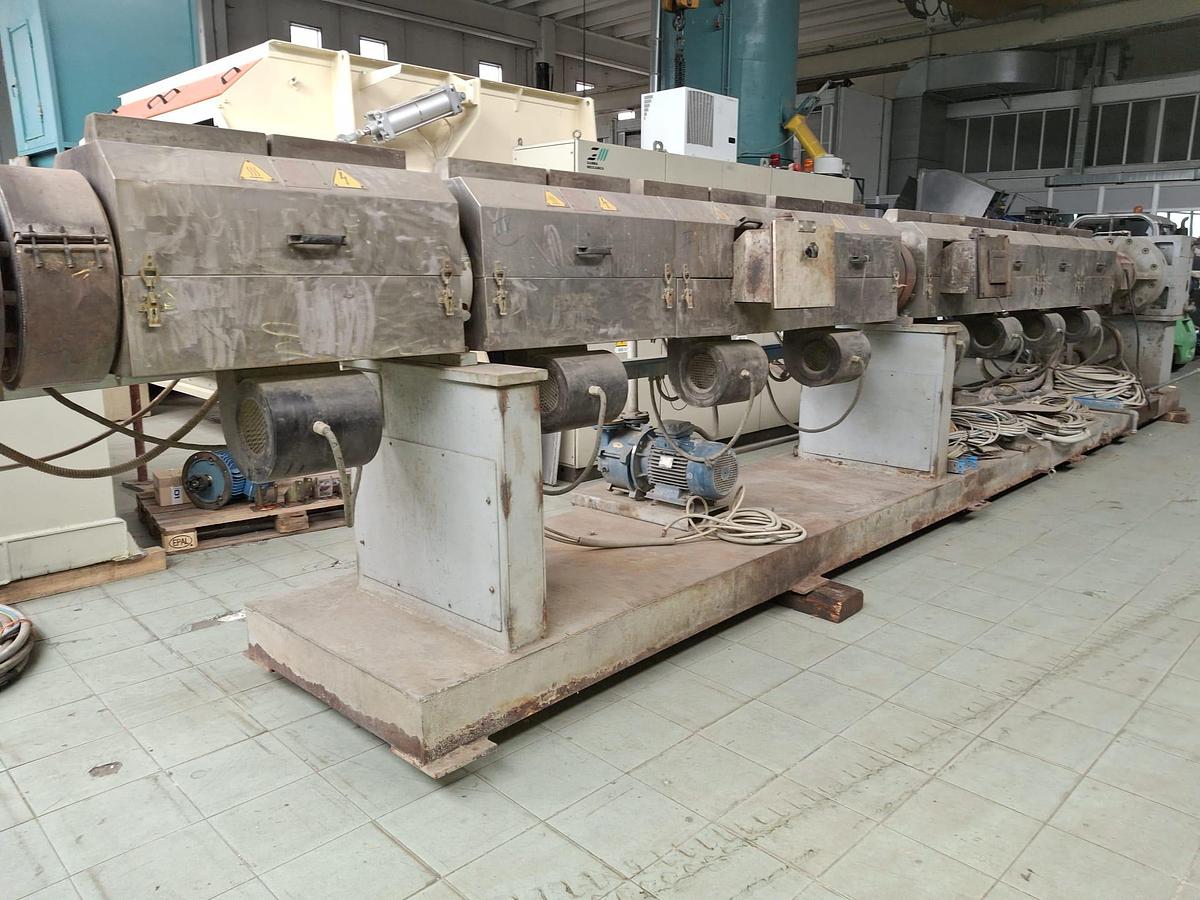

extruder with 160 mm. screw, 50 L/D

** n.8 Infra Red Petrelli Heaters x 11 kw each V.380 - for great energy saving

315 kw a.c.Sever drive with inverter  (about 60% power used in work)

Gefran inverter

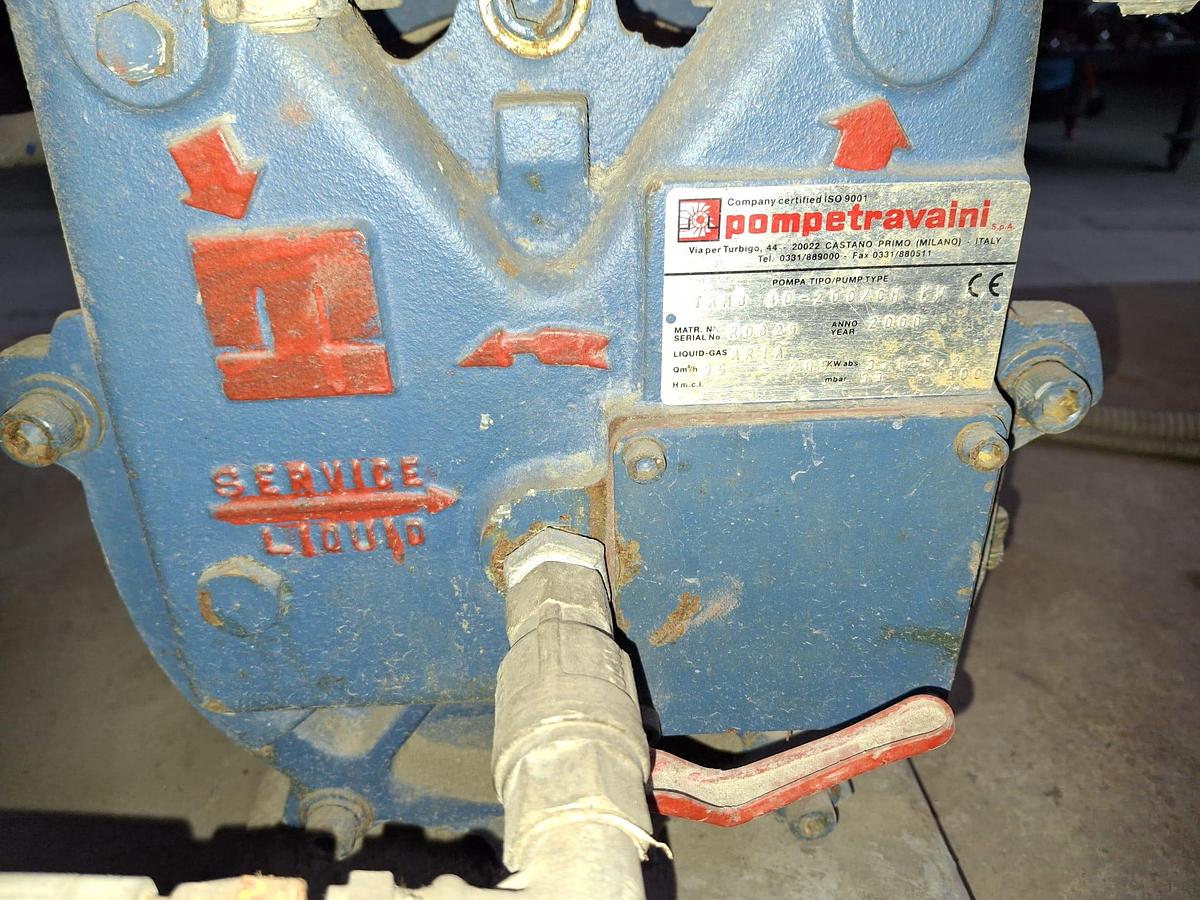

n.2 vacuum degassing pumps

semi-automatic screen-changer 400 mm Ø screens (possible configuration with fully automatic scren-changer)

horizontal water ring pelletizer

drying centrifuge

closed water cycle

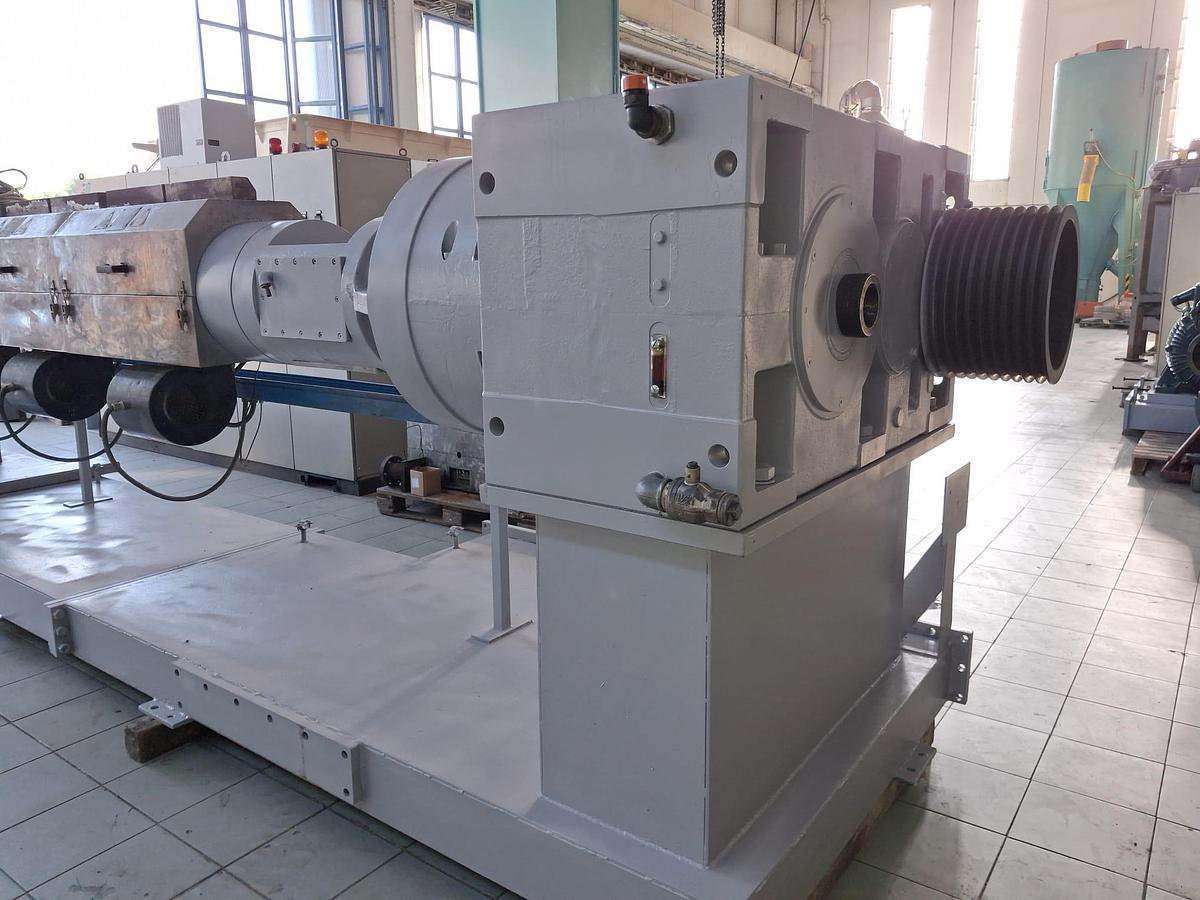

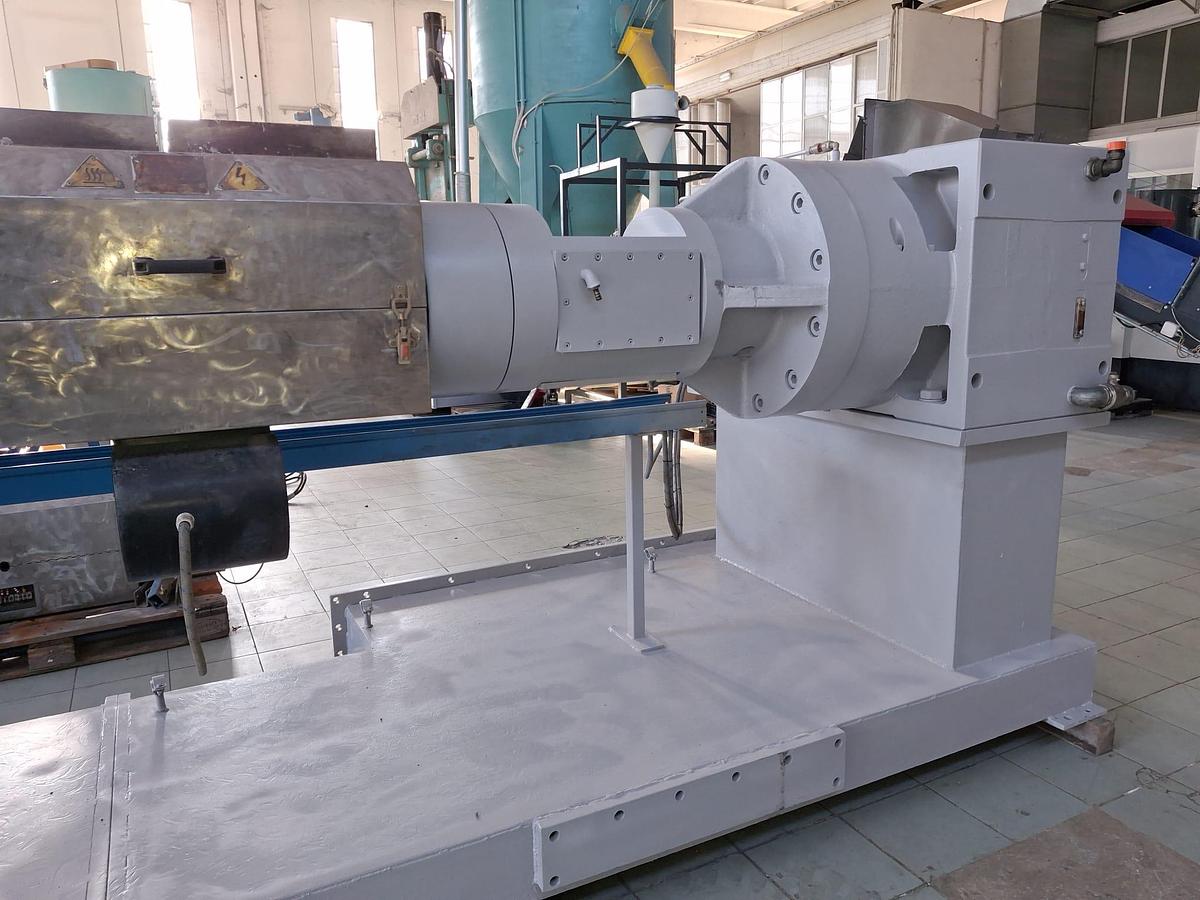

Zambello gearbox with oil recirculating pump

oil-water heat exchanging unit

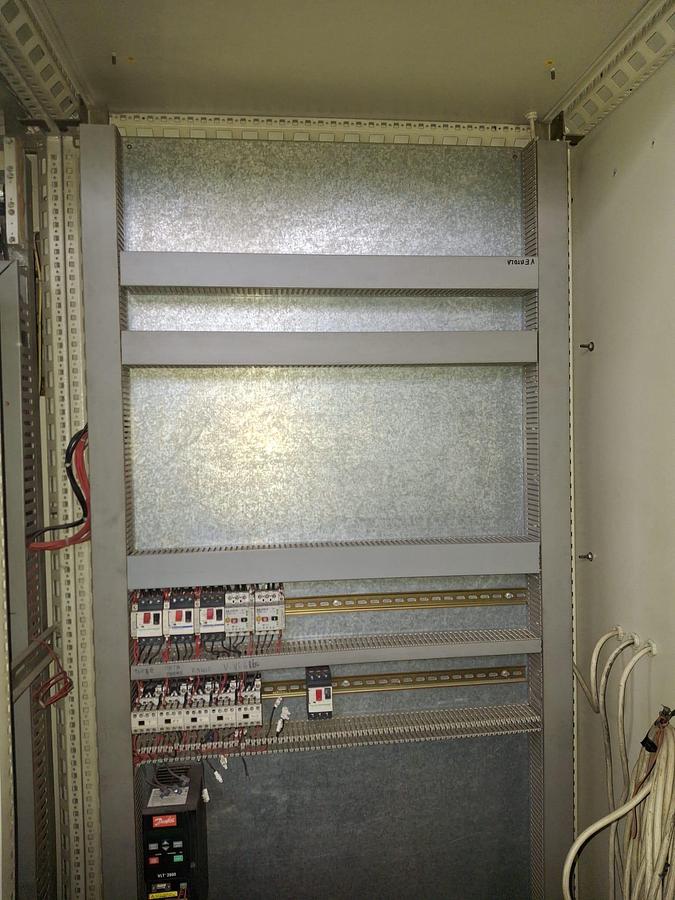

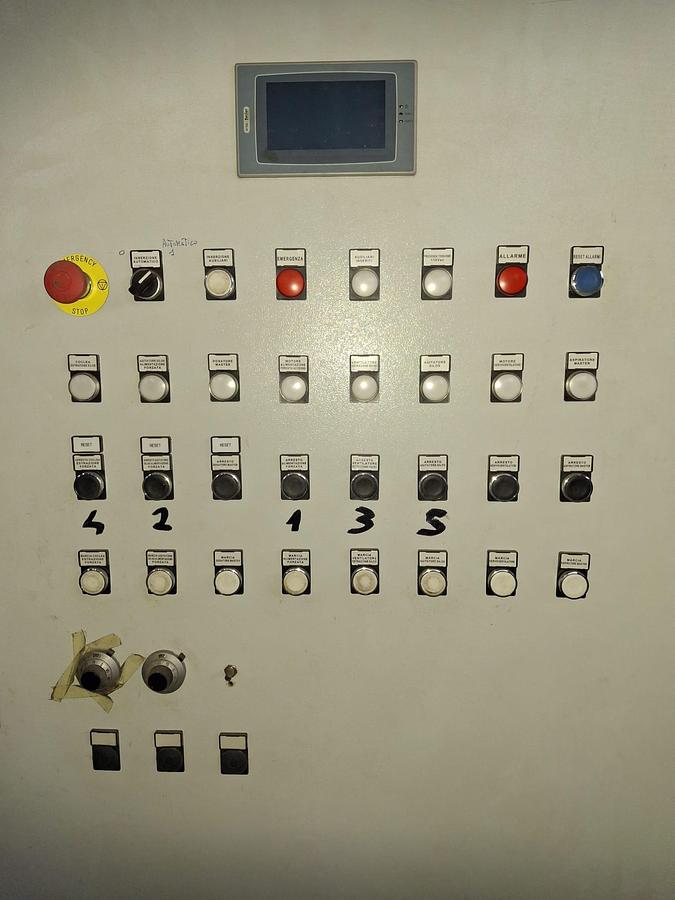

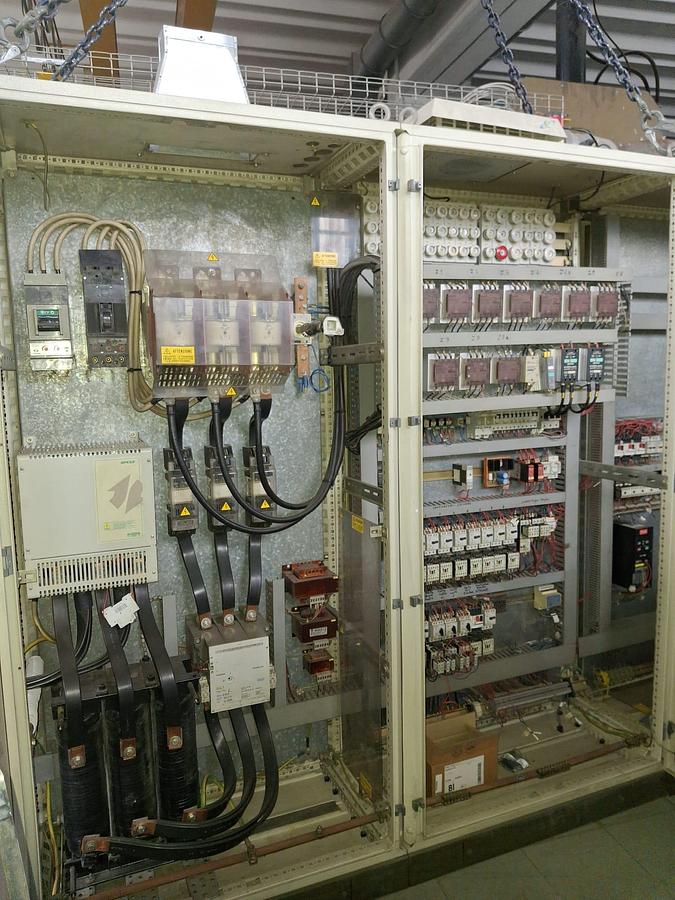

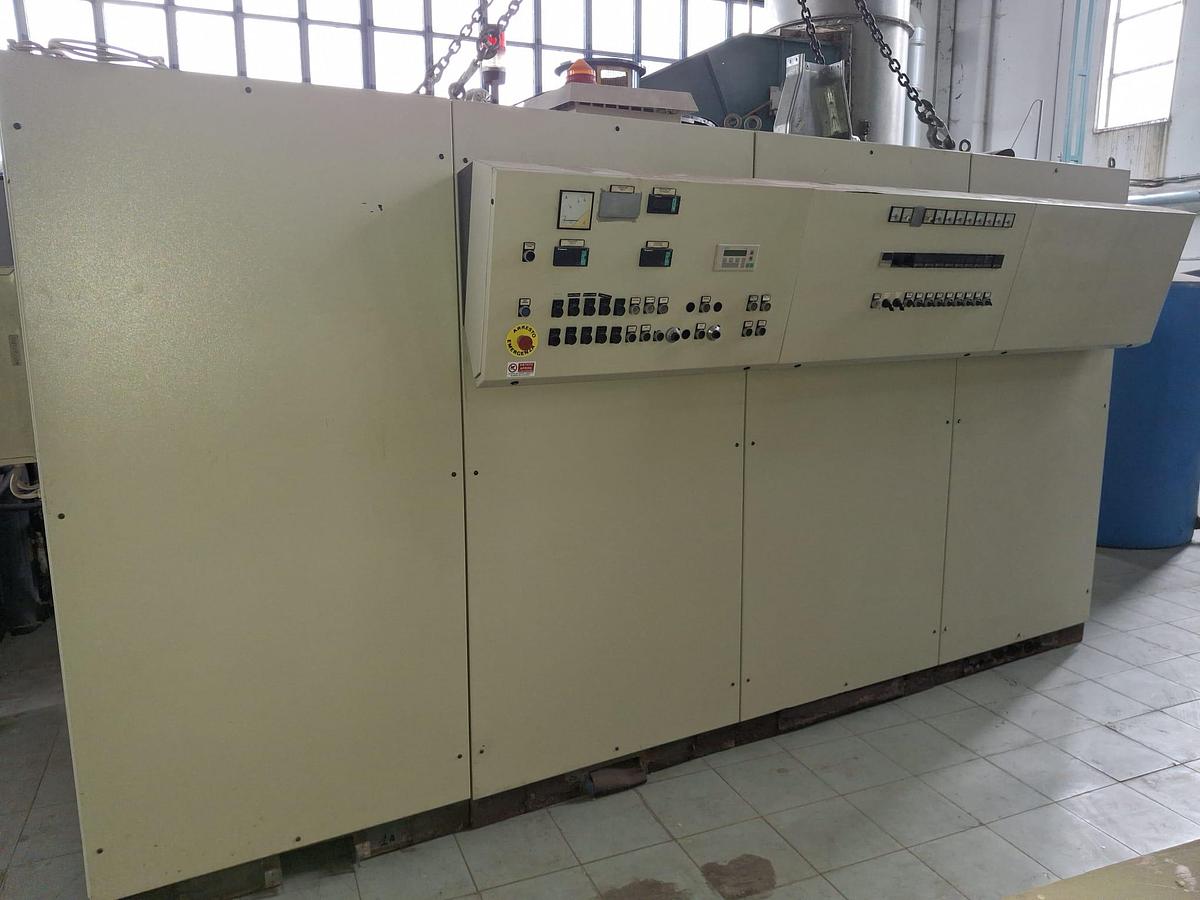

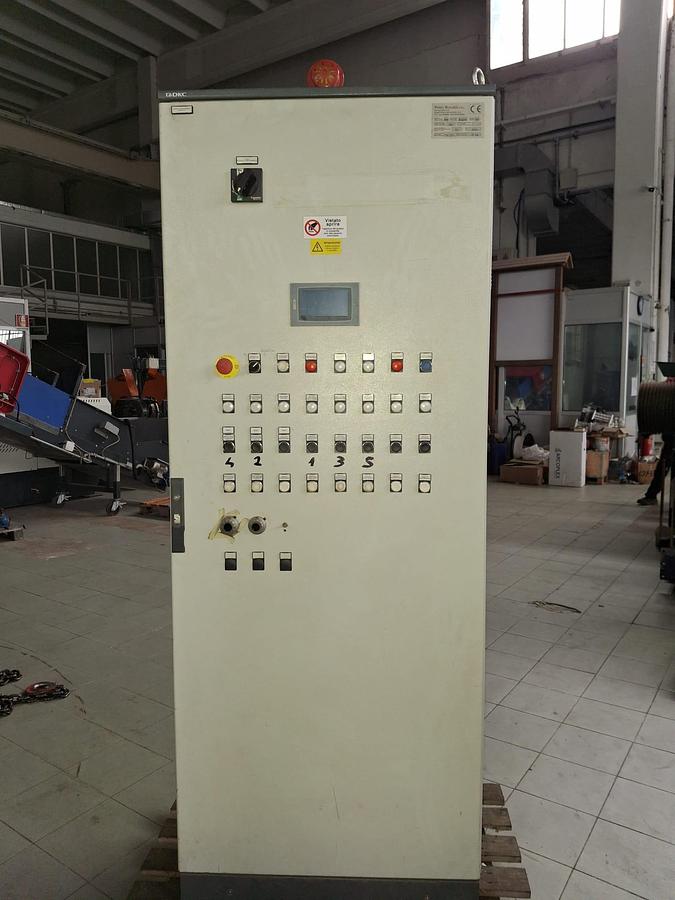

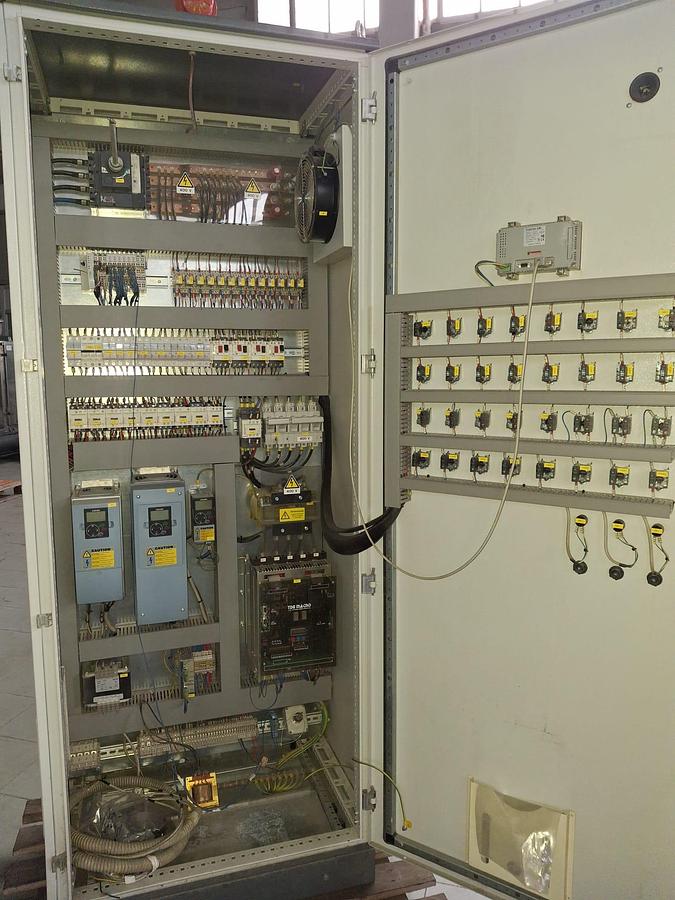

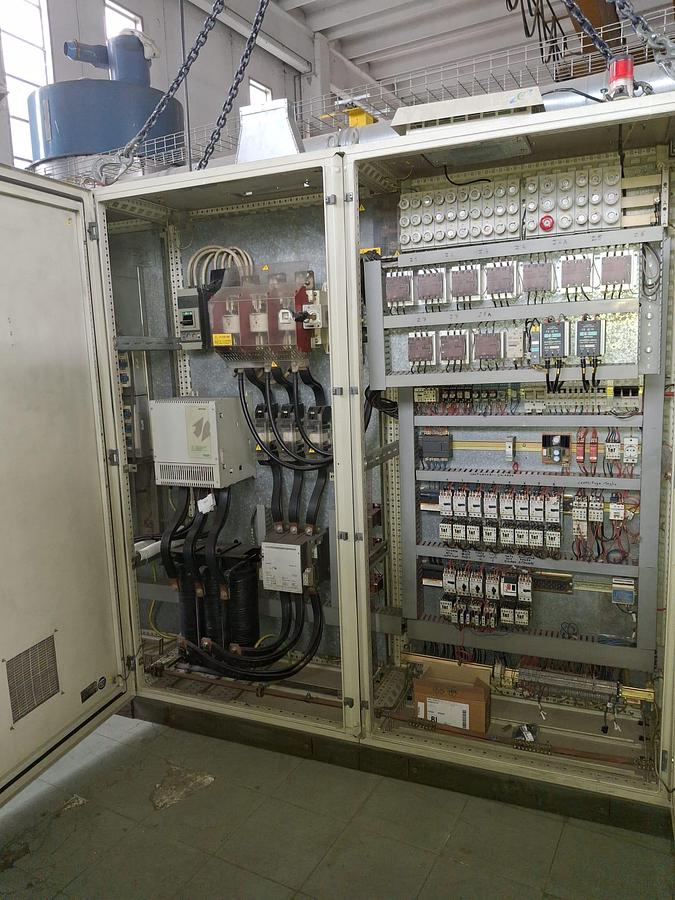

Control cabinet for managing the whole line including thermoregulators, etc.

Nominal throughput rate 800-900 kg./h depending on material.

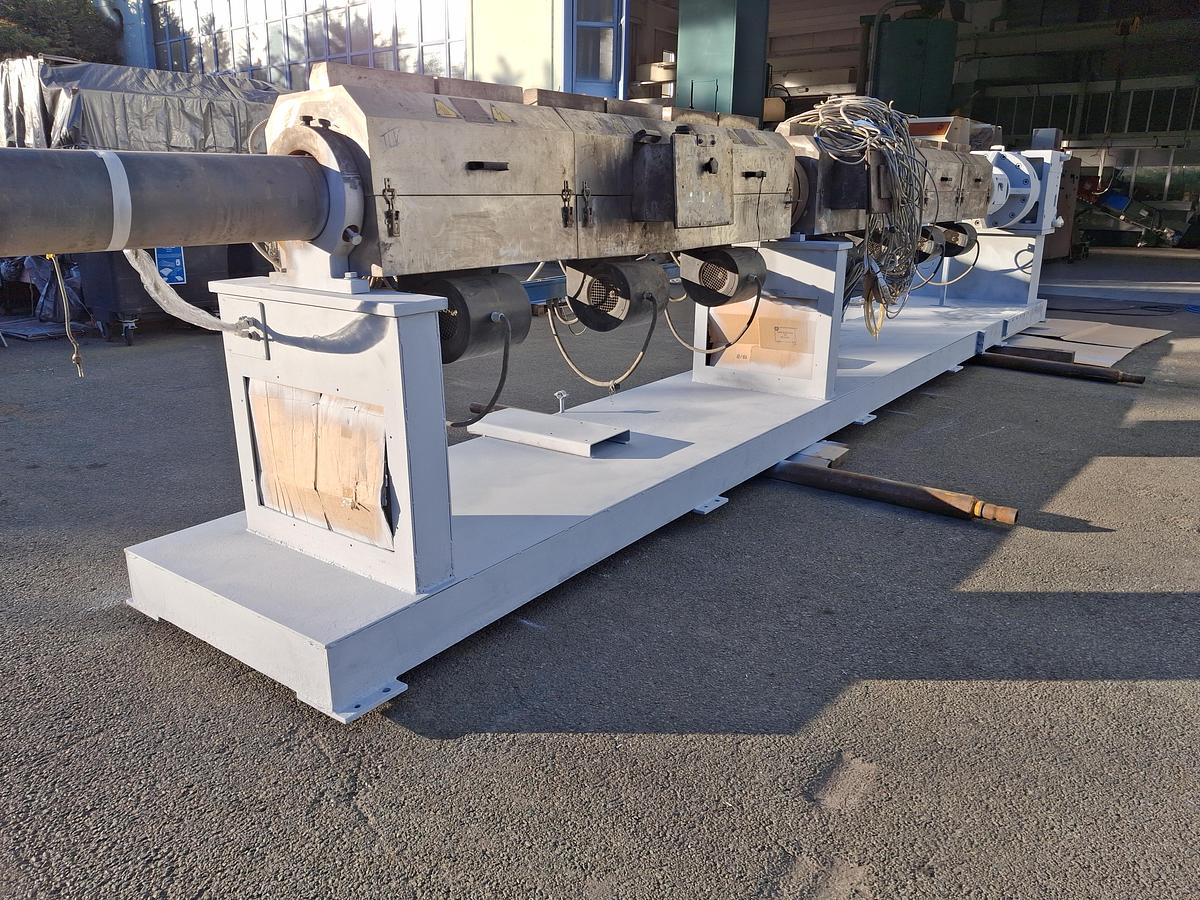

The extruder is offered fully reconditioned
