2010 BATTENFELD-CINCINNATI 10-32 mm Ø pipes

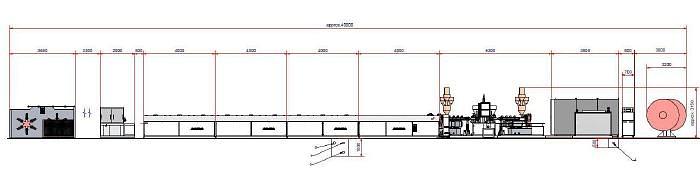

PIPES MULTILAYER EXTRUSION LINE

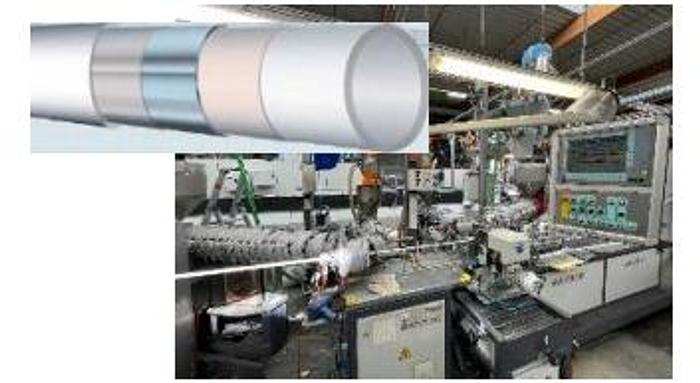

multi-layer pipe (PE-AL-PE) extrusion line

suitable for pipes from 10 - 32 mm

5 layers (from inside to outside)

1. PE (PERT, HDPE)

2. glue (primer)

3. Aluminum

4. glue (primer)

5. PE (PERT, HDPE)

Capacity : Ø mm.16*2 mm. - 25 m/min

Ø mm.20*2,25 mm. - 16 m/min

Ø mm.25*2,5 mm. - 13 m/min

Ø mm.32*3 mm. - 10 m/min

Including tools for Ø 16mm:

• Roller block with bracket unit

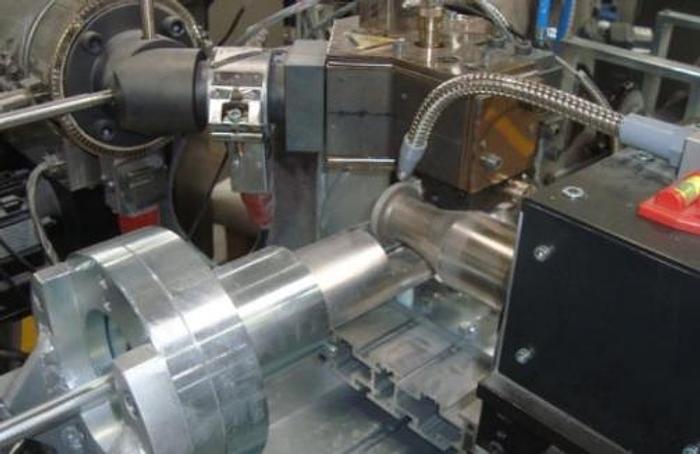

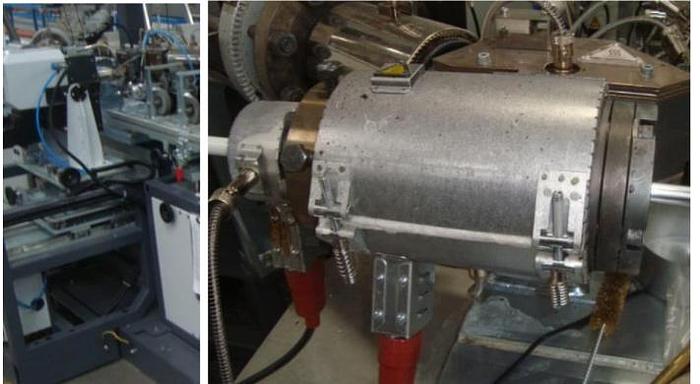

• Roller forming complete
• outer die complete
• inner die complete
• heating belt
• blowing-off die
• accessories

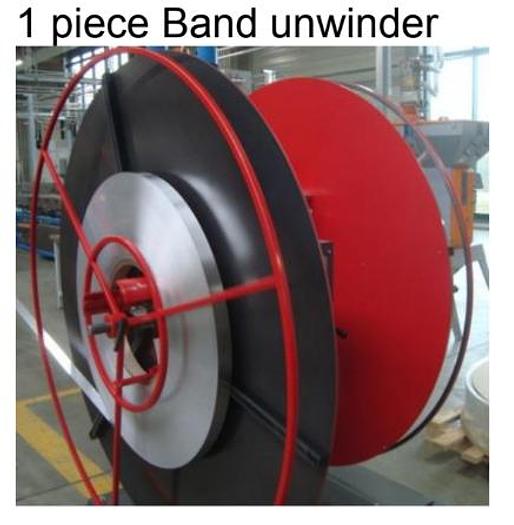

Band unwinder

Band buffer

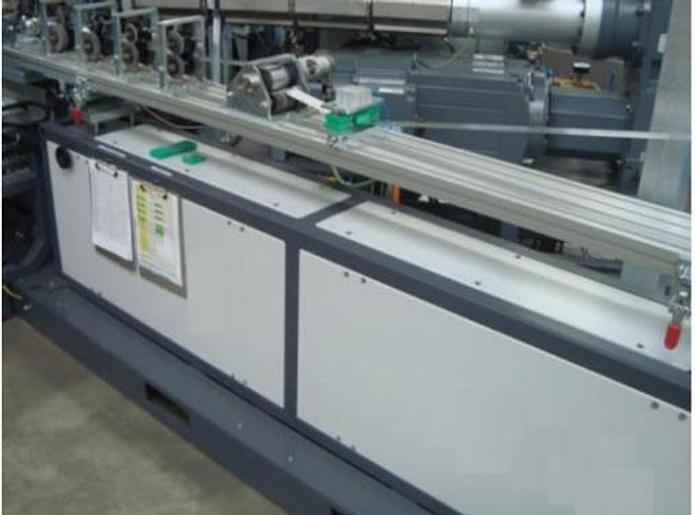

Pipe forming station

Welding machine

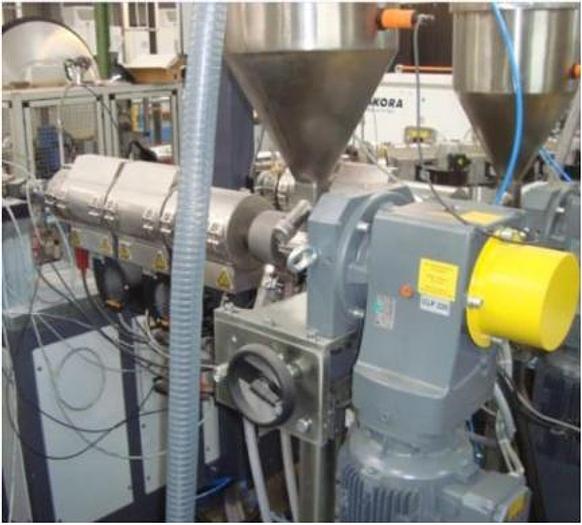

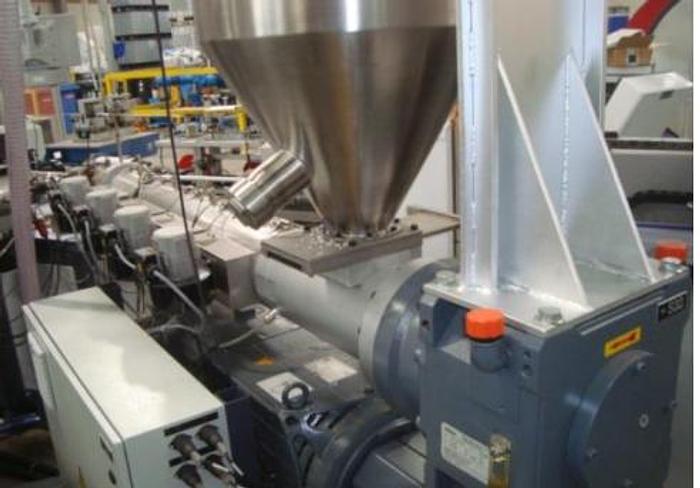

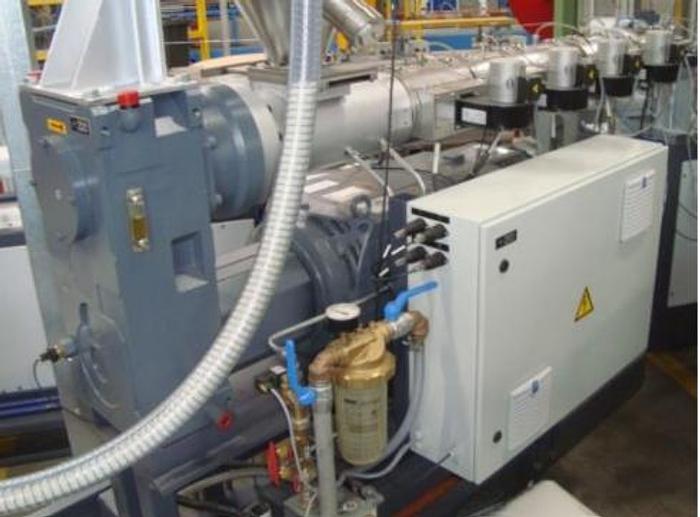

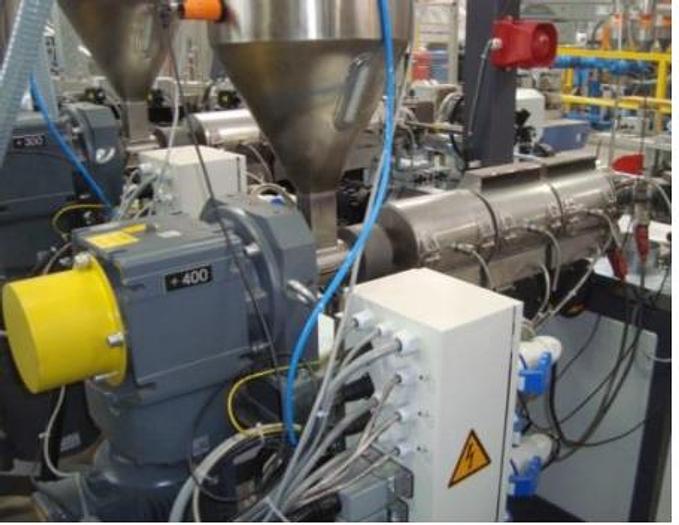

extruder A (inner PE layer) BATTENFELD-CINCINNATI Ø45 mm 30 L/D

extruder B (glue for inner layer) BATTENFELD-CINCINNATI Ø30 mm. 25 L/D

extruder C (glue for outer layer) BATTENFELD-CINCINNATI Ø30 mm. 25 L/D

extruder D (outer PE layer) BATTENFELD-CINCINNATI Ø45 mm 30 L/D

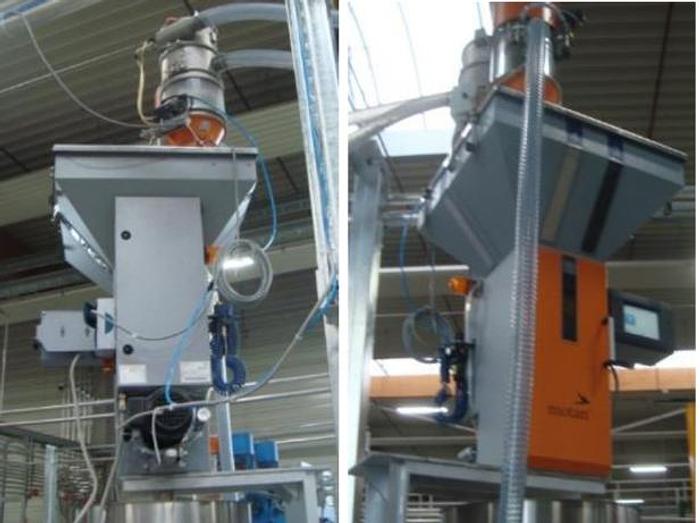

MONTAN Gravimetrical dosing units for extruders A and D

Extrusion table

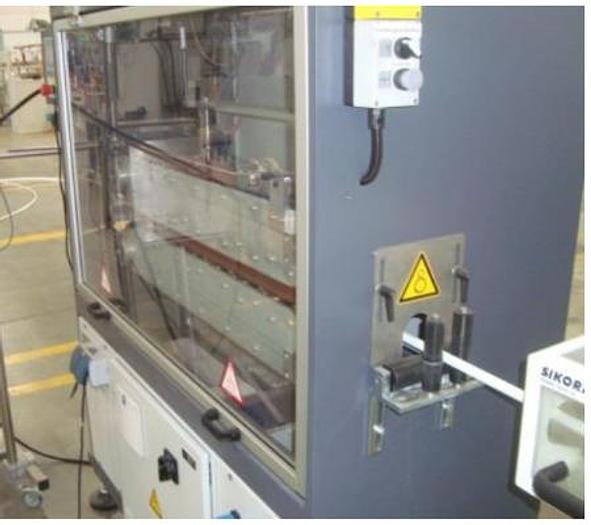

X-ray measuring device X-Ray 6070 to measure Ø, wall thickness, ovality, eccentricity

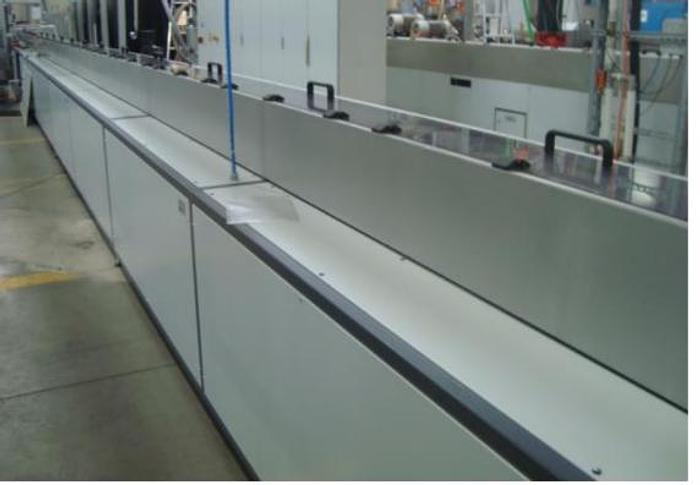

Coolong unit

AKB800 haul-off unit

Central control cabinet in German language (EN can be arranged)

Documentation available in German language (EN can be arranged)

Water connection 2“ / consumption approx. 10m3/h

Air consumtion approx. 20m3/h

Connected load 3 x 400V 50Hz +N +PE

Fuse 3x 250A / 5x 120mm2 CU

Operating hours: approx. 15.000

very good and ready for operation

Possible full service for dismantling+installation+commissioning+training

Ask for more information
