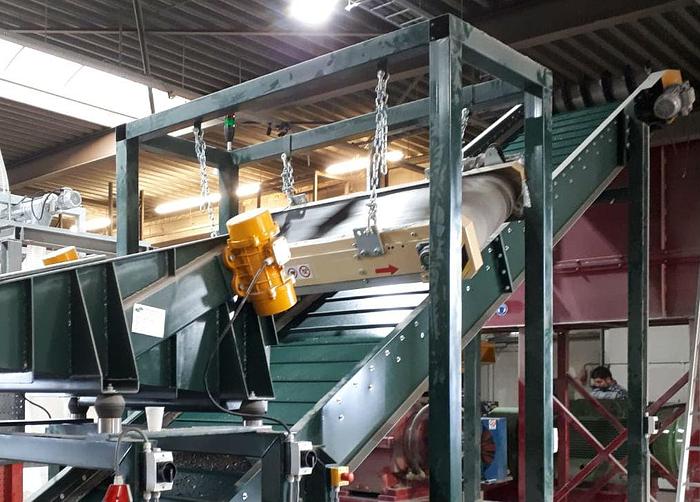

OVERBELT MAGNETIC SEPARATORS 600-800-1000-1200 mm.

An overbelt metal separator is used to remove ferrous contamination from chopped scraps, on the extraction belt from a shredder. We offer different solutions in size and power even for stainless steel.

Just send us your requirements and we will send you a most cost-effective, targeted offer.

An overbelt metal separator is the easiest way to remove ferrous contamination from scraps.

This machine is a available in different sizes, with different magnetic forces

Constructed according to the Italian Top Quality Standards

This is an example :

OVERBELT MAGNETIC TAPE SEPARATOR TYPE R60-80E

• 800 mm wide at a distance of 200 mm from the belt
• Construction characteristics :
• permanent magnet in bipolar conformation with low-carbon iron structure made with Sr Ferrite permanent magnets with high magnetic induction and great coercive force (guaranteed magnetic field strength 20 years)
• stainless steel closing shroud
• AISI304 non-magnetic stainless steel dimensions:L*W*H 800*600*200 mm.
• power 400 gauss at 200 mm.
• Modular structure made from drawn steel, designed for easy belt replacement and easy control of any intrusions of material inside the separator.
• n. 4 lifting and installation brackets with adjustable position
• transmission through 240 mm Ø rollers with removable splined shafts
• idler roller support with M24 turnbuckles
• motor roller supports
• 3-ply EP400 rubber tape
• 4+2 EP400 cover with triangular wide base battens ( 70 *600*45 mm)
• Bonfiglioli gearbox 1.5 KW 400V 50-60Hz 4p IP55
• belt speed 1.8 m/sec
• User's manual, drawings, CE compliance
