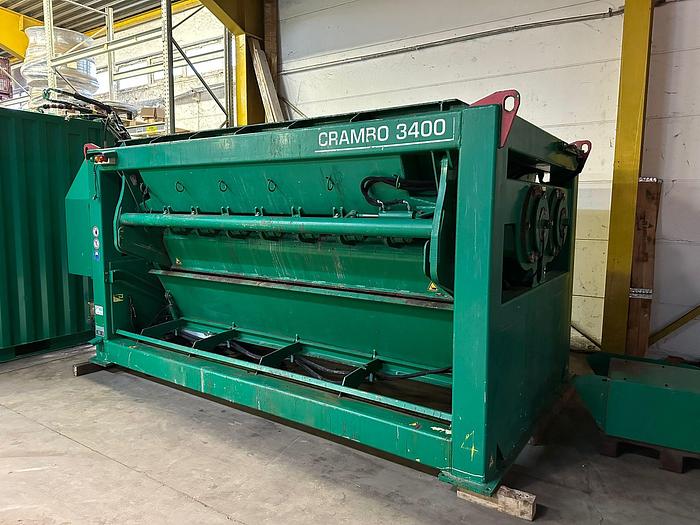

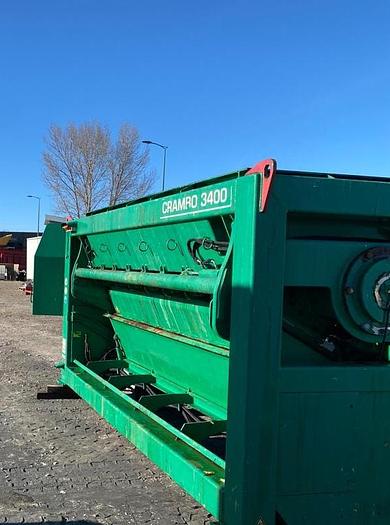

KOMPTECH CRAMBO 3400 y. 2011

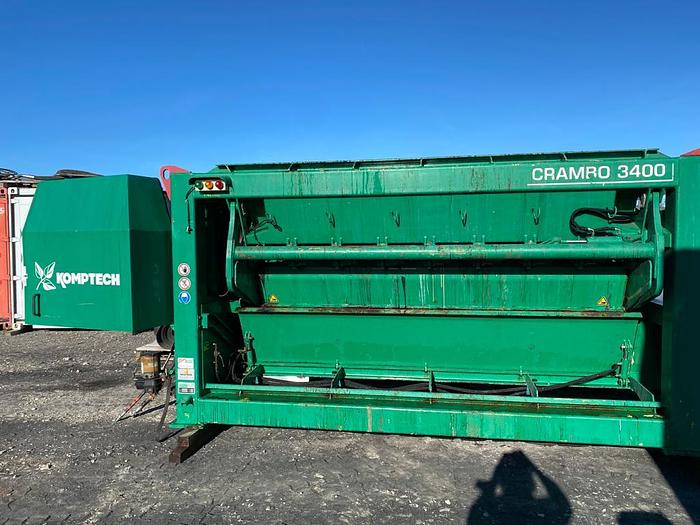

KOMPTECH CRAMBO 3400

Stationary universal shredder

Construction year 2011

3.912 worked hours

160 kw drive with hydraulics

Capacity : up to 45 Tons/h

Max shafts speed 32 rpm

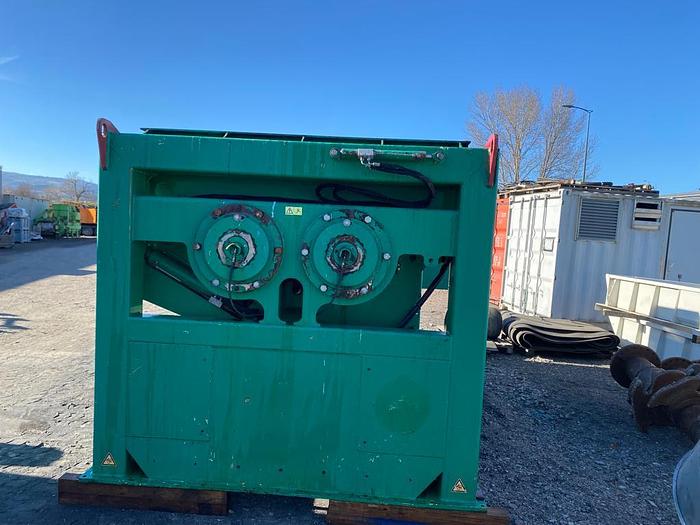

N.2 counter-rotating drums length 2.820 mm.

drums diam. 610 mm

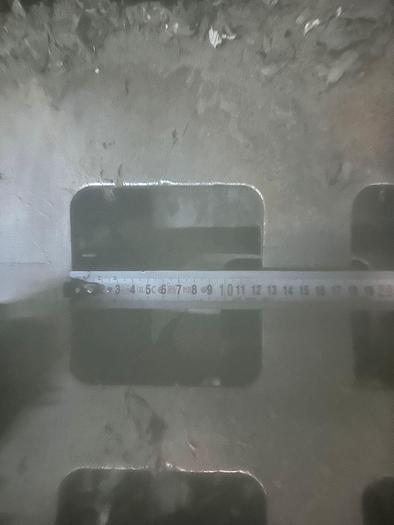

screen with 120 mm. diam.holes

Dimensionms : LxWxH 5,772 x 2,949 x 3.191 mt.

Weight : 19 Tons

Possible fitting with a large hopper customized.

Constructor's description:

Crambo is one of the best machines there is for shredding all types of waste.

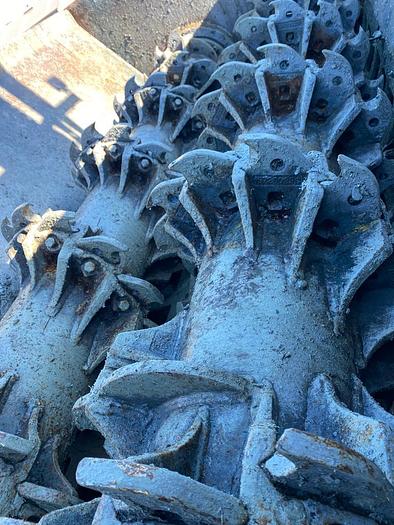

Two slow-running drums with shredding teeth minimize fine particle and noise/dust emissions, and resist contraries.

The Crambo enables easy adjustment of the output particle size, by simply exchanging the screen basket to instantly change the particle size.

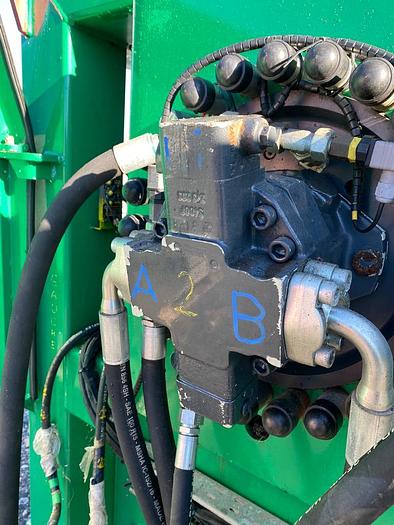

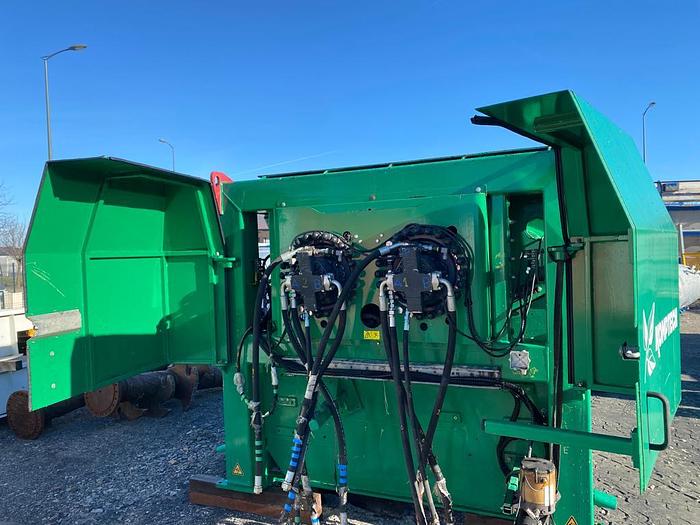

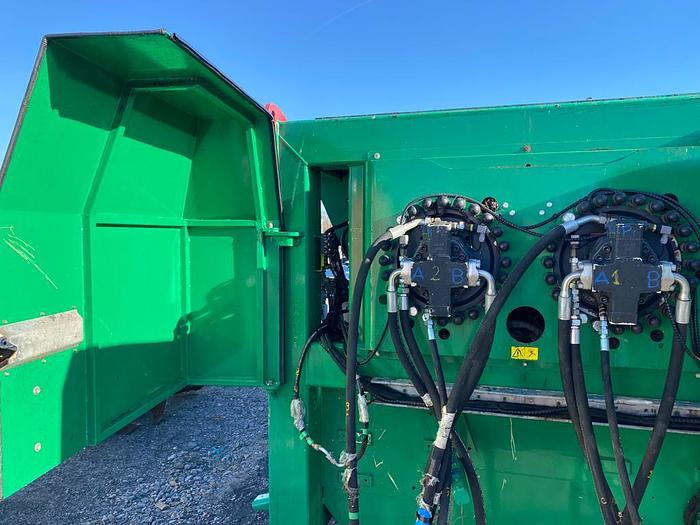

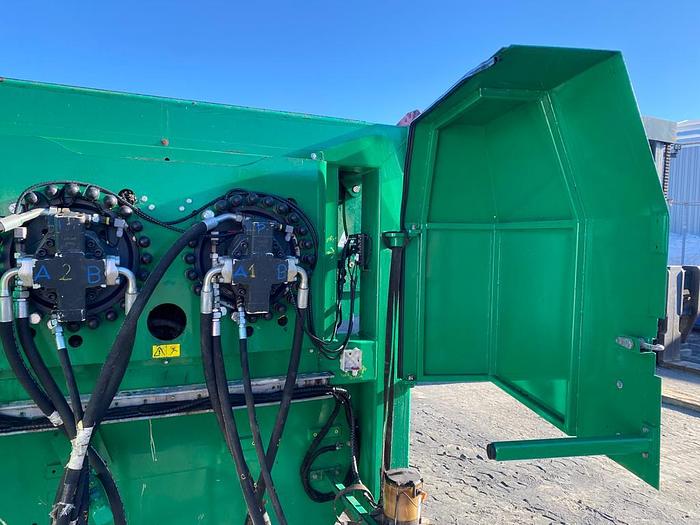

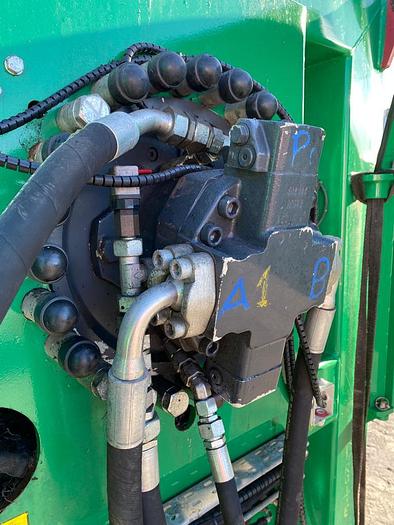

With load-dependent rotation speed regulation, the hydraulic drum drive ensures that full advantage is taken of the engine output.

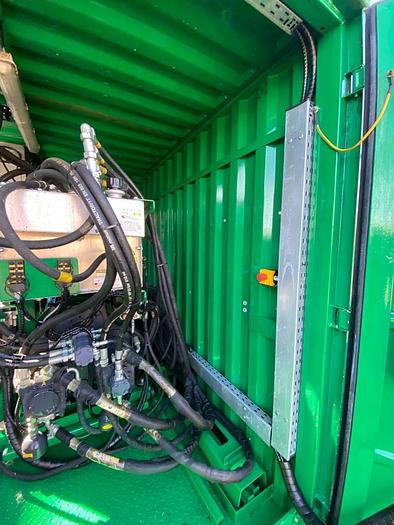

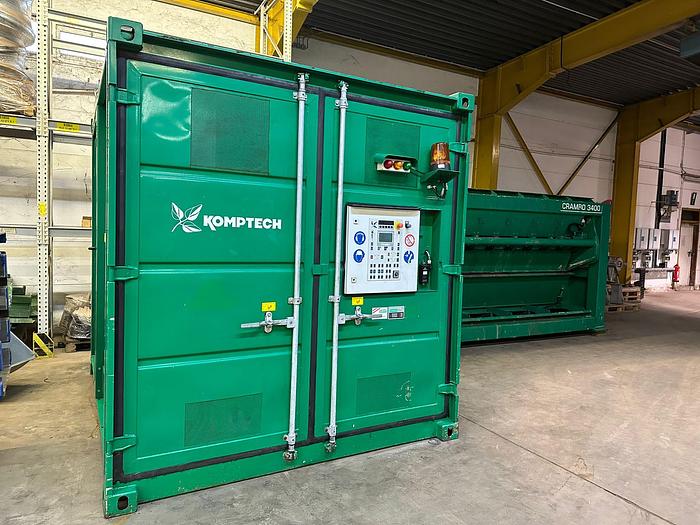

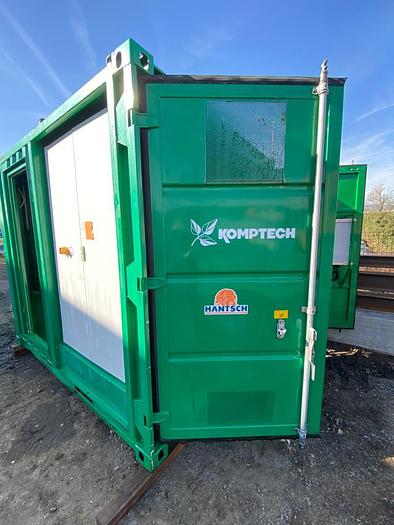

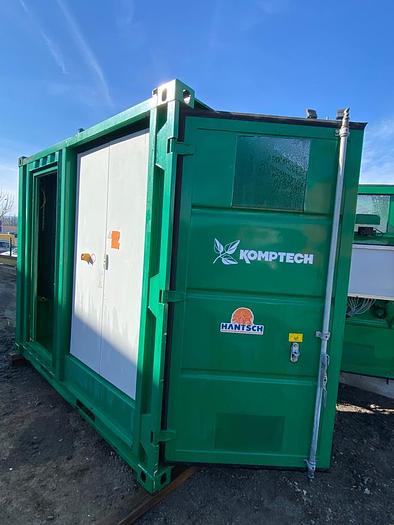

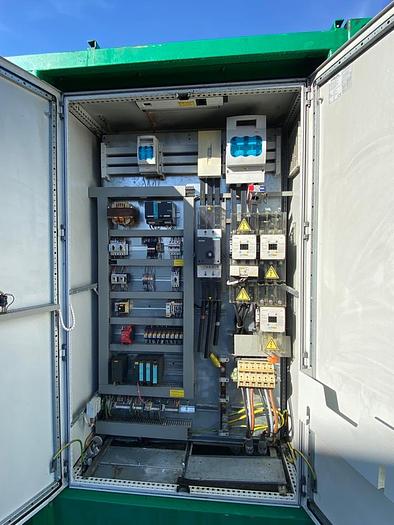

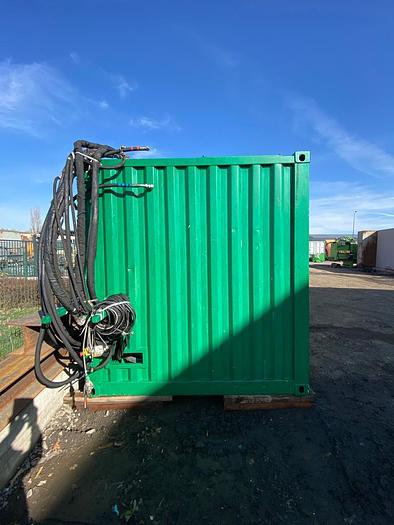

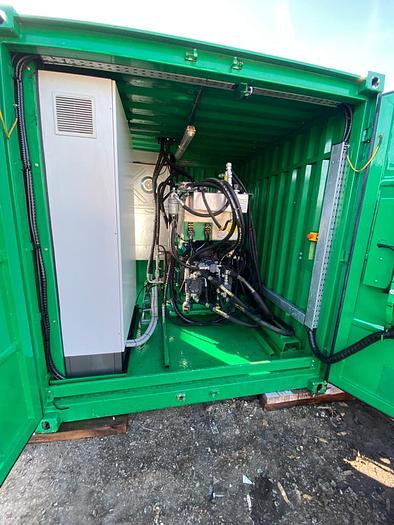

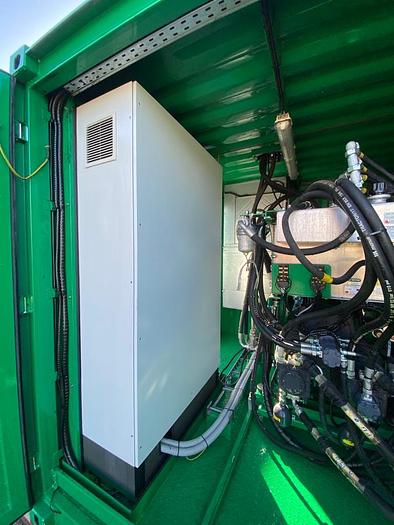

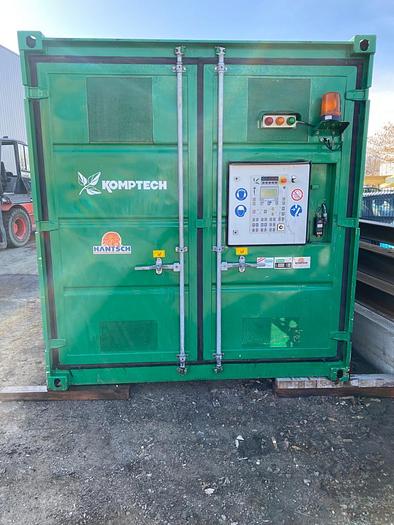

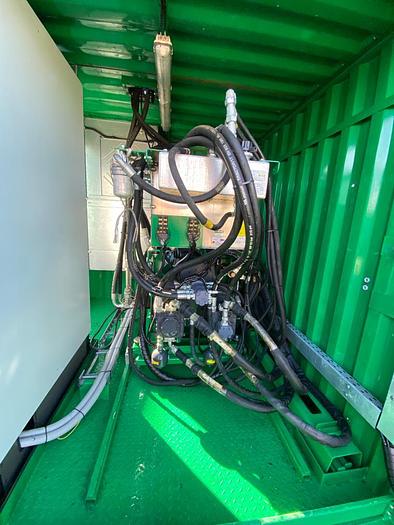

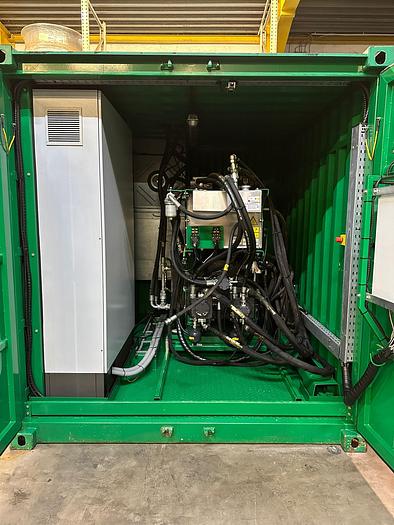

In the stationary versions, a low-maintenance electric motor provides the drive power and a hydraulic system with load-dependent speed control ensures power transmission to the shafts. Large doors offer perfect access to all drive components.
