eddy current separator new in stock

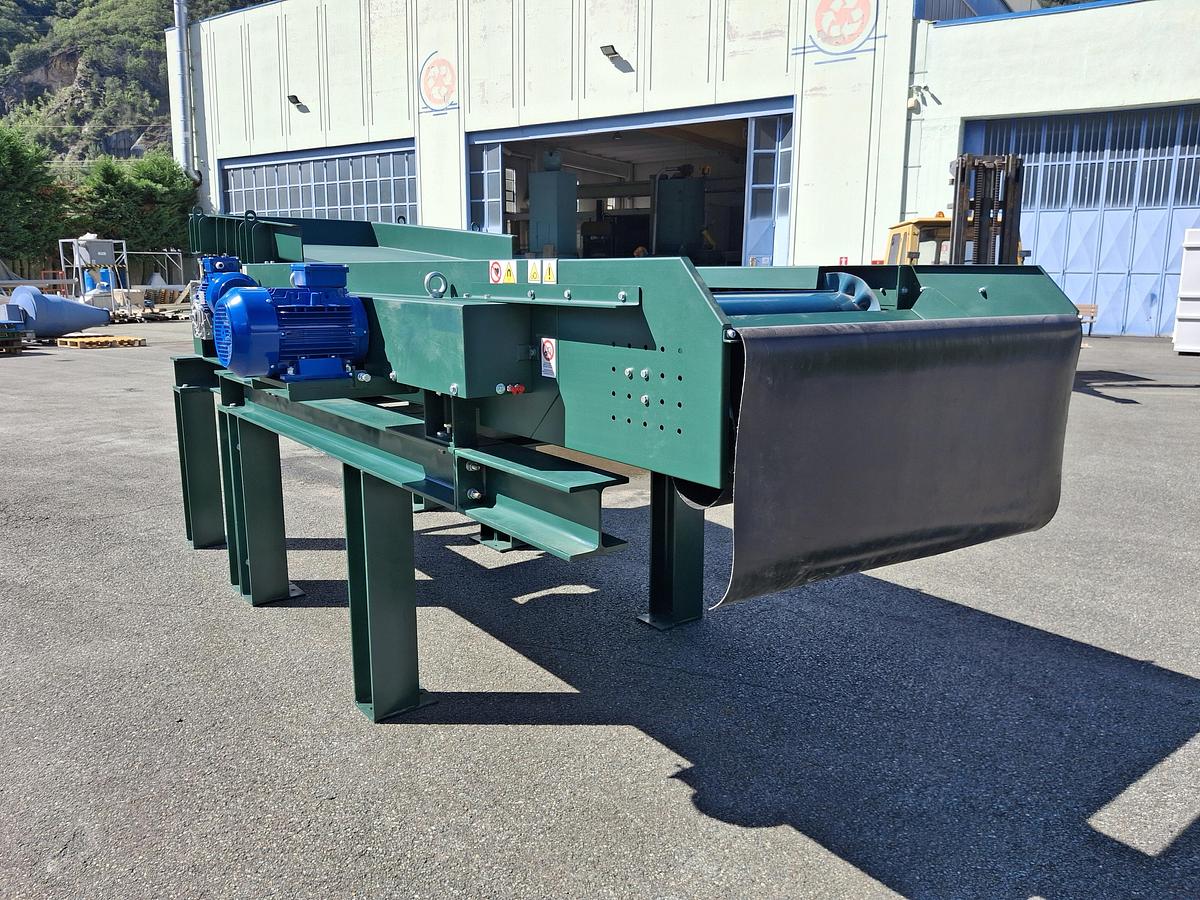

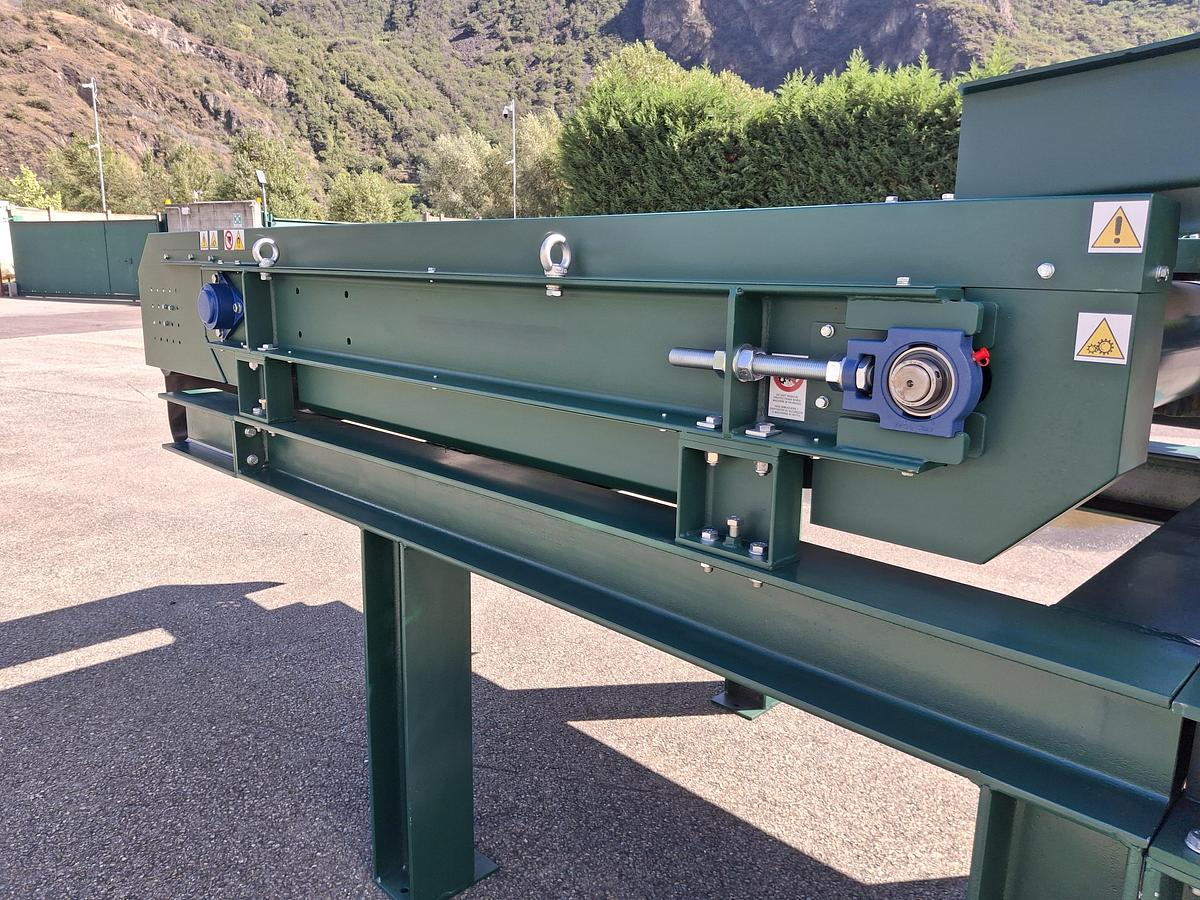

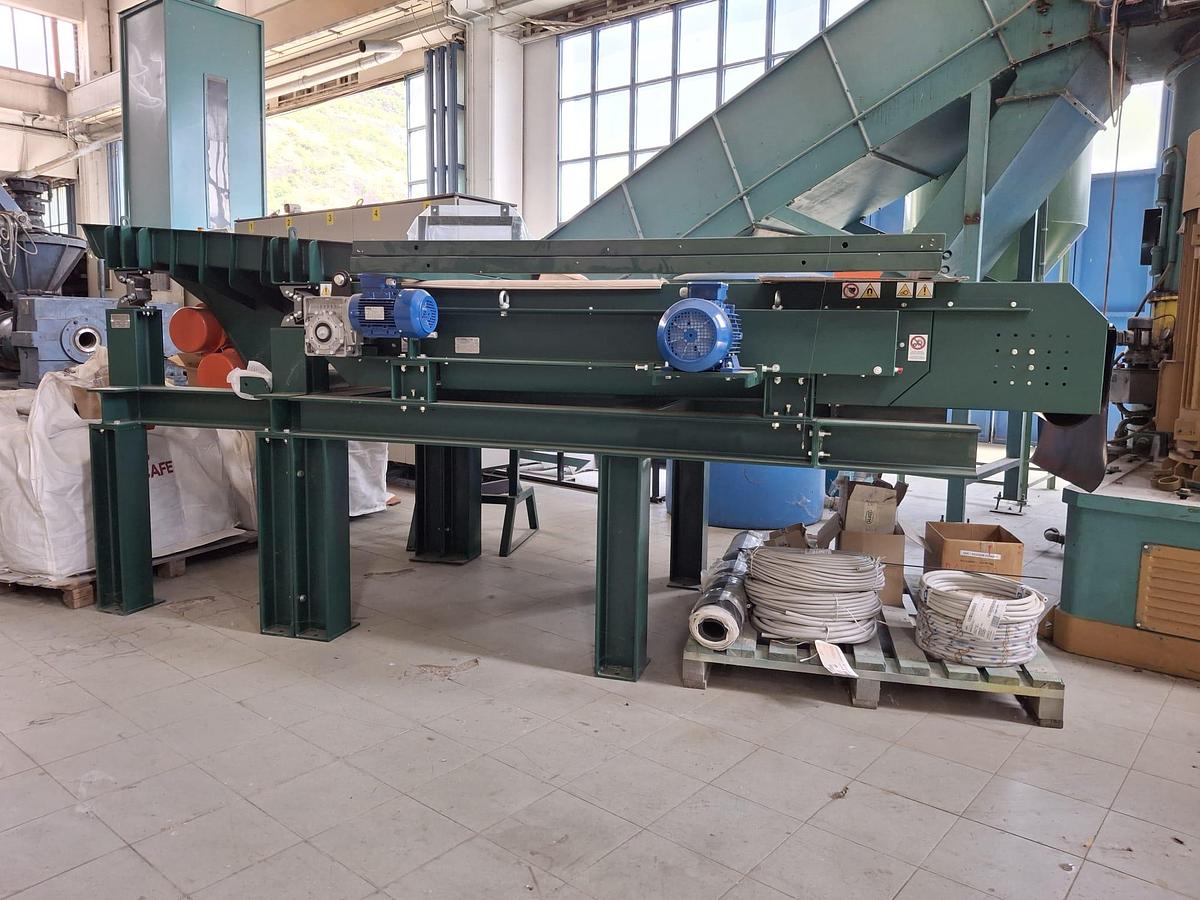

EDDY CURRENT SEPARATOR - new machine in store

To separate the non-ferrous metal fraction from other scraps in production lines.

This machine also has a neodymium magnetic drum to separate ferrous residual contamination

This machine is optimized to identify and separate  10 to 250 mm metal parts with very close to 100% efficiency but it works well with smaller/larger parts as well

reliabilty and quick ROI, together with minimized maintenance are the most appreciated features.

High productivity

Constructed in sturdy carbon steel

Non ferrous metals which will be separated are : copper - alluminium - brass - bronze

Special feature : In case of black-out the fiberglass cylinder frees the carpet to prevent damage

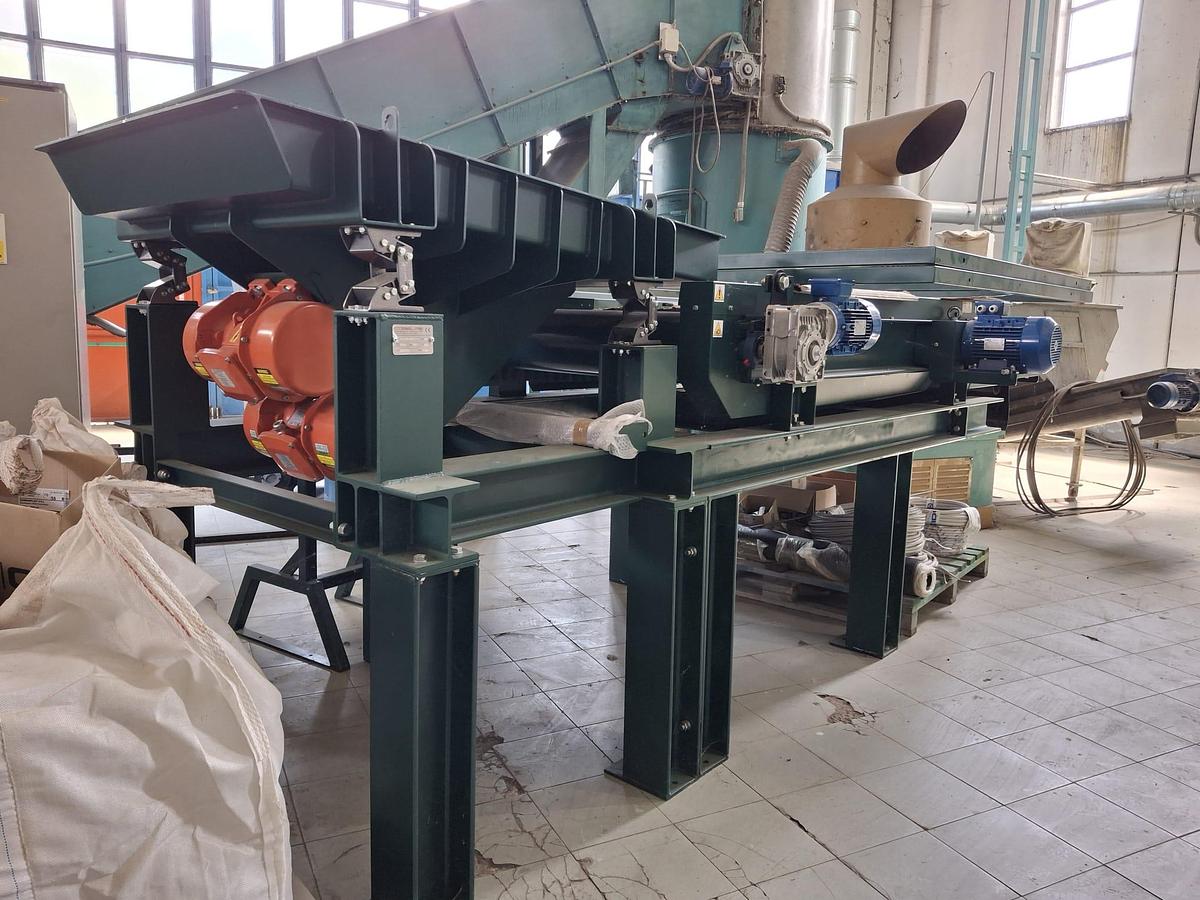

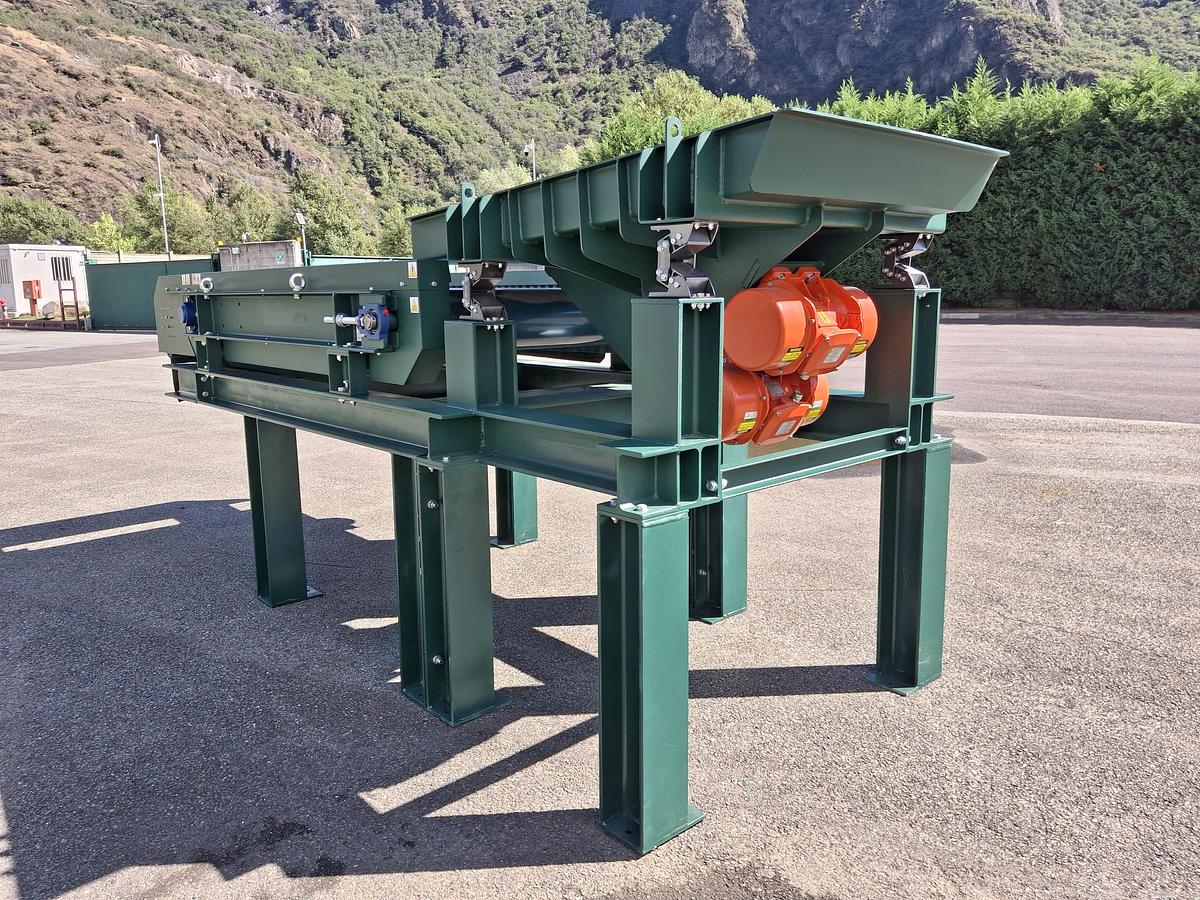

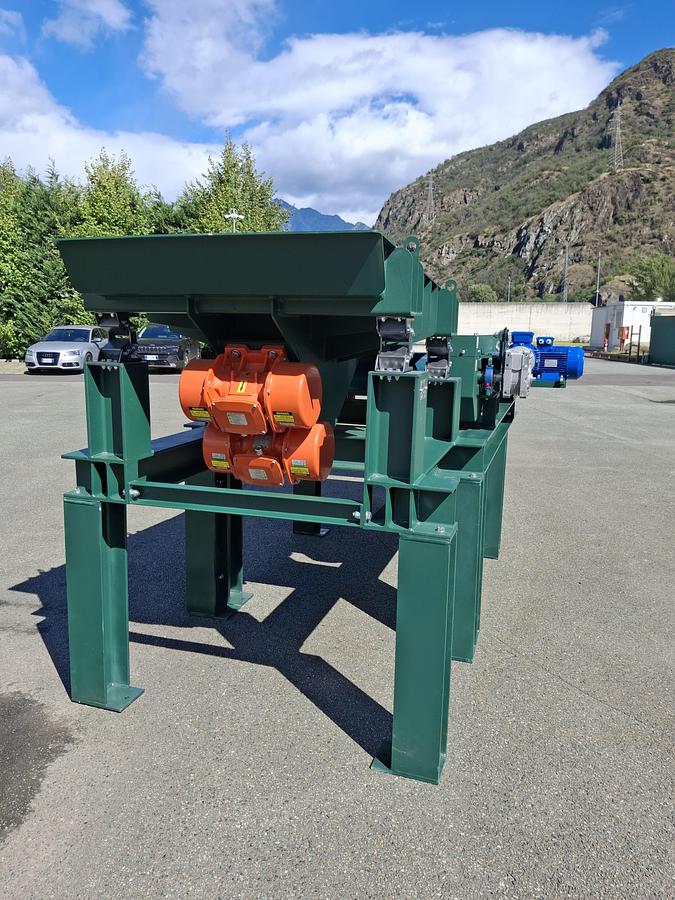

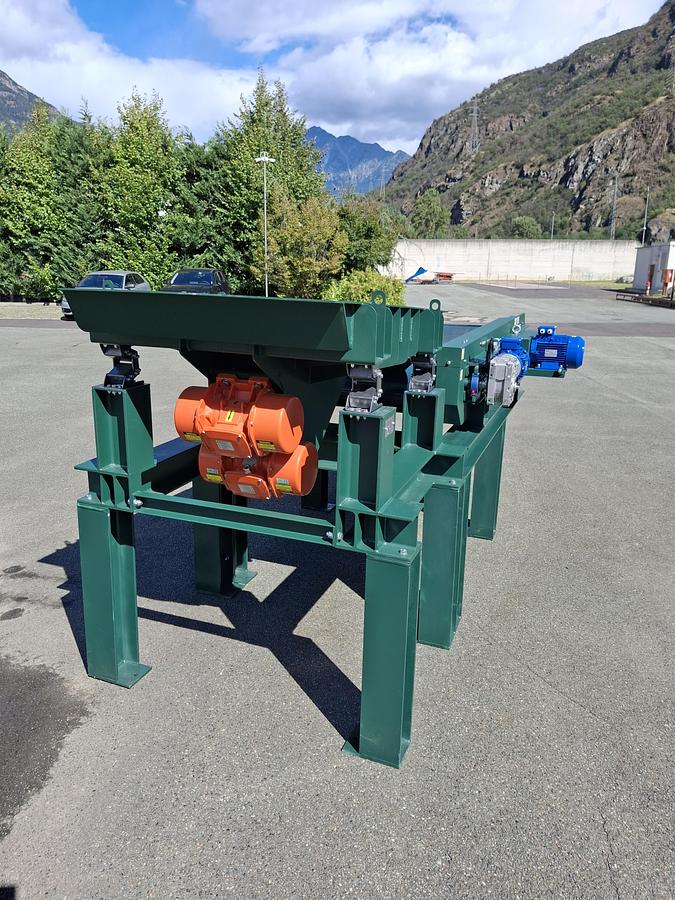

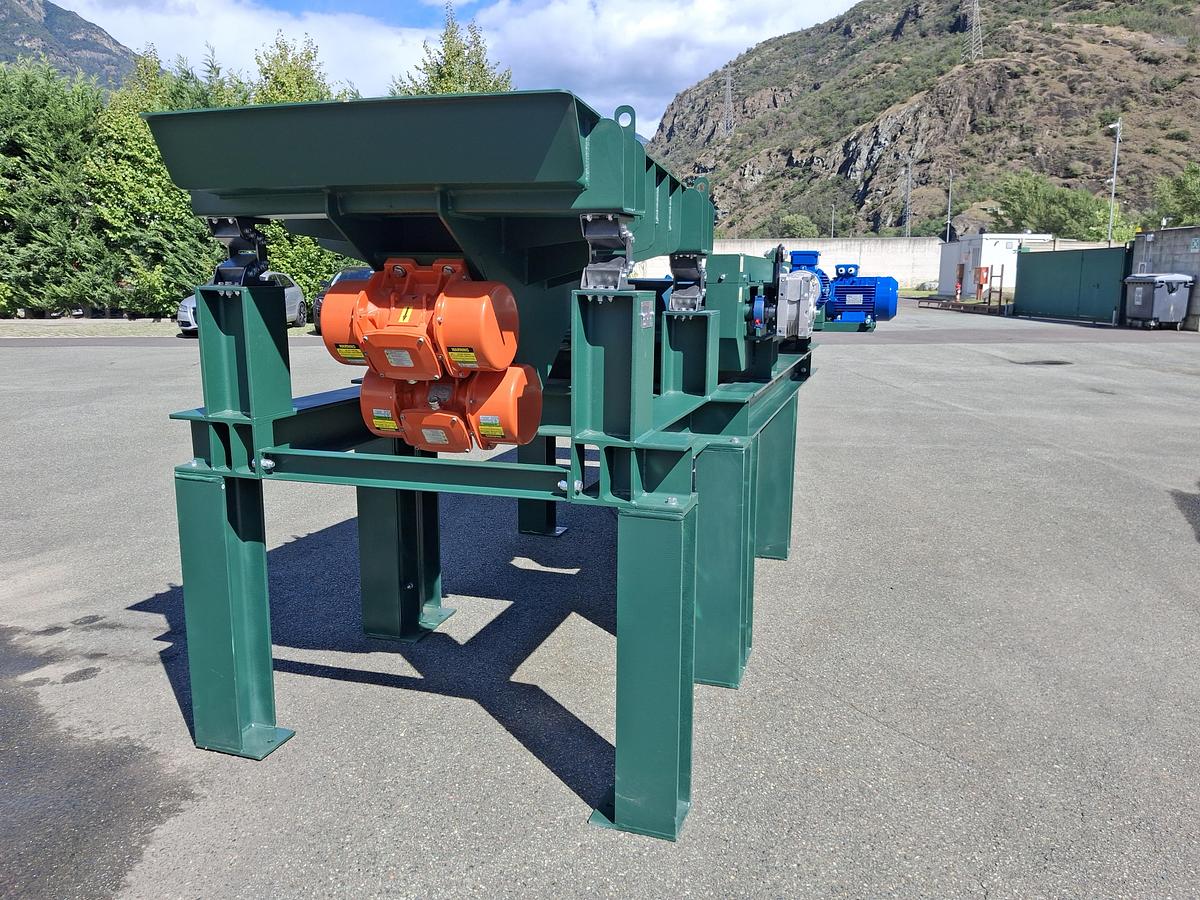

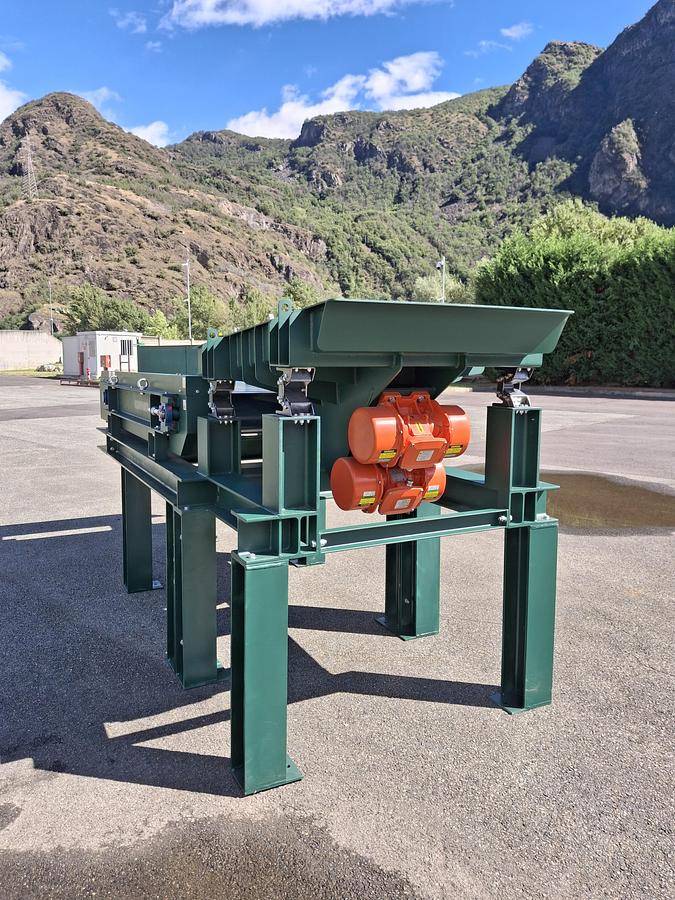

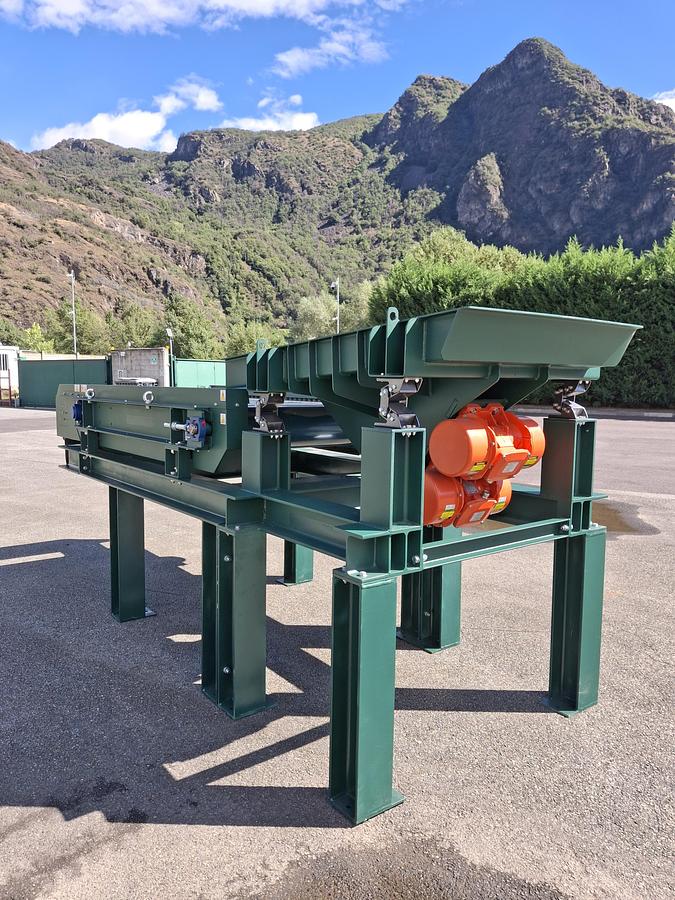

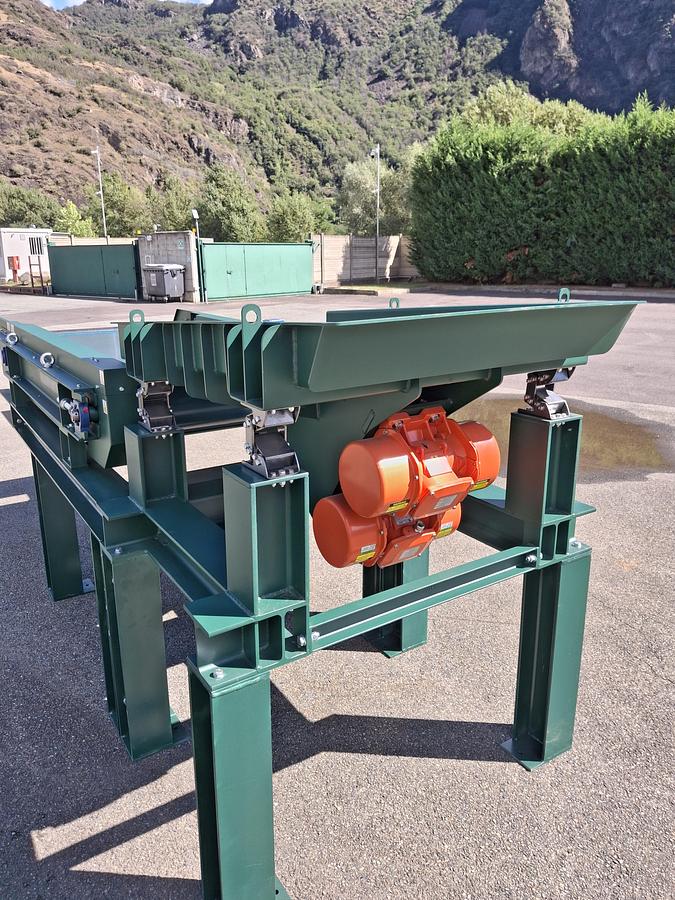

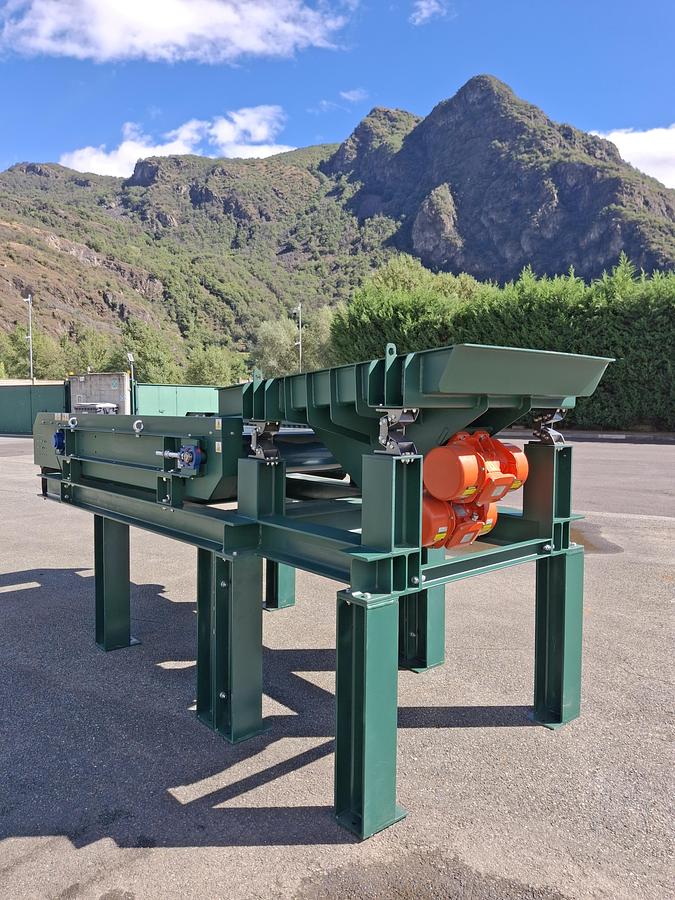

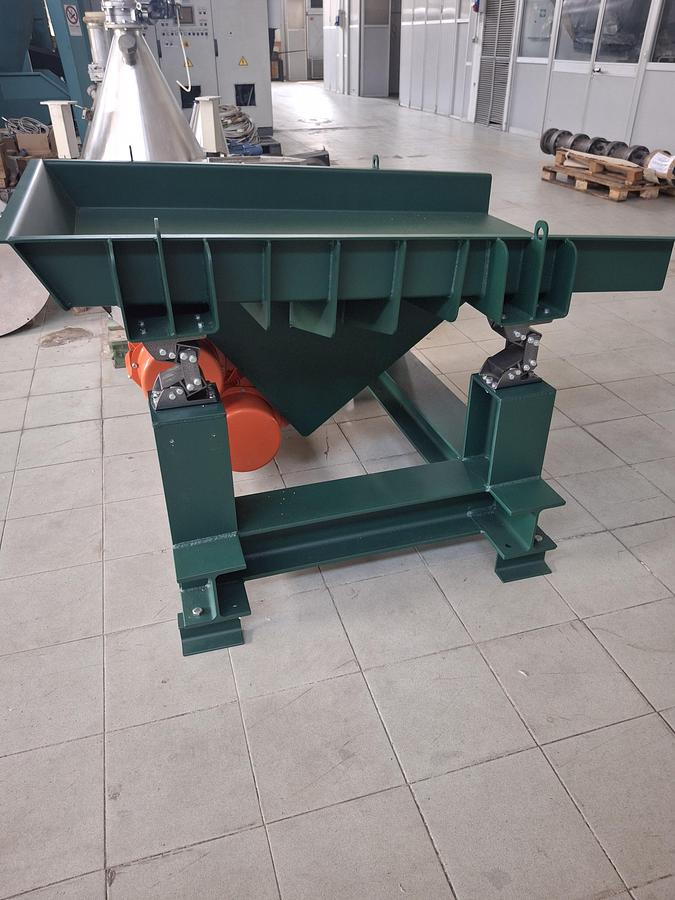

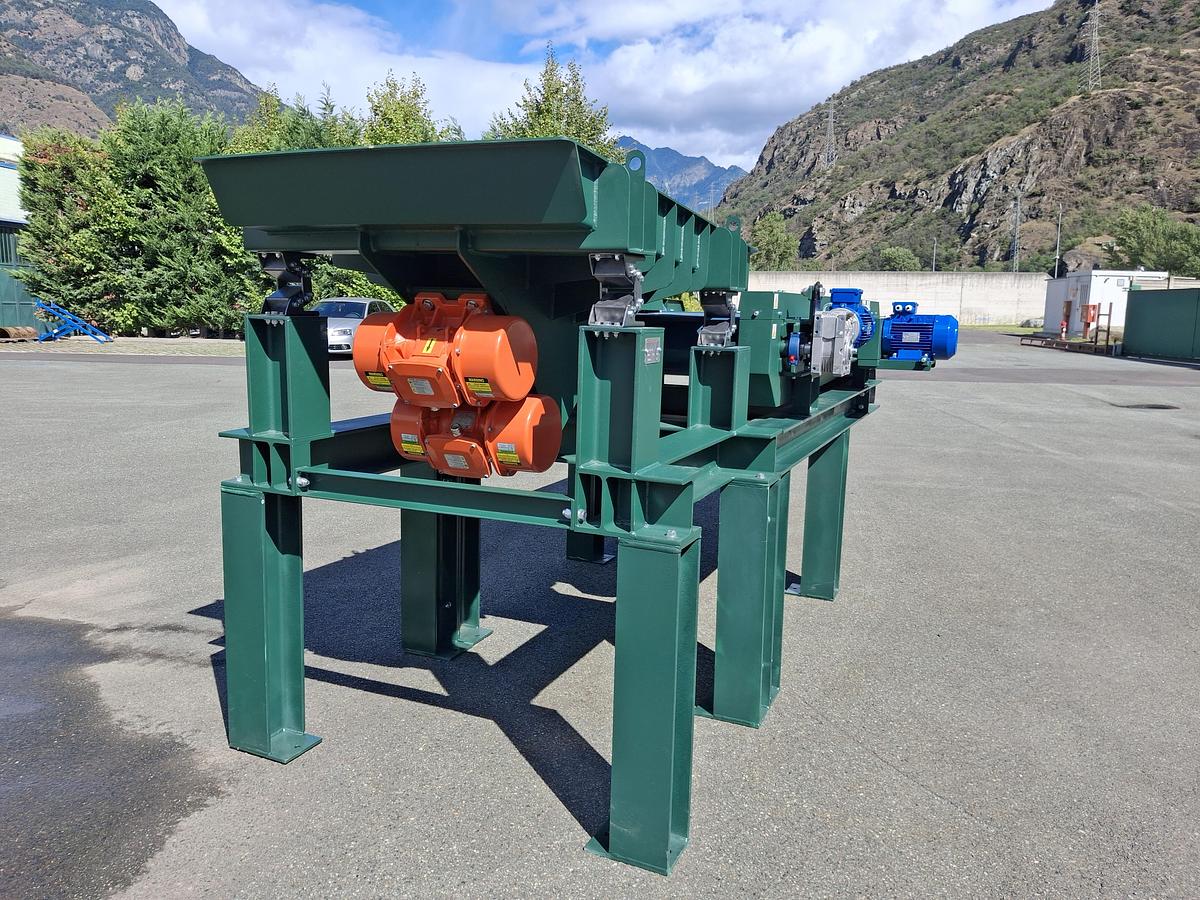

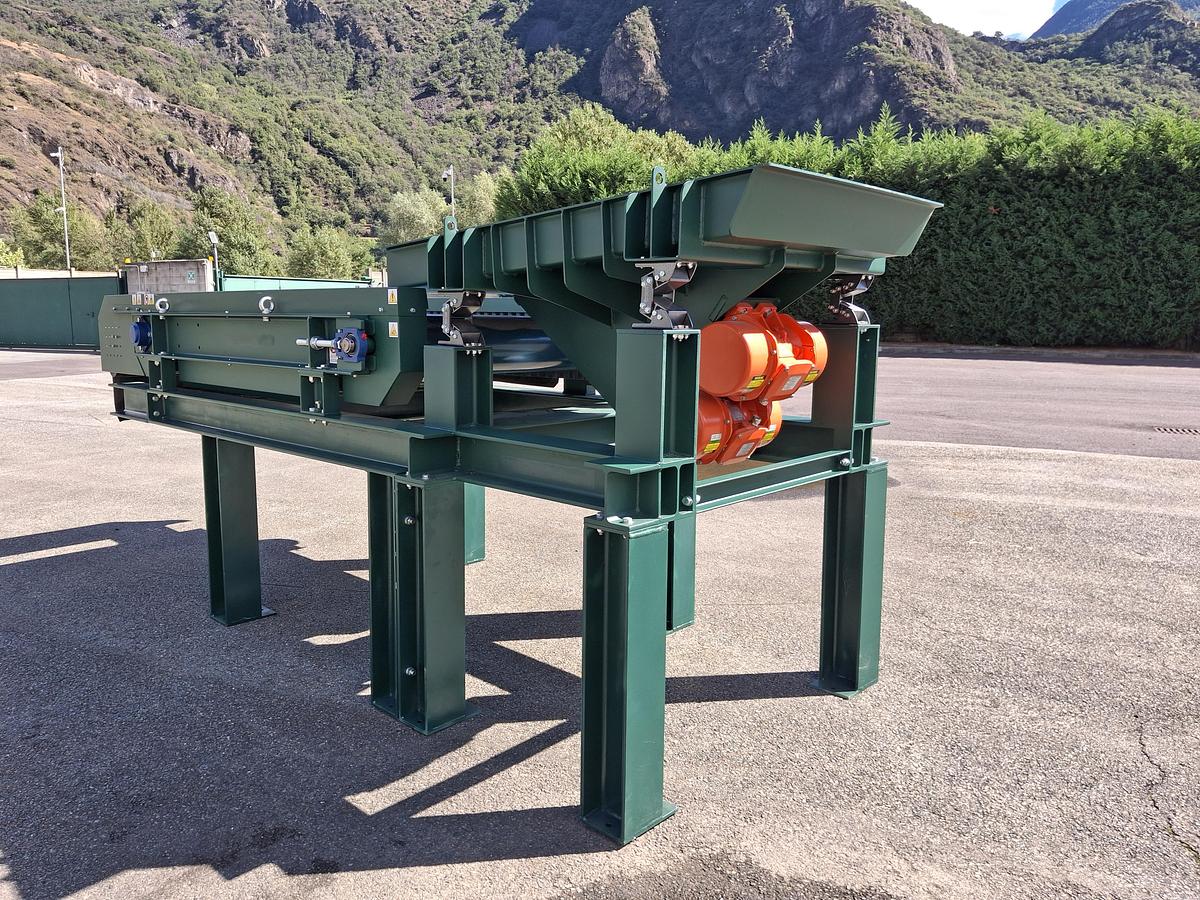

including the supporting structure + vibrating table

simple belt replacing

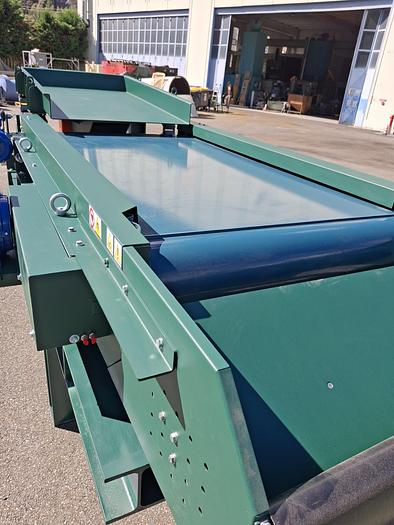

belt size ca. 1.050 x 1.500 mm

special fiberglass cylinder with adjustable speed

stainless steel cylinder with extra protection

PVC antistatic carpets

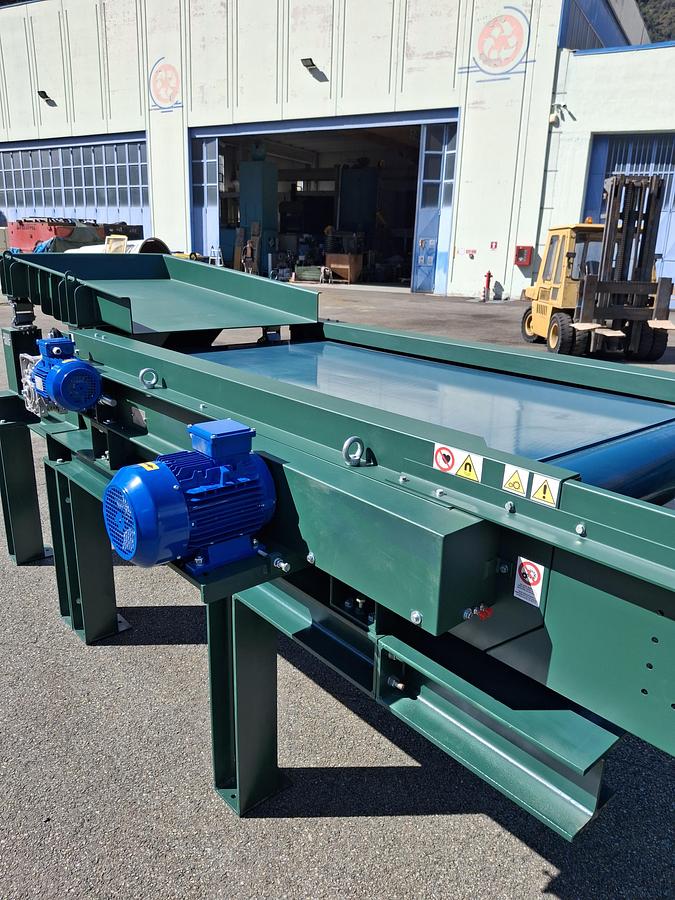

n. 2 Bonfiglioli gearmotors

average belt speed 85 m/min

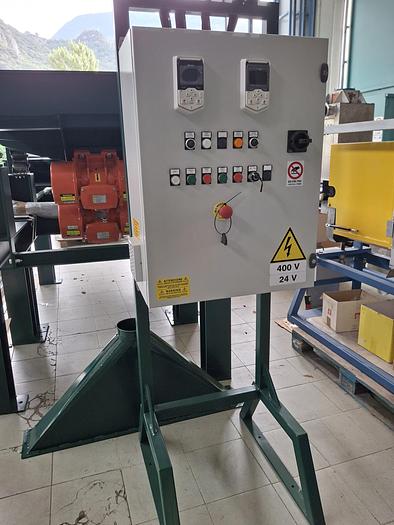

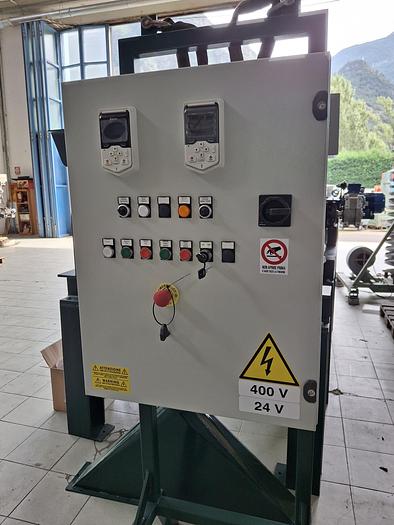

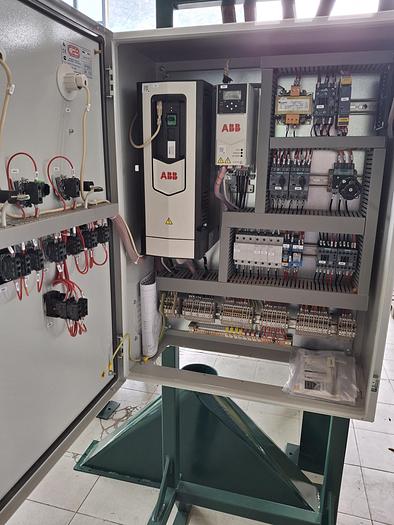

Control panel with inverter to adjust the speed

provided with all safety devices,

compliant with CE regulations

Total installed power 5,5 kw

tools are priìovided with the machine

Total weight of the machine about 1 Ton including supporting structure and vibrating table
