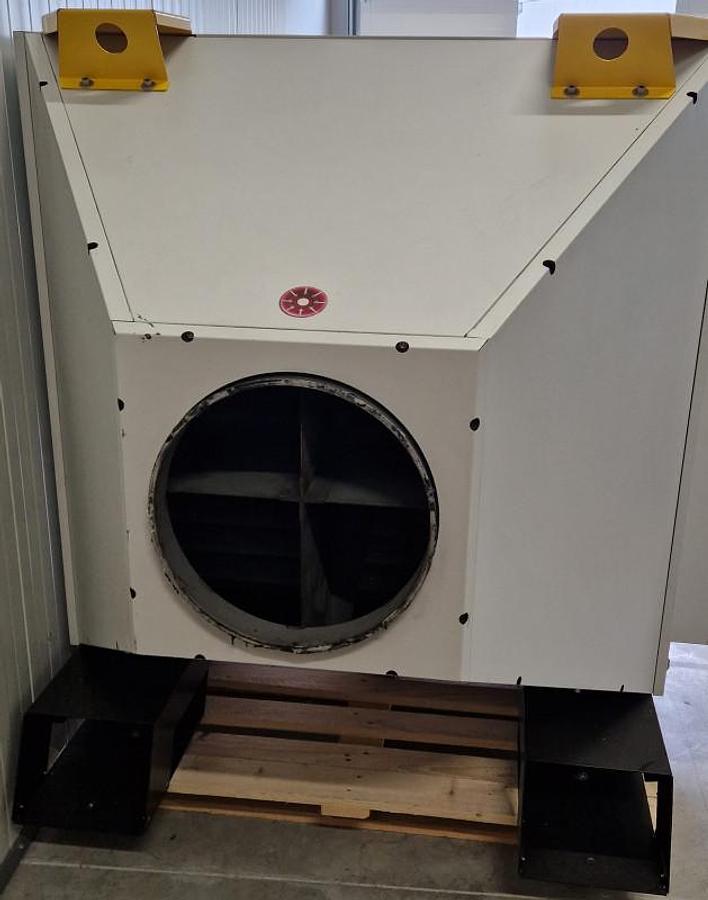

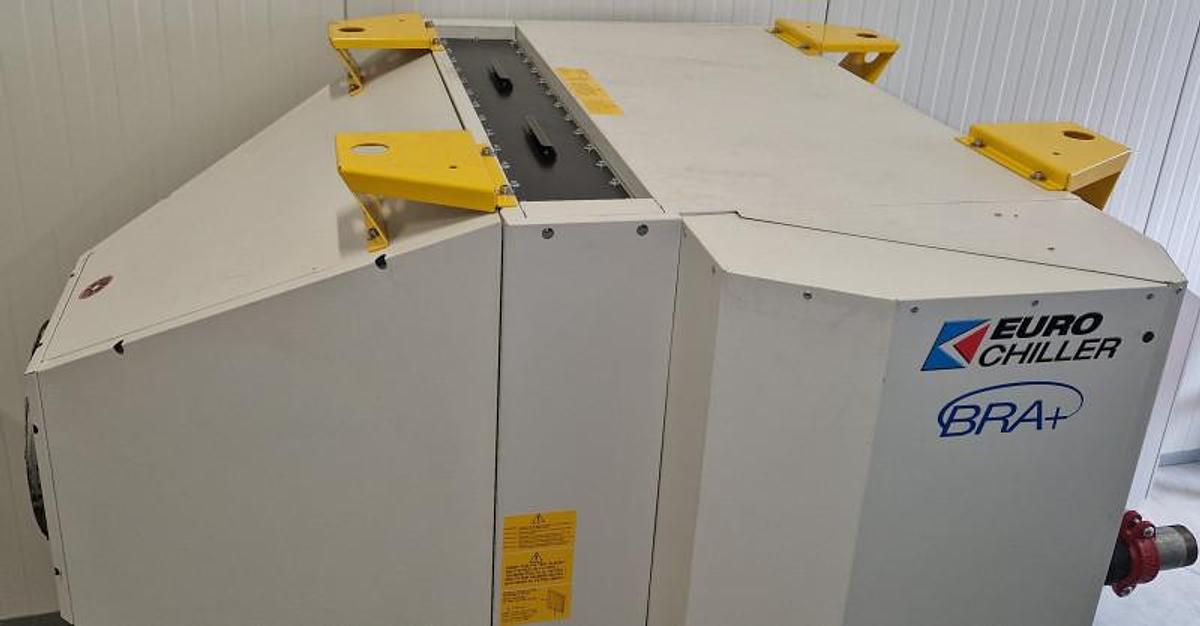

used air bubble chiller 118 kw for blown film extruders of 1 Ton/h eurochiller

EUROCHILLER USED FILM-BUBBLE CHILLING UNIT BRA+110

used to chill the air inside the bubble

Air volume: 11,000 m³/h max.

Cooling capacity: 118.4 kW

Air temperature on: 35°C

Relative humidity: 40%

Air temperature off: 15°C

Relative humidity: 100%

Compressive strength: 10,000 Pa

Water quantity: 20.5 m3/h – delta p >2.0 bar

Water temperature: On 7°C – Off 12°C

Process air connections on/off: Ø NW 350 mm Jacob pipe system

Pressure loss (air): 500 Pa

Dimensions HxWxL: 1,610 x 1,380 x 1,985 mm

Water connections: 2"

Weight: 330kg

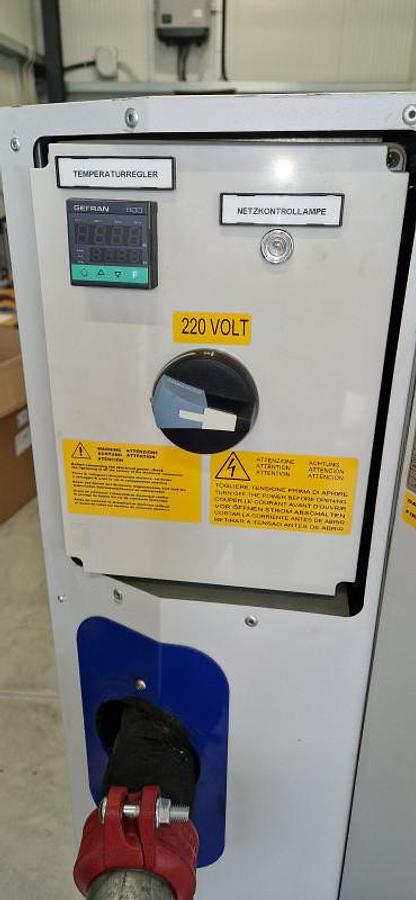

Power connection: 230V/1ph/50Hz – aux. voltage 24VDC

fully functional and completely overhauled (cleaned, new air filter and new servomotor for 3-way valve - function tested).

Case has slight dents on one cover.

Technical data

Air volume: 11,000 m3/h

Cooling capacity: 118.4 kW

Air temperature on: 35°C

Relative humidity: 40%

Air temperature Off: 15°C

Relative humidity: 100%

Pressure resistance: 10,000 Pa

Water volume: 20.5 m3
