TPA-MECCANOPLASTICA SIZE REDUCTION LINE

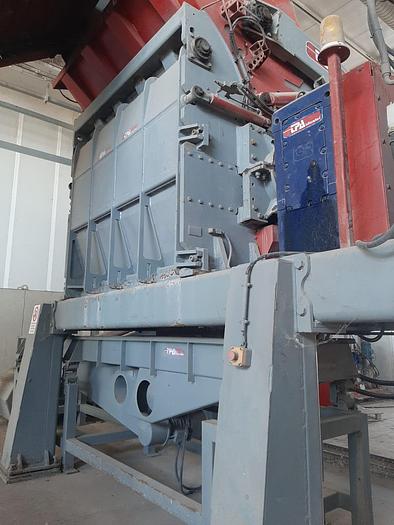

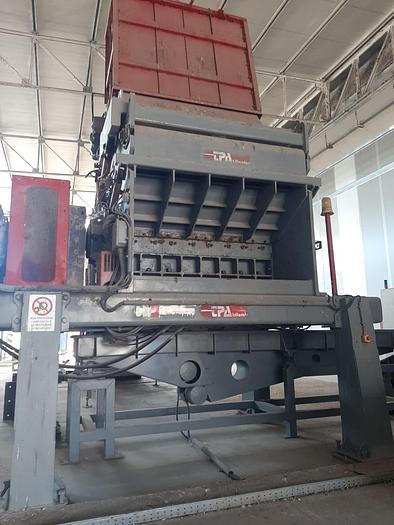

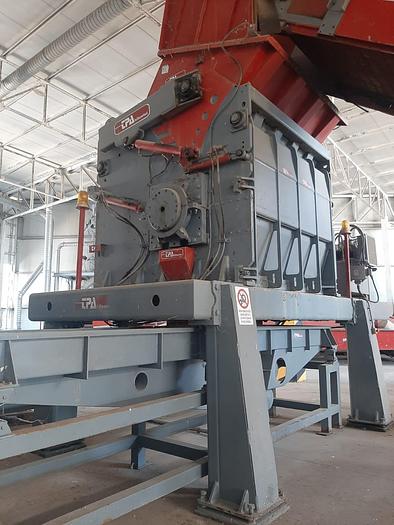

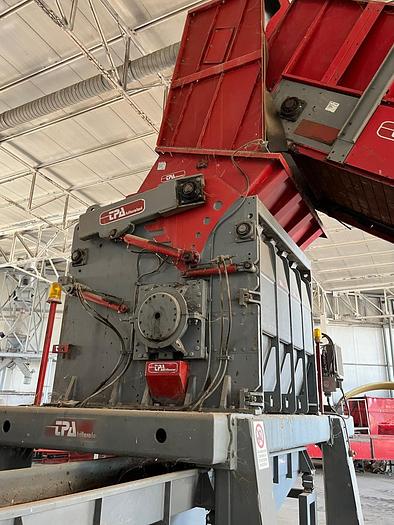

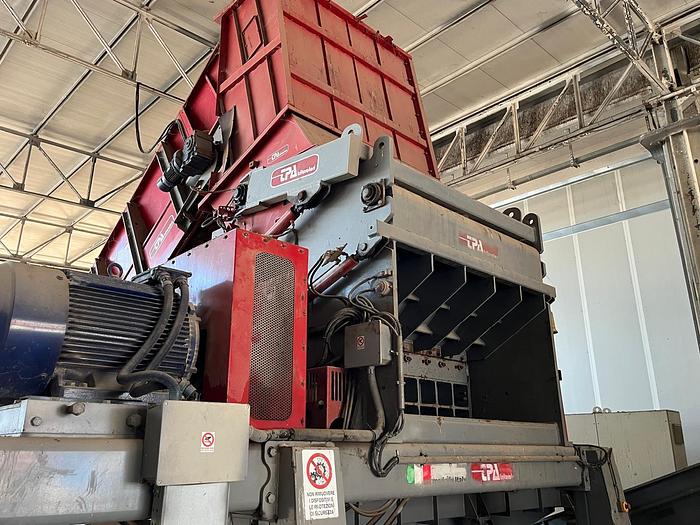

TPA SINGLE SHAFT EL.SHREDDER MCS 2000.05

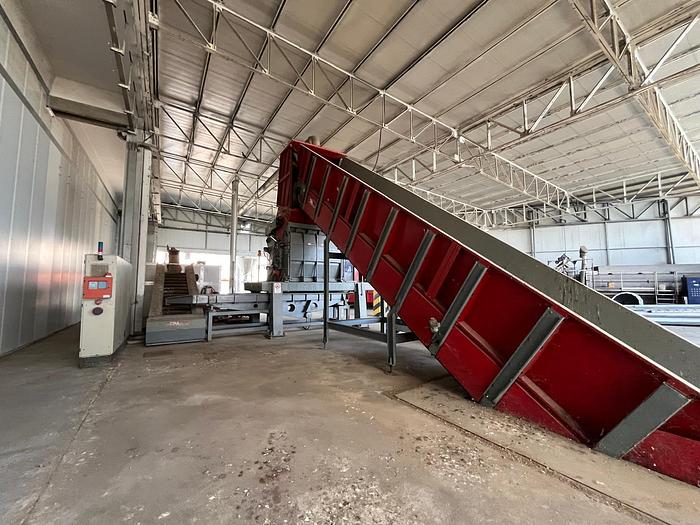

including shutter-type pit belt conveyor

2.000 mm.wide rotor

1,35 x 2,0 m. hopper capacity 4 m3 ca

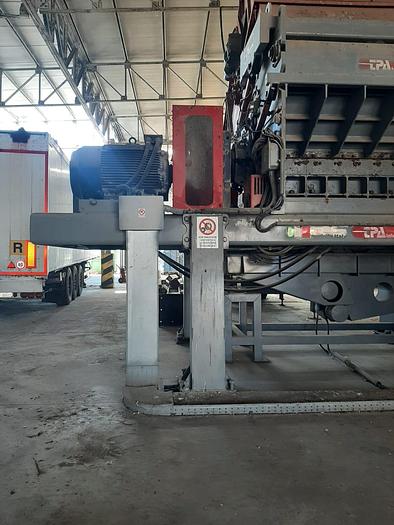

160 kw drive

82 rpm

rotor Ø600 mm. x 1.960 mm.width

horizontal ram with hydraulic movement

n.32 cutting pieces

total weight approx.25,2 Ton

dimensions :LxWxH: 6,2 x 2,9 x 4,9 m.ca

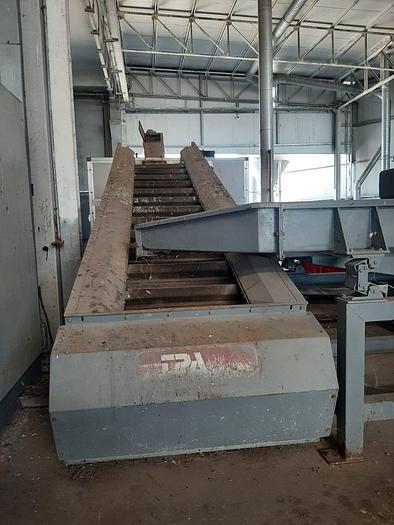

8000 x 5.000 mm. VIBRATING BELT

NRCI belt 1,1 x 4,5 m.

hopper with screw conveyor

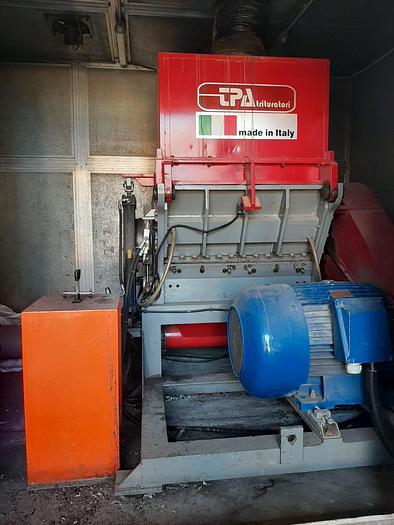

MECCANOPLASTICA GRANULATOR 1.000 mm.

type54/100 5L (y.2007)

granulation chamber size 570 x 1.000 mm.

75 kw drive, 1.450 rpm (50Hz) 1.750 (60Hz)

n.3 rotating knives 1.000 mm.long

n.2 still knives 1.000 mm. long

gap between rotor and stator knives 0,2 + 0,4 mm.

rotor Ø 545 mm., rpm 460 (50Hz.) 560 (60Hz)

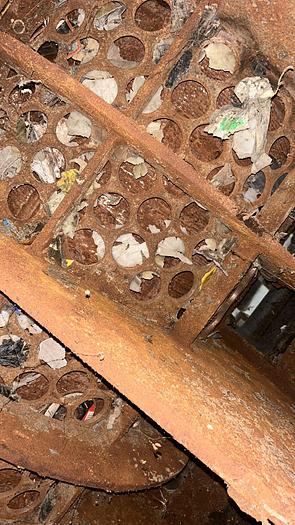

screen size 14 mm.

SCREW CONVEYOR

0,75 kw drive

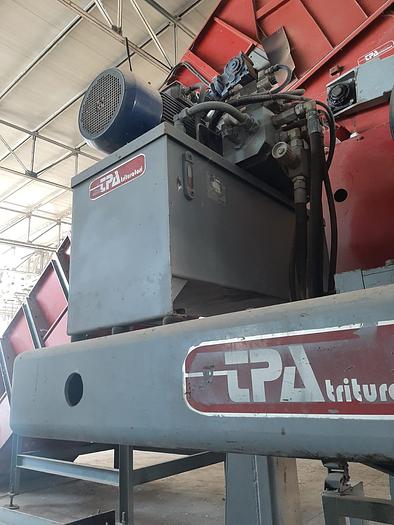

hydraulic power center 1,1, kw

total wight 4 Ton ca

cooled by chilled water (1,500 lt/h.ca suggested)

SUCTION SYSTEM

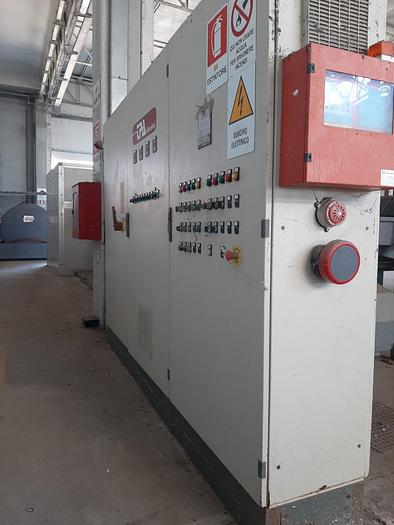

ELECTRIC CABINETS

to manage the line with or without PLC

the line is in good working conditions

The line is offered as is where is
