vecoplan vaz 2500 HiTorque MNF-T 247 kw or 203 kw drive top ram reconditioned

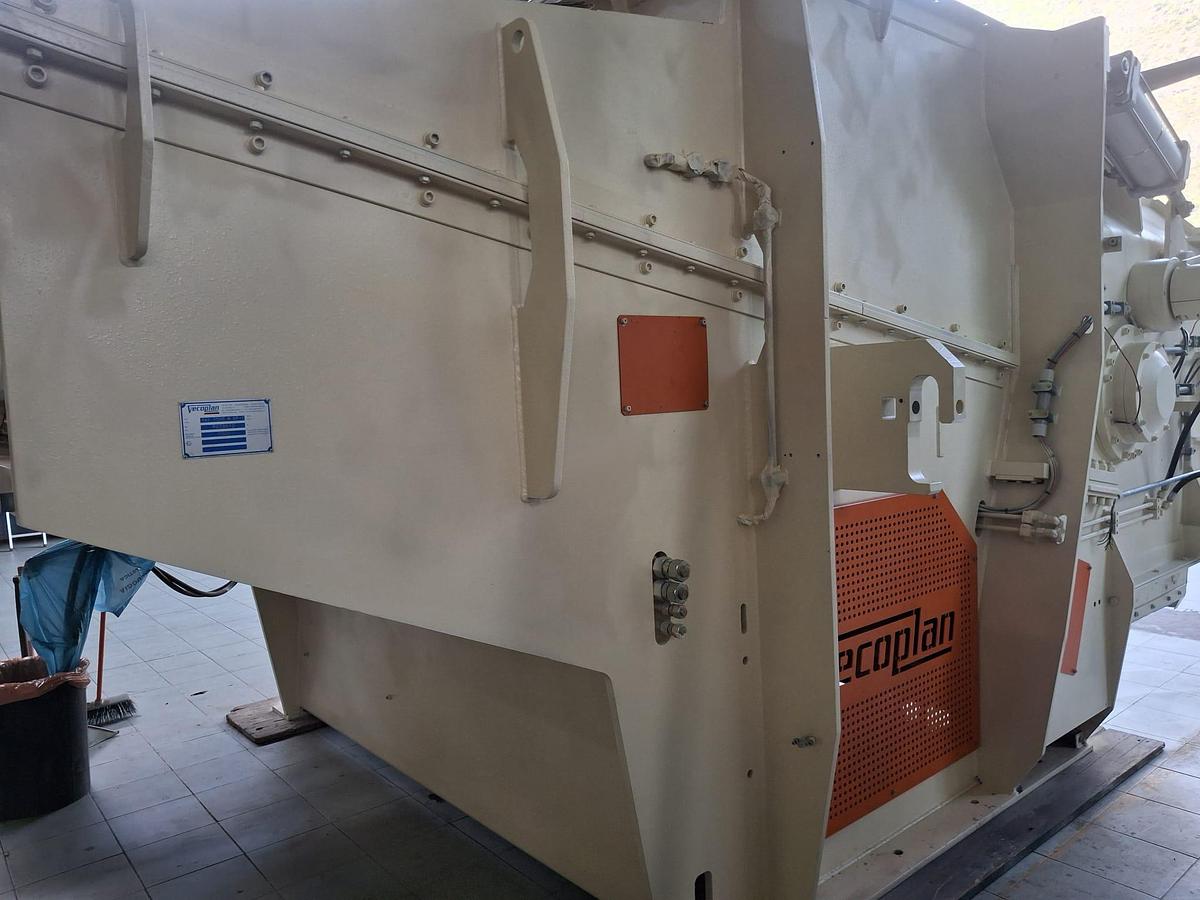

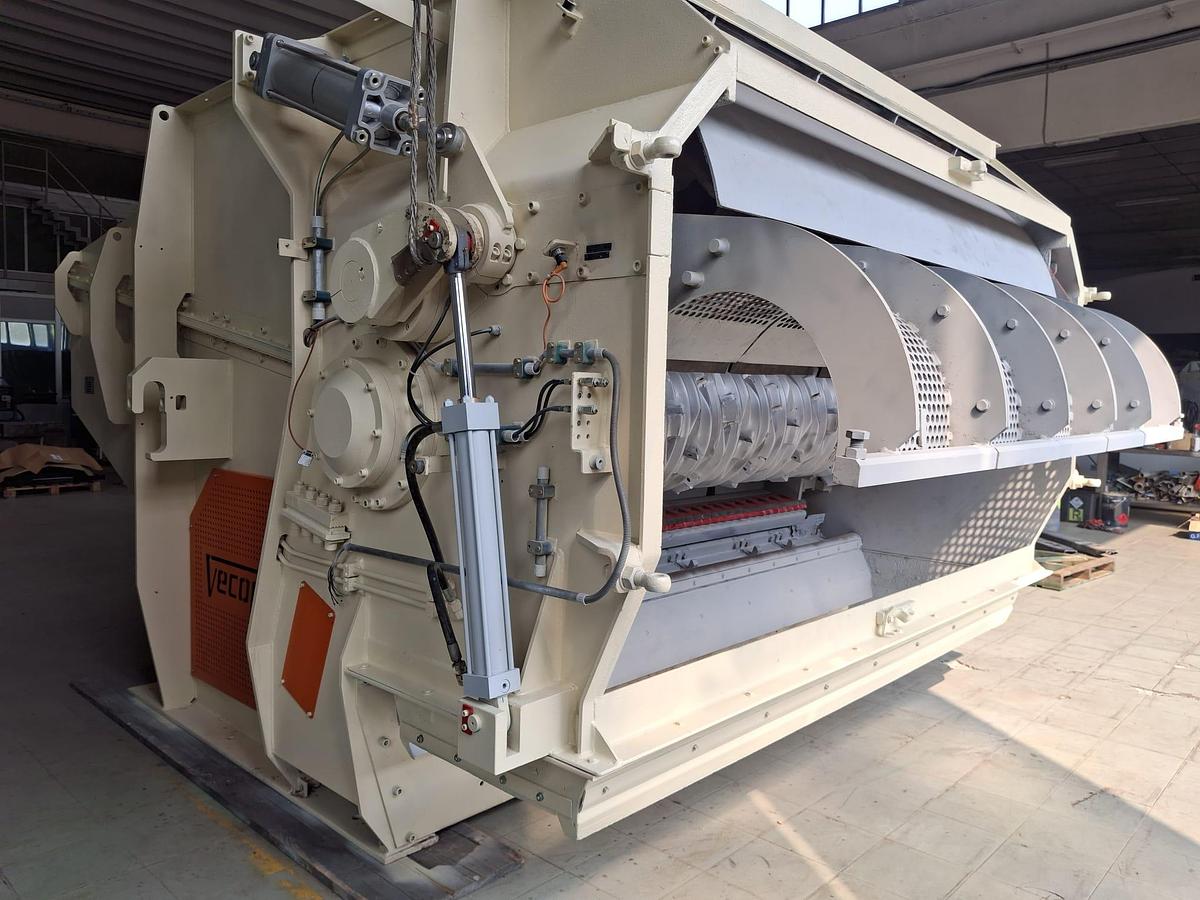

VECOPLAN VAZ 2500 M NF-T (now under reconditioning)

Compact high torque motor with motor pump unit and electric motor

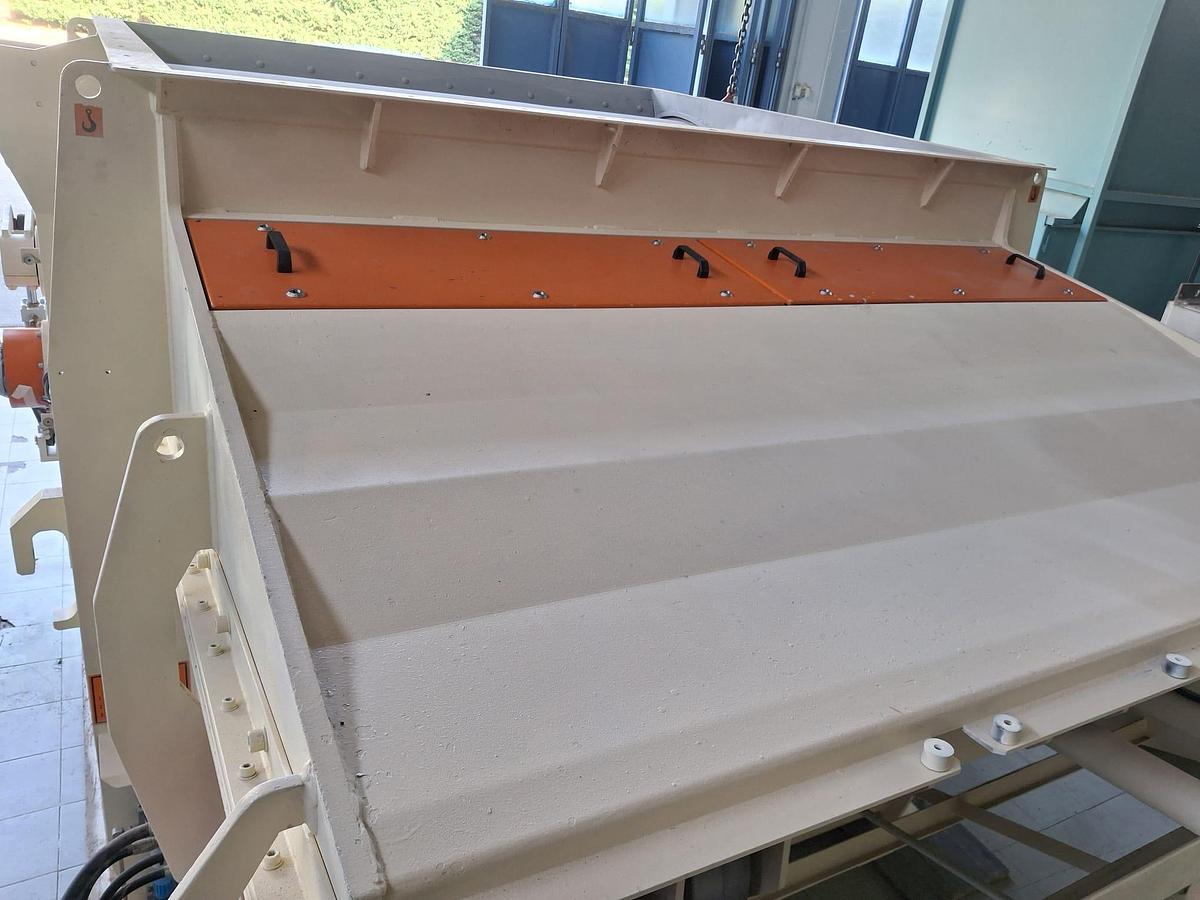

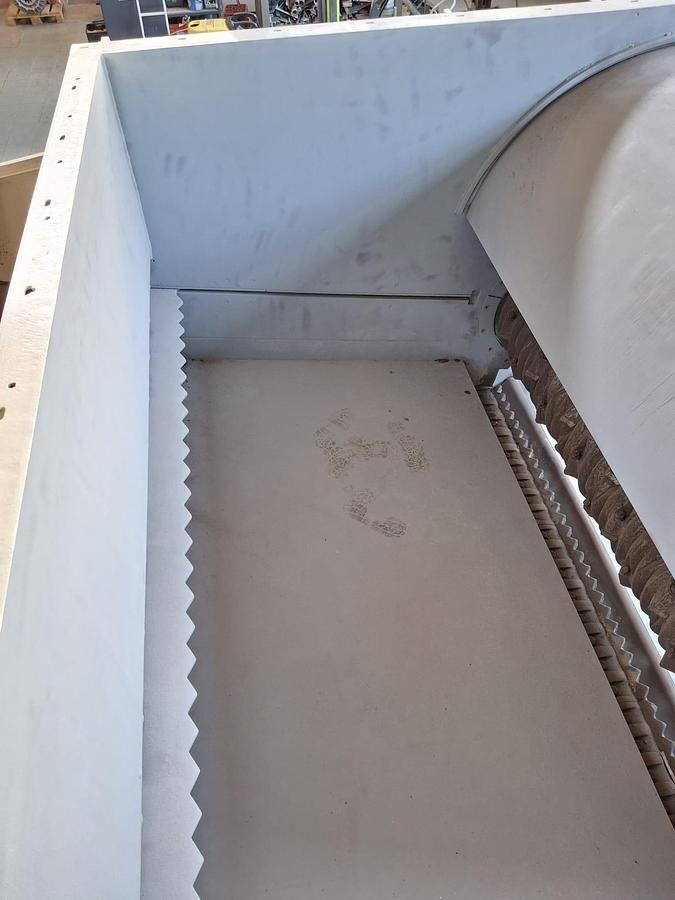

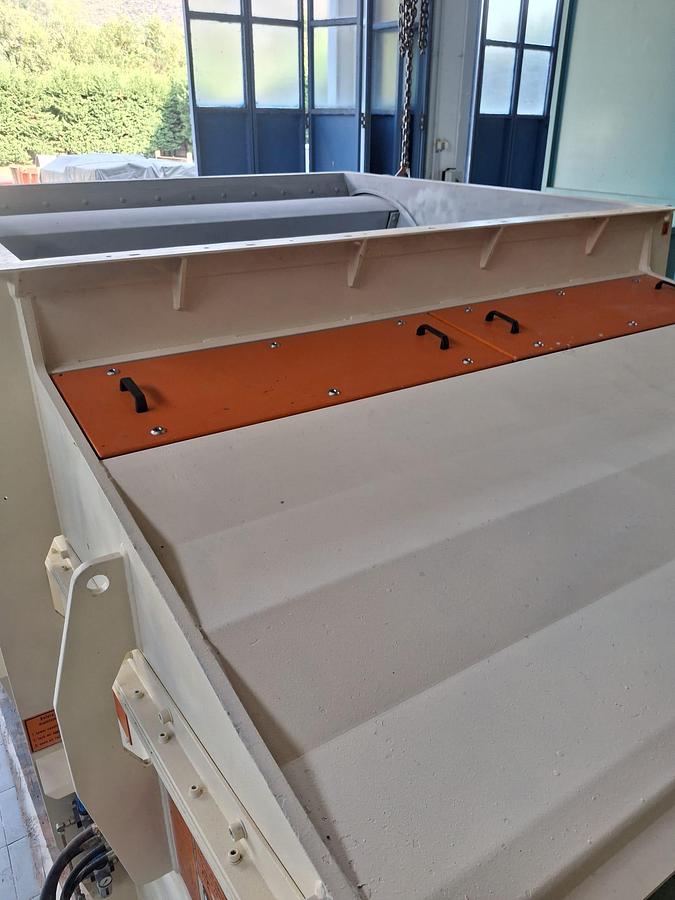

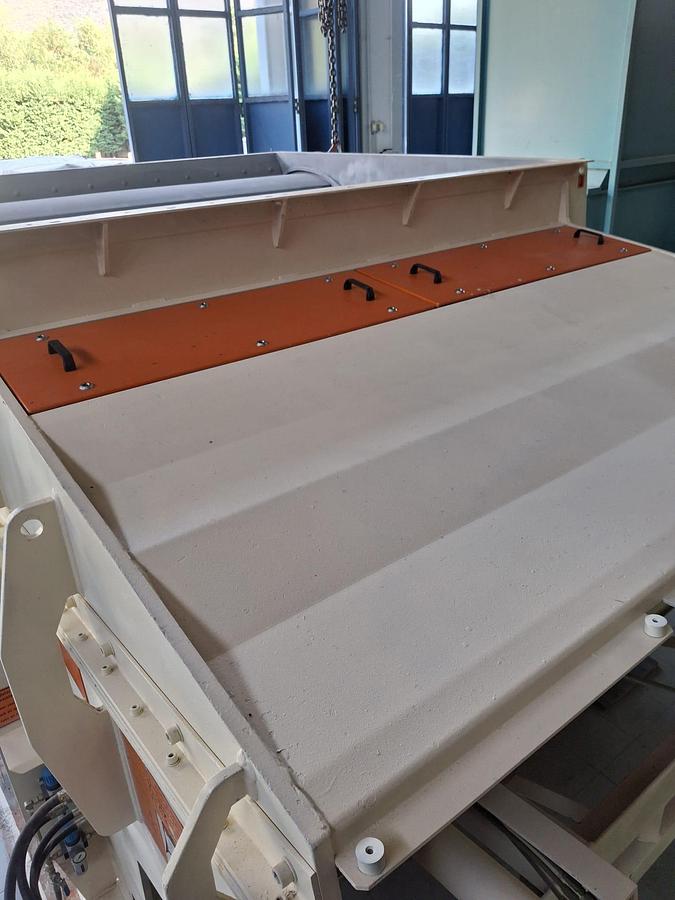

Generous bolted hopper about 16 m3 capacity

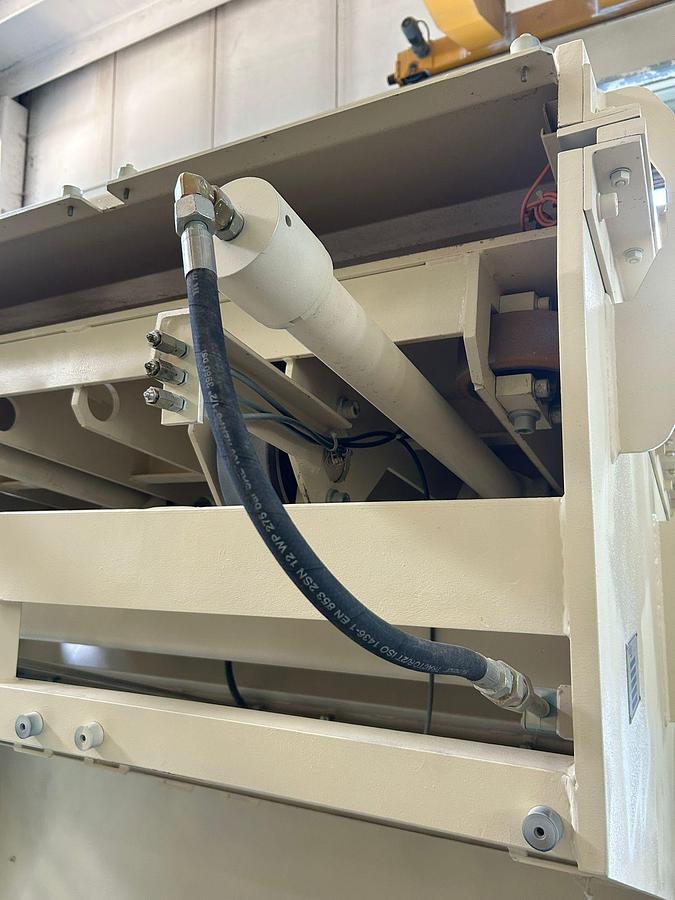

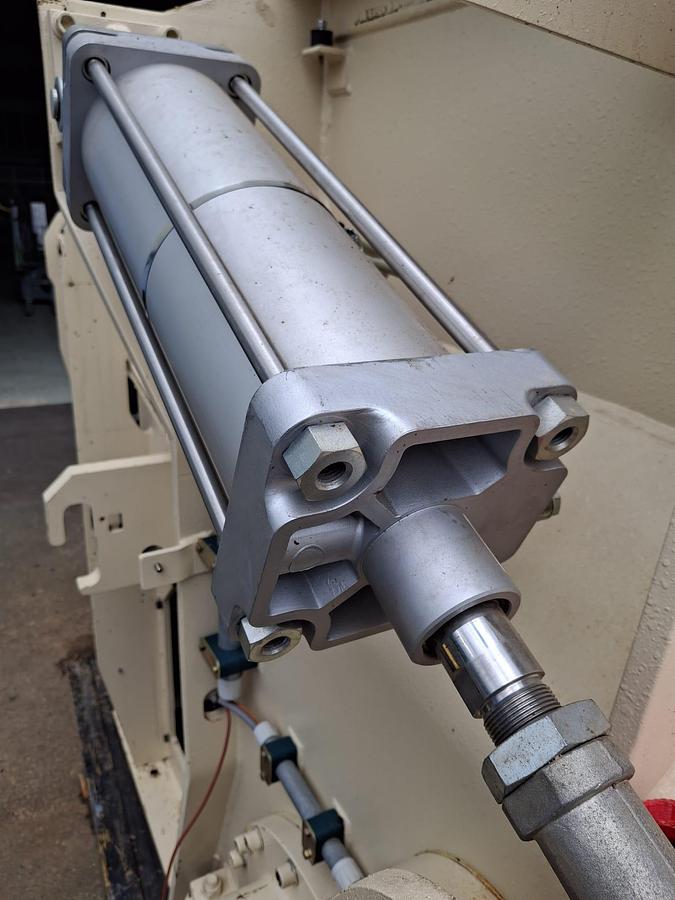

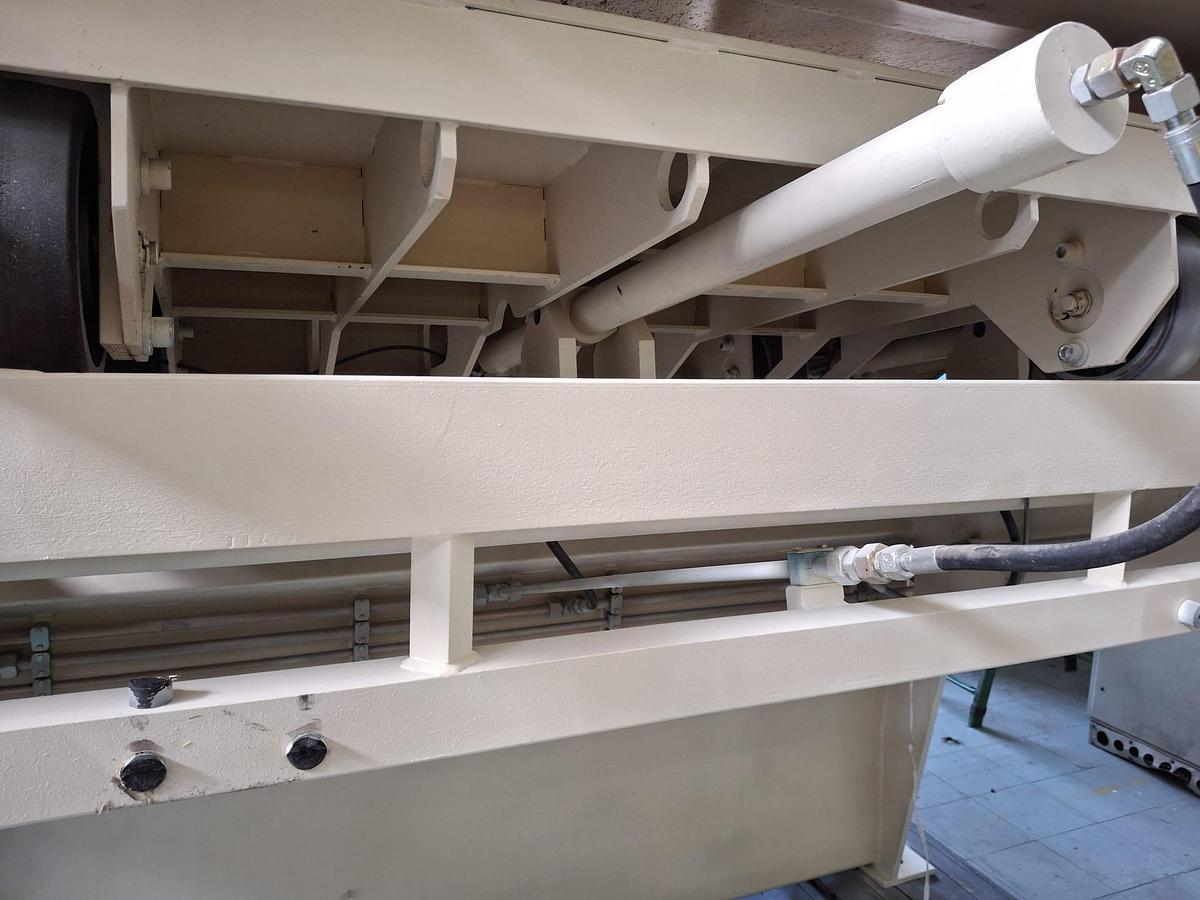

with horizontal hydraulic ram + vertical hydraulic ram (excellent for light voluminous or round shaped scraps)

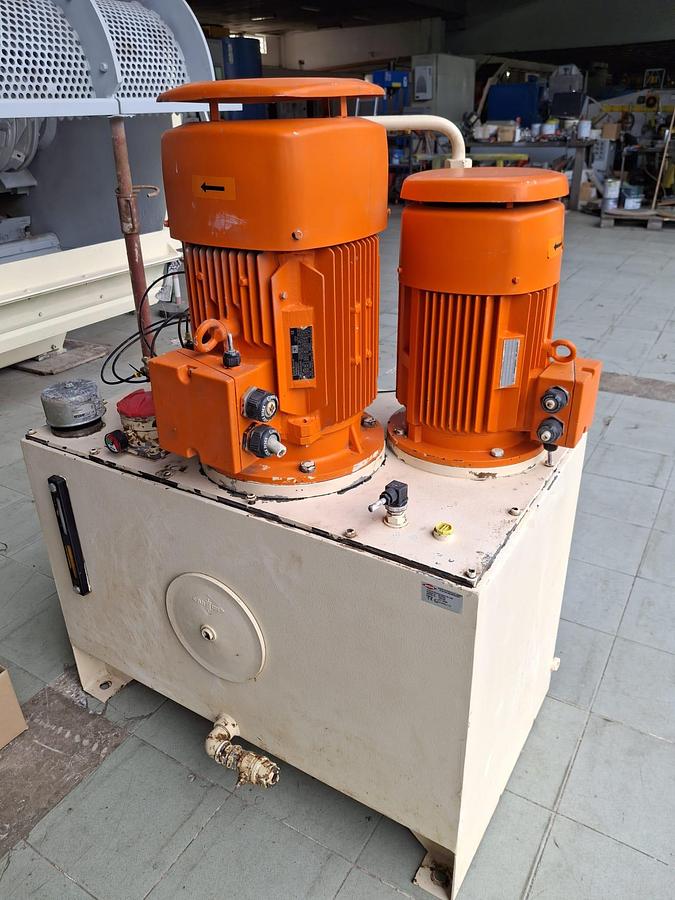

hydraulic power station

250 lt hydraulic oil

Max. operating pressure up to 150 bar

Hi Torque drive with silent running

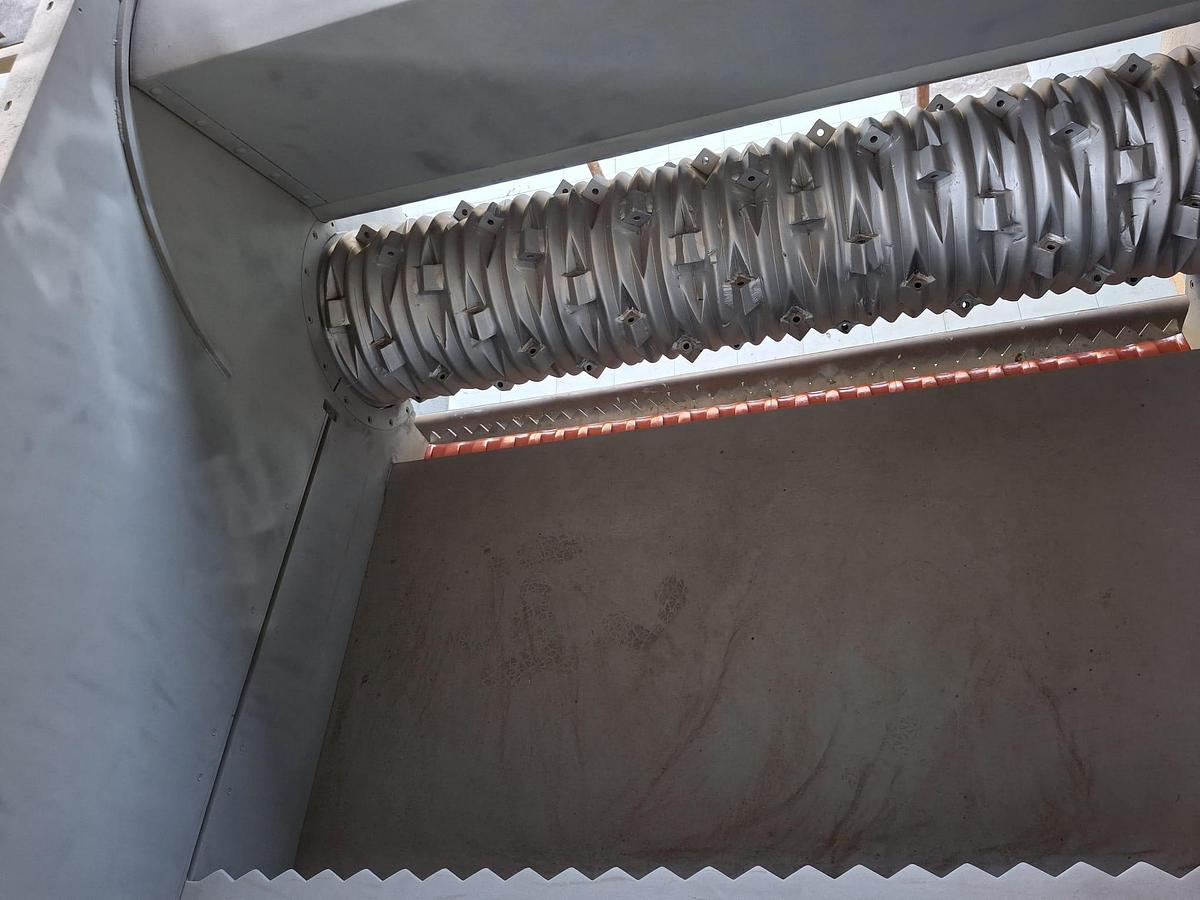

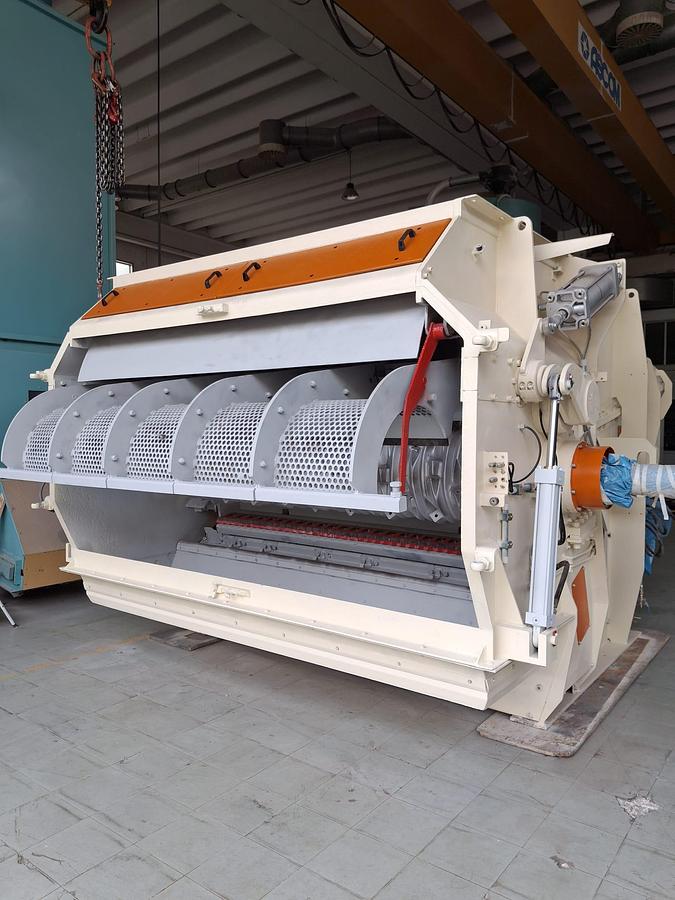

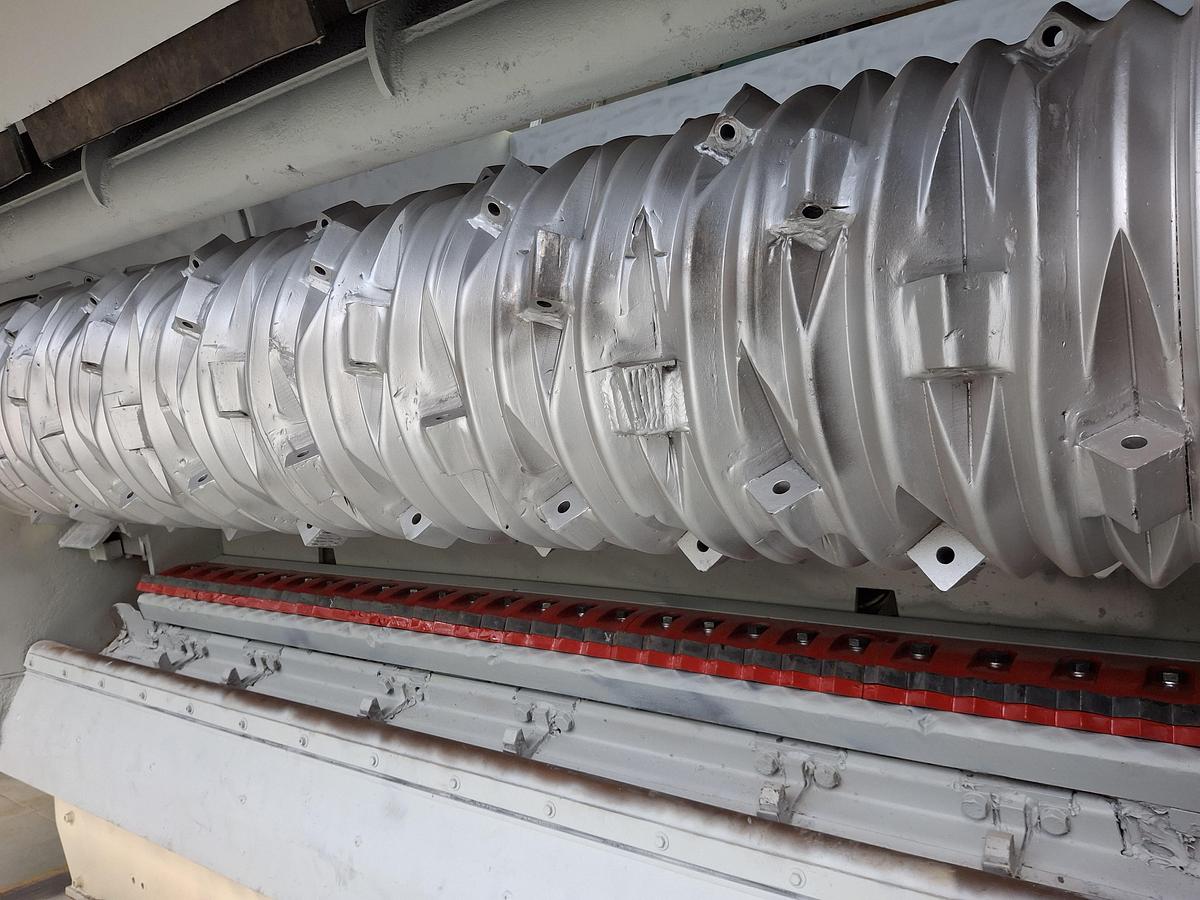

Rotor Ø 640

Rotor width 2.500 mm.

rotor rpm 0-220

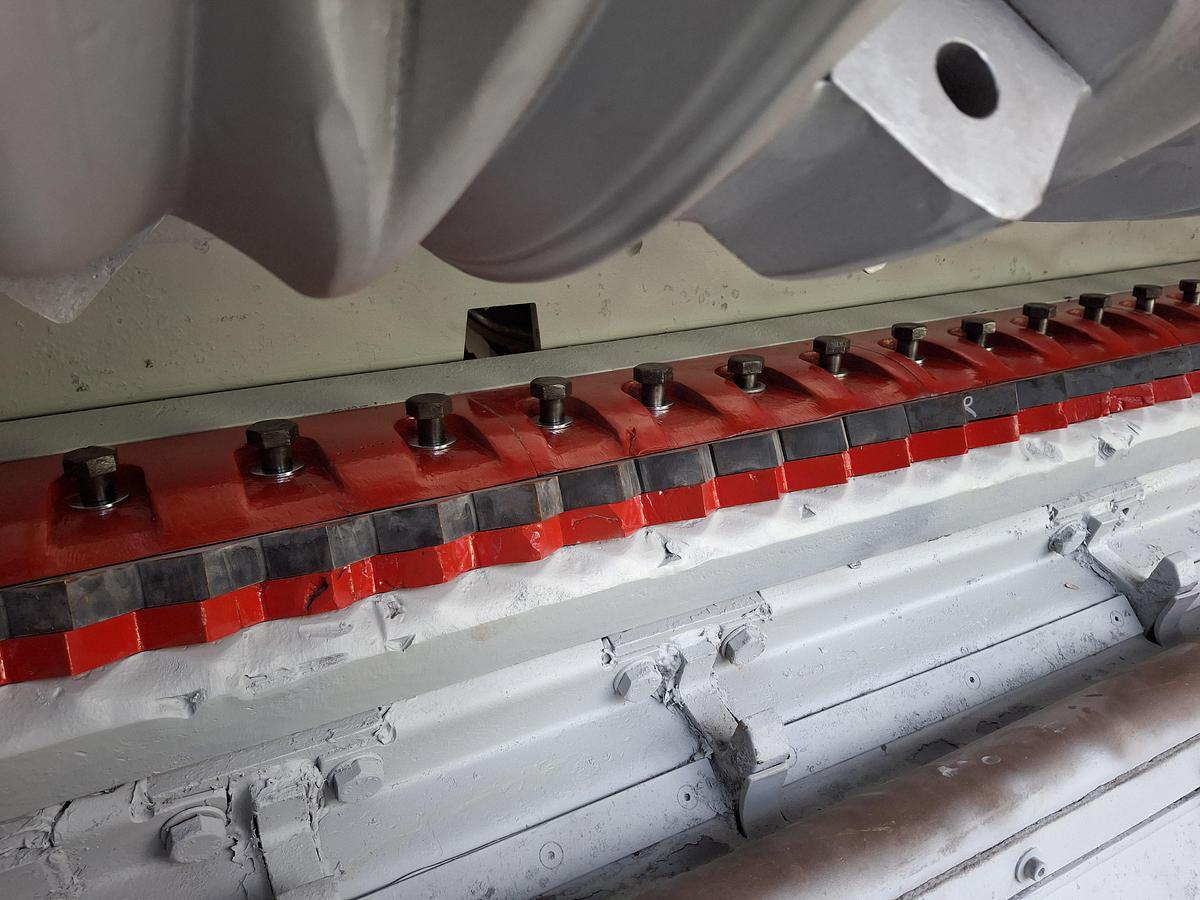

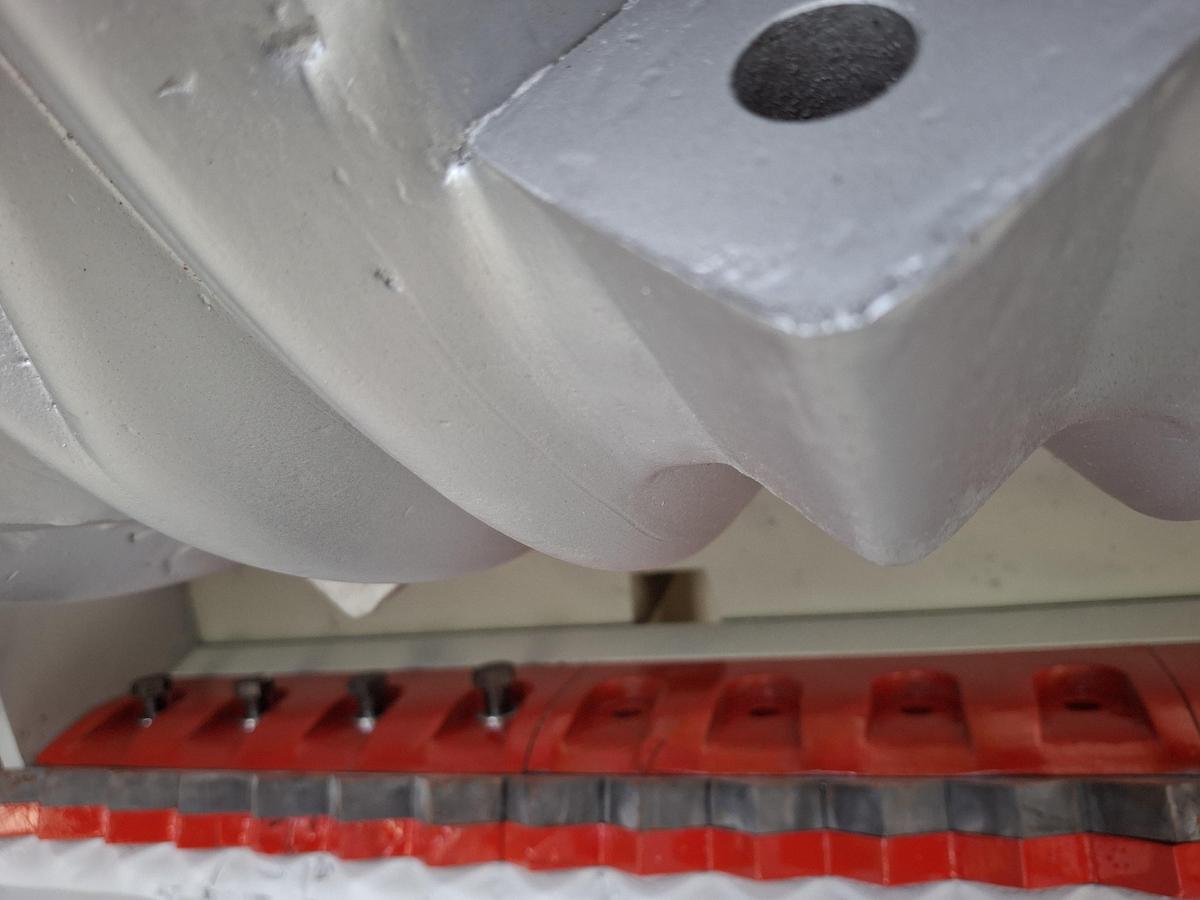

n.76 cutting crowns 60x60 x30 mm

n.6 still knives

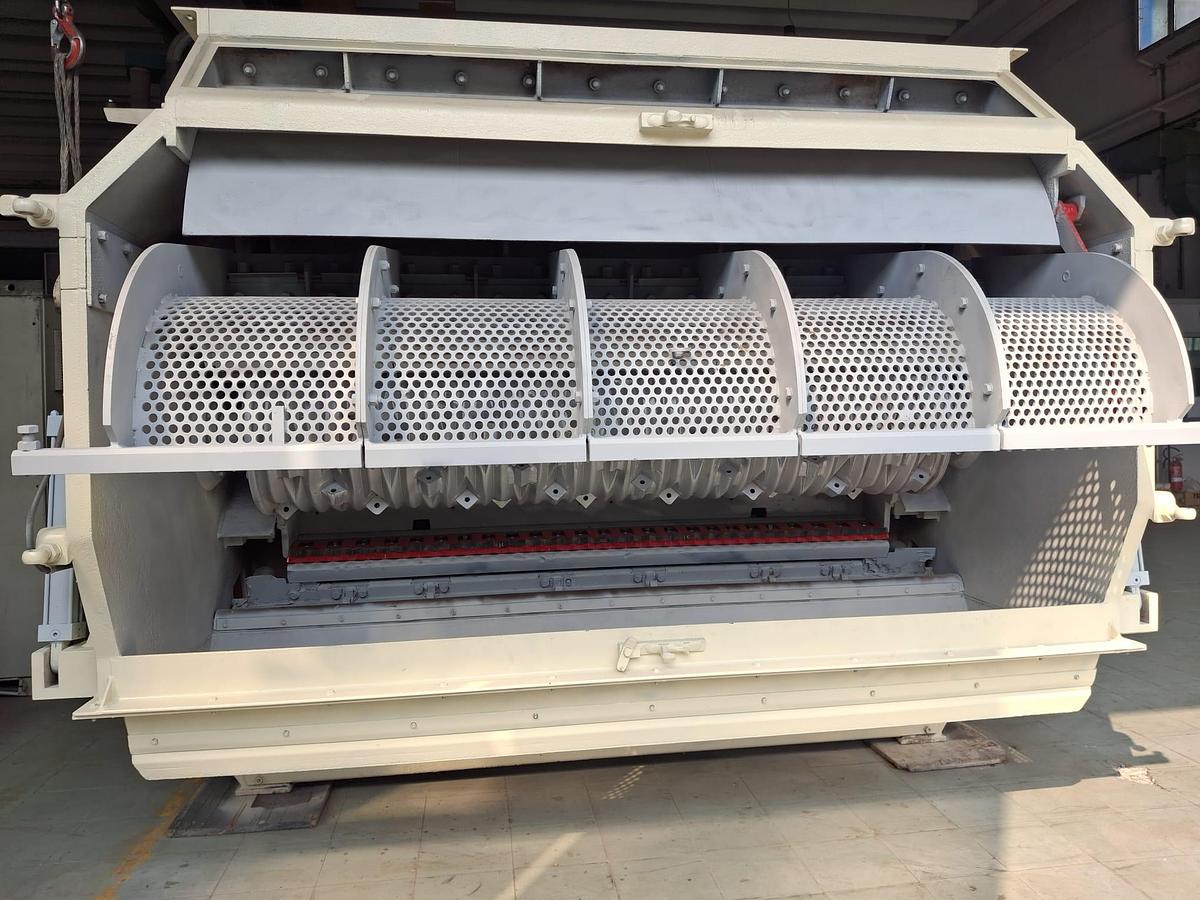

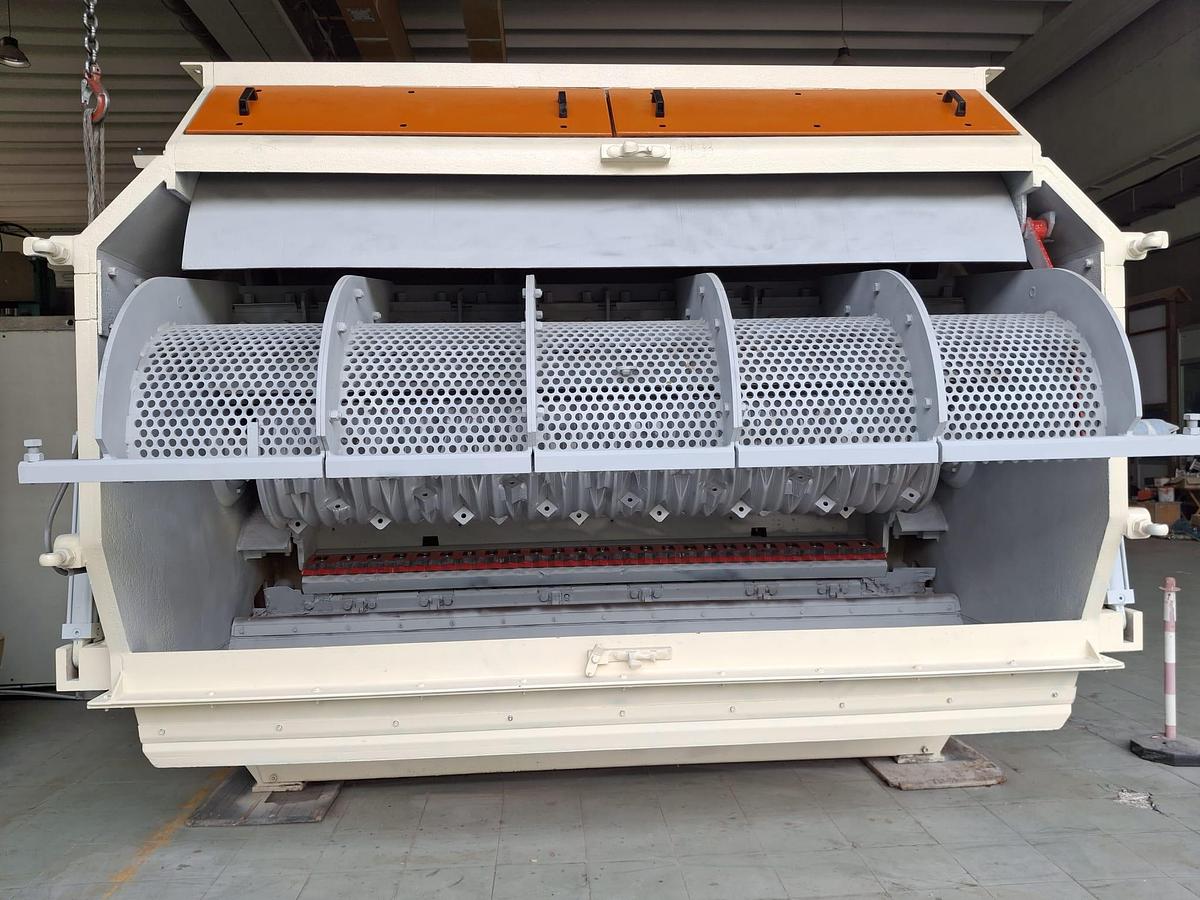

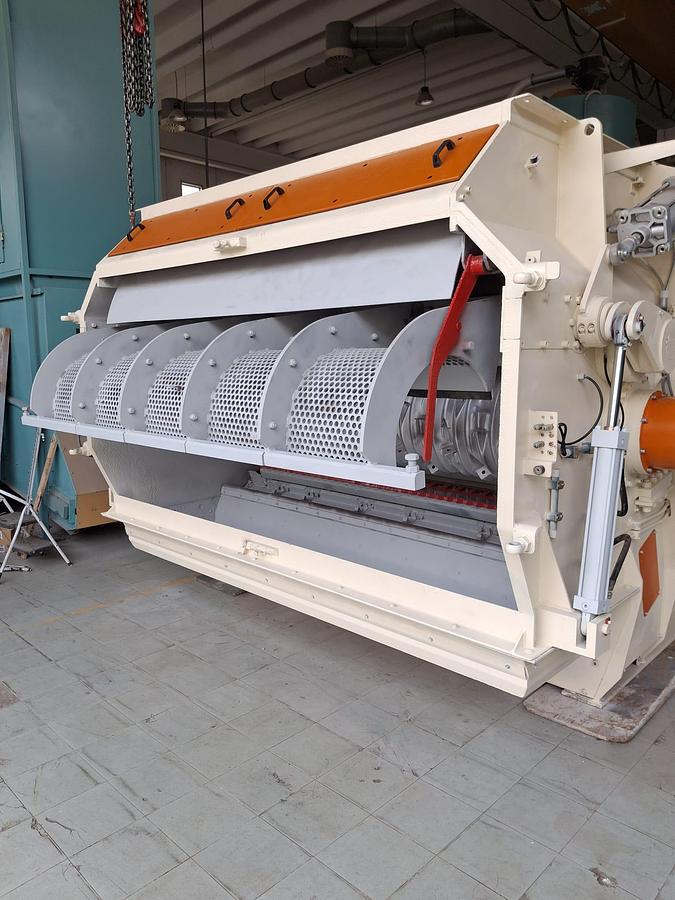

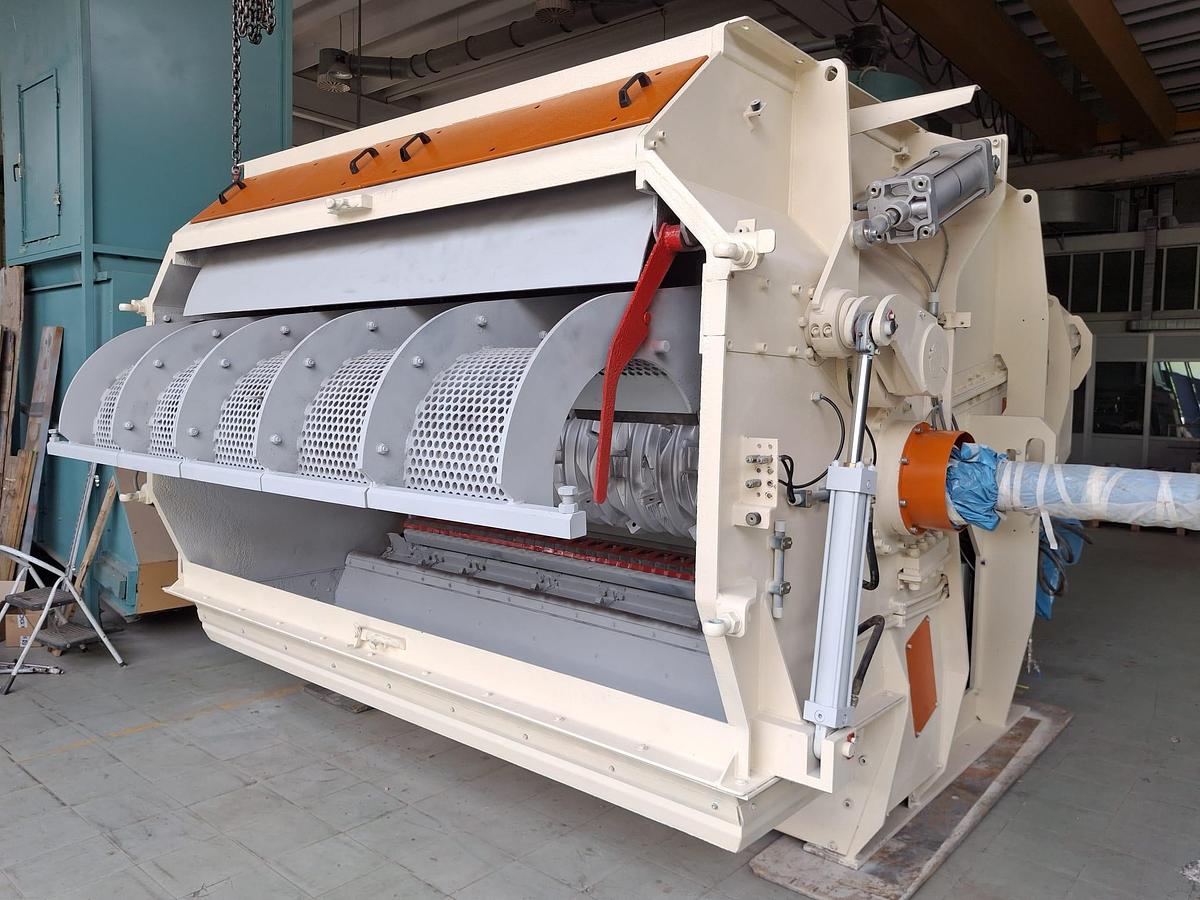

5-pieces screen size : 20 mm - different size on request

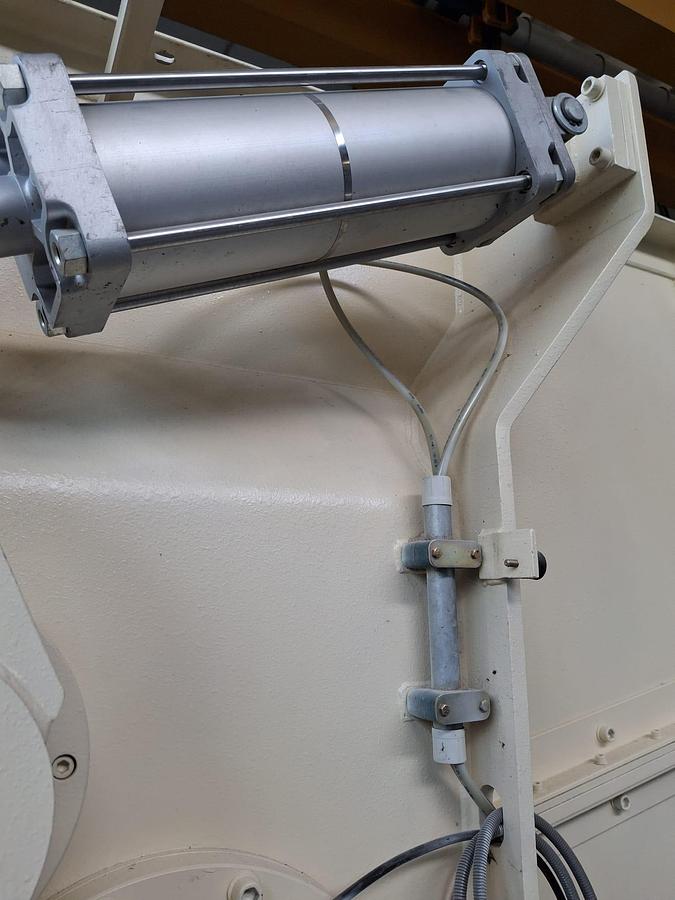

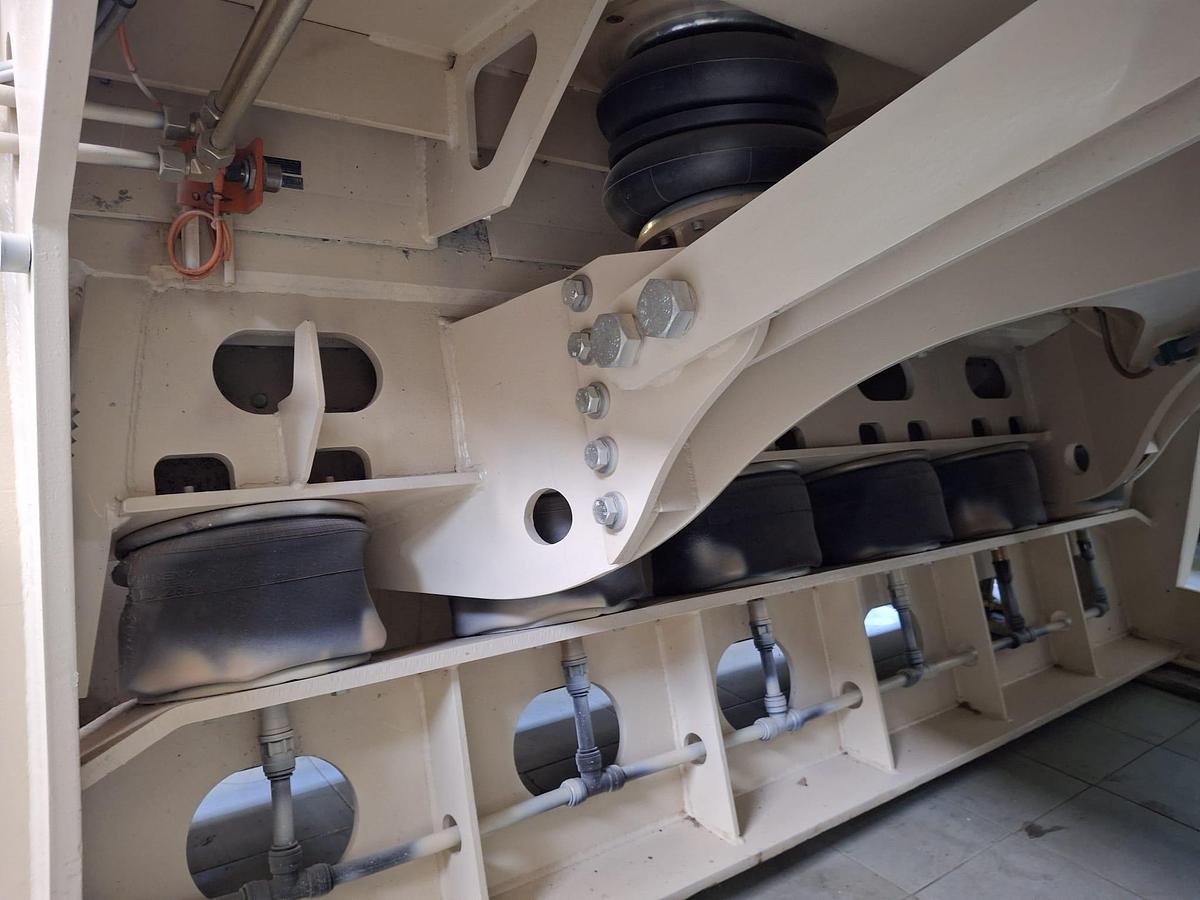

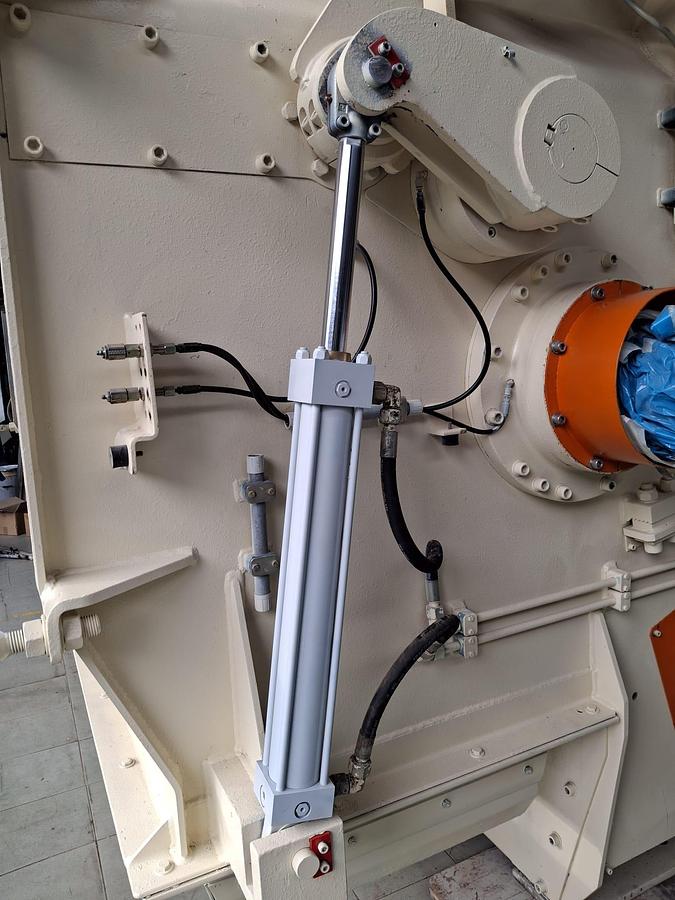

electromagnetic pistons for screen opening

Motor power 203 kw 247 kw Hi Torque - on Buyer's choice

315 kw inverter

415 A nominal 0-220 rpm 400 V 50 Hz - IP 54

temperature probes on the 2 bearings

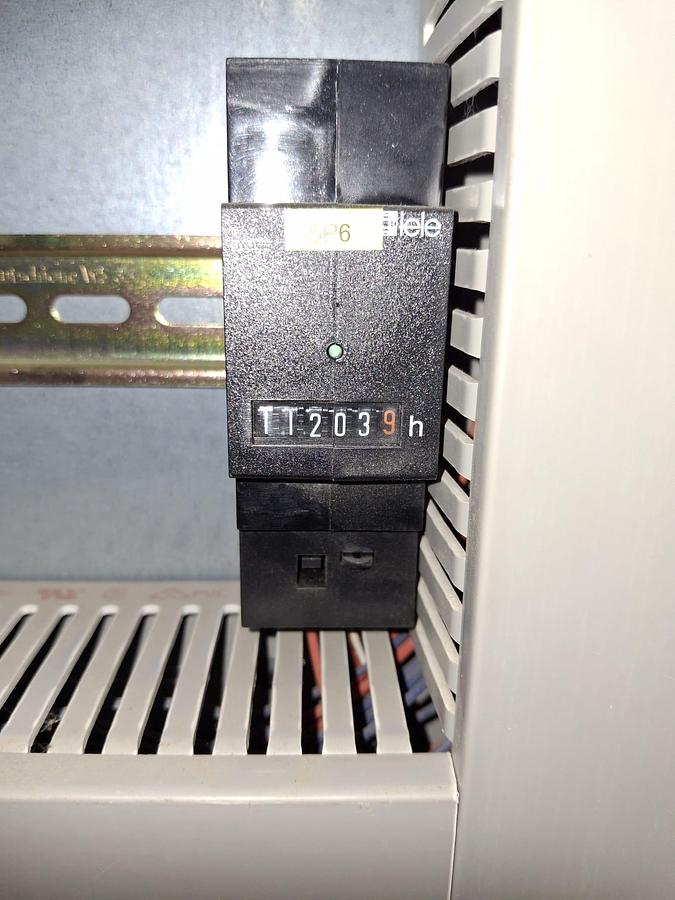

constructed in 2006 but seldom used for wooden pallets, once in a while (11.000 worked hours).

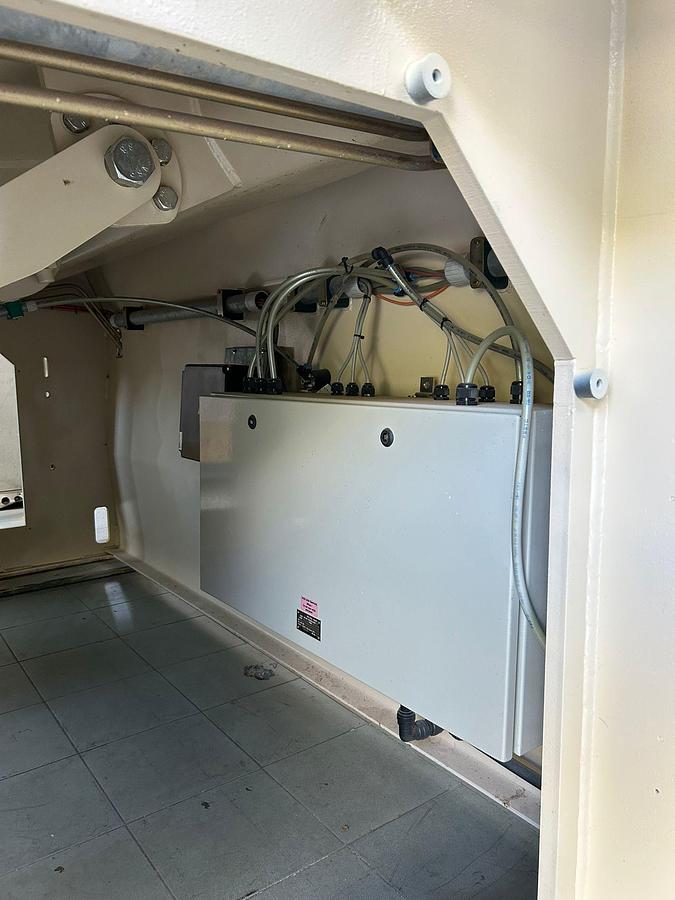

The machine is fitted with Atex cables, electro.valves, sensors, and all electrical components.

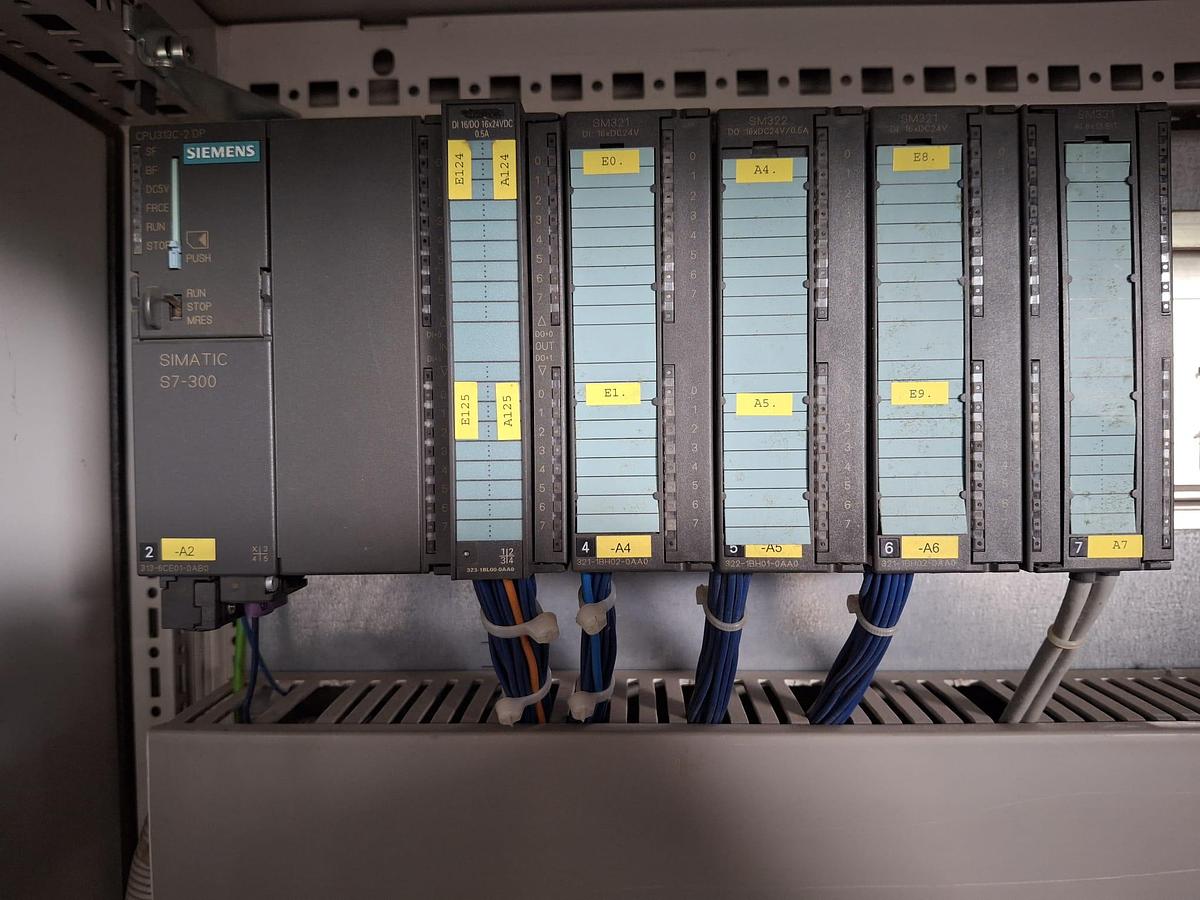

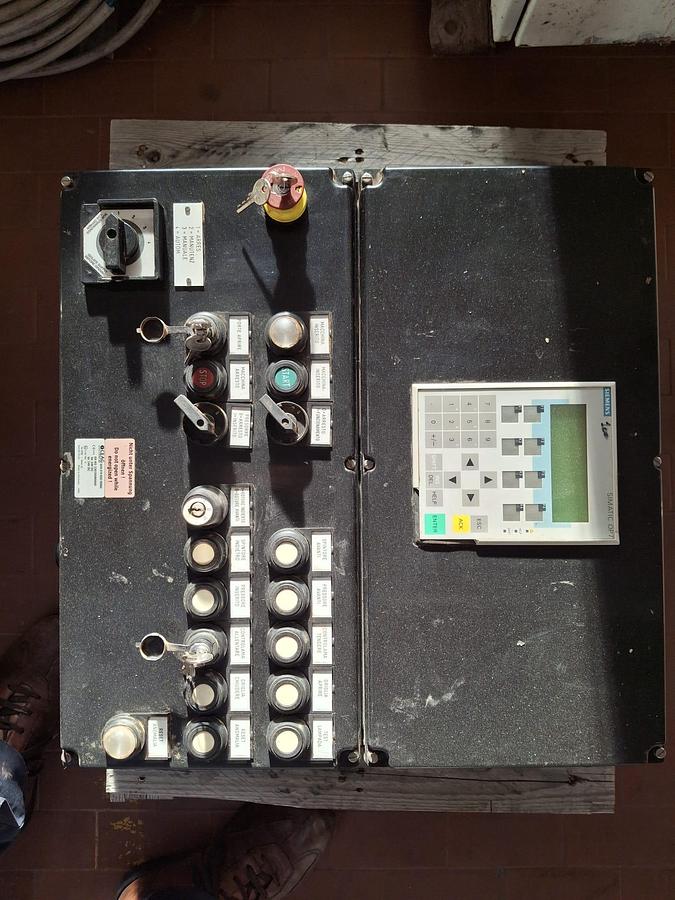

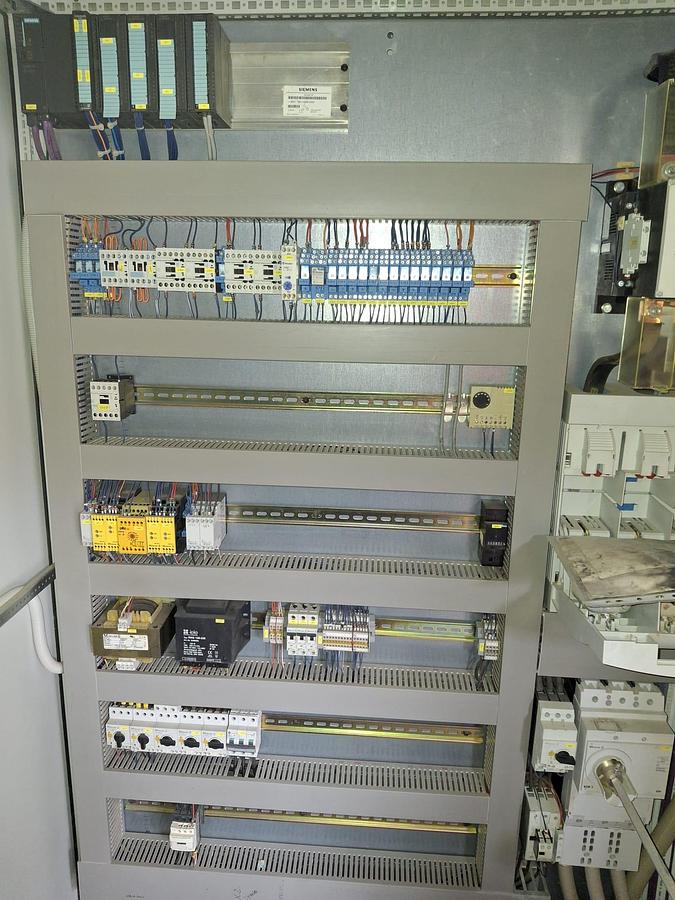

Electric cabinet with Siemens S7 300 PLC and Siemens keyboard for machine management

This machine is offered completely reconditioned, brought to next-to-new conditions with a deep and professional reconditioning to give 99%performances at a fraction of the price for a new machine.

Can be completed with a cased double extraction screw conveyor 2 x 300 mm Ø - 5,0 mt.long, 4 kw drive

See the benefits of a Hi Torque motor on the Constructor's pdf brochure - att.

This machine can be dry-tested before loading
