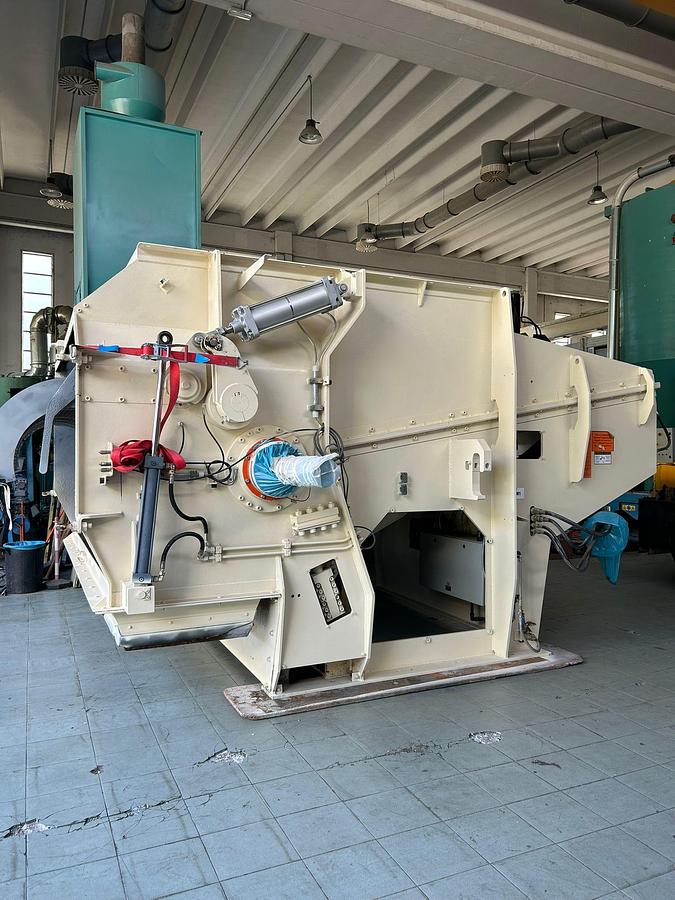

vecoplan vaz 2500 HiTorque MNF-T 247 kw or 203 kw drive top ram reconditioned - Atex

VECOPLAN VAZ 2500 M NF-T

Compact high torque motor with motor pump unit and electric motor

Generous bolted hopper

with horizontal hydraulic ram + vertical hydraulic ram (excellent for light voluminous or round shaped scraps)

Hi Torque drive with silent running

Rotor Ø 640

Rotor width 2.500 mm.

76 cutting crowns 60x60 mm

screen size : 20 mm - different size on request

250 rpm

Motor power 203 kw 247 kw Hi Torque - on Buyer's choice - can be ATEX on request

inverter

415 A nominal 0-220 rpm 400 V 50 Hz - IP 54

Max. operating pressure up to 150 bar

250 lt hydraulic oil

temperature probes on the 2 bearings

constructed in 2006 but seldom used for wooden pallets, once in a while.

This machine is offered completely reconditioned, brought to next-to-new conditions with a deep and professional reconditioning to give 99%performances at a fraction of the price for a new machine.

Can be completed with a cased double extraction screw conveyor 2 x 300 mm Ø - 5,0 mt.long

See the benefits of a Hi Torque motor on the Constructor's website attached

-----------------------------------------------------------------------------------------------------------------

If you need to make sure this is the right machine, please give us the following:

1. KIND OF SCRAPS
2. MAXIMUM INPUT SIZE
3. CAPACITY REQUIRED IN KG/H
4. IF ANY METAL OR OTHER CONTAMINATION
5. % OF CONTAMINATION AND ITS LARGER SIZE,
6. LOADING MEANS
7. FINAL SIZE REQUIRED
8. DISCHARGING MEANS
9. NEXT MACHINE OR PROCESS
