500-700 kg/h 1,5 x 5,0 m.tank+centrifuge

PLASMAQ WASHING-SEPARATING TANK

the line was yielding about 500 kg/h

suitable for film and rigid plastics

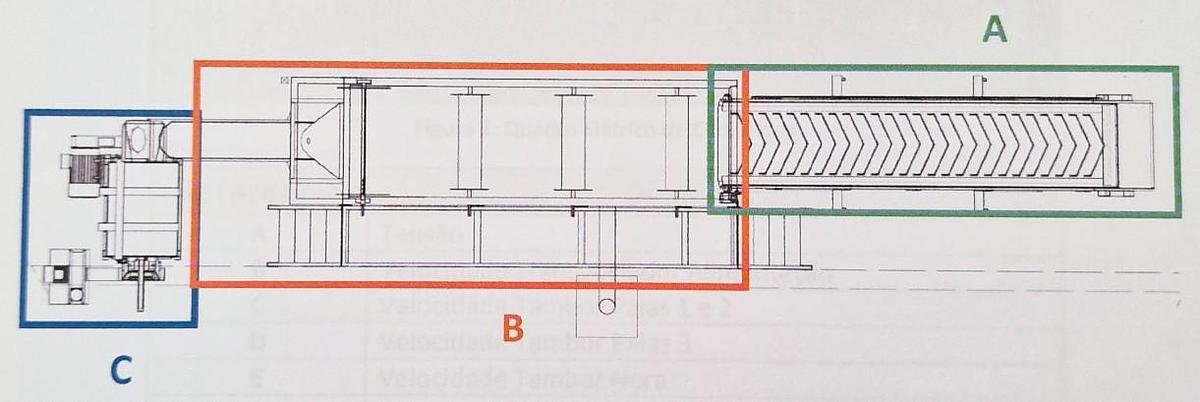

The line includes:

screw conveyor with 1,1 kw gearmotor

size 5,0 x 1,5 mt.

Made in AISI 304 stainless steel

conveyor belt to tank, 3,0 mt.long 1,1 kw

screw conveyor on bottom for sunk material 5,0 m.long 1,1 kw + inclined 2,8 mt.long 1,5 kw

draining screw conveyor for floating material 0,75 kw

n.3 dipping drums to force material under the water 0,75 kw each

drying centrifuge 1,2 m.long x 500 mm Ø

30 kw drive, 3000 rpm
