VECOPLAN VAZ 1100 XLS P 37 kw stainless steel full system

VECOPLAN BIOMASS SUPPLY INSTALLATION EQUIPMENT

Stainless steel complete installation (original price 480 K€ )

including:

Infeed Hopper with Vibratory Motor

Inclined Sorting Conveyor Belt 600 x 12500 mm

VECOPLAN VAZ 1100 XLS P

37 kW drive

Rotor Length 1.070 mm.

Rotor diameter 370 mm.

Chain Conveyor 500 x 500 mm, x approx. 8 m)

Metal Detector

Diverter Valve & Chutes

Chain Conveyor 500 x 500 mm x approx. 16 m

Stainless Steel Pump with Piping (The pump is for the reduction of dust. In the process of transporting dry biomass, a lot of dust is released. This can disrupt the operation of the machinery. The pump is used to pump water into the piping which has a series of spray nozzles. )

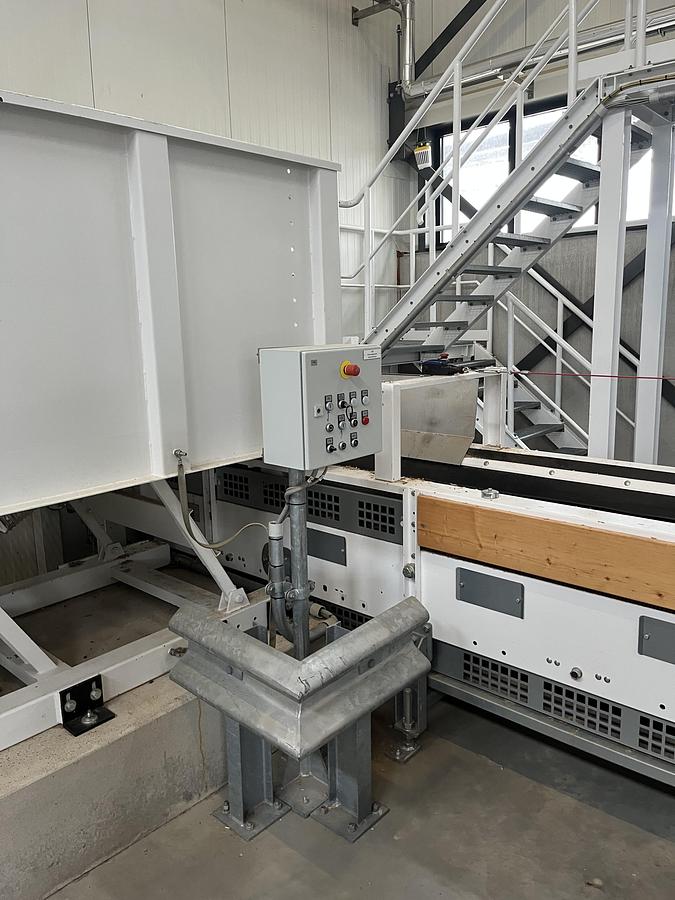

Control Panels (3 units)

Platform Floors with Stairs and Supports
