WHEELED TANKER TRUCKS LOADING SYSTEM

capacity ca.40 To/h (with material 600 kg/m3)

Constructed in carbon steel with antirust painting

Outer Ø 250 mm

Bearing casing with dust seals

loading hopper 1.000 x 1.000 mm.

7,5 kw gearmotor

wheeled supporting structure

adjustable height by manual hydraulic pump

Total screw length 7,0 mt.

Maximum discharging height 4,5 mt.

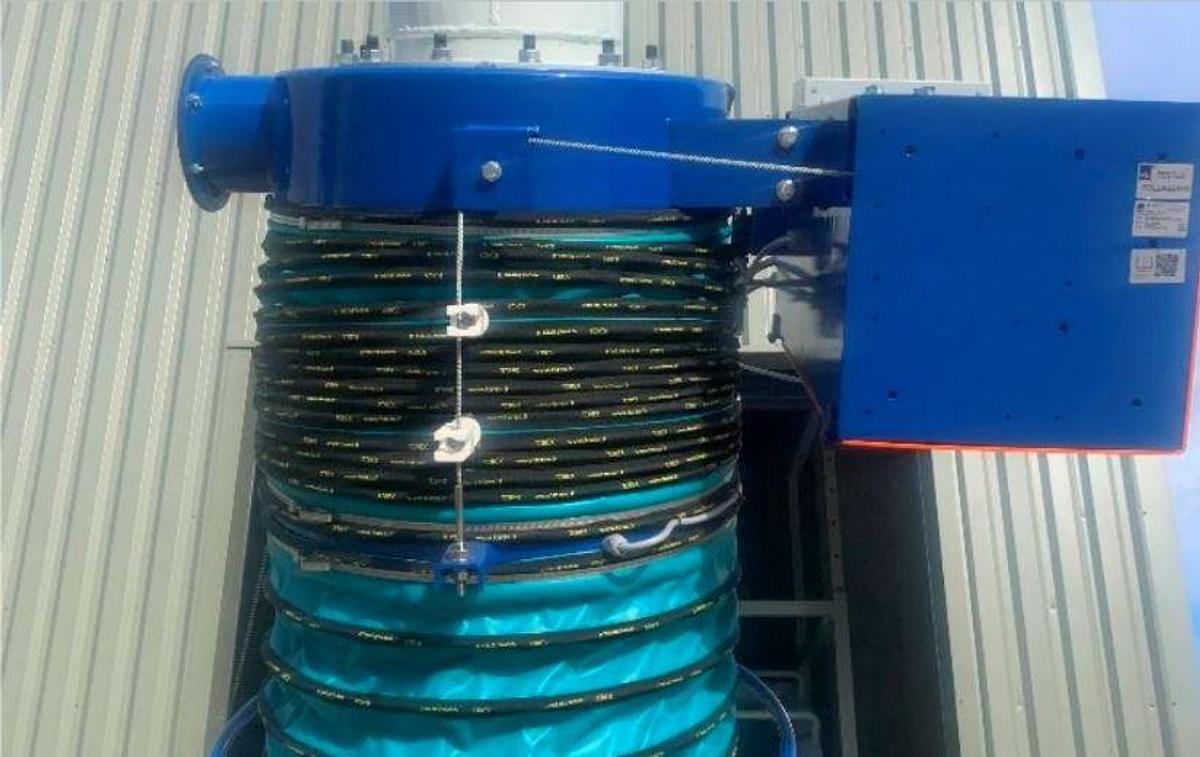

Automatic retractable discharging sleeve with capacity sensor

complete with control panel

CE compliance, User's manual, Electrical drawings.

Manufacturer	GERMANPLAST
Model	wheeled tanker loader, 7 mt.long- 4,5 mt.discharging point (or bespoke)
Condition	New
Stock Number	GE753
installed power - used power in work: about 60-65%	7,5
capacity	40 To/h with 600 kg/m3 plastics
conditions	new machine
options available	automatic retractable discharging sleeve, 2xbag holding structure, Stainless Steel version
type	tanker loading system
availability	ca 4 weeks from confirmation depending on workload of the moment

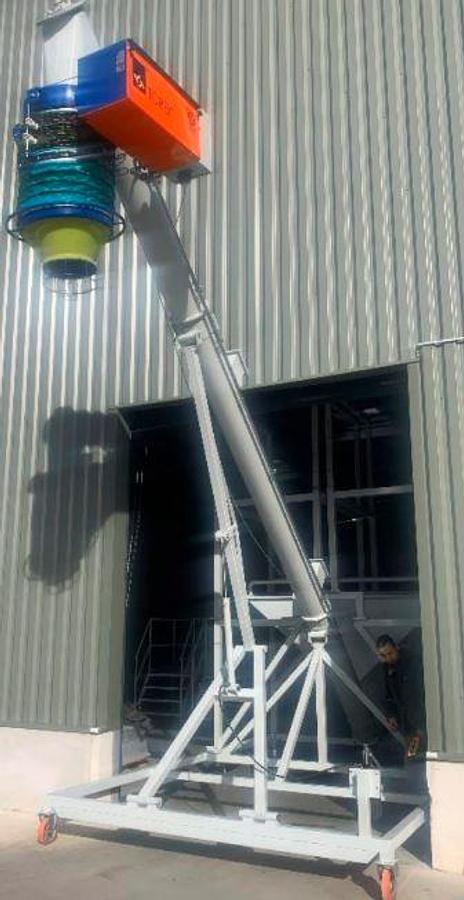

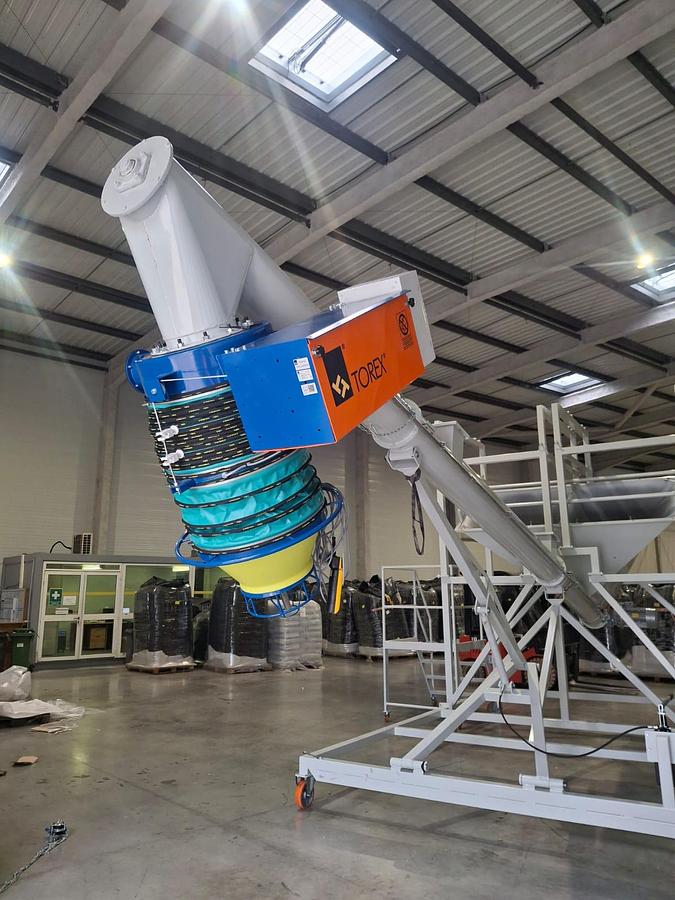

wheeled tanker loader, adj.height with automatic retractable sleeve
