ROLLEPAAL TWIN SCREW PVC PIPES EXTRUSION LINE W2-125-22V

ROLLEPAAL TWIN SCREW PVC PIPES EXTRUSION LINE

Mod.W2 125-22

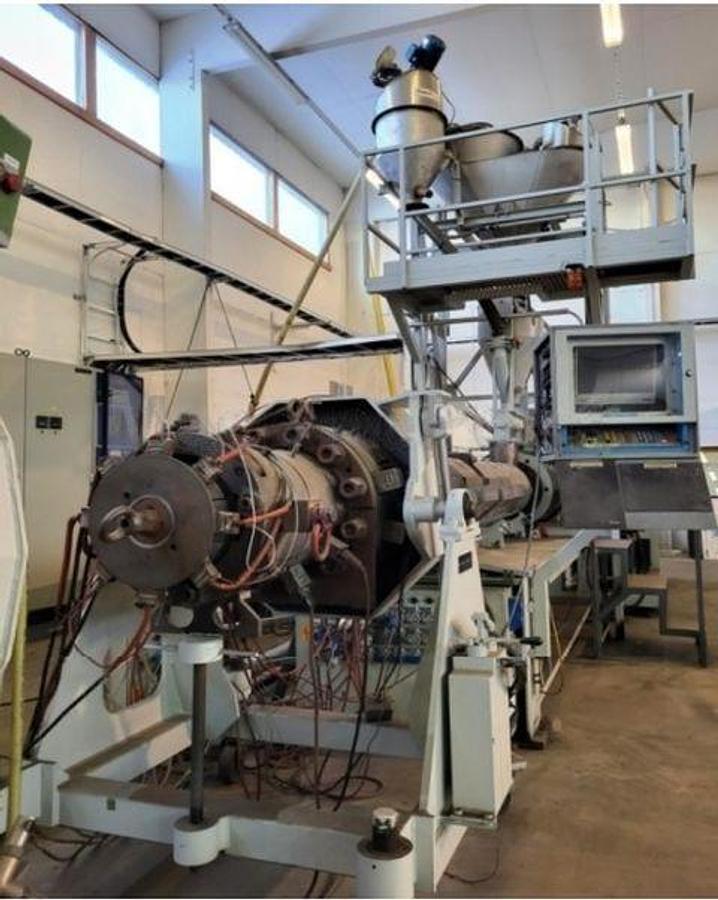

Extruder with 2 parallel screws diam 125 mm 22 L/D (screws+barrel new 7-2013)

for pipes with min./max diameter 63/200 mm.

nominal production rate 500-600 kg/h depending on material

complete line with tooling from 63 to 200 mm Ø pressure an sewage pipes

Including many heads among which n.1 head for PVC DN 110 - DN 160

Constructed in 1992 - only 3.500 worked hours

Good working conditions

Connected, can be tested on a dry cycle

Spare parts inluded:

n.1 Rollepaal die for DN 110, 125, 160 + calibrators

n.1 Kuag die for DN 63 - DN 125 è tooling for DN 63, 90, 110, 125 + calibrators

n.1 Maplan RK4 die for 3 DN 160 - DN 200 + tooling for DN 160, 200 + calibrators

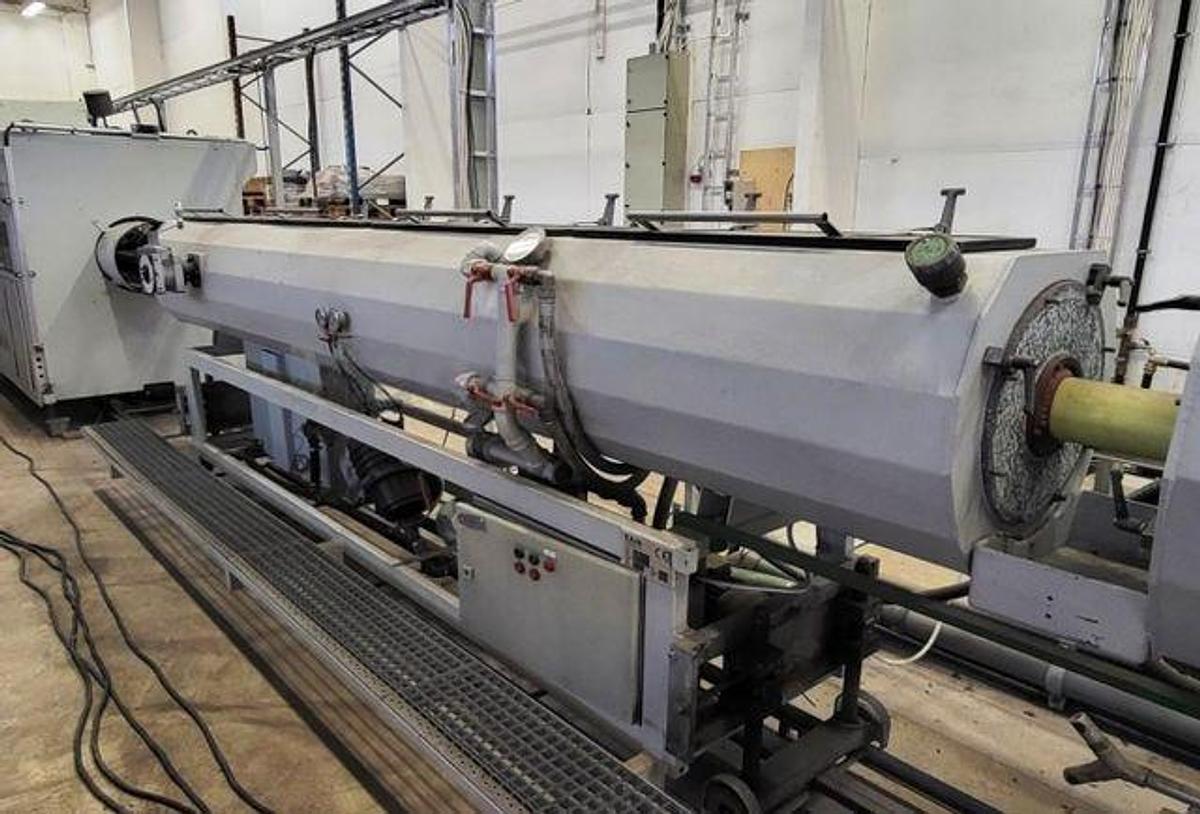

6 mt.long Kuag Calibration vacuum tank type DVK 250 1,5 + 4,5

4 mt long Kuag calibration vacuum tank type VK 250 / 4

n.1 Kuag Pull off unit up to 250mm Type RA 250 / 4

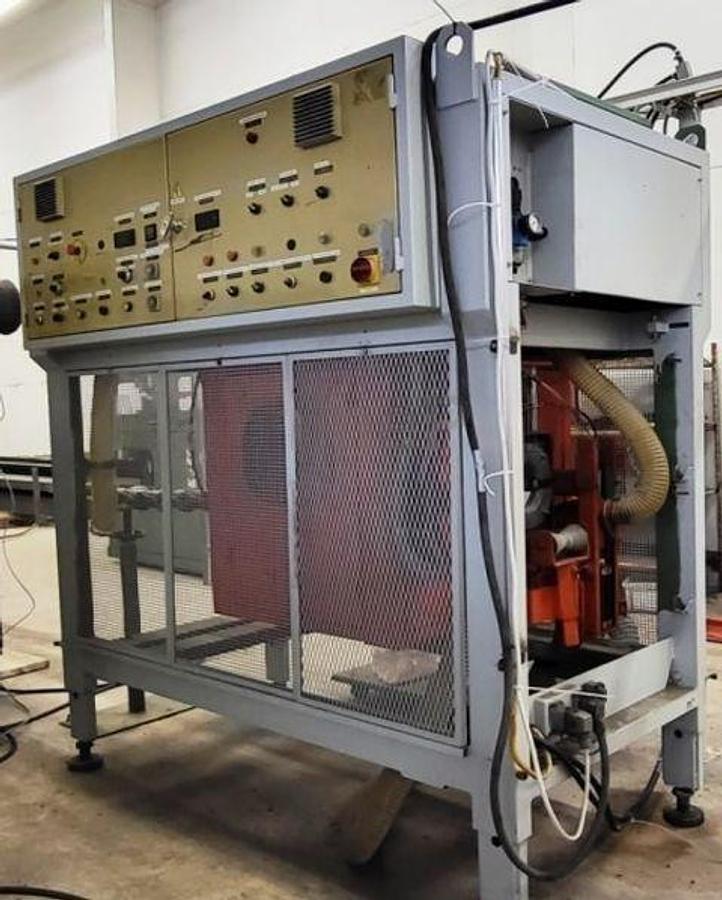

SICA cutting unit for pipes up to 160 mm Ø type N.T.R.S.25.160 S.

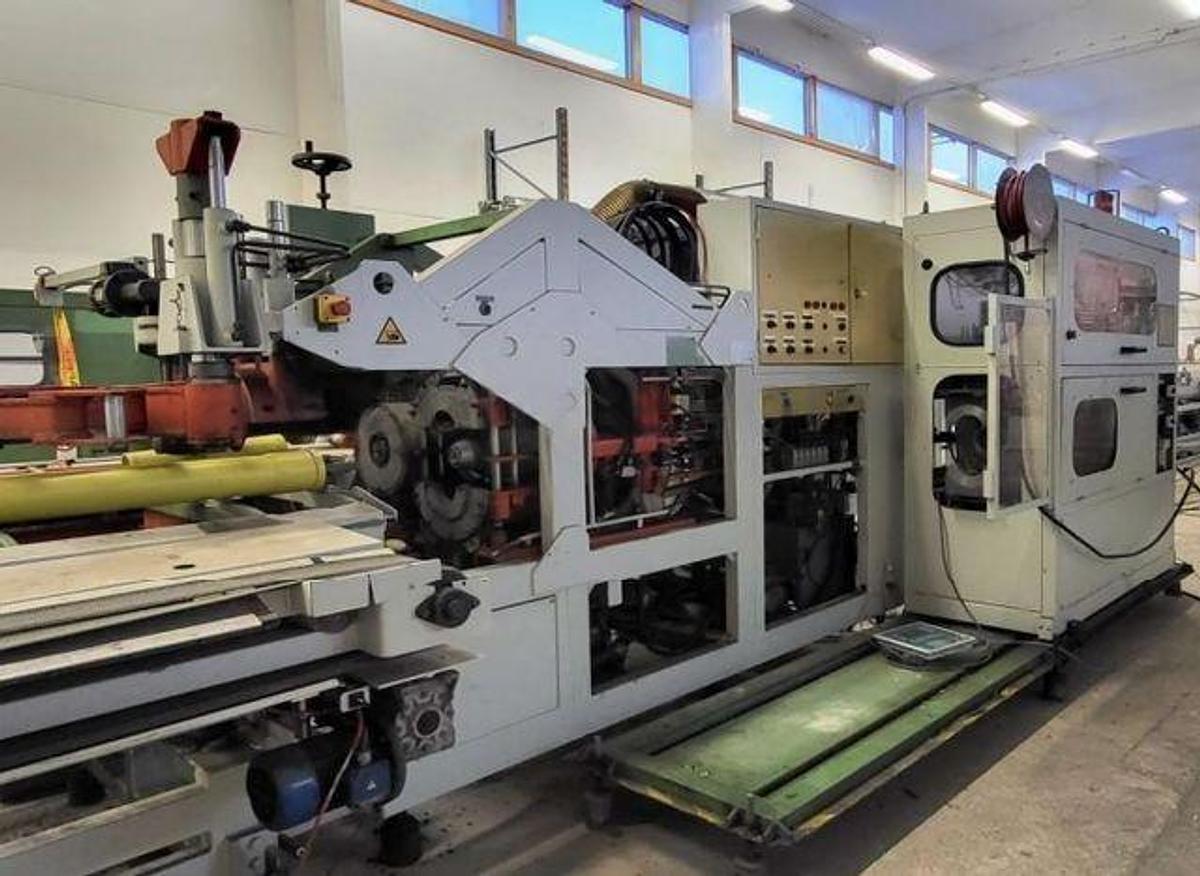

SICA belling unit for pipes up tìo 200 mm.Ø type: BA.NS.HS.KSR.1T 32/200

Tools for sewage pipes: 110x3,2 / 125x3,2 / 160x4,0 / 160x 4,7

SICA Sealing ring inserts machine type ARF. 32.200

SICA Belling unit for pipes up to 200mm Type: BA.NS.HS.KSR. 1T 32/200

Tools for pressure pipes: 63x3,0 / 75x3,6 / 90x4,3 / 90x6,7

Tools for sewage pipes: 110x3,2 / 125x3,2 / 160x4,0 / 160x 4,7 / 200x4,9 / 200x5,9

SICA Sealing ring inserts machine Type: ARF. 32/200

Belt converter from the first to the second Belling machine included

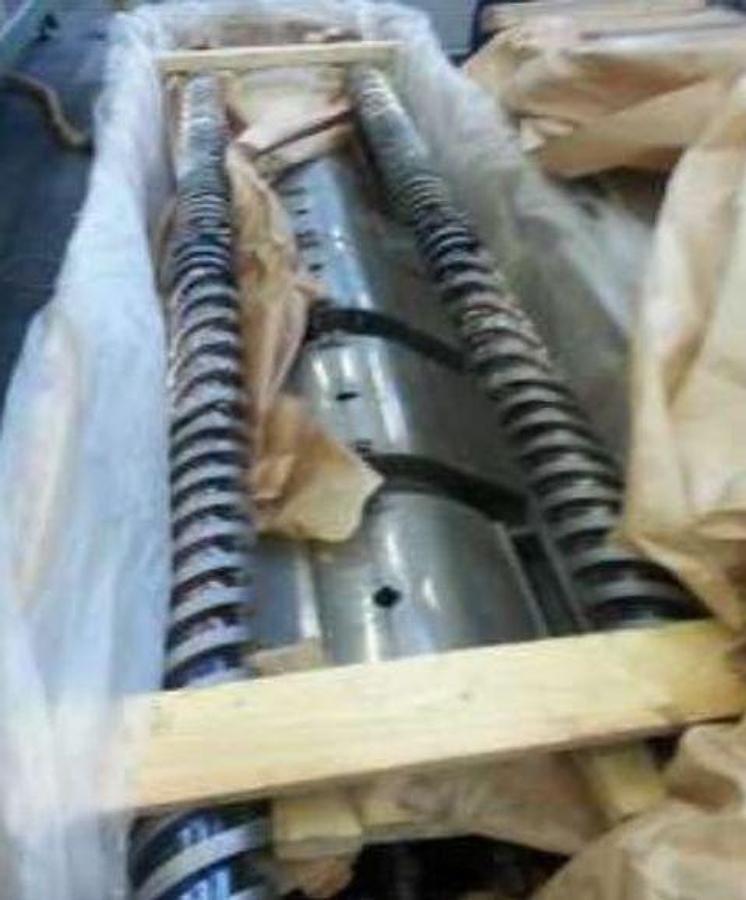

Spare barrel + screws

Spare Transmision gearbox

Spare dc drive, compression bearing gearbox
