2011 MACCHI 3-layers dw 2.350mm 800 kg/h

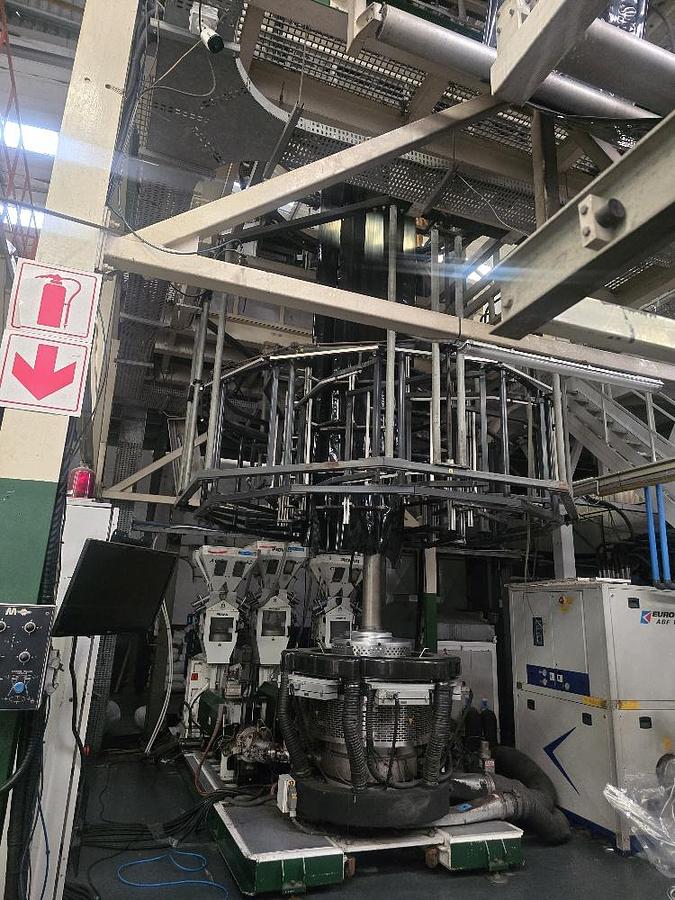

MACCHI 3-LAYERS BLOWN FILM EXTRUSION LINE

for LLDPE/LDPE/HDPE

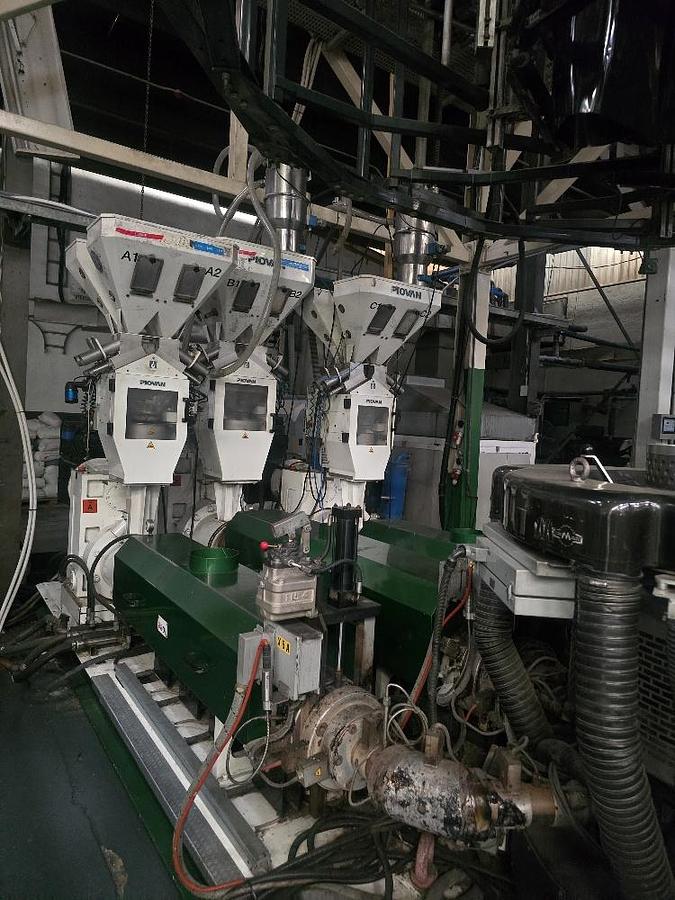

n.3 extruders with infra-red heaters (for energy saving)

Screws Ø 65+80+65 mm

n.3 sliding plate screenchagers

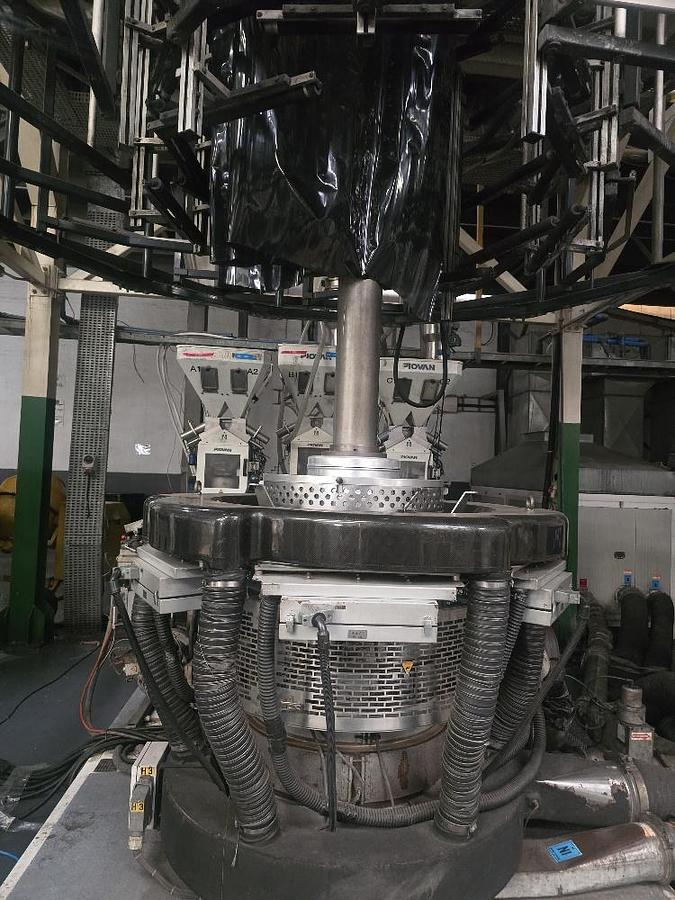

Macchi Die head TE5303-IBC-350/500

Available dies Ø 350 and 400 mm gap 1,8 mm.

IBC bubble cooling system

dual-flow, carbon fiber air ring

throughput rate up to 800 kg/h depending on material and recipe

2.400 mm wide oscillating pull off unit

Motorized side gusseting units

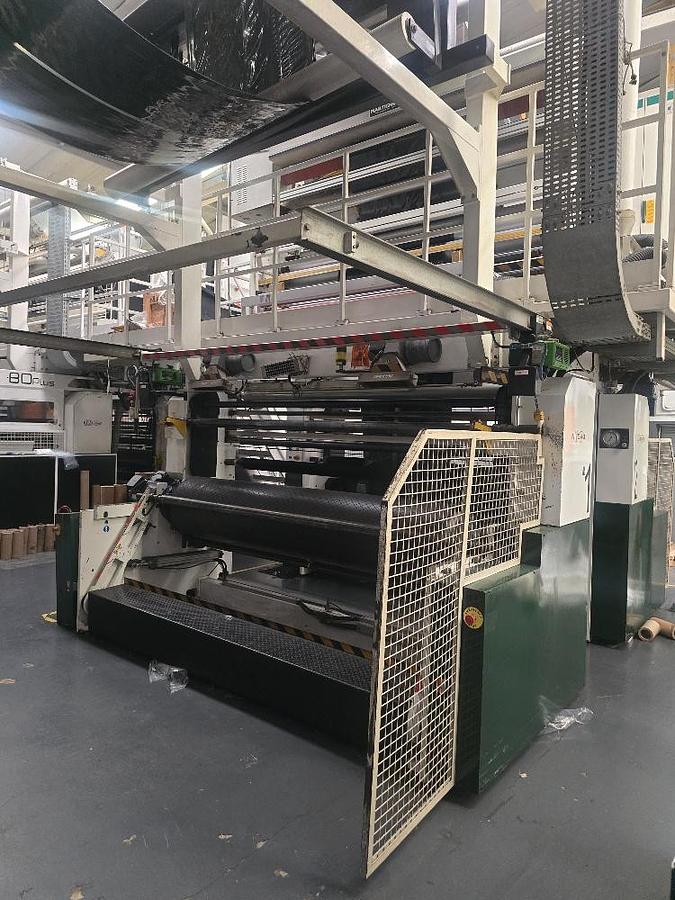

Double, 2.350 mm wide fully automatic back-to-back winding station with fully automatic reel change

Max reel Ø 800 mm

including the following:

Tower

E&L Web guide

Gravimetric weight control system Piovan/Doteco

Components blander Shini

Doteco dosing units

Automatic Thickness control Kundig/K-Design Profile gauge control system

Calibrating basket

Martignoni Corona-treatment

N. 8 Air shafts

Constructed in 2011 started 2012

Excellent working conditions.

On time maintenance always performed by Constructor

Can be seen in production.
