2004 AMUT EA160 1200/1000 mm.single screw 1 Ton/h PS PP

AMUT EA-160 FOR PS/PP

Total power consumption: 211 kW/h in work

Main engine power: 250 kW

useful sheet width 1.080 mm

Max. gross output PP up to 1.000 kg/h with film width up to 1.200mm

Minimum thickness : PS = 0,68 mm.

PP = 0,75 mm.

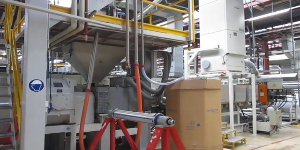

Maguire 5-chamber dosing system

Extruder Amut EA 160

screw Ø 160 mm. (new in 2003)

Screen changer

Melt pump

Flat die n.1 nozzle lip with a max. film thickness of 2 mm up to 1.000 kg/h.

1 insert flat die 1.200 mm

Lip with max. film thickness up to 2 mm up to 1.000kg/h

Thickness gauge SBI TMD-EC/140.20.200.R

Haul-off unit (new in 2004)

n.4 cooling rollers

Calender 1.400 mm.Maximum (new in 2004)

Max mechanical calender speed 50 m/min.

Slitters on winder for multiple reels

Film winders (3 pcs.)

Max. winder speed: 50 m/min

Cutting machine & film tensioner

Mill MAZZA CBS  25 40 2T18 // Age 2003

Fully existing infrastructure; control cabinets, pumps, etc.
