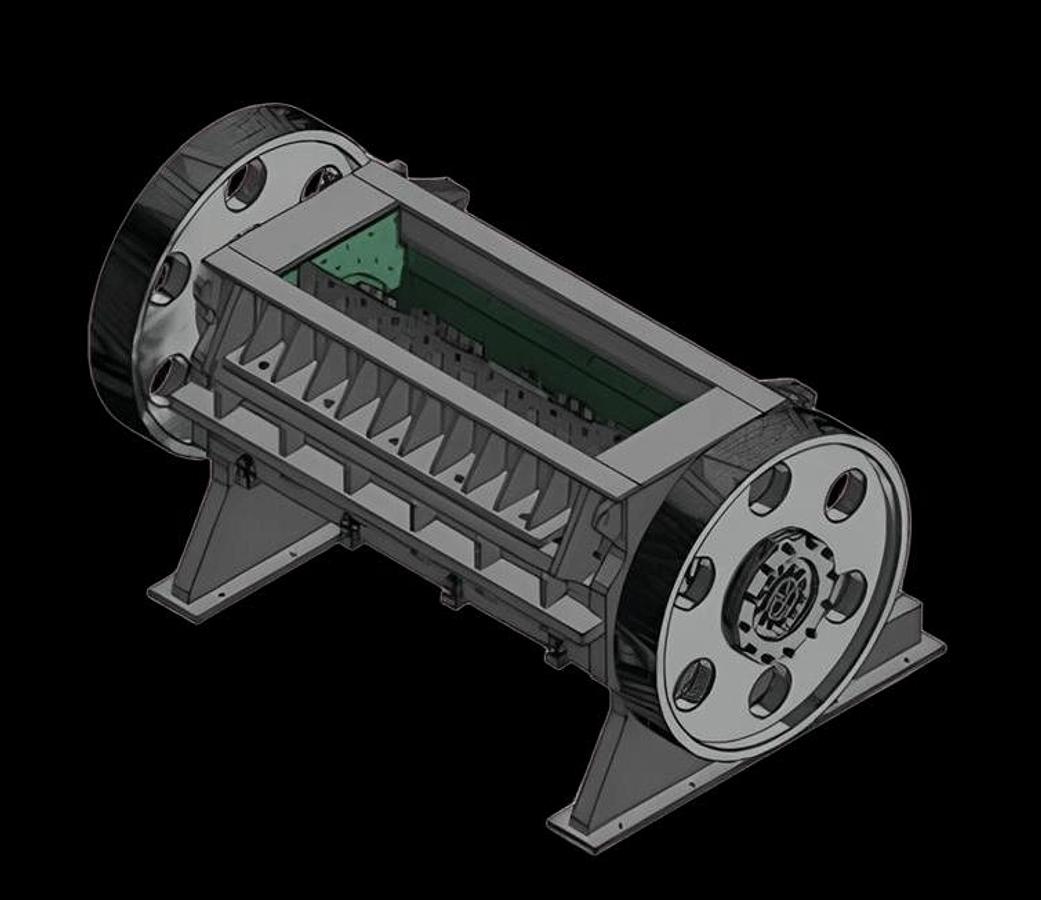

single shaft, heavy duty, multipurpose 132 kw 1200 mm.

HEAVY DUTY SINGLE SHAFT SHREDDER - multipurpose

Main applications:TYRES - CABLES - WEEE - LIGHT METAL SCRAPS - OIL FILTERS

and other industrial waste

Rotor length: 1,200 mm

Rotor diameter: approx. 500 mm

rotor speed 144 rpm

Cutting chamber opening: 600 x 1.200 mm

30 rotating blades

16 fixed blades

Installed power: 1 x 132 Kw IE3 (belt drive)

Siemens (PLC and control equipment)

Schneider Electric (protections, switches and power supply)

Omron (sensors and auxiliary modules)

Power supply voltage: 3~ 400 V – 50 Hz

screen holes bespoke to project

Robust structure with interchangeable internal armour plating in wear-resistant steel.

High-inertia rotor designed to minimise wear and optimise cutting power.

Blades can be resharpened several times

Quick blade and grid replacement system with easy access.

Hydraulically opening grid cradle for easy maintenance and grid replacement.

Overload protection via safety clutches.

Bearing protection with double-wall design to prevent contamination.

sturdy painted steel supporting structure

generous loading hopper for loading through belt or else

cooling system

fire protection system

vibrations control system

remote control

electric panel with PLC and remote control

User's manual, electrical drawings and CE compliance

Machine weight: approx. 19,000 kg

Approximate dimensions (L x W x H): 2,600 x 3,000 x 4,500 mm
