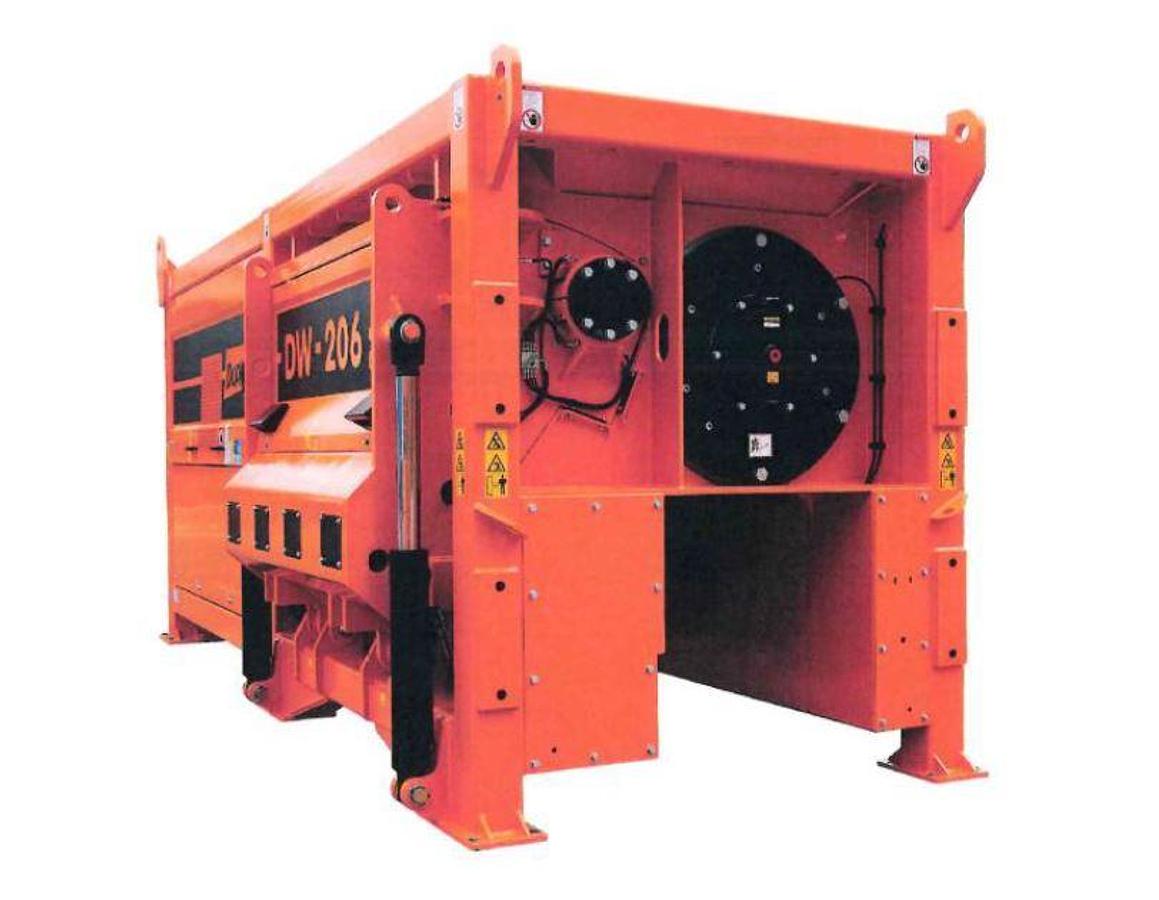

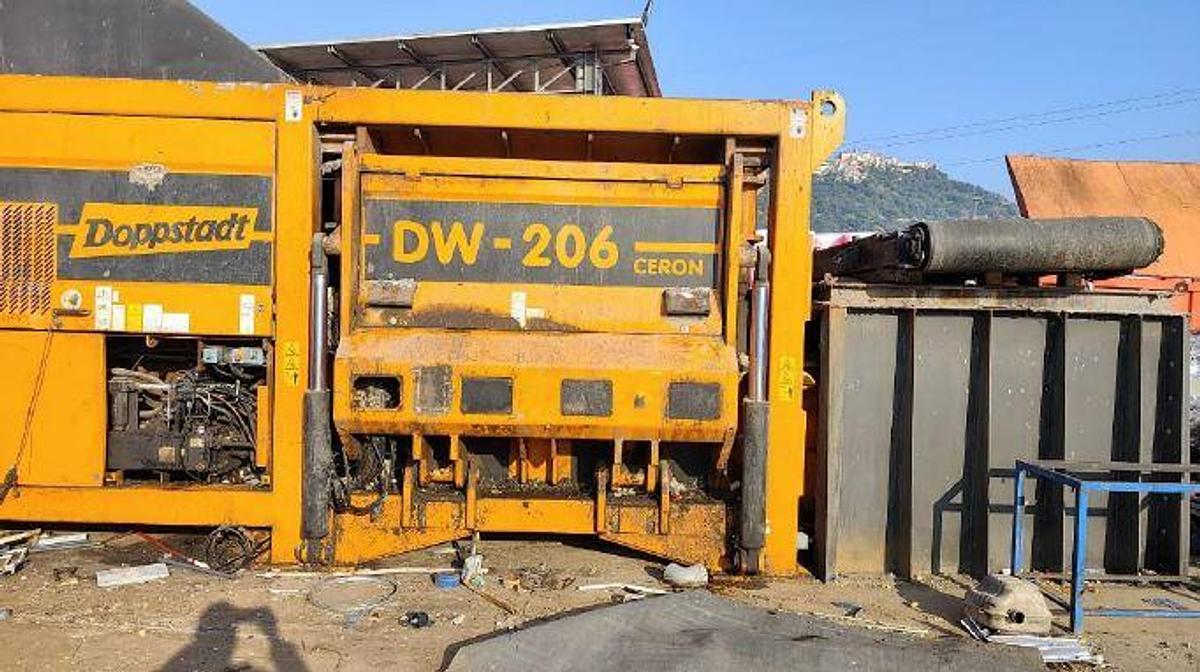

DOPPSTADT single shaft shredder DW 206 Ceron

DOPPSTADT DW 206 Ceron

Slow speed shredder

Constructed in 2015

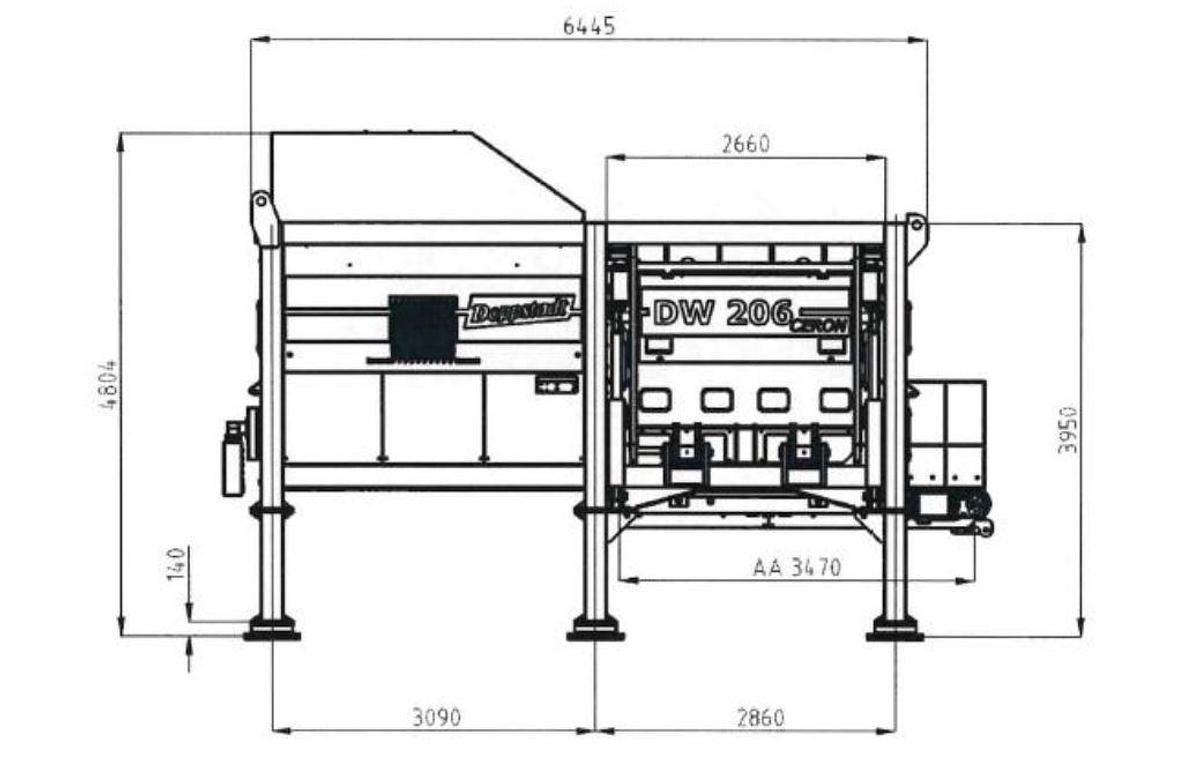

Dimensions:

• Overall width: 2.665 mm
• Overall length: 6.445 mm
• Height: 4.804 mm
• Hopper width: 2.660 mm
• Hopper depth: 1,900 mm
• Basic machine weight: 30,000 kg
• Complete machine weight: 34,000 kg

Electric motor

315 kW power

Anchoring voltage 460 V

Motor speed 2,000 rpm

Rotor length 3,000 mm

Rotor diam. 600 mm

28 rotor teeth

Adjustable Rotor speed

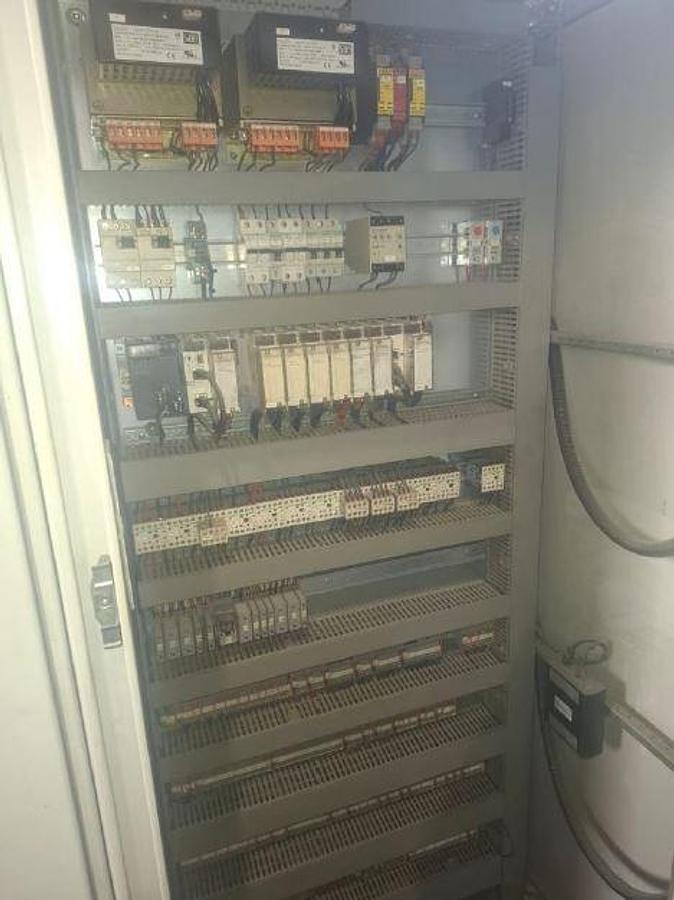

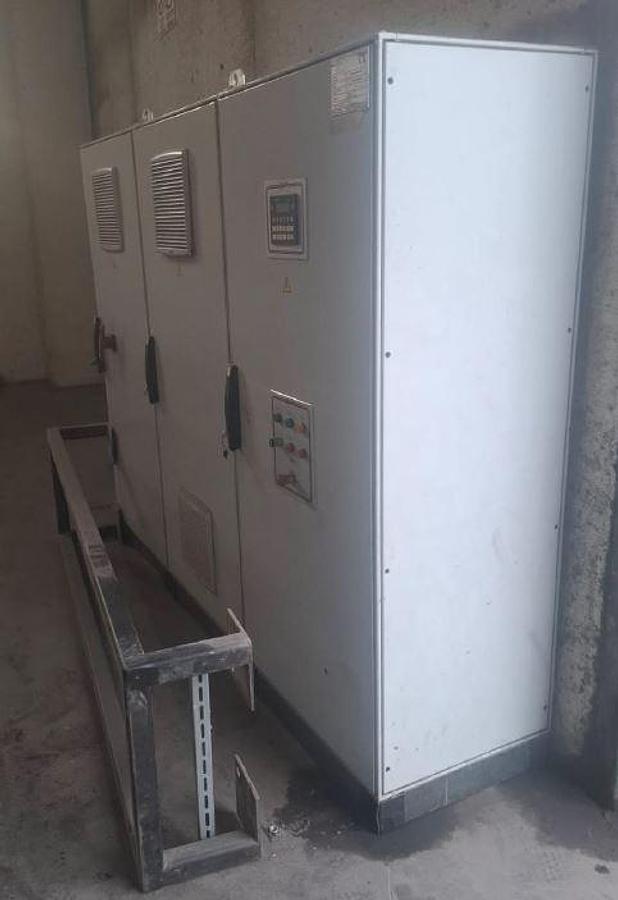

Electrical panel

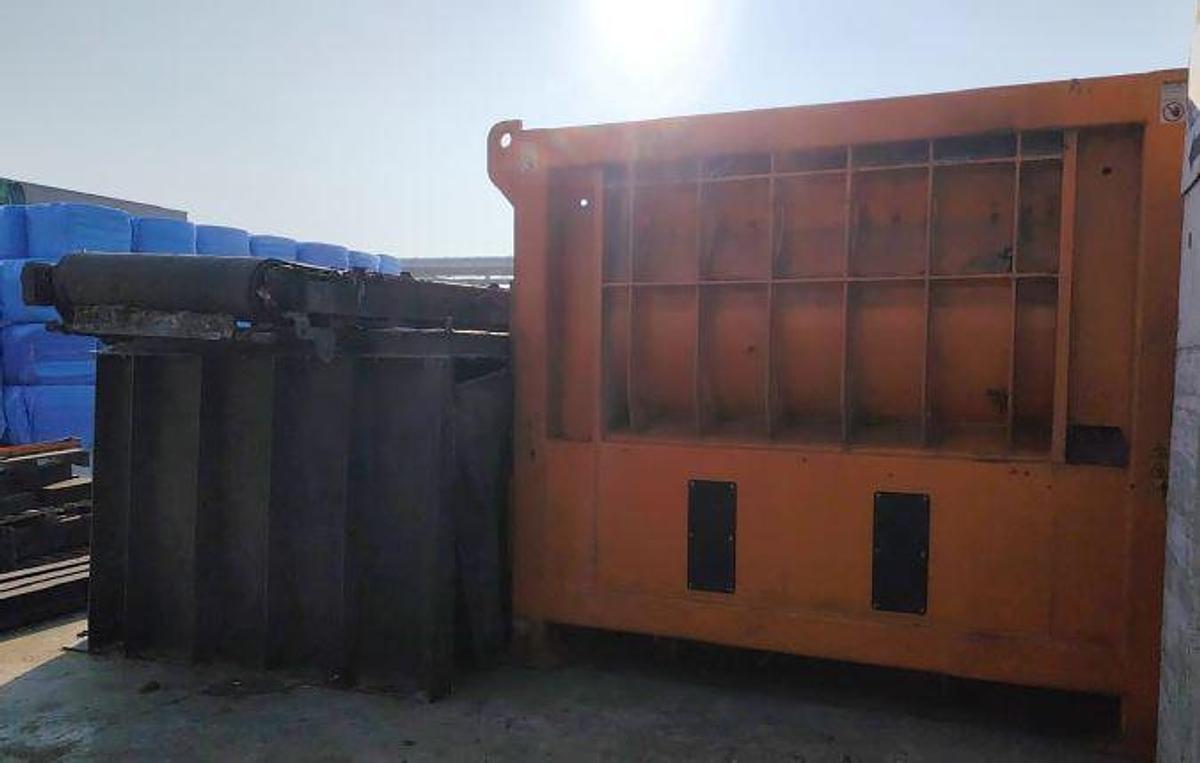

Loading hopper

Supporting feet

Operating hours: Approx. 19.069

Check Constructor's brochure in the attached pdf
