2001 KIEFEL 5-layer dw.2000 mm-d.500 -500 kg/h

KIEFEL COEX 5-LAYER EXTRUSION LINE

constructed in 2001

Film structure: A( int) - B ( HV Int) -C (Barrier ) - D (HV -Ext) -E ( Ext)

Material: LDPE , LLDPE, MDPE ,

Film Width: 2000

Output 500 Kg/h

Extruder 1 Layer ref: : A

Screw diam 1: 70 mm -29L/D

Description 1: 5 zone screw for LDPE, LLDPE, MDPE , HV

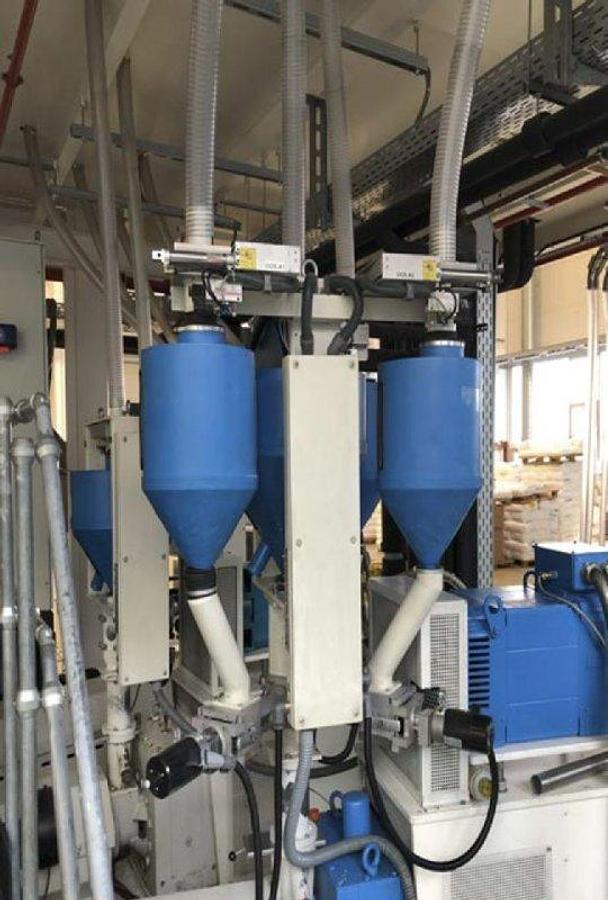

Gravimetric doser Plast Control

89 KW drive

Extruder 2 Layer ref: : B

Screw diam 2: 50 mm-25 L/D

Description 2: 3 zone screw for LDPE, LLDPE/MDPE/HDPE mix, , HV

Gravimetric doser Plast Control

34 KW drive

Extruder 3 Layer ref: : C

Screw diam 3: 50 mm-25 L/D

Description 3: 5 zone screw for EVOH, PA , LLDPE-MDPE- Mix , HV

Gravimetric doser Plast Control

34 KW drive

Extruder 4 Layer ref: : D

Screw diam 4: 50 mm - 25 L/D

Description 4: 3 zone screw for LDPE, LLDPE/MDPE/HDPE mix, , HV

Gravimetric doser Plast Control

34 KW drive

Extruder 5 Layer ref: : E

Screw diam 5: 80 mm- 25 L/D

Description 5: 5 zone screw for LDPE, LLDPE, MDPE , HV

Gravimetric doser Plast Control

89 KW drive

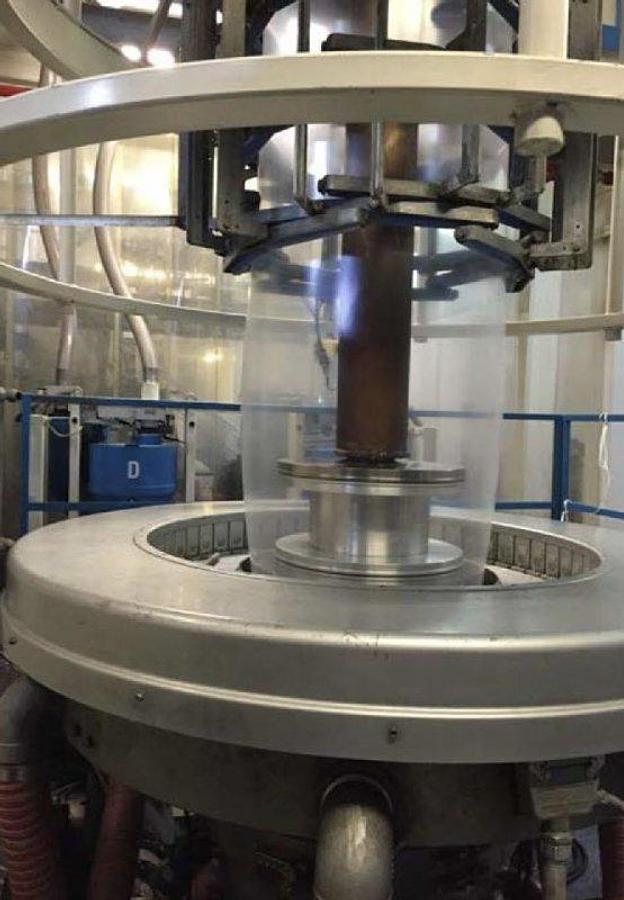

Head : Kiefel FSBK 500 with IBC, Die Ø 500 mm.

Automatic thickness control system:

Plast Control Cooling ring

Measuring system C- Scan Capacitive system

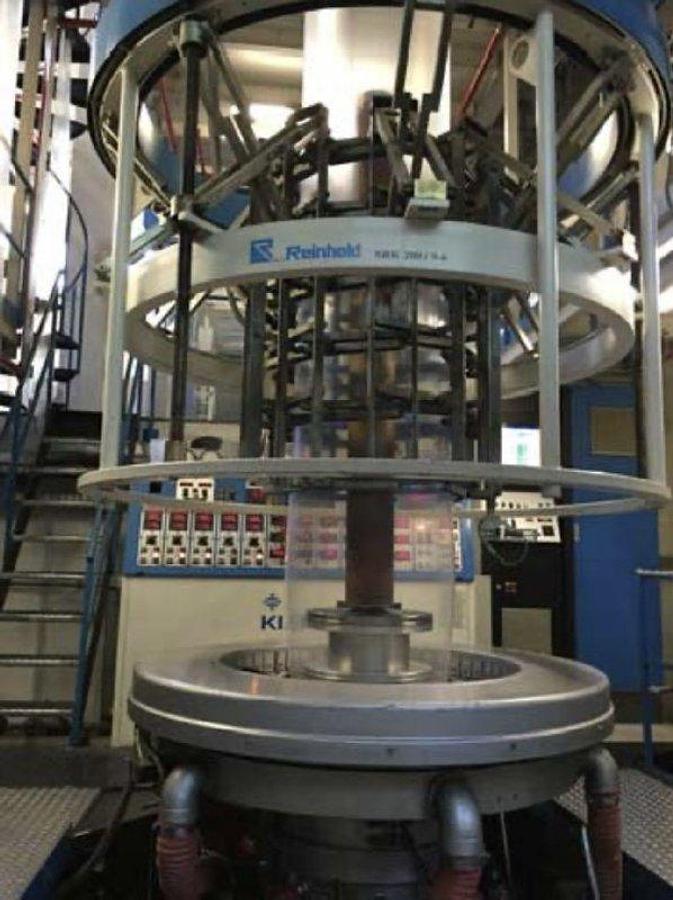

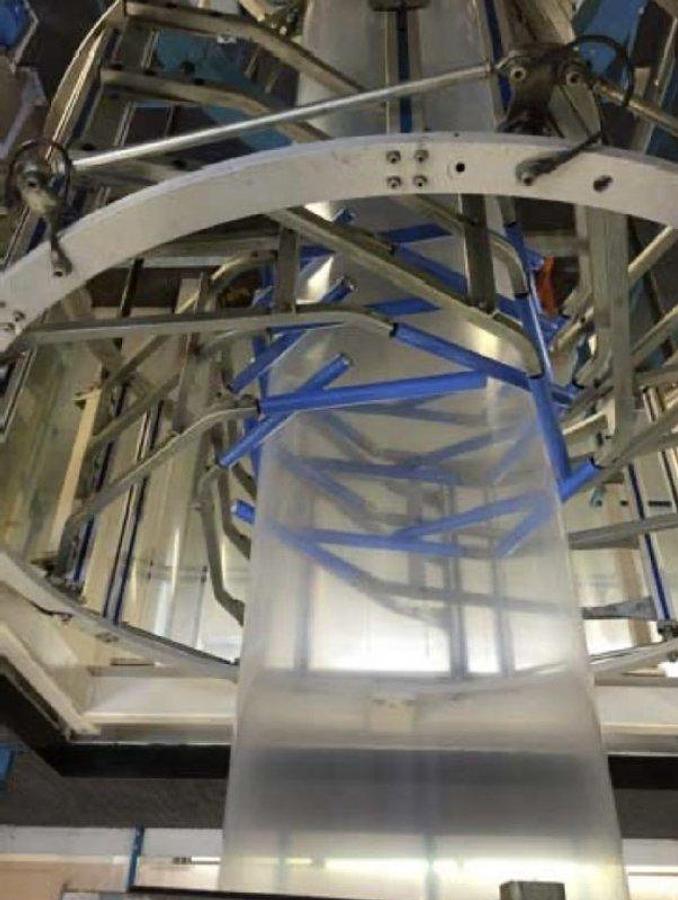

Bubble cage: Reinhold SRK 200/ 9-6

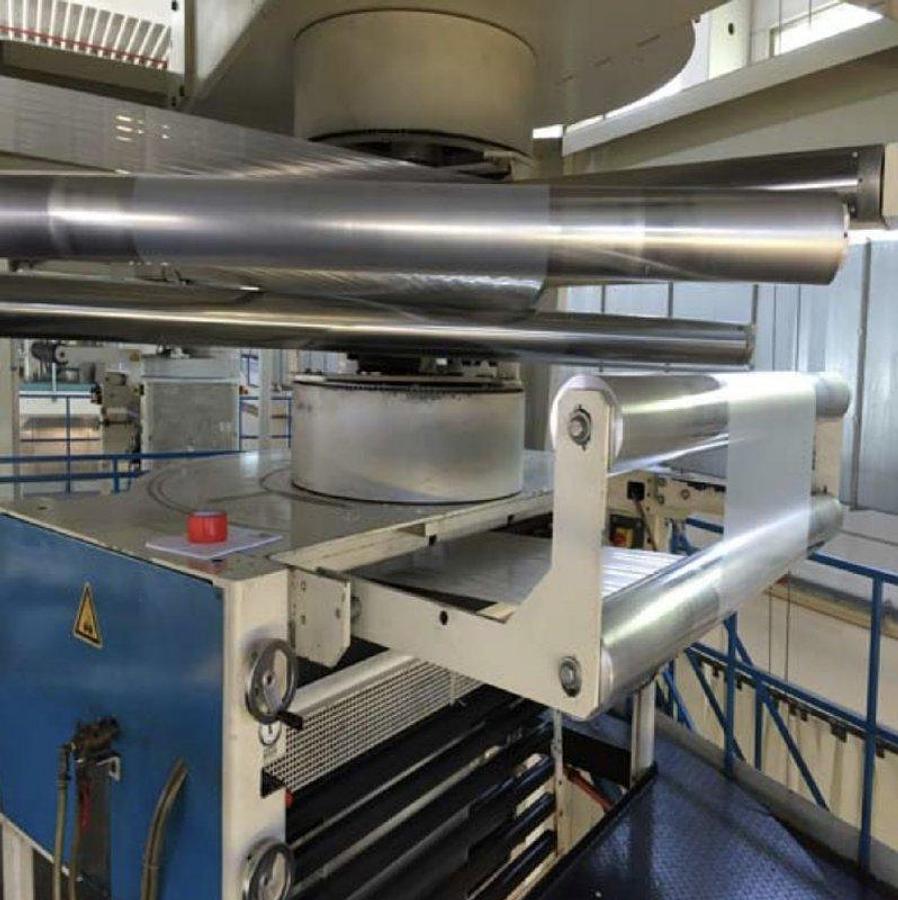

Take off unit: Reinhold

Corona treatment: AFS Nax 52 mN/m

Web guide: Ehrard & Leimer

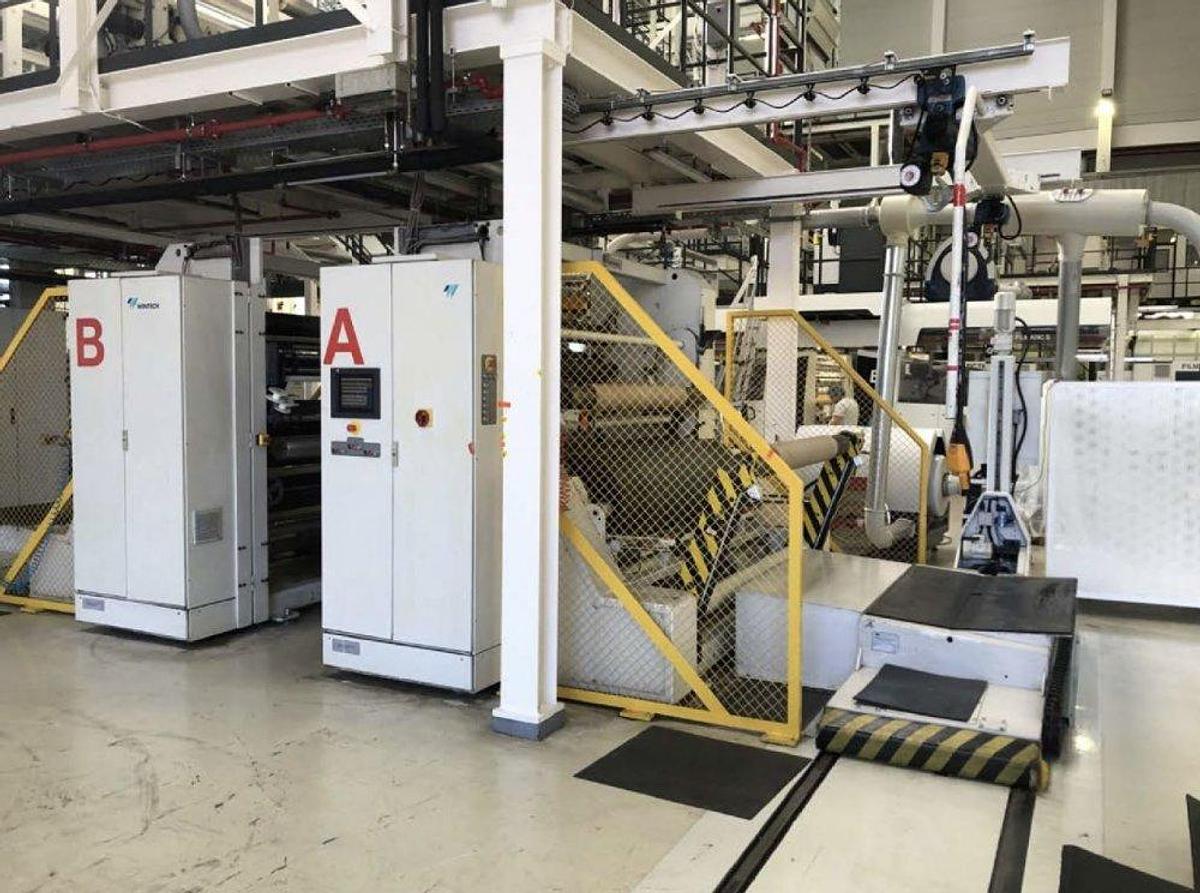

Wintech Back to back Rewinder

Tower structure included
