SCHIAVI-BOBST

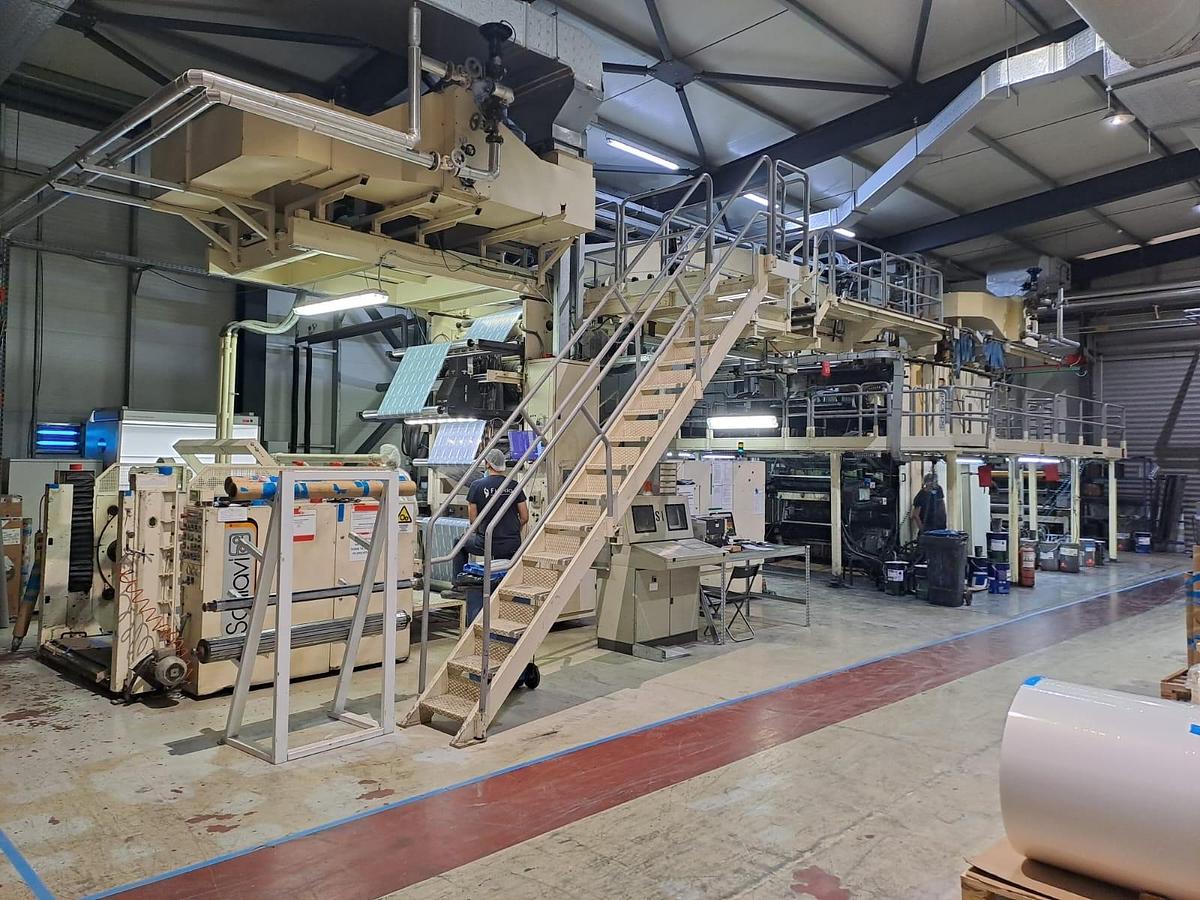

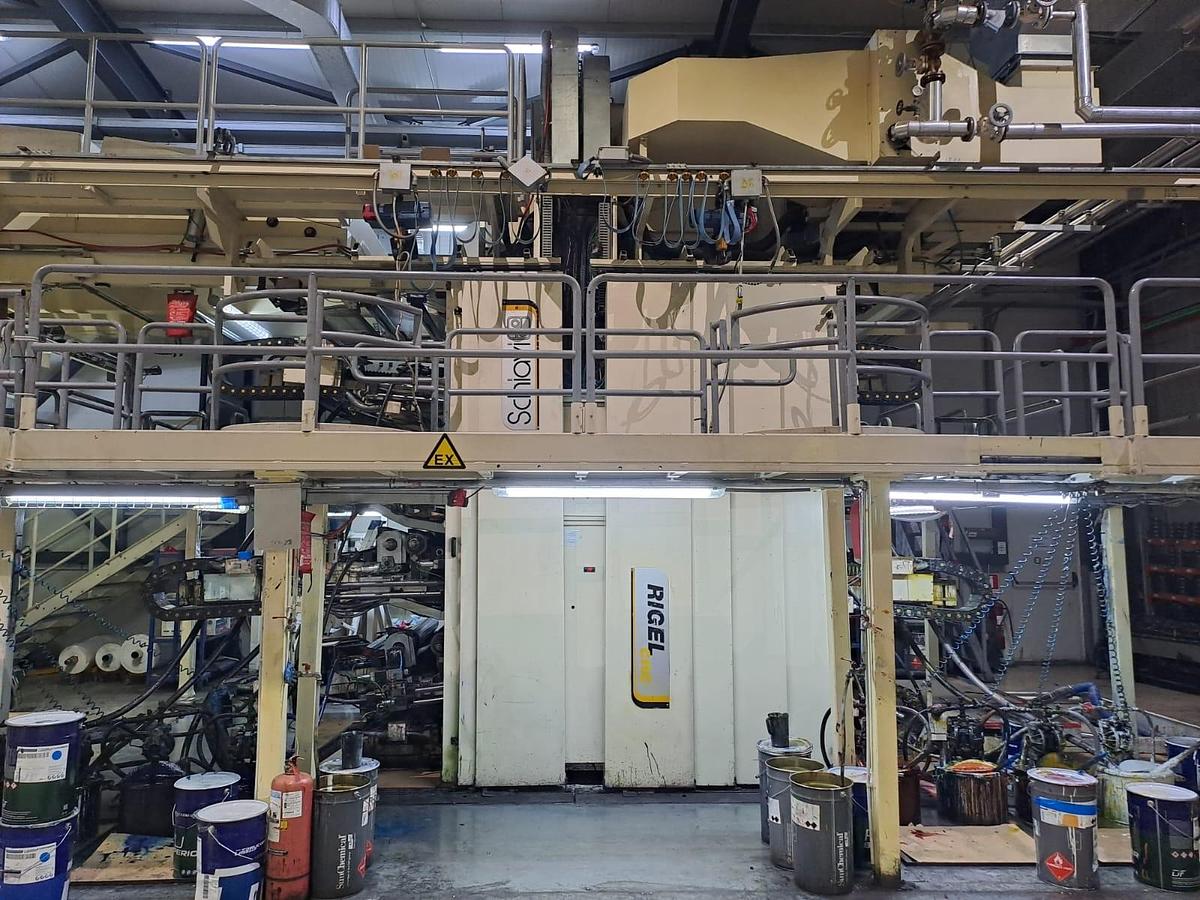

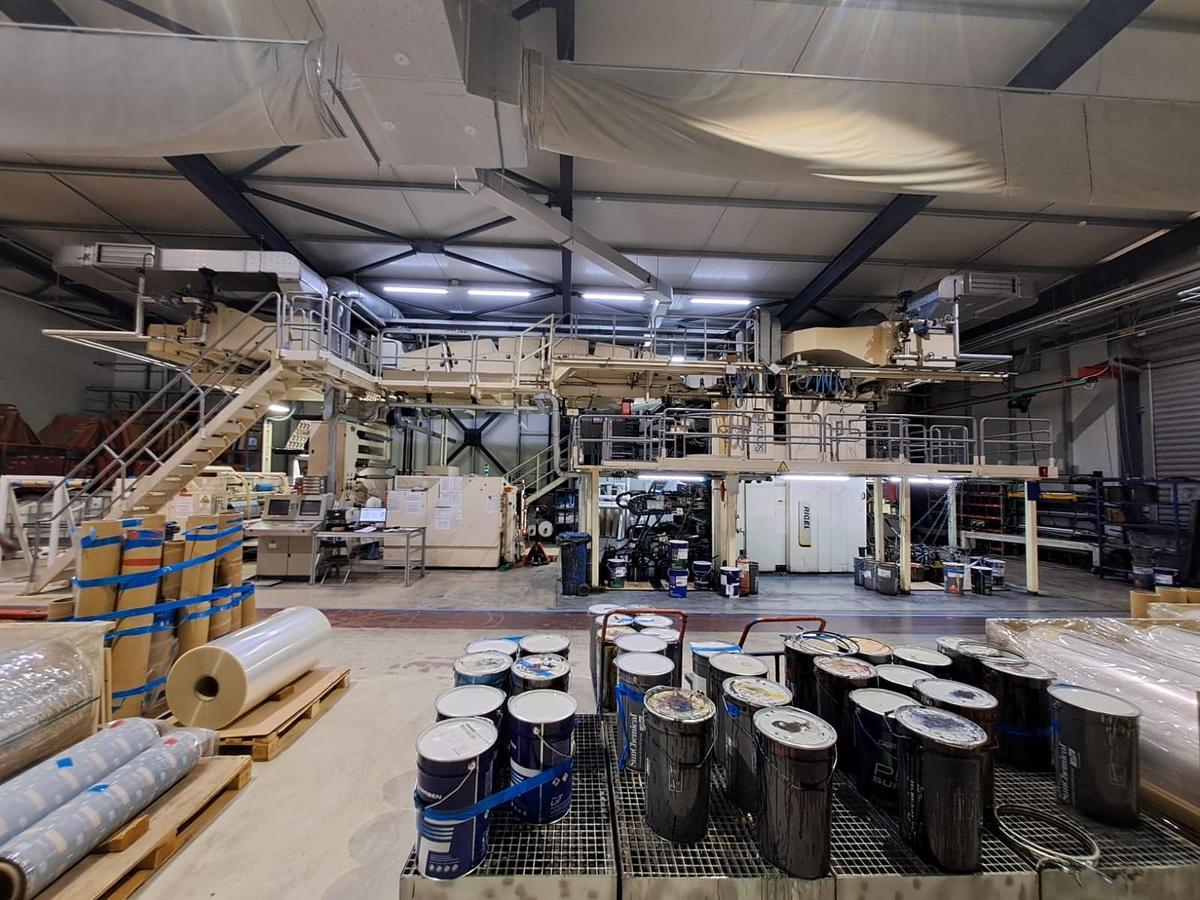

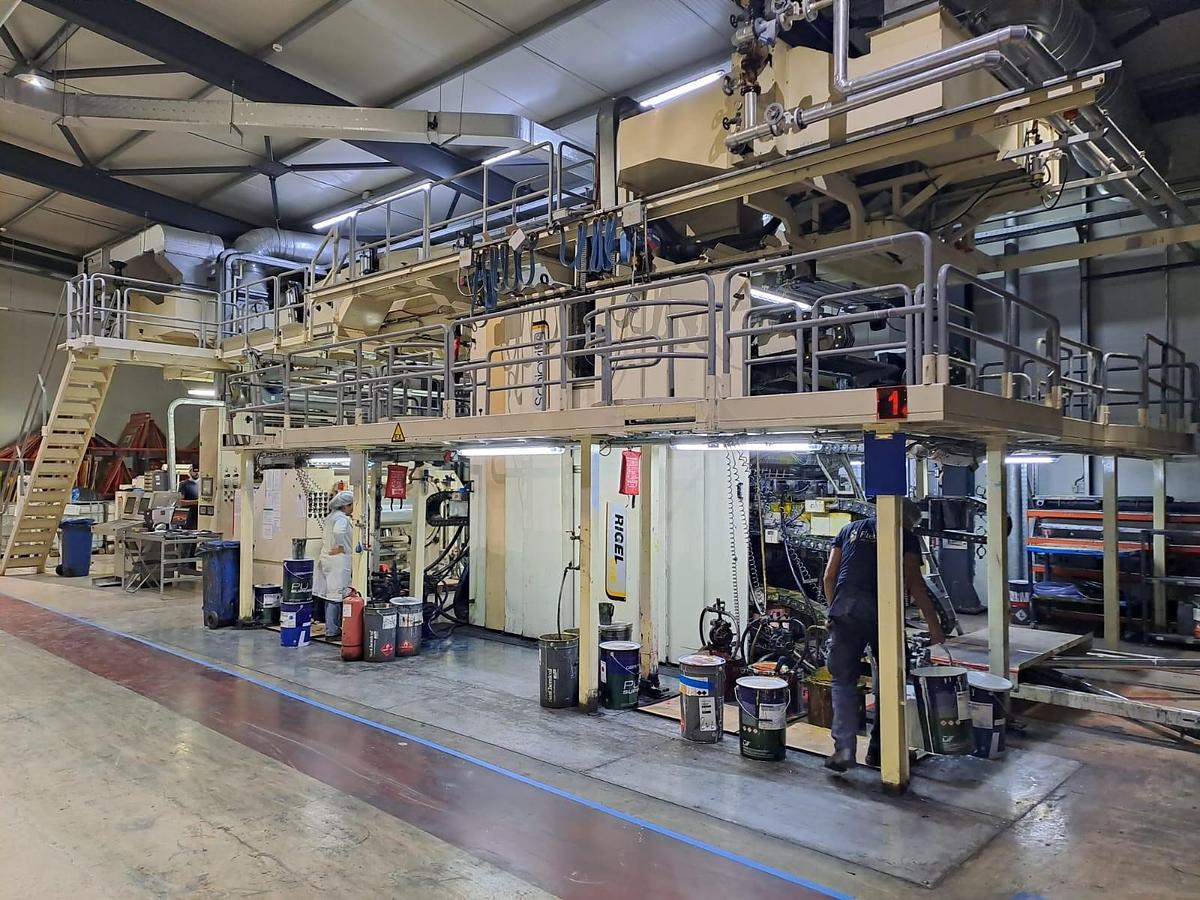

SCHIAVI (BOBST) CI 8 col. 1.290 mm.

working width 1.290 mm

web width 1.320 mm.

8 colors

Print possibilities: 4+4

for LDPE, HDPE, BOPP, CPP, PET, ALU, PAPER, BIO

geared

Checked up: 2022 by BOBST technicians both mechanic and electric parts

Max Speed 300m/min

Fast Sleeve Change

Fast Sleeve Anilox Change

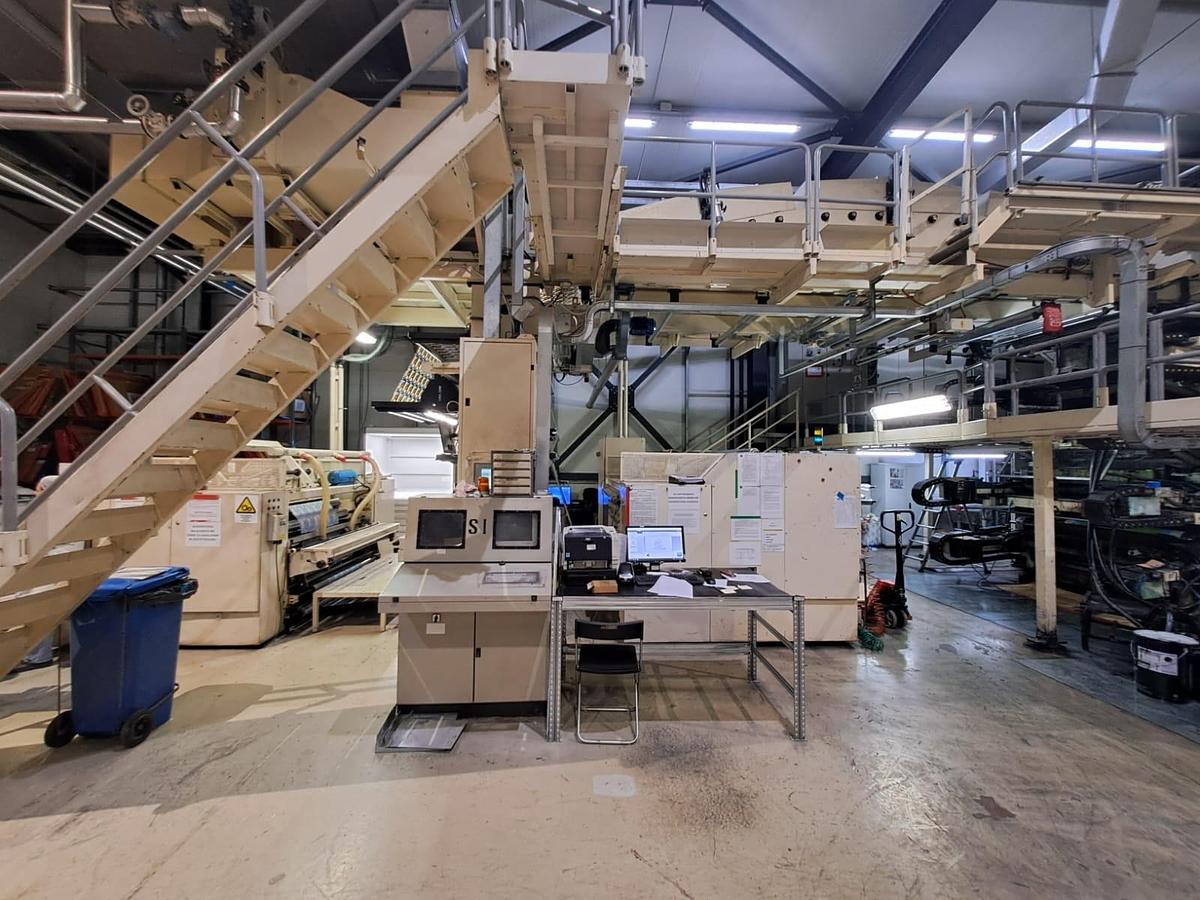

Computer Supervision

Min/Max Print Repeat 430/1.200mm

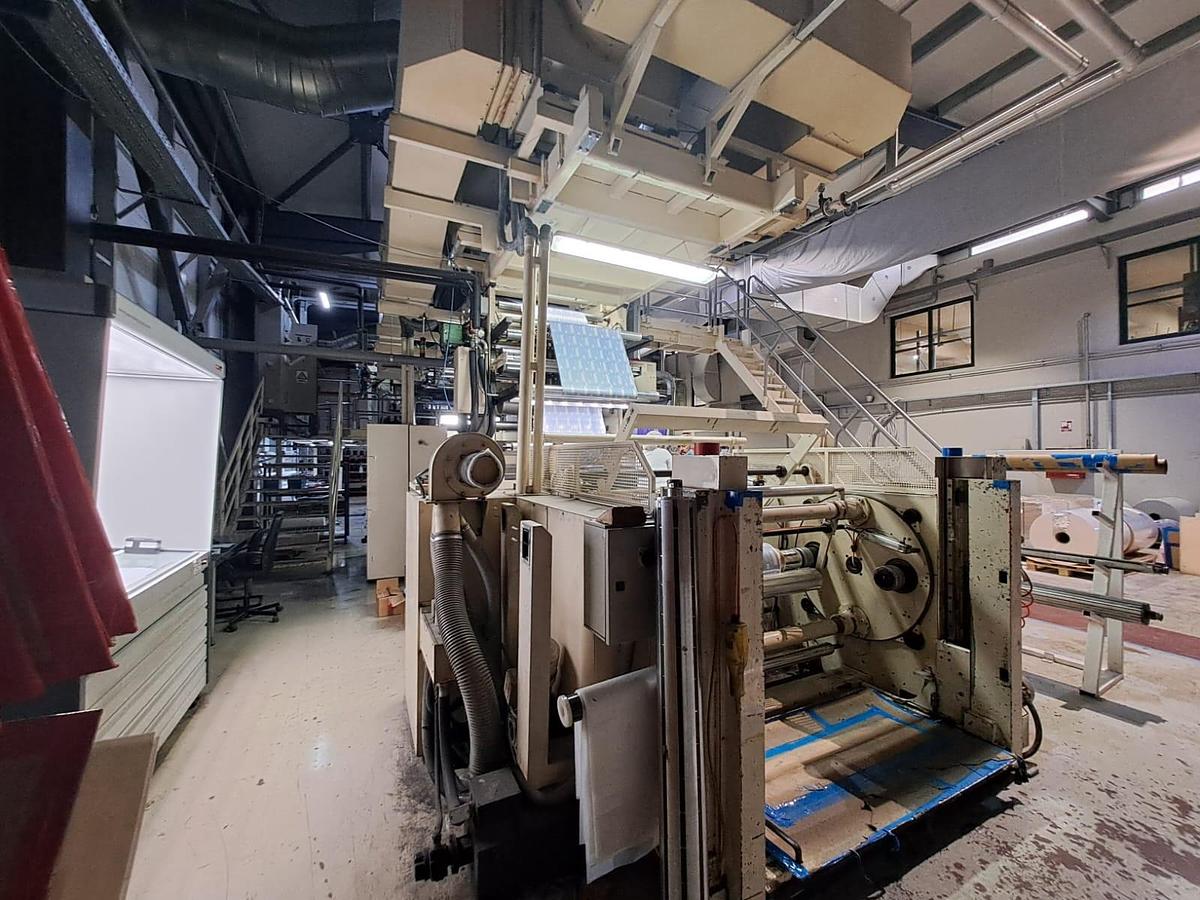

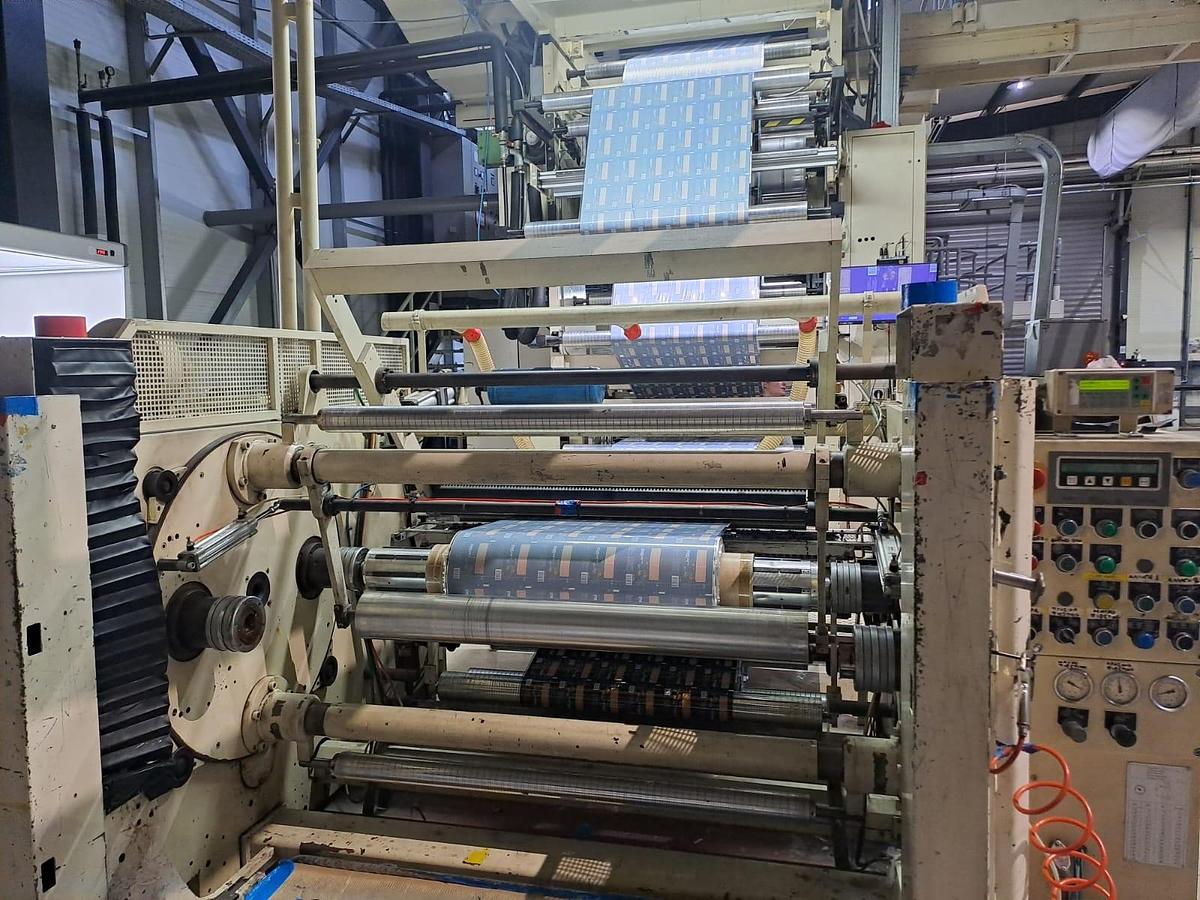

Unwinder Type: Double Turret Automatic Flying Splice

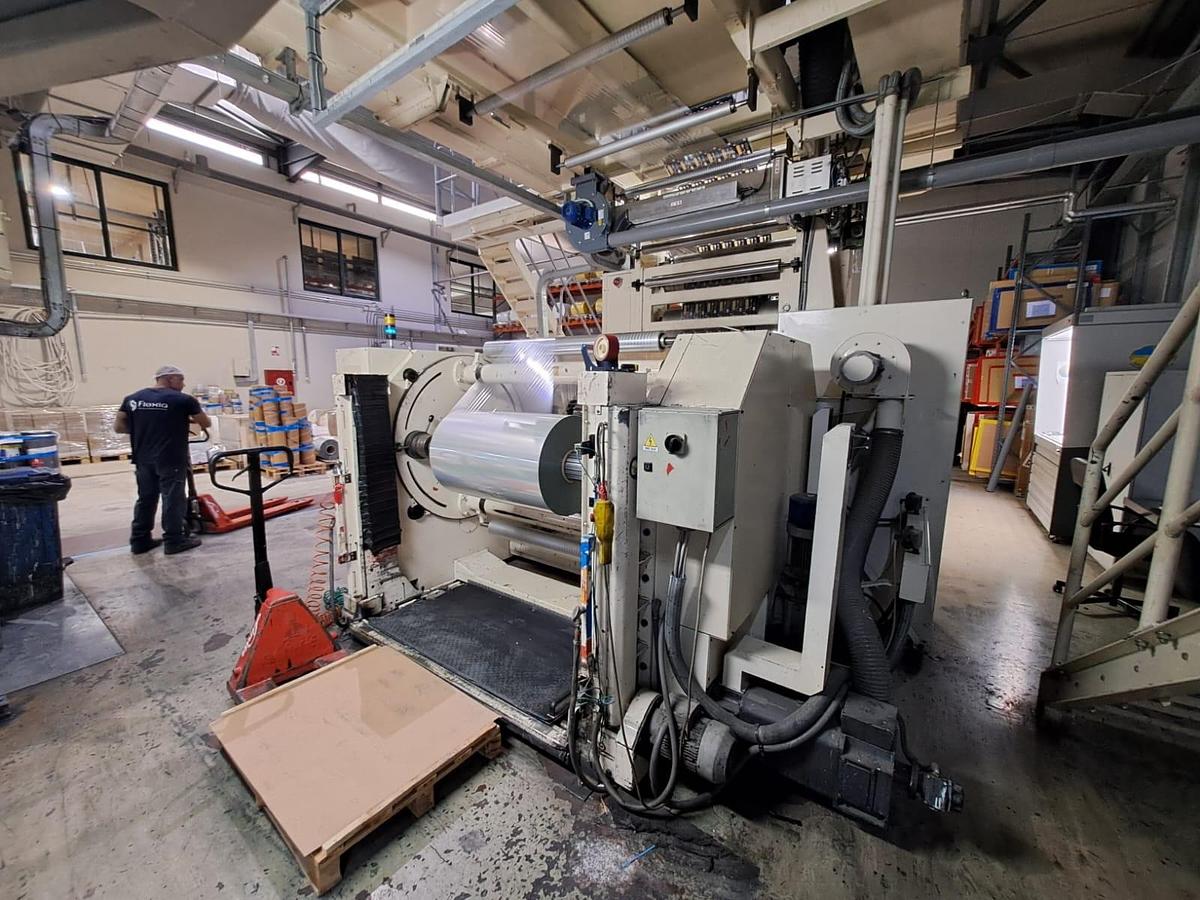

Winder Type: Double Turret Automatic Flying Splice

Max Reel Diameter Unwinder: 800mm

Max Reel Diameter Winder: 800mm

Drying: Thermal Oil

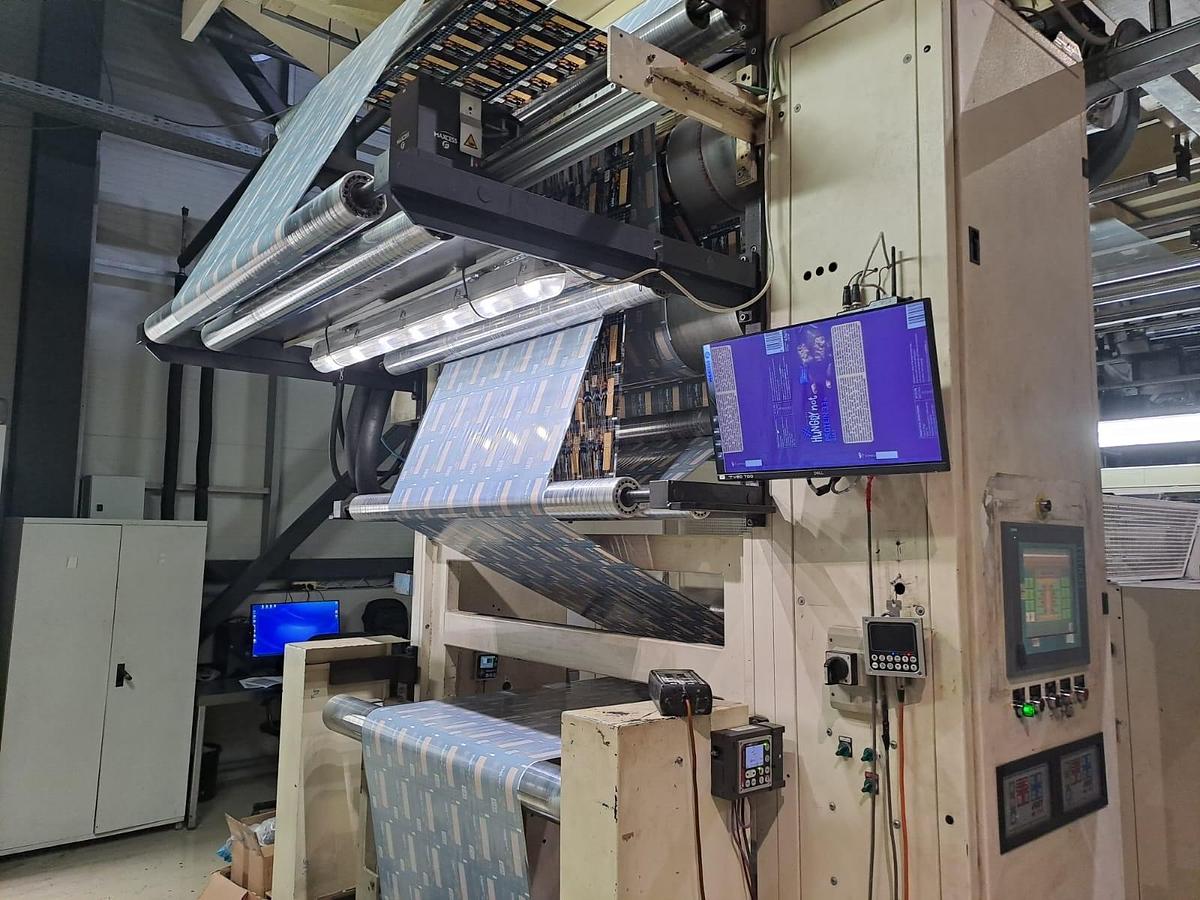

FIFE Video camera

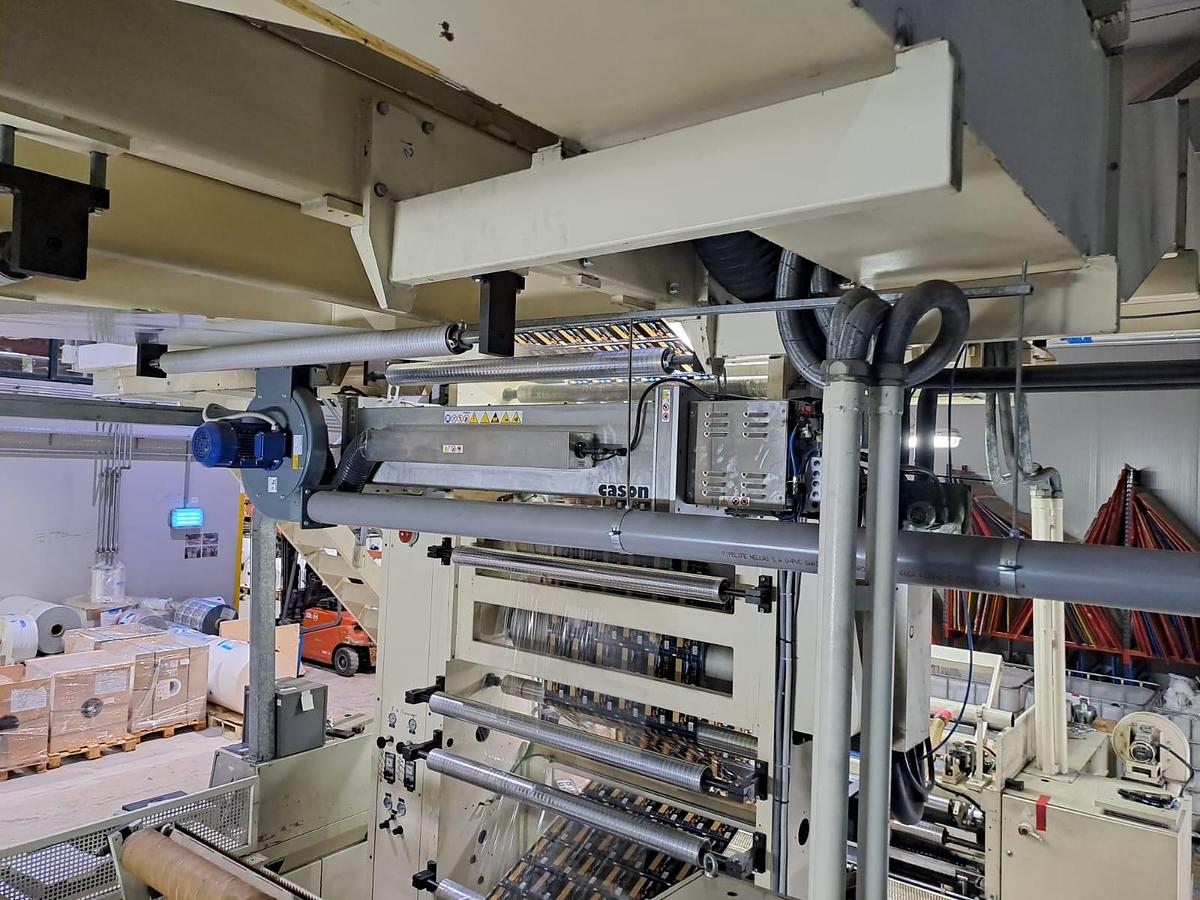

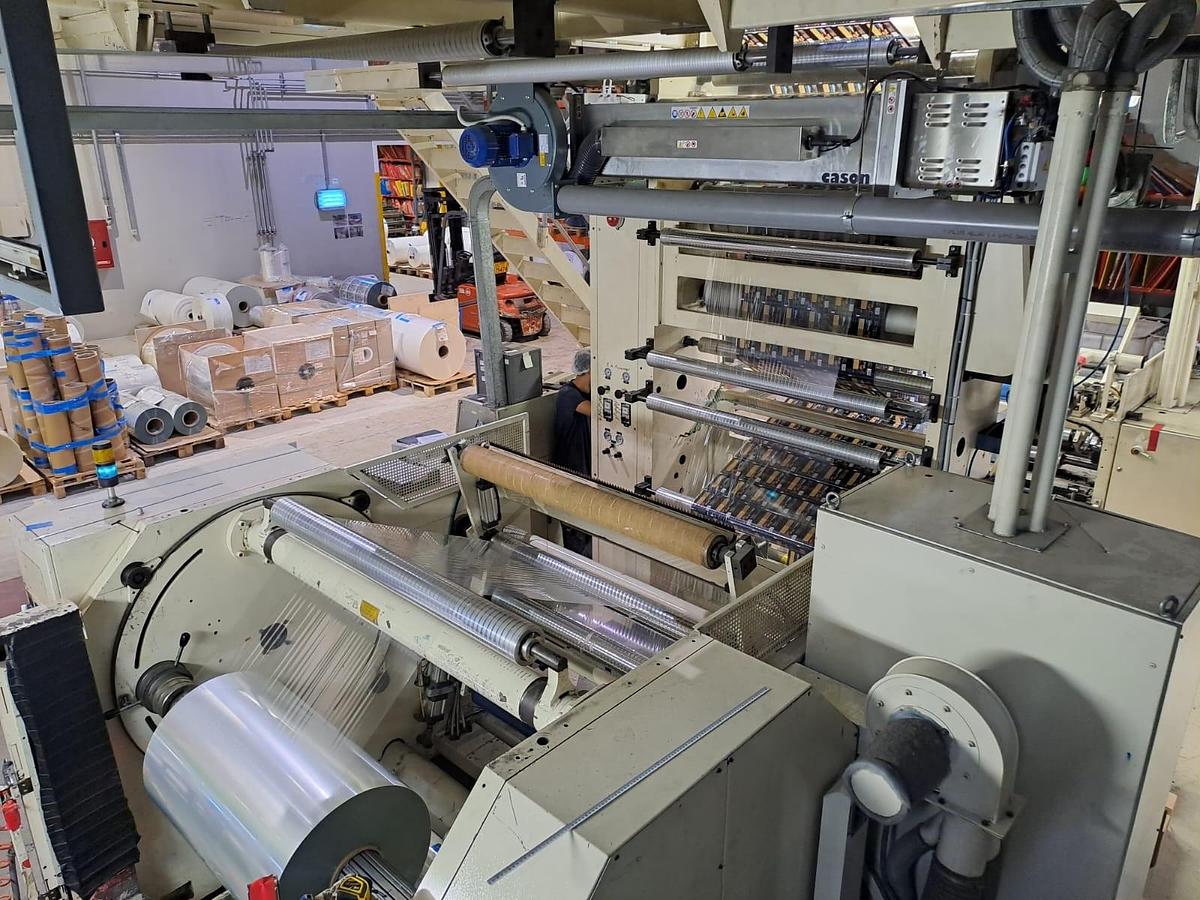

Corona Treatment: Yes  (Cason) for conductive and non-conductive materials

BST Web Guides In and out

gama Viscosity Control (not in use, has to be repaired)

Inking System: Ceramic Anilox + Chambered Doctor Blades

Anilox Sleeves:   23 pieces  (2x80ln/cm, 2x100ln/cm, 2x120ln/cm, 2x140ln/cm, 1x160ln/cm, 1x180ln/cm, 1x200ln/cm, 2x220ln/cm, 1x270ln/cm, 5x360ln/cm, 4x380ln/cm )

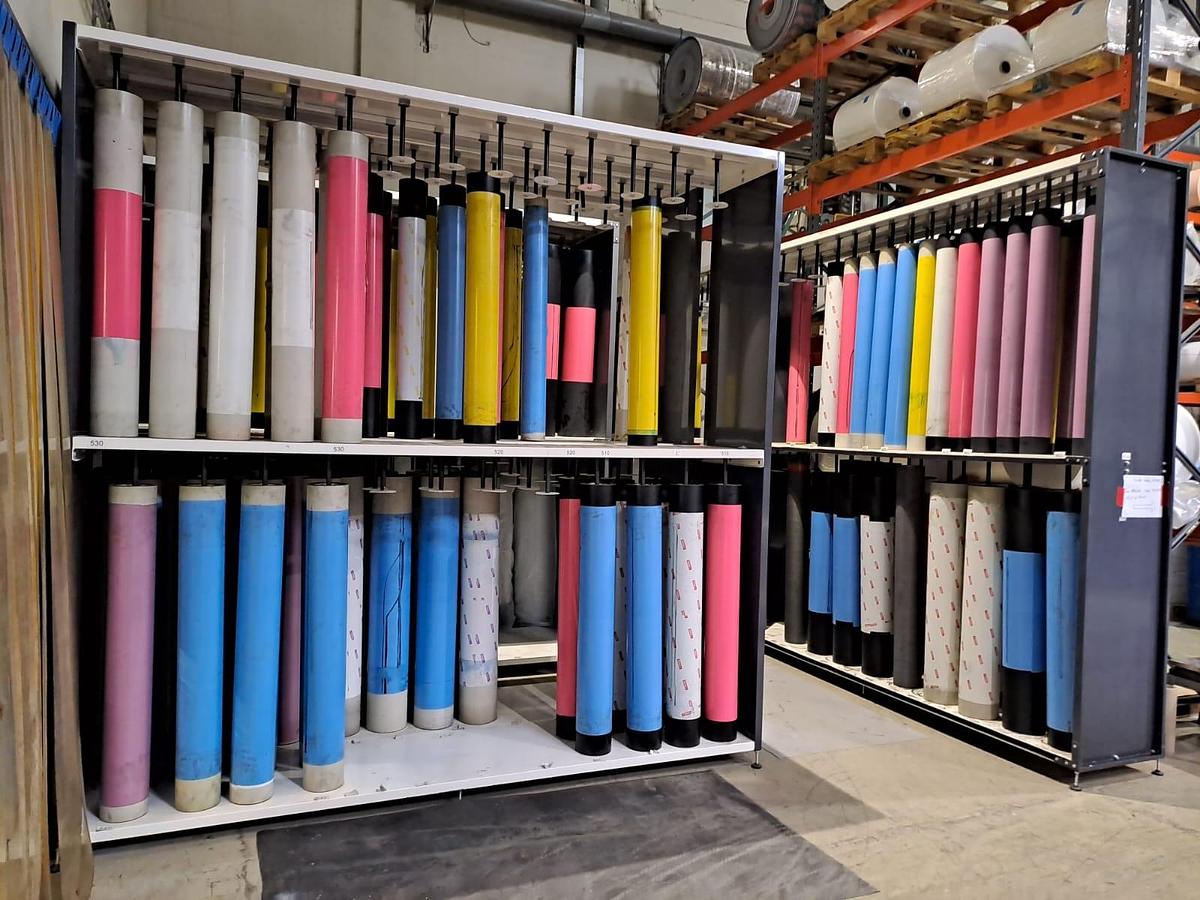

Printing Sleeves: 40 pieces ( 8x850, 8x1000, 8x1020, 8x1050, 8x1150 )

Print Cylinders: 8 for sleeves more than 700mm repeat and 8 adaptors for sleeves more than 900mm repeat

Note: Motorized print station positioning- Motorized remote controlled longitudinal and side registers, Chiller thermoregulator,

Turning Cross Bar in order to print in both sides of the film (4+4)

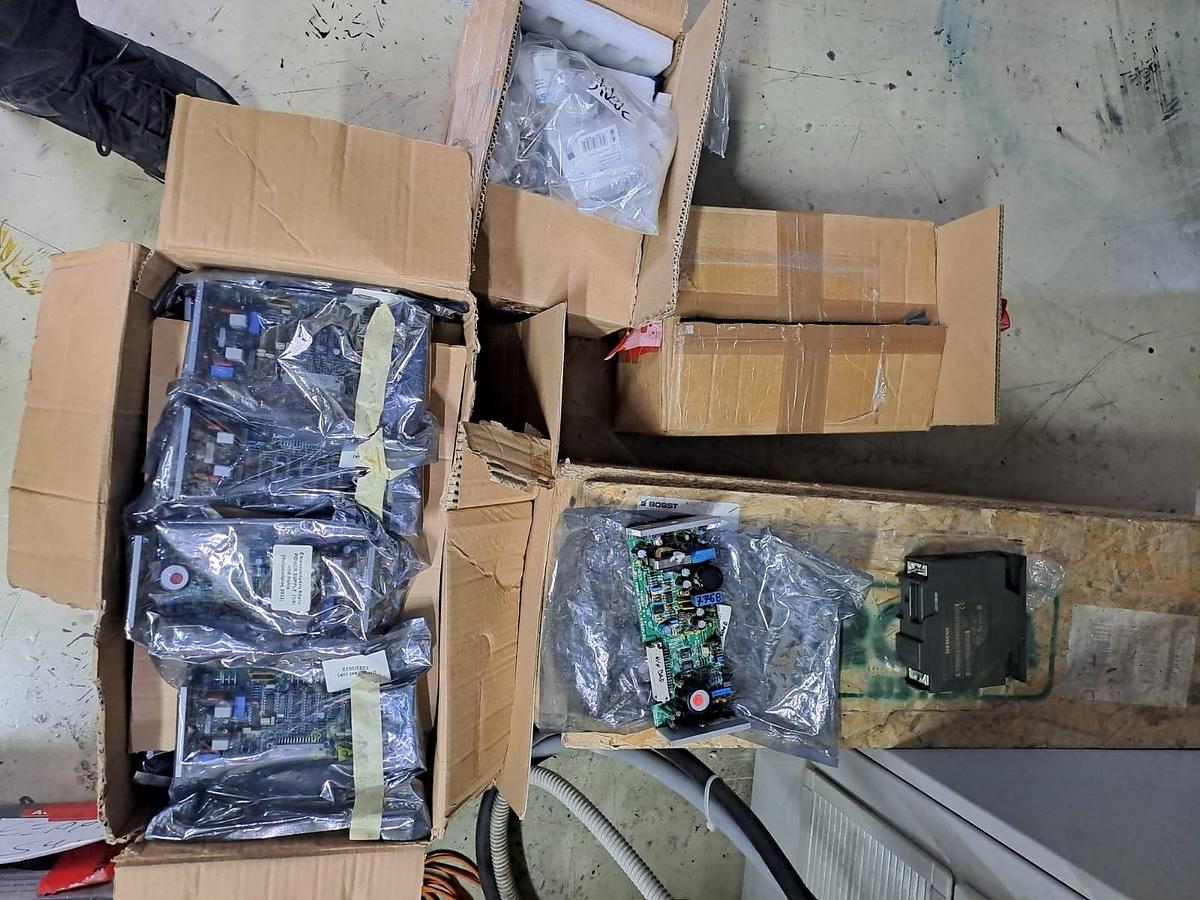

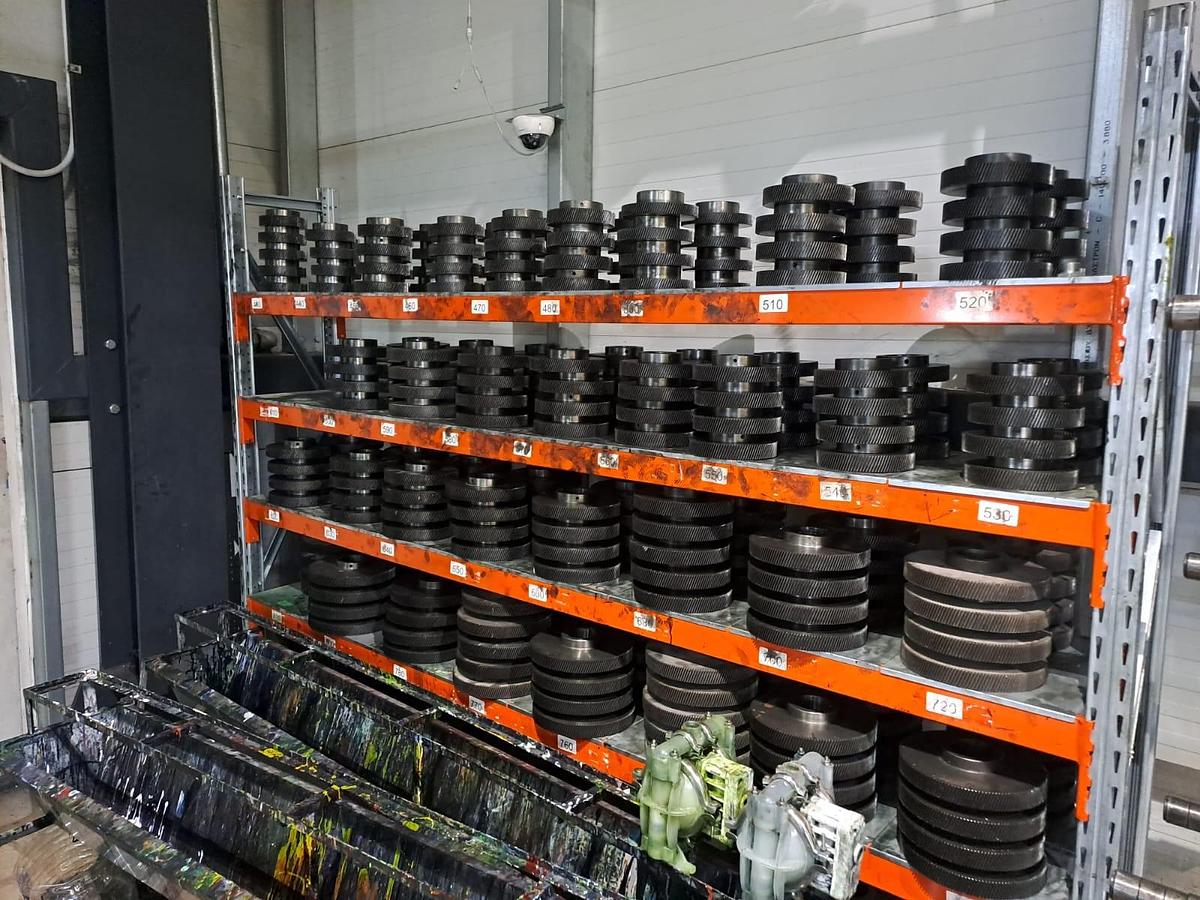

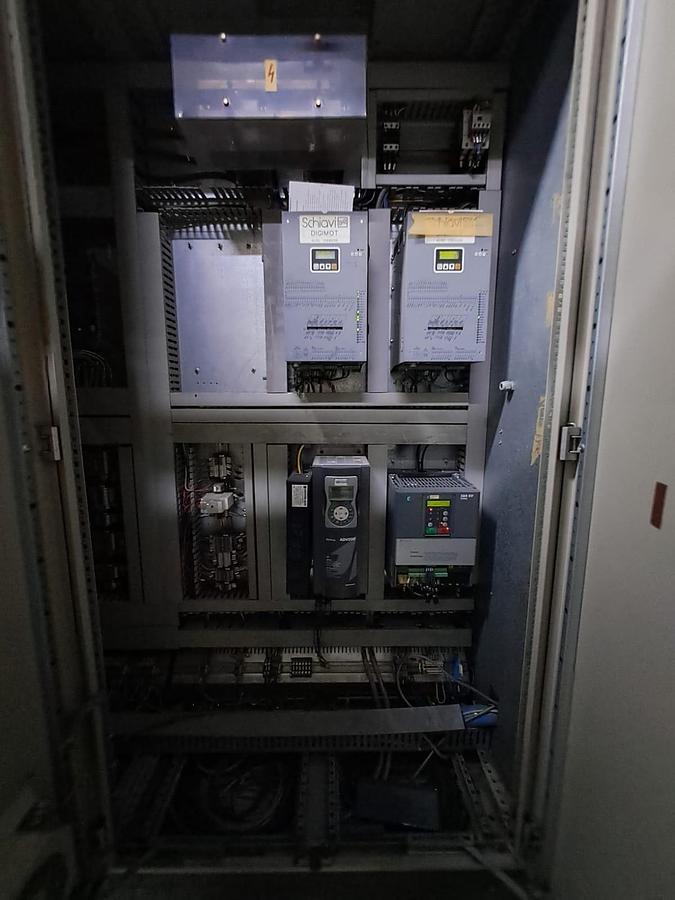

Spare Parts: Drives, Cards and Gears

can be inspected in production
