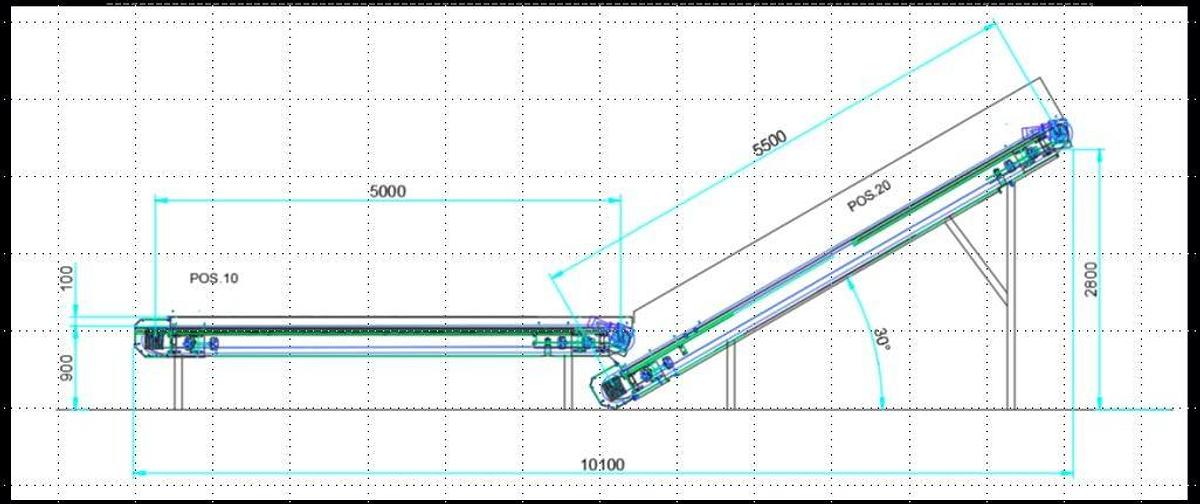

GERMANPLAST CONVEYOR BELTS SYSTEM

CONVEYOR BELTS SYSTEM to load scraps onto shredder or granulator

1st conveyor, made to open the bale and manually separate materials

width 1.200 mm.

length 5.000 mm. horizontally set

plain belt which can be either in PVC or RUBBER,

supporting structure made in sturdy carbon steel with short walls

Adjustable speed (average 15 m/min

2nd coveyor, meant to lift pre-selected material onto the machine

width 1.200 mm

length 5.500 mm 30°inclination

Belt can be either in PVC or RUBBER, fishbone orwith draggers

supporting structure made in sturdy carbon steel

side walls 500-700 mm high

Adjustable speed (average 60 m/min

These machines are prepared to be connected to an existing electric panel to be synchronized with the main machine
