GAMMA MECCANICA GM 90 COMPAC 2012

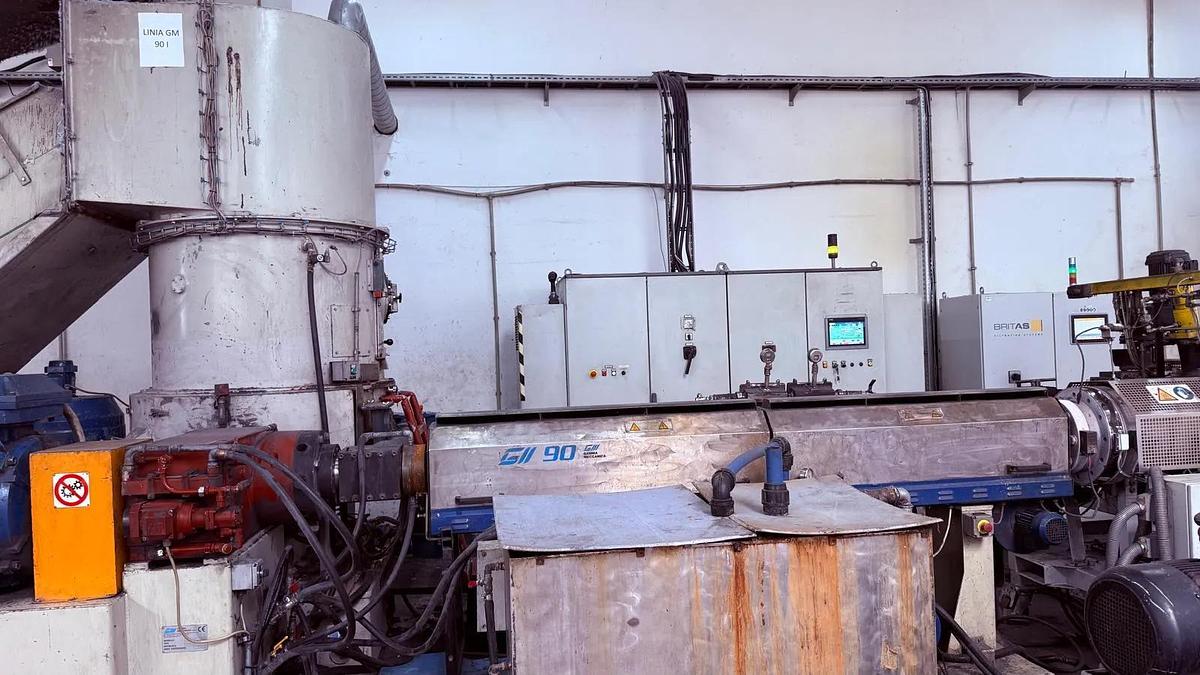

GAMMA MECCANICA GM 90-35D COMPAC HP (photos taken before reconditioning . see how we recondition HERE)

automatic cycle from waste to granule

Material: hard and soft plastics PP, PE, PP/PE, PS, ABS - film reels

Optimal scrap size 40 mm. (ask for size reduction equipment if you need)

Nominal throughput rate 250-500 kg/h depending on the type of material and feeding rate

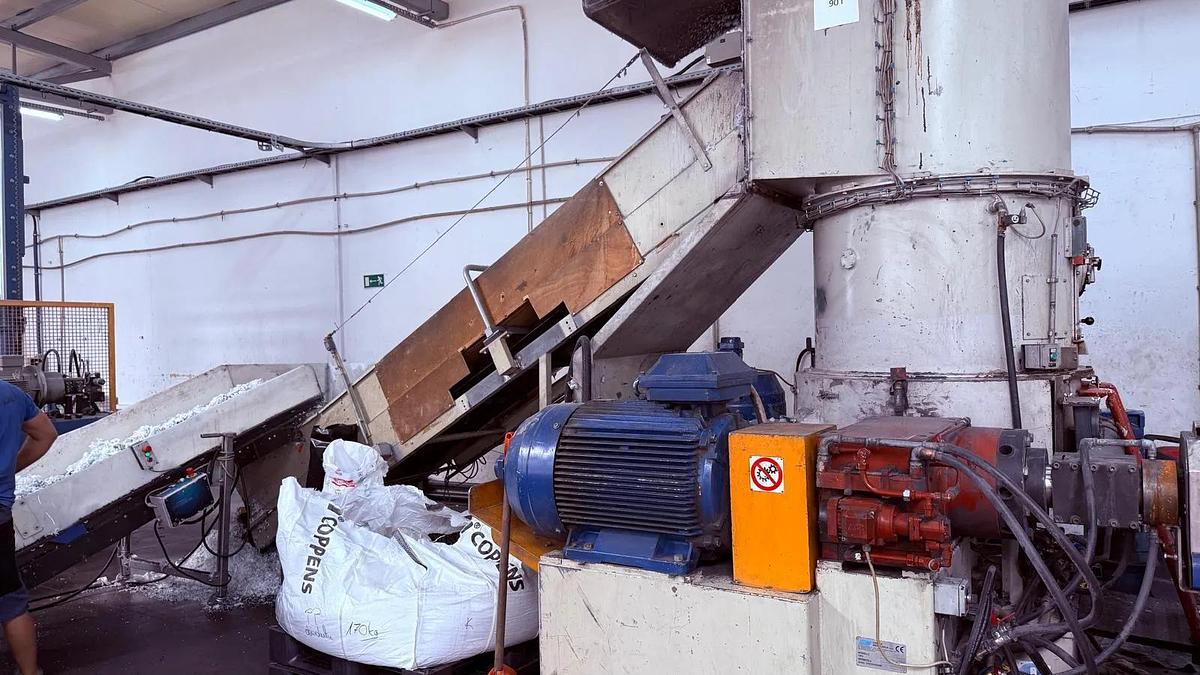

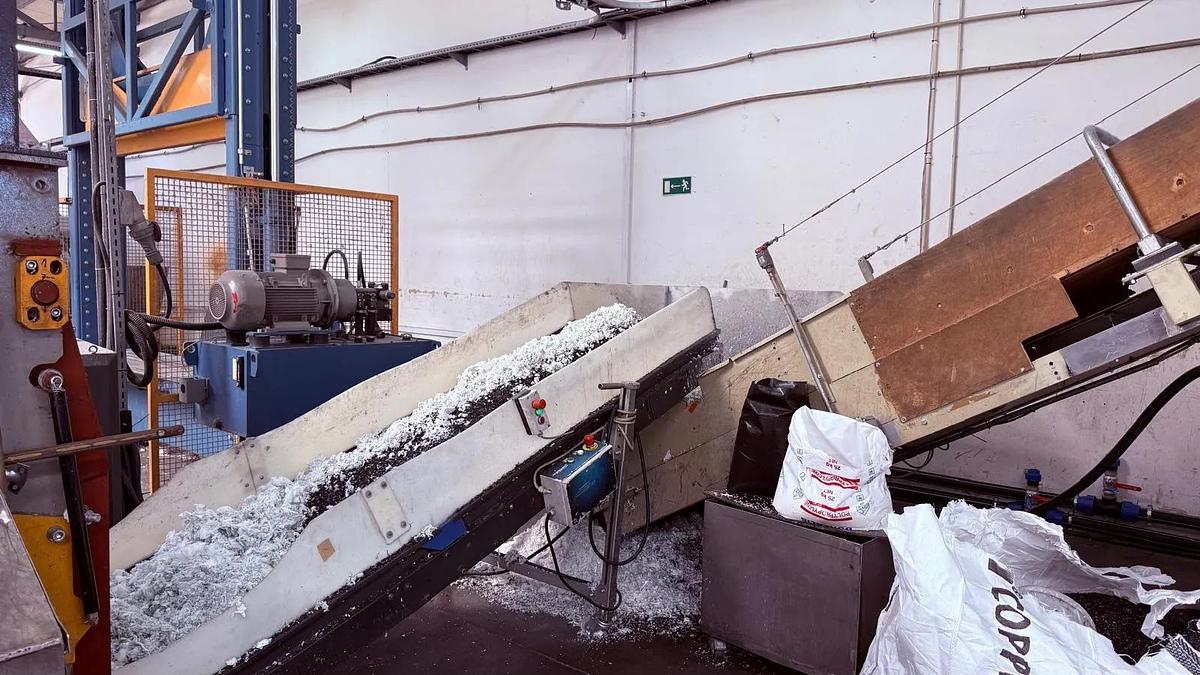

Loading belt with metal detector

Reel feding system

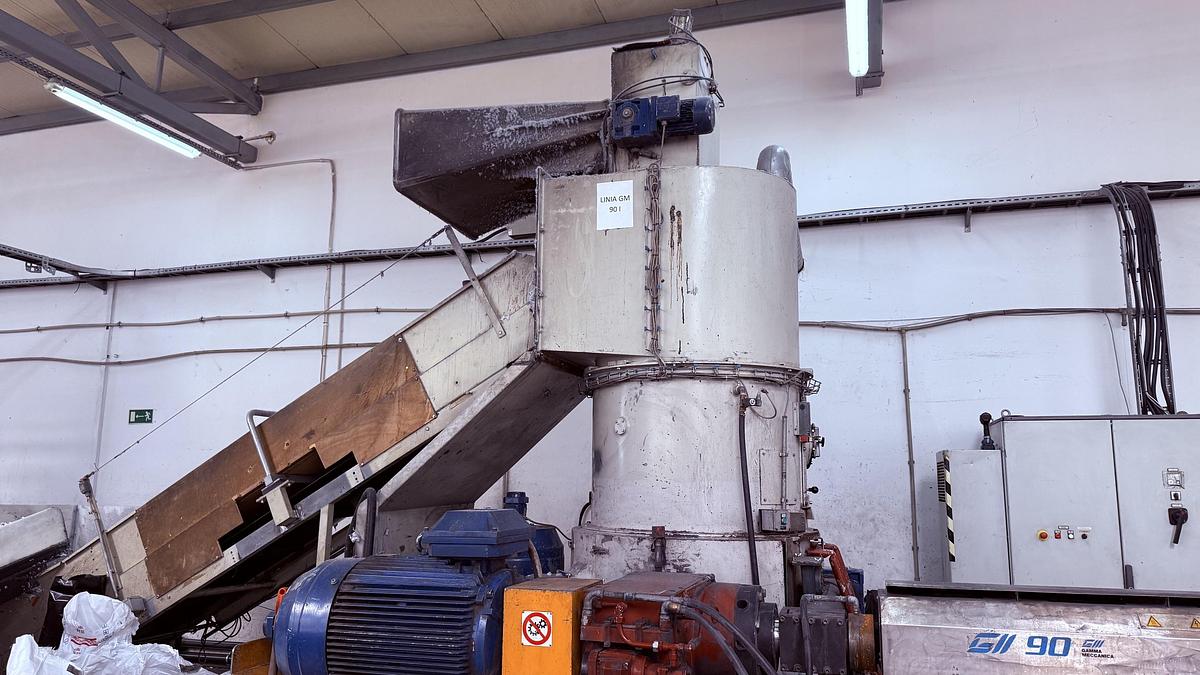

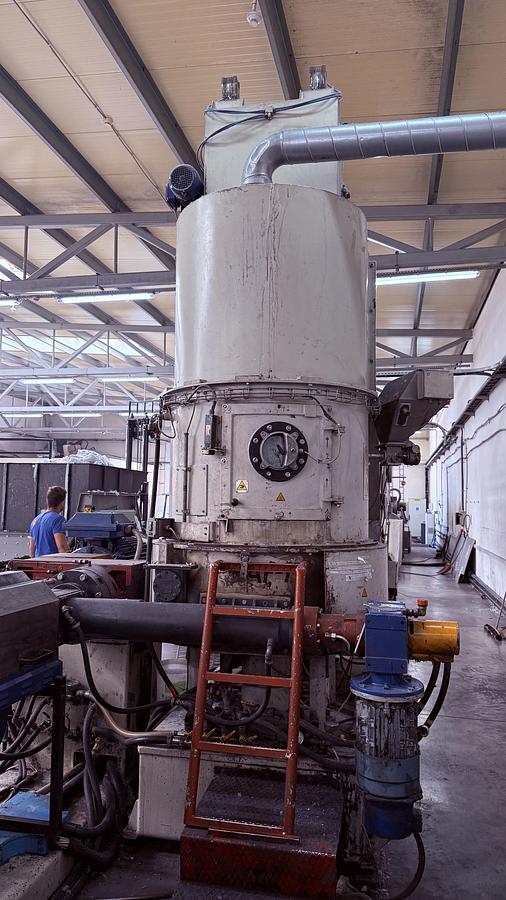

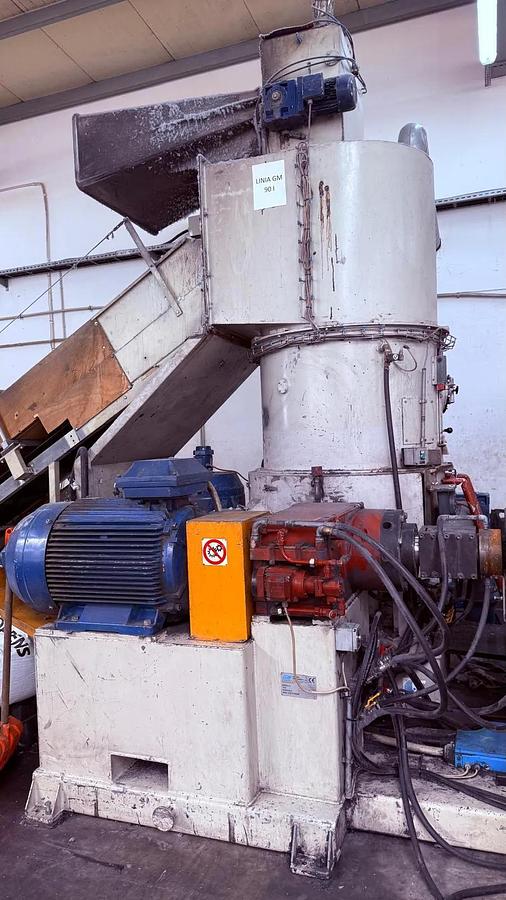

Compactor AF-T 105

90 kW drive

Extruder 90 mm. 36 L/D - 90 kW drive

degassing vacuum pump

BDO 90/140 screen changer 144 mm. Ø screen ** fully automatic screenchanger available on separate request

GMC 50 hydraulic power unit

Cooling tank with TDA 4.0 granulator

C285 granulate centrifuge

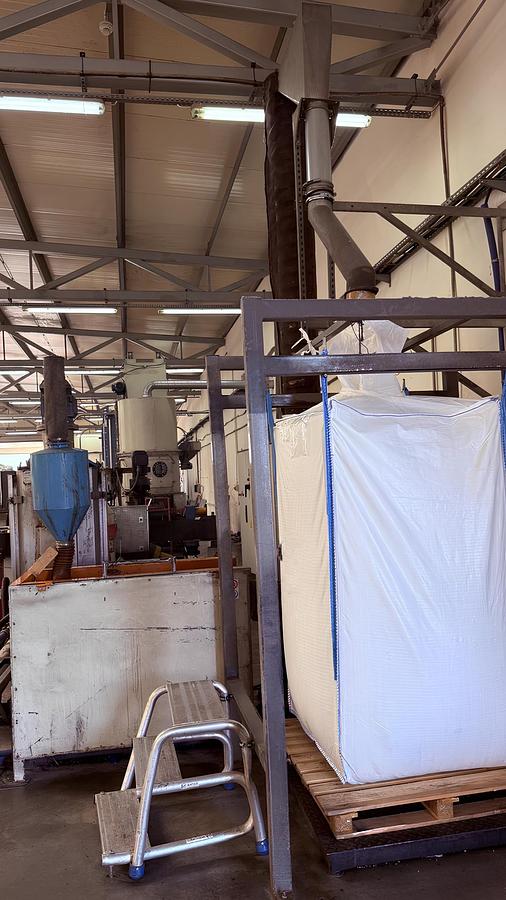

Granulate drying tower

Extruder motor 90 Kw - compactor motor 90 kw

Installed power 280 kw, 3x400V + N + PE

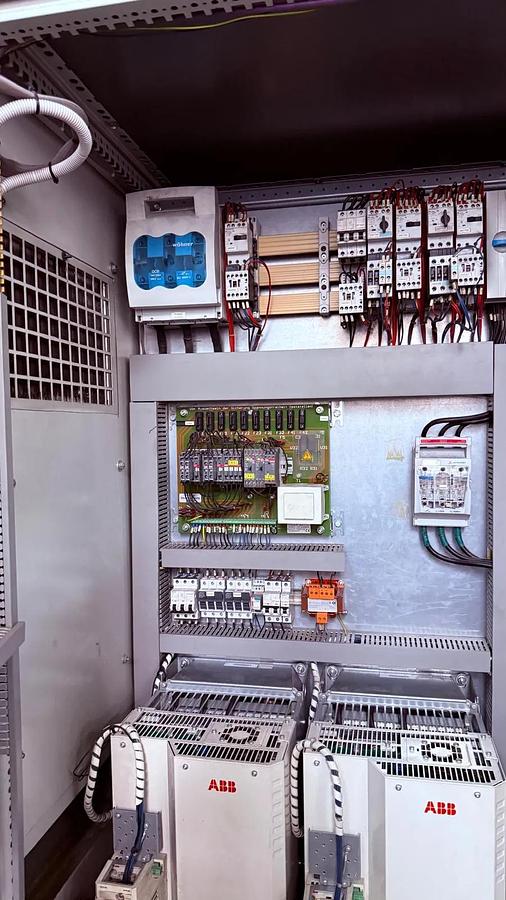

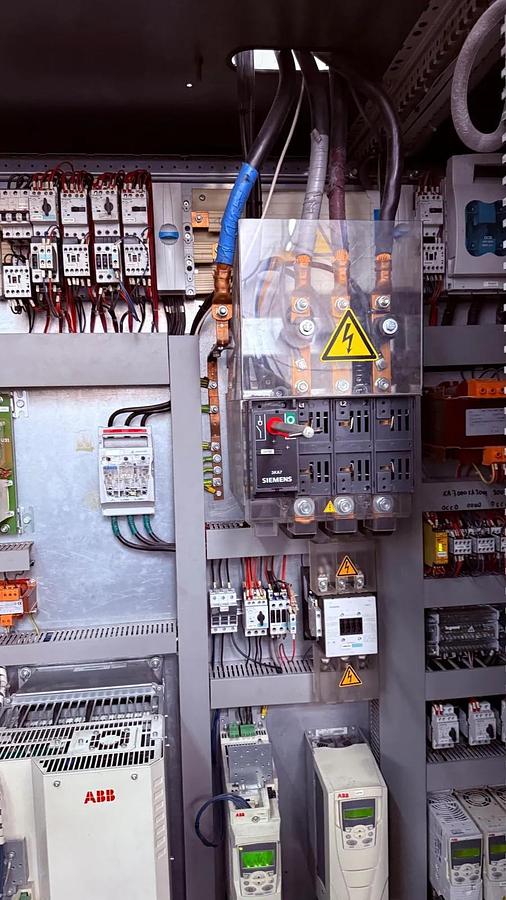

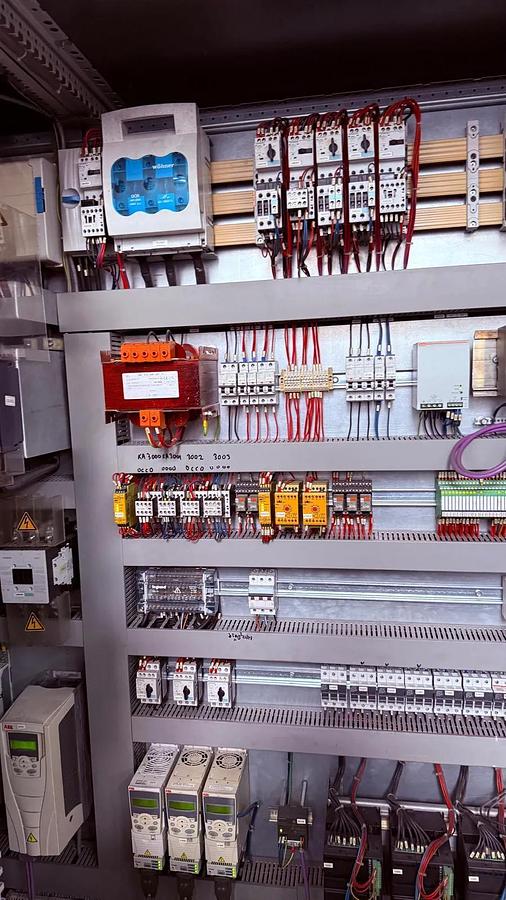

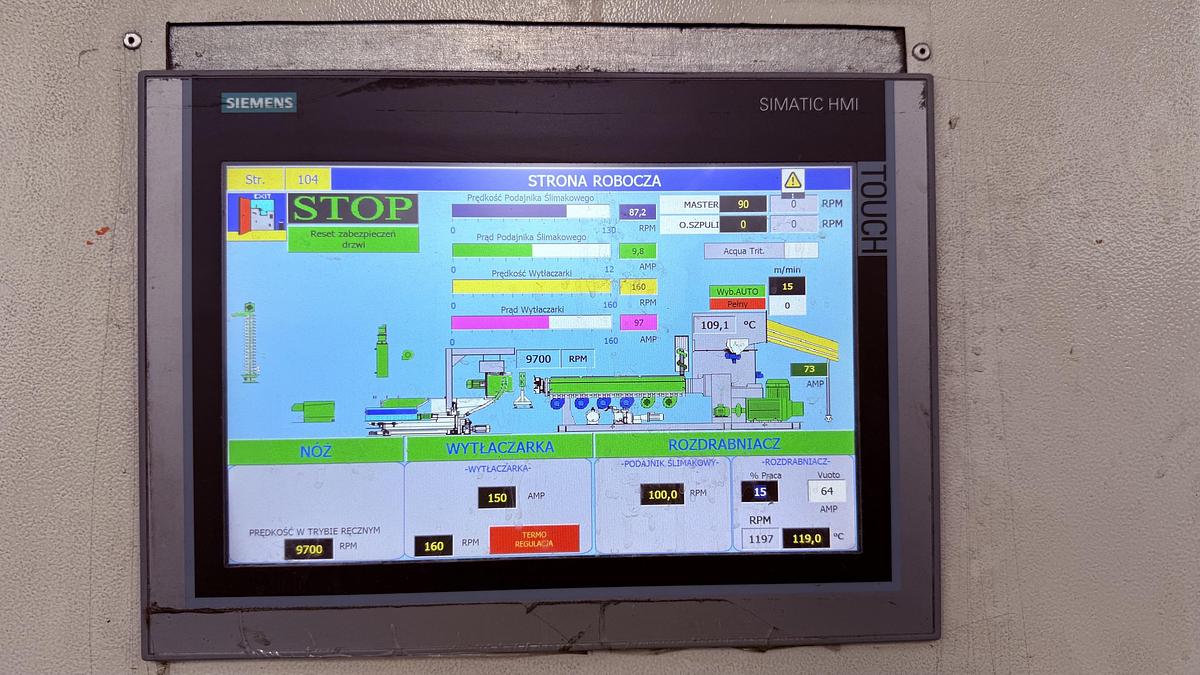

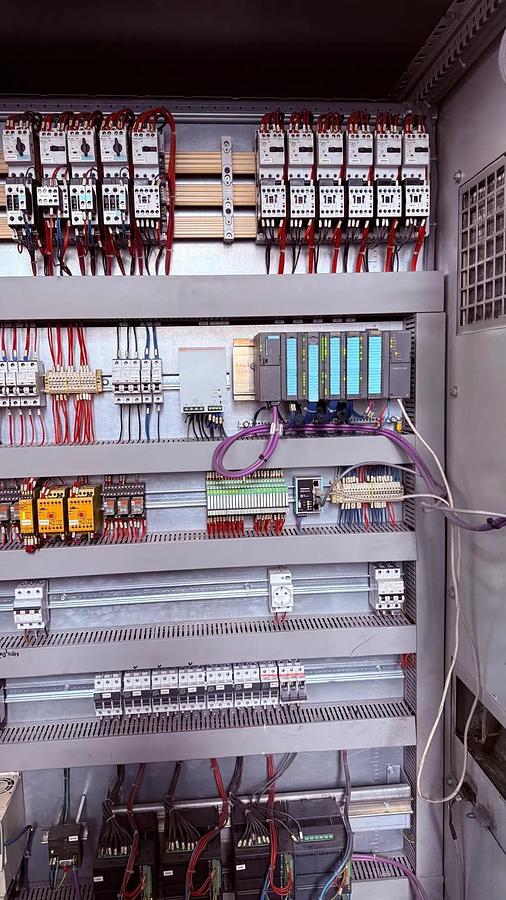

Ccentral Siemens control system fitted with a touchscreen HMI operator panel

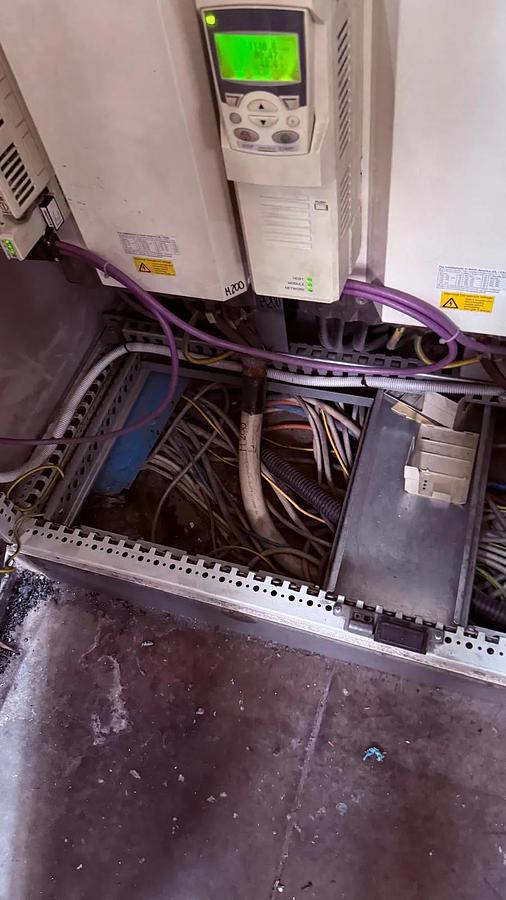

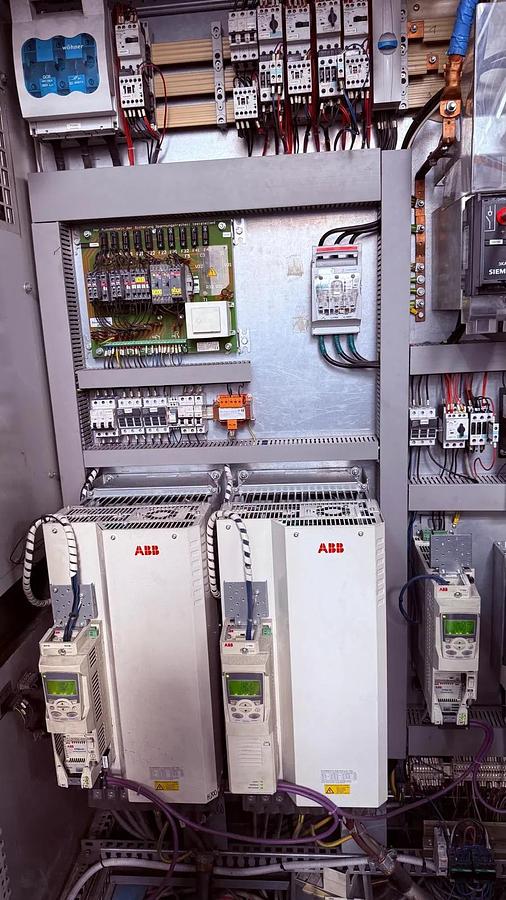

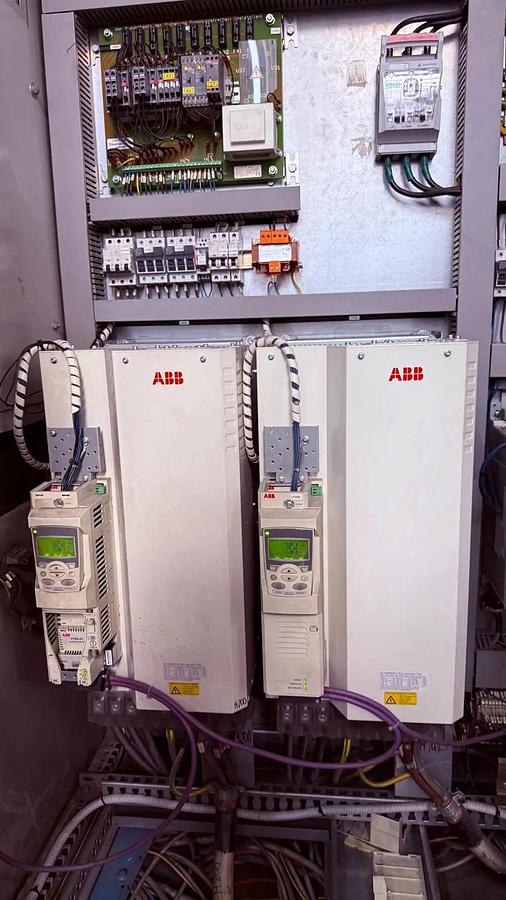

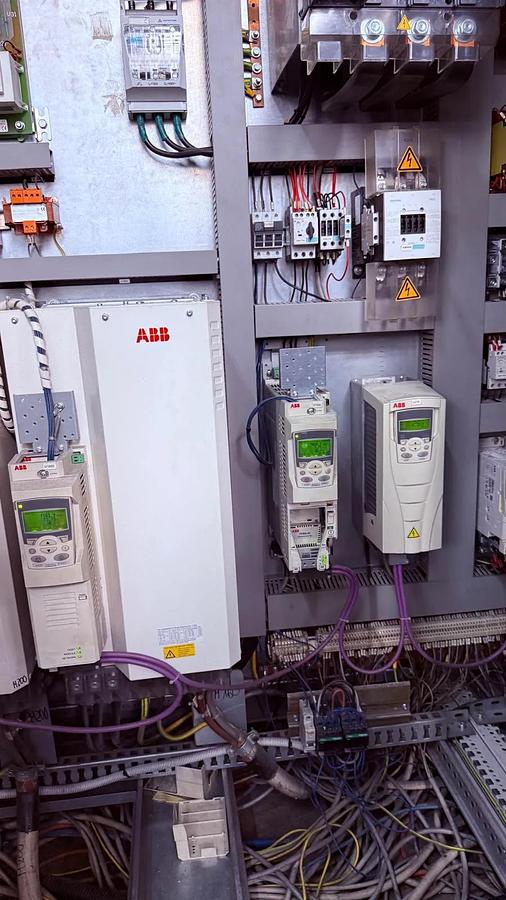

All motors are driven by ABB inverters, and all electrical components were supplied

by Siemens. The molten plastic pressure measurement system (sensor, controller) is by

Dynisco. The line is fitted with a safety module, including solenoid locks and limit switches.

The line is offered totally reconditioned

Some spares available

Ask for chilling unit, if needed - we can offer new machines at a very competitive price
