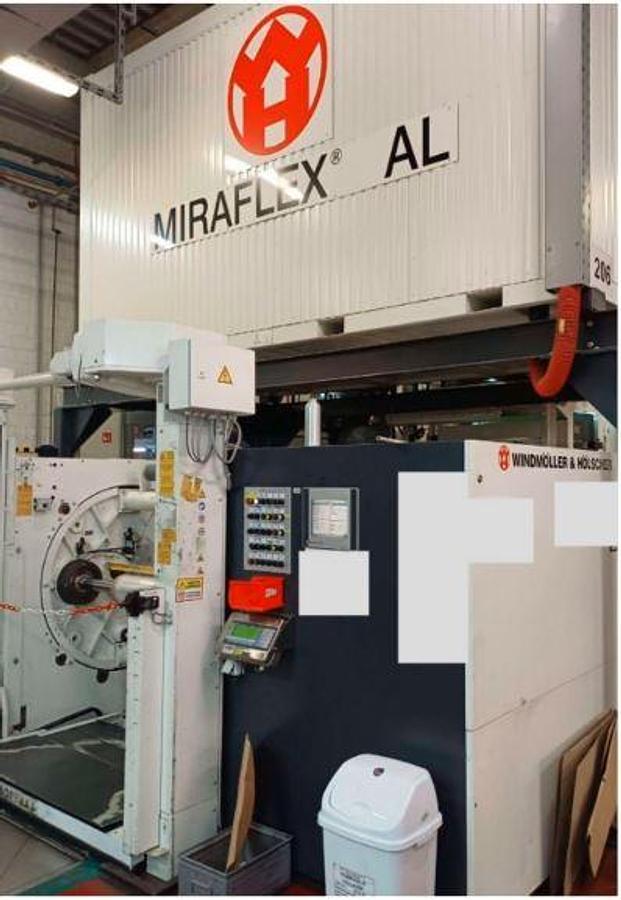

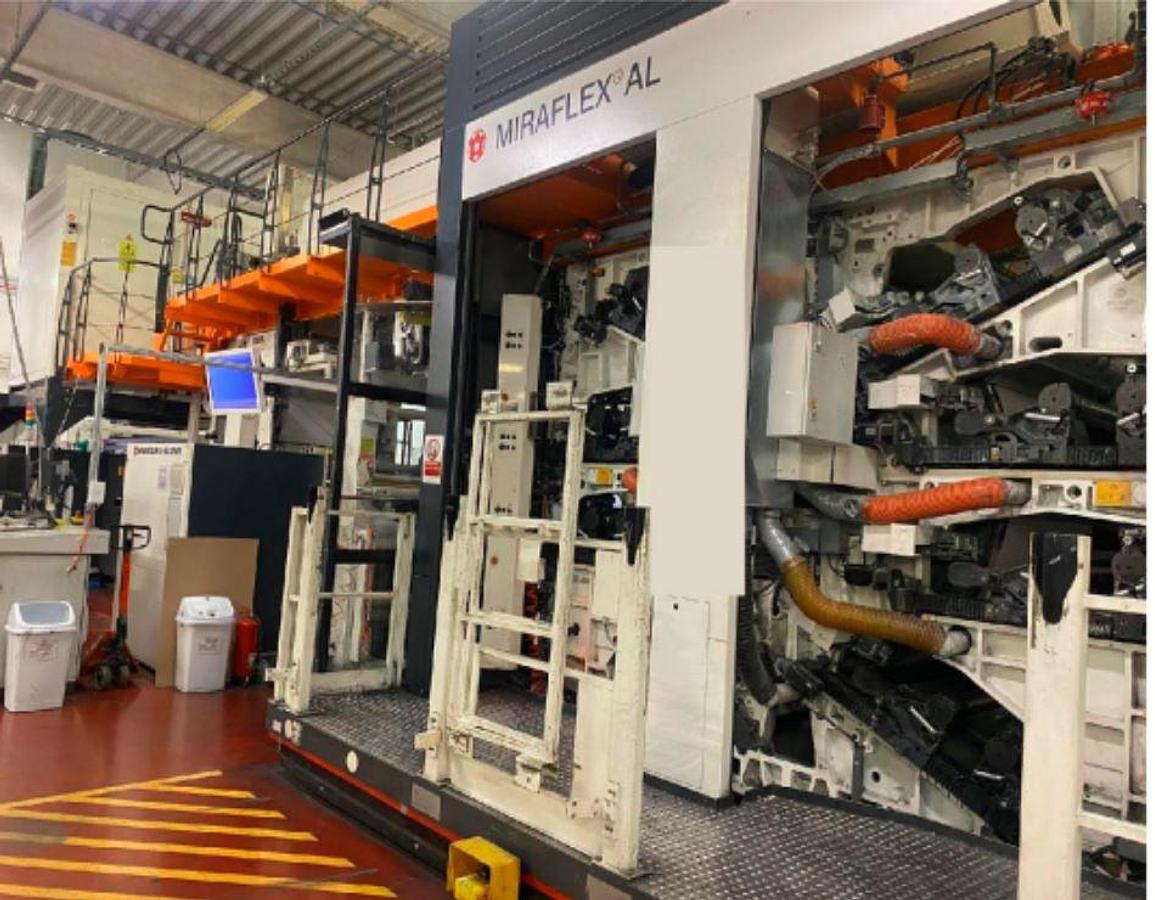

2013 WINDMÖLLER & HÖLSCHER Miraflex AL 8 c. 1270/1320 mm.

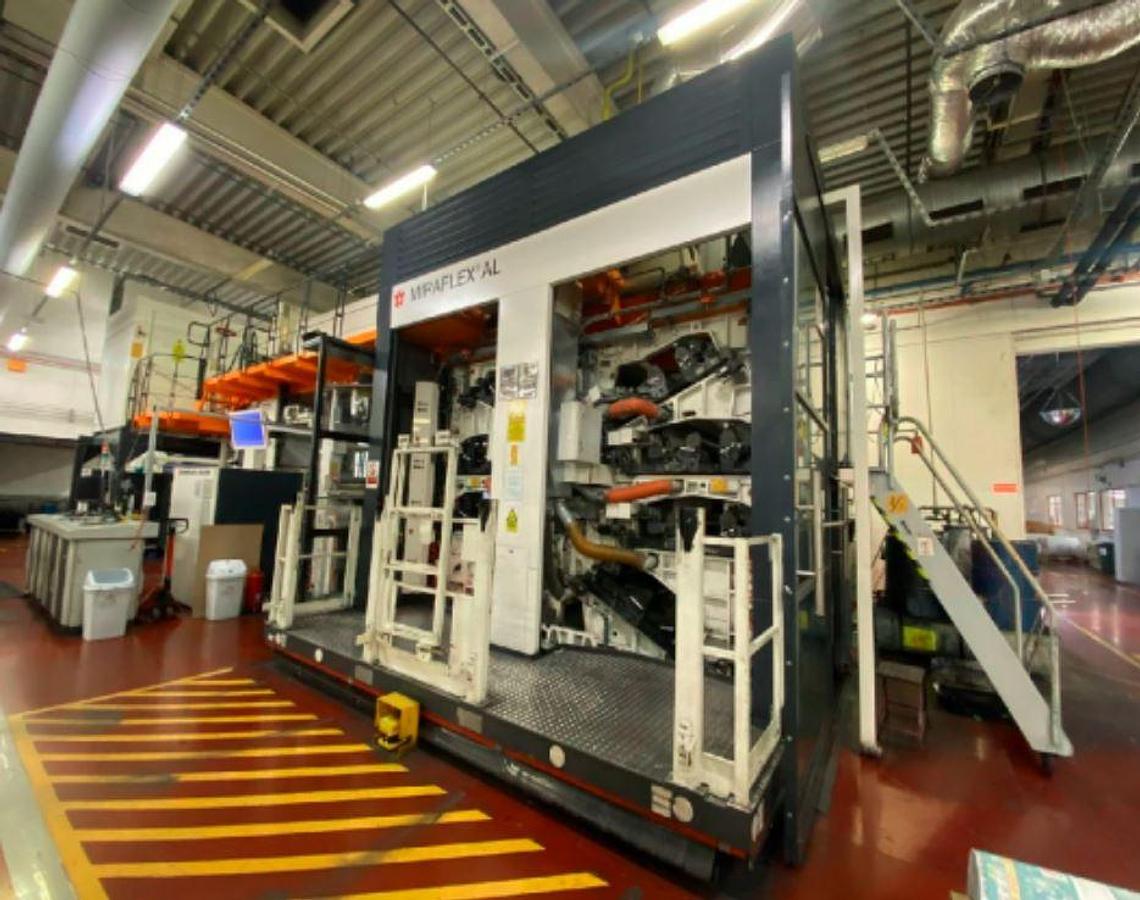

WINDMÖLLER & HÖLSCHER Miraflex AL 8

can print PE, OPP, CPP, PA, PET,

N.8 colors gearless

Fast sleeve change

Max. mechanical speed 400m/min

4 motor per deck CNC position system: Yes

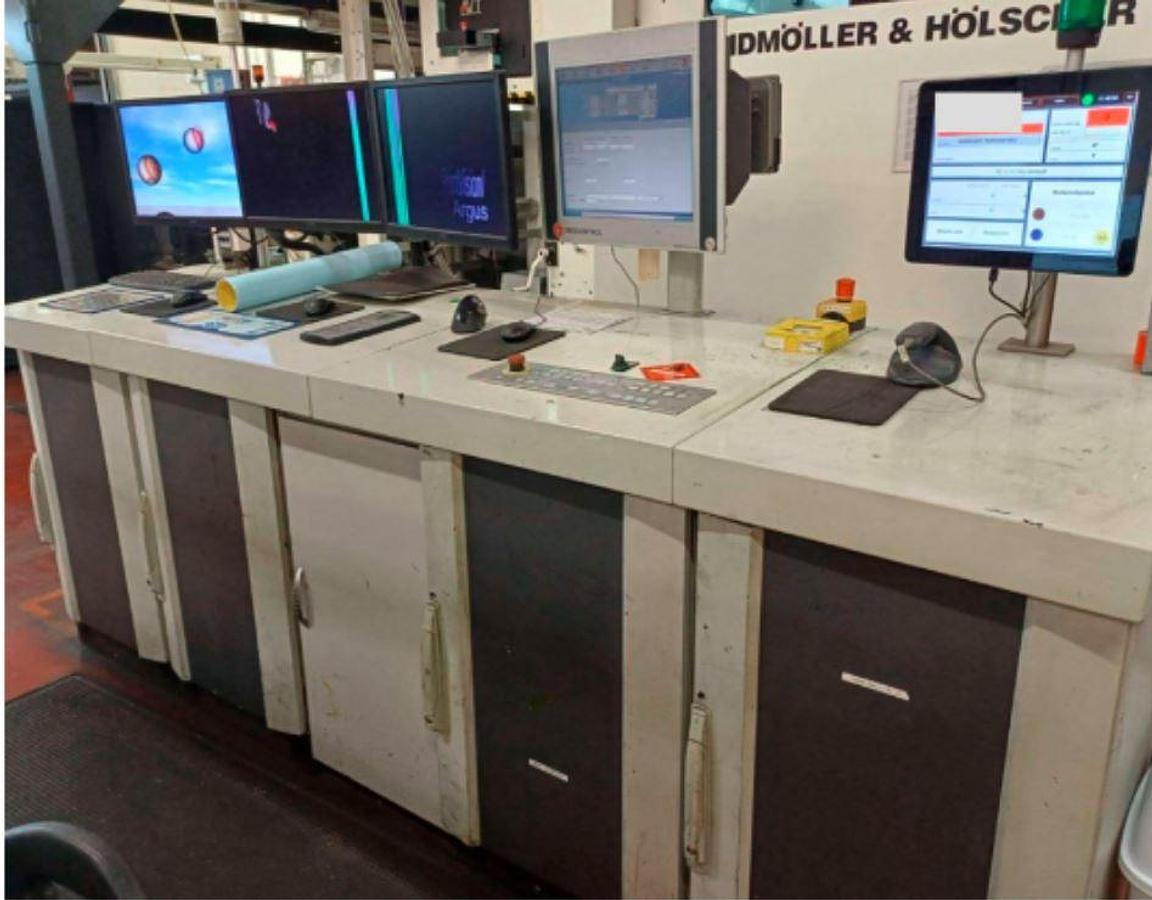

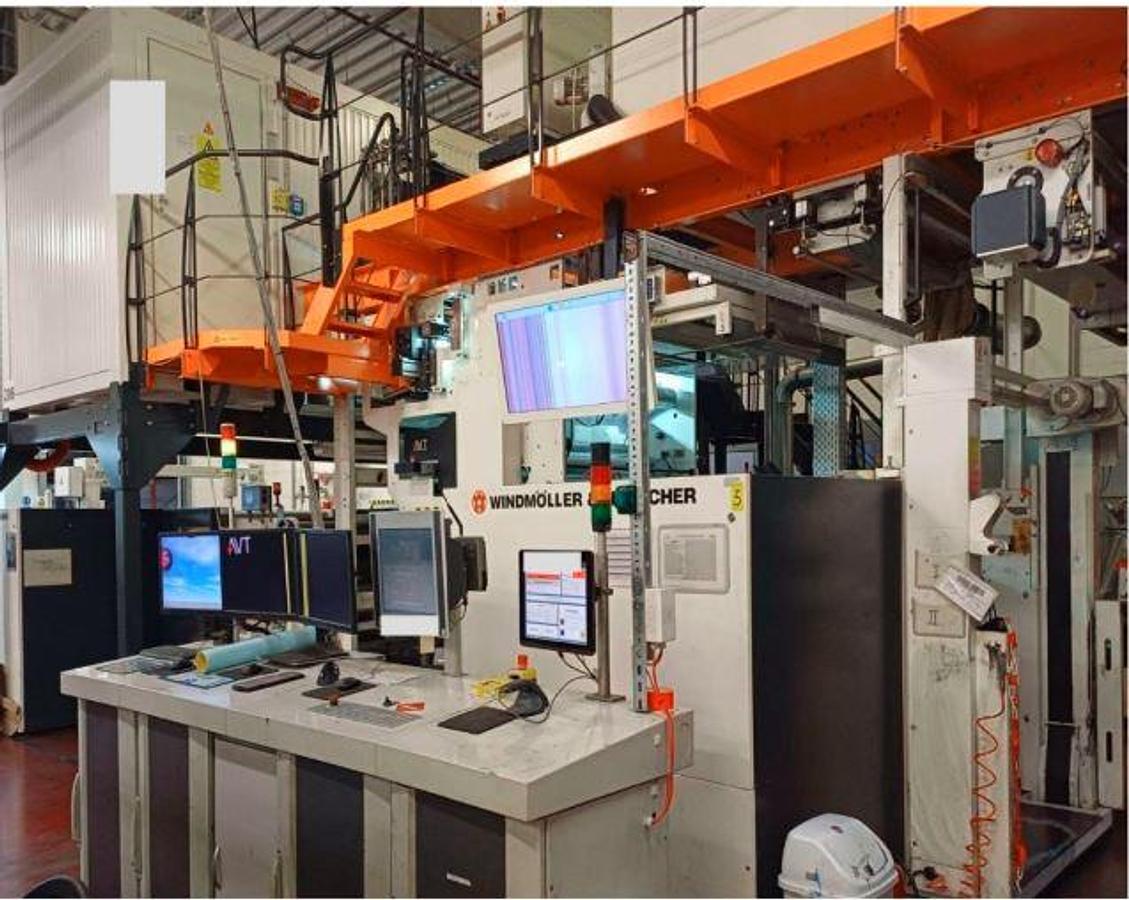

Computer supervision

Automatic printing setting Easyset WH

ACE web cleaner

Web width 1320 mm.

Printing width 1270 mm.

Min/Max printing repeat 370/1130 mm.

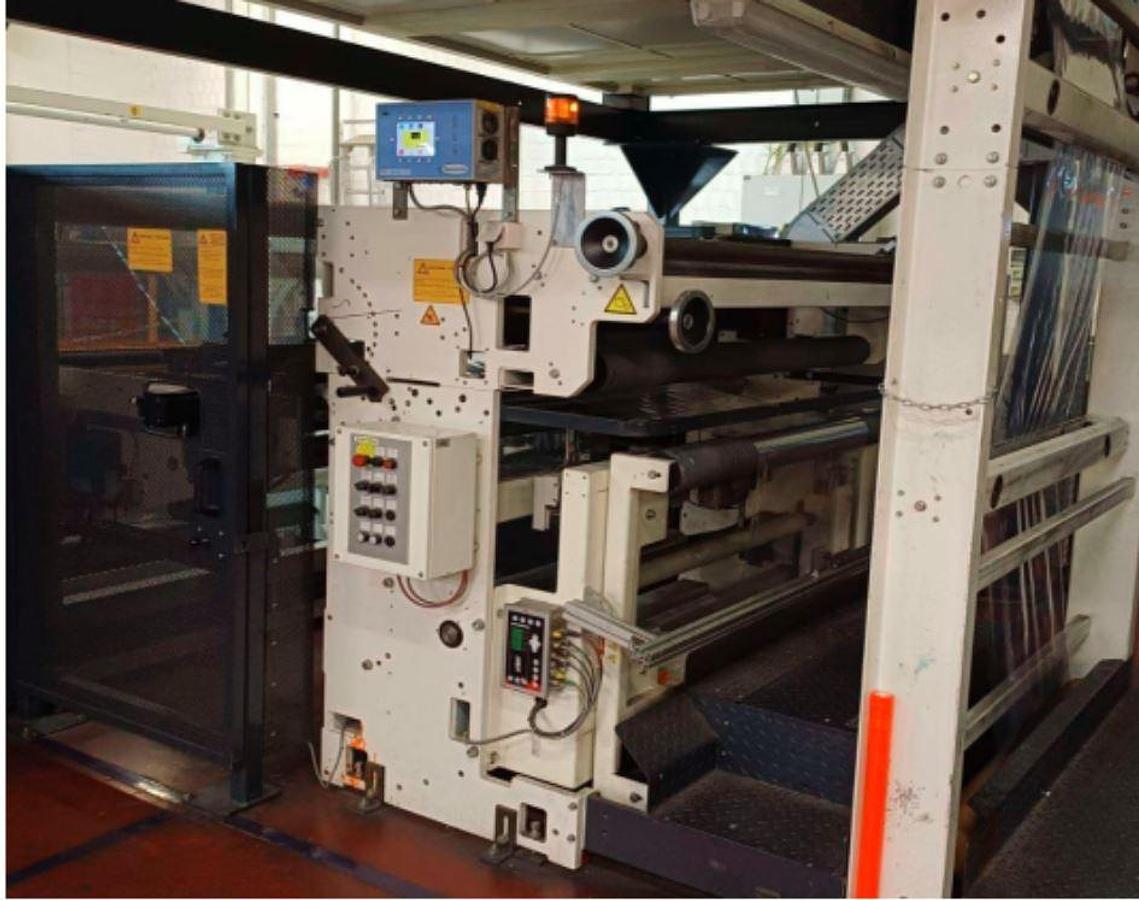

Turret Automatic Shaftless unwinder with roll loading system,

Max reel diameter unwinder 1000 mm.

Turret Automatic Shaftless rewinder with roll unloading system

Max reel diameter rewinder 1000 mm.

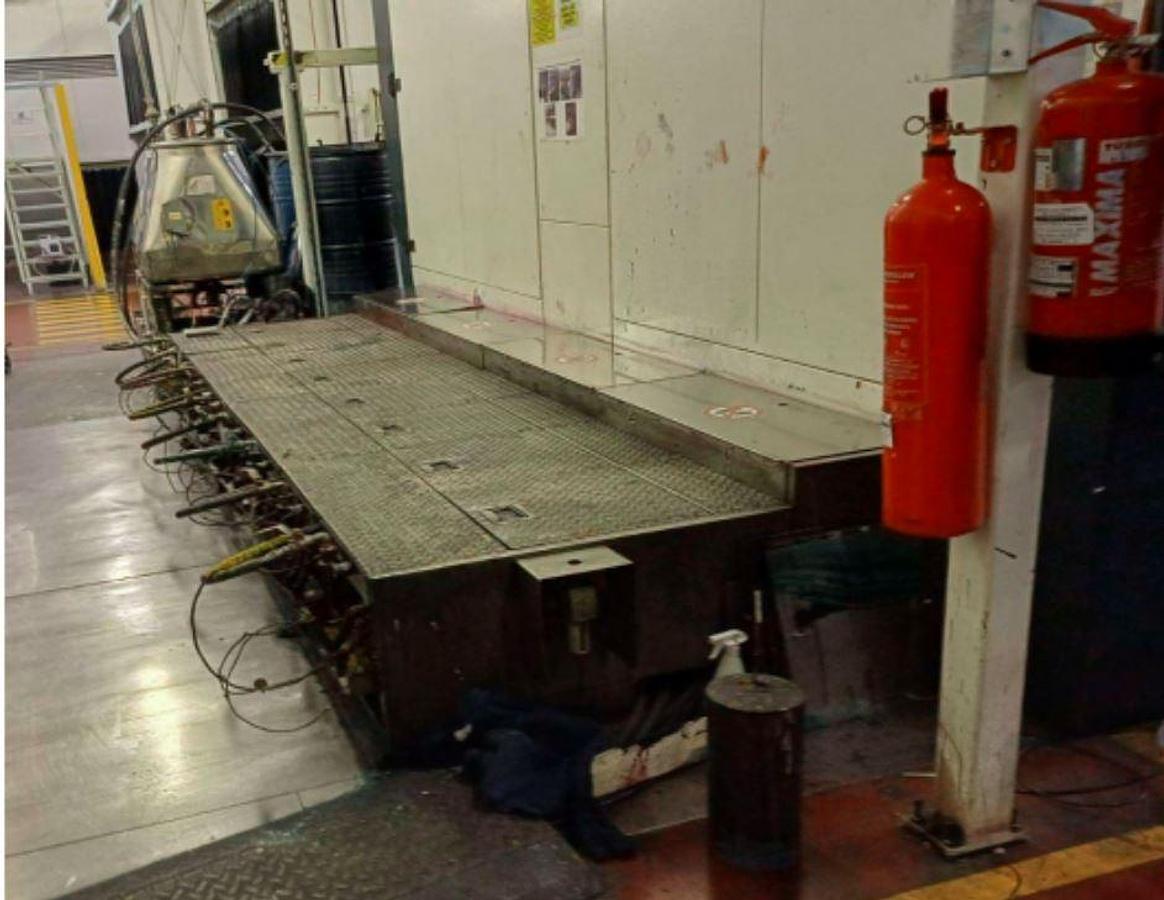

Drying: 2 zones , 4 fans , 6 m6 tunnel , 2 Gas burners, Automatic air recirculating

system with LEL control infrared type by Honeywell

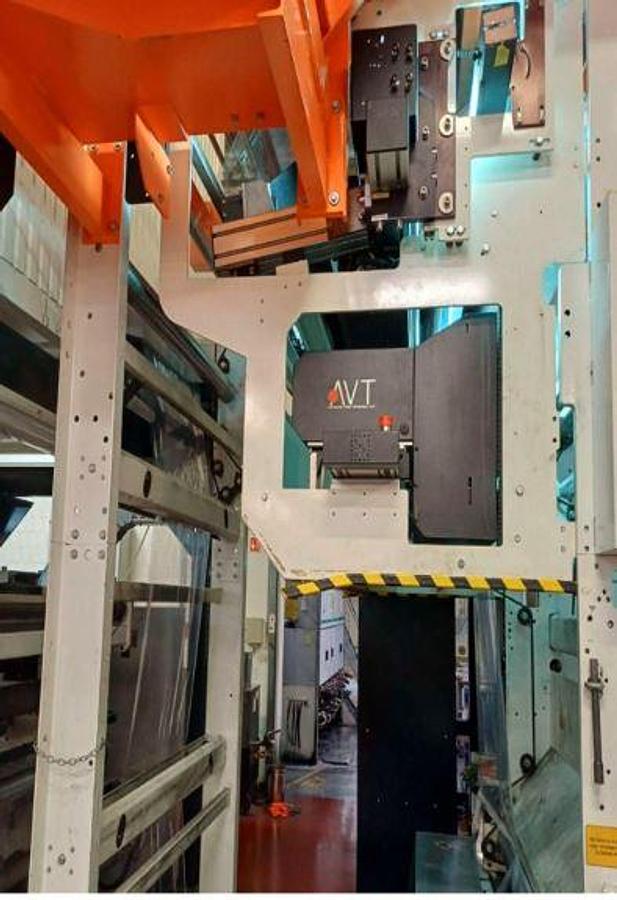

Videocamera: Yes, AVT. 3 chip matricidal camera and 100% inspection

Corona treatment : AFS Single Side 6KW, driven

Web guides

Vyscosity control: Inkspec, 3 solvents

Automatic washing system

Inking system: Closed chamber doctor blades, totally 14 piecs ( 8 +6 spare )

Anilox: 34 ceramic anilox sleeves

Print Sleeves: 400 sleeves, 8 sleeves for each following repeat 400mm , 410, 420,

430, 440, 450 , 460 , 470, 480, 490, 500 , 510, 520 , 530, 540 , 550 , 560 , 580 , 590 , 600

, 610 , 620 , 630 , 640 , 660, 670, 680, 690, 700 , 710 , 720 , 730 , 750 ,760 , 780 , 790 ,

810 , 820 , 830 , 840 , 850 , 860 , 870 , 890 24 pcs of adaptors 3 different sizes
