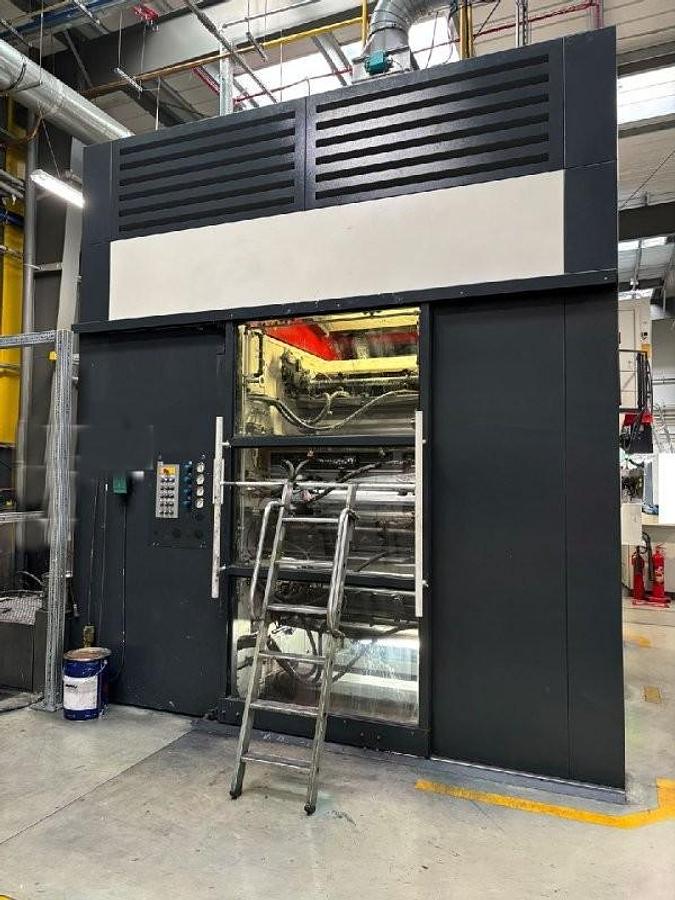

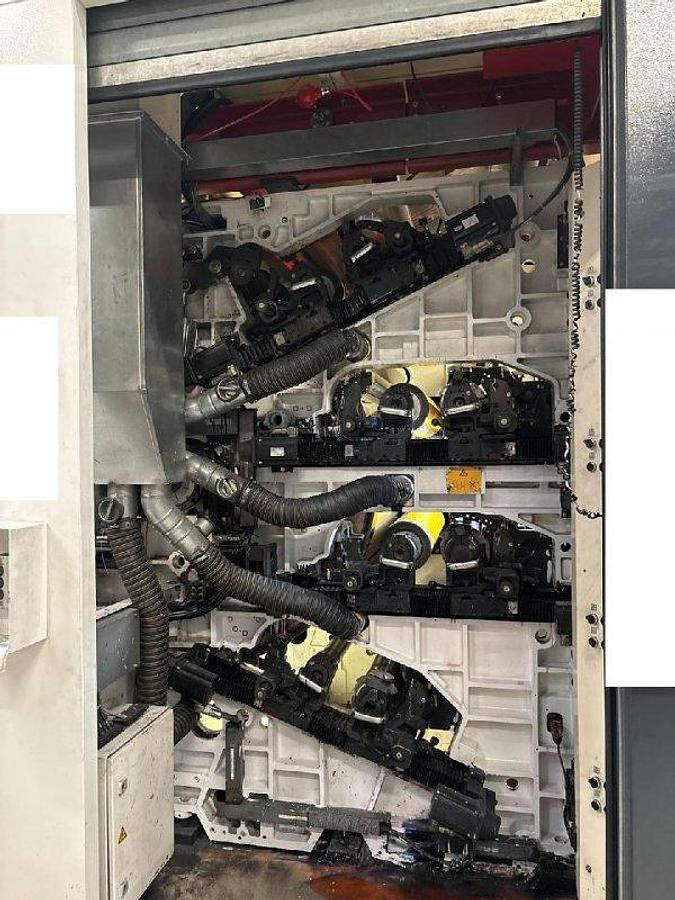

2013 WINDMÖLLER & HÖLSCHER Miraflex 8c gearless 1000/1050 mm.

WINDMÖLLER & HÖLSCHER Miraflex

8 colors, gearless

Camera and inspection system recently renovated

Fast sleeve change

4 motor per deck CNC position system

Computer supervision

Web width 1.050 mm.

Print width 1.000 mm.

Min print repeat 300 mm.

Max print repeat 800 mm.

Turret automatic unwinder and rewinder

Max reel diameter unwinder/rewinder 800 mm.

Drying - 2 zones, 4 fans, 2 gas burners

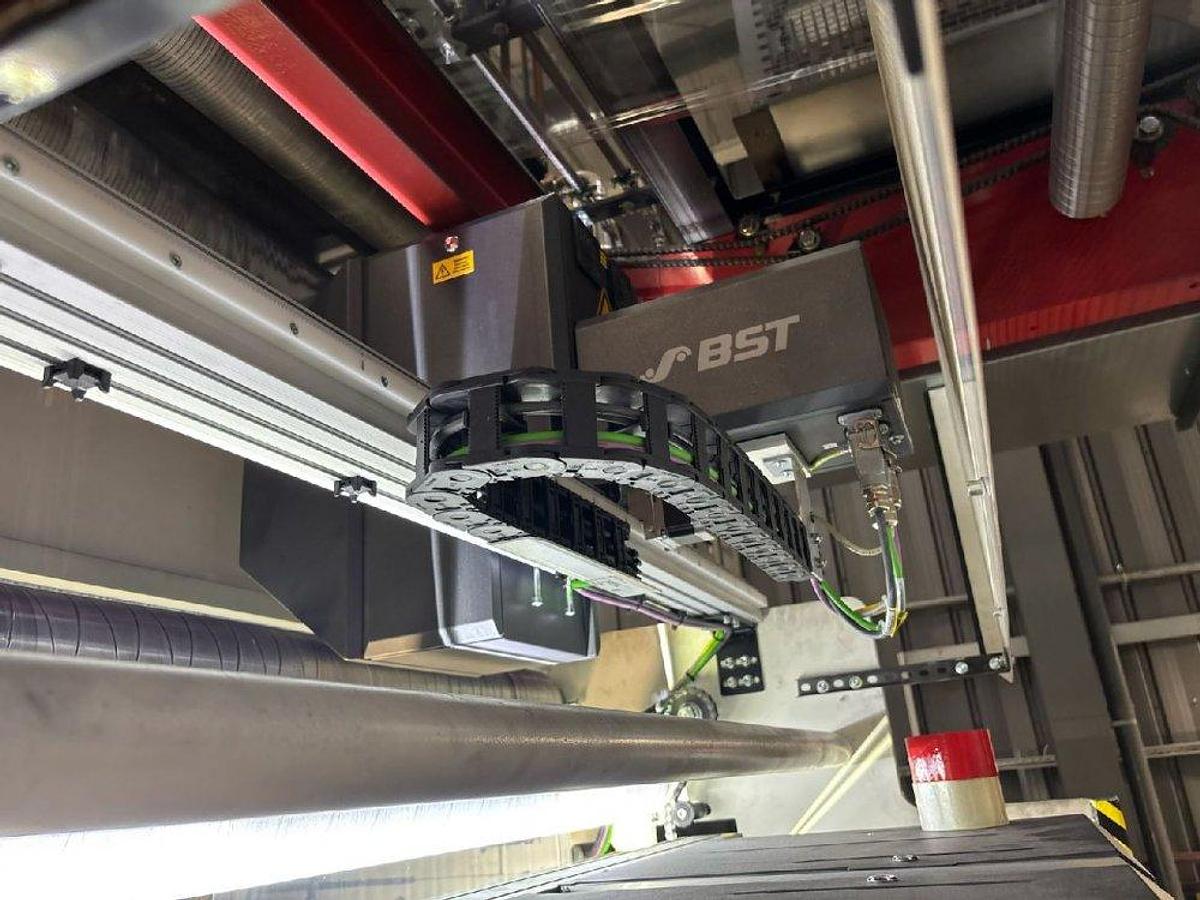

Videocamera y.2024 with automatic quality inspection system

Corona treatment

automatic vyscosity control

Turboclean automatic washing system

closed chamber doctor blades

n.32 ceramic anilox sleeves : 10 x 400 L/cm- vol.3,5 ; 4 x 470 L/cm- vol.3,5 ; 4x 340 L/cm-vol.5,5 ; 2x 300 L/cm-vol.7 ; 2x 280 L/cm-vol.8 ; 2x 200 L/cm-vol.10; 2x 160 L//cm- vol.10; 2x 120 L/cm-vol.12 ; 2x 100 L/cm-vol.15 ; 1x 140 L/cm- vol 16,5 1x 60 L/cm- vol 20

N.260 print sleeves - 8 for each following repeats :mm.300 -310 -320 -325 -330- 340 -350 - 355 - 360 -370 - 380 -385 - 390 - 400-410 - 420 -430 -440 -450- 460 - 470 - 480 (x16 ) , 500 -510 -520 -540 -560 - 580 - 590 -620 -660 -

Max. working speed 400m/min

EASY SET HD Automatic Impression setting

EASY REG S Automatic Register setting

EASY COL Colour matching system
